• Application: Jetta / Golf MK4 (for other adaptations. consult dimensions and check compatibility with your Project). For Jetta and Golf MK5 click here or search for TMW23.

• Turbine position: Top mount

• Turbine housing flange: Standard T3 (hot housing for right side - passenger)

• Wastegate flange: V-Band 44/45mm

• Runner internal diameter: 41.5mm

• Material: Cast iron

• Turbo flange threads: M10x1.5
  Wastegate flange (if applicable) threads: M8x1.25

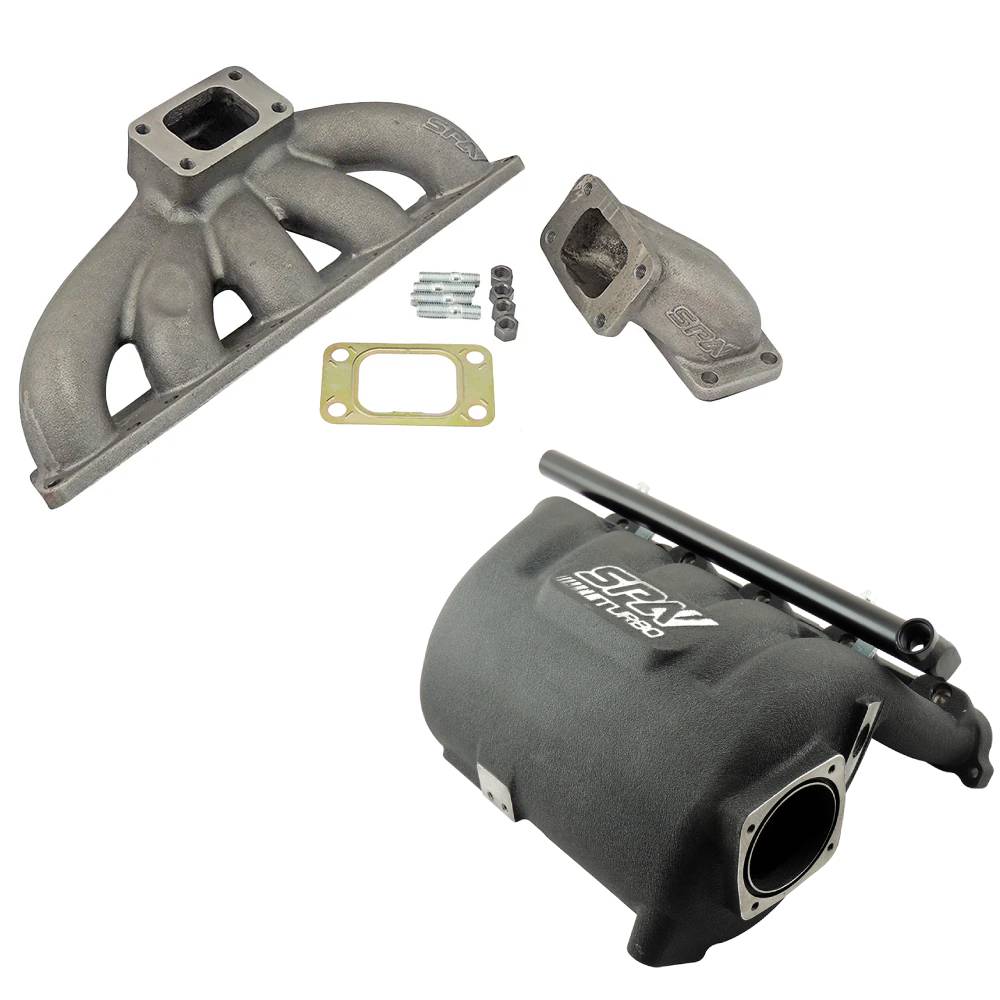

VW 2.5L 5 CYLINDER 20V 07K CAST ALUMINUM INTAKE MANIFOLD - WITH FUEL RAIL - BLACK

The new intake manifold for the VW 2.5L 5 cylinder engine is the newest release from SPA Turbo! t's 100% cast aluminum, with no welds, allowing you to increase the boost without fear of sending the stock intake manifold flying

• Application: VW 5 cyl 2.5L 20V FSI (compatible with hydraulic and electric steering)
• Number of injectors: 5
• Fuel rail: anodized aluminum,
• Fuel rail inlet/outlet: -8AN inlet/outlet
• Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long
• Throttle body bolt hole pattern: Stock
• Max working capacity: 10bar (145psi)
• Internal volume: 6,2L
• Material: Cast aluminum
• Compatible with hydraulic and electric steering.
• Includes:
  Fitting for stock breather hose (-10AN).
  2X 1/8" NPT block off (if vacuum ports are not used).
  Oil dipstick holder.

• Compatible with original MAP sensor - ref. 0261230095 (not included).

• Not compatible with the original plastic engine cover.
