SPA Performance brings another great news for VW 5 cylinder 2.5L lovers! It has better flow compared to the TMW17 thanks to studies by our engineering sector and also accommodates large turbines such as .70, HX40, GT35 and similar and uses a standard 44/45mm V-Band wastegate valve.

  • Application: Jetta / Golf MK4 (for other adaptations. consult dimensions and check compatibility with your Project). For Jetta and Golf MK5 click here or search for TMW23.

  • Turbine position: Top mount

  • Turbine housing flange: Standard T3 (hot housing for right side - passenger)

  • Wastegate flange: V-Band 44/45mm

  • Runner internal diameter: 41.5mm

  • Material: Cast iron

  • Turbo flange threads: M10x1.5
    Wastegate flange (if applicable) threads: M8x1.25

VW 2.5L 5 CYLINDER 20V 07K CAST ALUMINUM INTAKE MANIFOLD - BLACK

The new intake manifold for the VW 2.5L 5 cylinder engine is the newest release from SPA Turbo! t's 100% cast aluminum, with no welds, allowing you to increase the boost without fear of sending the stock intake manifold flying

  • Application: VW 5 cyl 2.5L 20V FSI (compatible with hydraulic and electric steering)
  • Number of injectors: 5
  • Fuel rail: Stock
  • Fuel rail inlet/outlet: Stock
  • Throttle body bolt hole pattern: Stock
  • Max working capacity: 10bar (145psi)
  • Internal volume: 6,2L
  • Material: Cast aluminum
  • Compatible with hydraulic and electric steering.
  • Includes:
    Fitting for stock breather hose (-10AN).
    2X 1/8" NPT block off (if vacuum ports are not used).
    Oil dipstick holder.
  • Compatible with original MAP sensor - ref. 0261230095 (not included).
  • Not compatible with the original plastic engine cover.

SPA TURBO USA

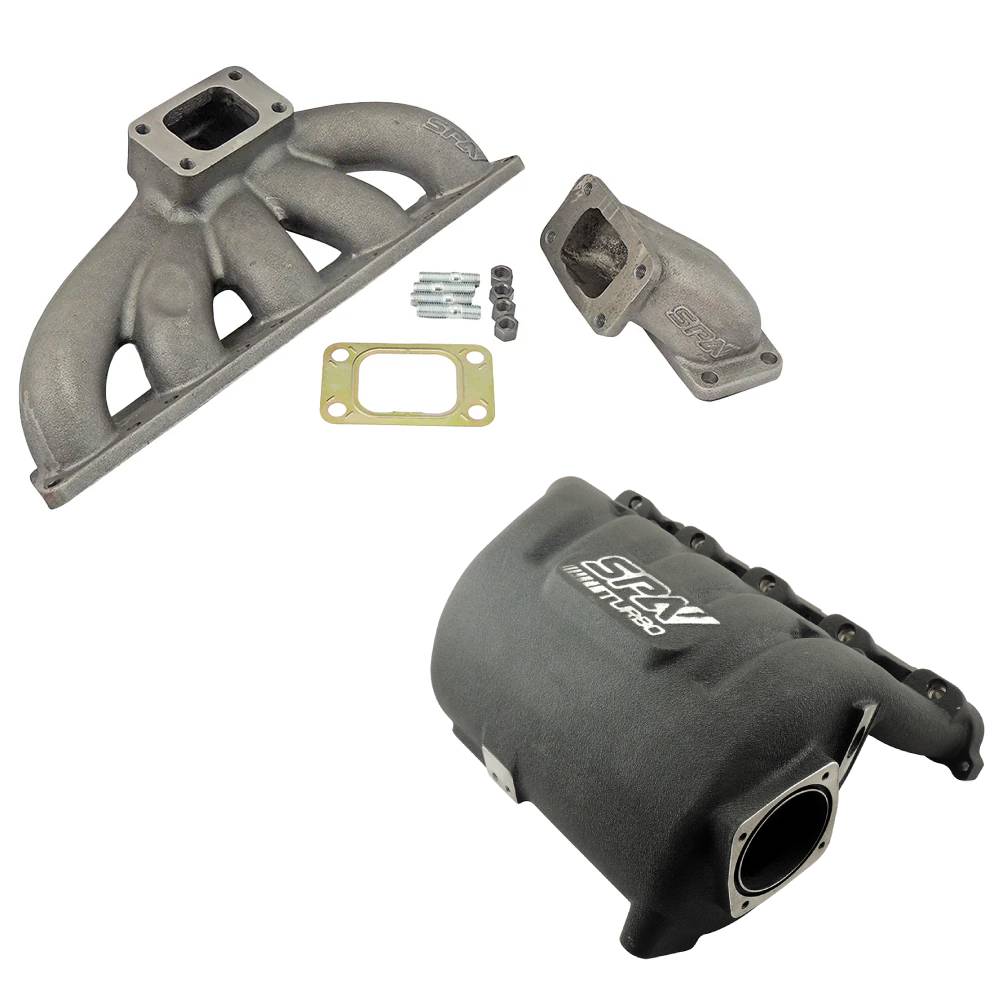

VW Jetta / Golf MK4 2.5L 5 cylinder 20V 07K T3 top mount turbo manifold + Intake Manifold - Black

SKU CMBTINW1101BTMW23B
$1,049.90

SPA Performance brings another great news for VW 5 cylinder 2.5L lovers! It has better flow compared to the TMW17 thanks to studies by our engineering sector and also accommodates large turbines such as .70, HX40, GT35 and similar and uses a standard 44/45mm V-Band wastegate valve.

  • Application: Jetta / Golf MK4 (for other adaptations. consult dimensions and check compatibility with your Project). For Jetta and Golf MK5 click here or search for TMW23.

  • Turbine position: Top mount

  • Turbine housing flange: Standard T3 (hot housing for right side - passenger)

  • Wastegate flange: V-Band 44/45mm

  • Runner internal diameter: 41.5mm

  • Material: Cast iron

  • Turbo flange threads: M10x1.5
    Wastegate flange (if applicable) threads: M8x1.25

VW 2.5L 5 CYLINDER 20V 07K CAST ALUMINUM INTAKE MANIFOLD - BLACK

The new intake manifold for the VW 2.5L 5 cylinder engine is the newest release from SPA Turbo! t's 100% cast aluminum, with no welds, allowing you to increase the boost without fear of sending the stock intake manifold flying

  • Application: VW 5 cyl 2.5L 20V FSI (compatible with hydraulic and electric steering)
  • Number of injectors: 5
  • Fuel rail: Stock
  • Fuel rail inlet/outlet: Stock
  • Throttle body bolt hole pattern: Stock
  • Max working capacity: 10bar (145psi)
  • Internal volume: 6,2L
  • Material: Cast aluminum
  • Compatible with hydraulic and electric steering.
  • Includes:
    Fitting for stock breather hose (-10AN).
    2X 1/8" NPT block off (if vacuum ports are not used).
    Oil dipstick holder.
  • Compatible with original MAP sensor - ref. 0261230095 (not included).
  • Not compatible with the original plastic engine cover.
$1,049.90

Frequently Bought Together

Total price$2,346.90

Product Description


SPA Performance brings another great news for VW 5 cylinder 2.5L lovers! It has better flow compared to the TMW17 thanks to studies by our engineering sector and also accommodates large turbines such as .70, HX40, GT35 and similar and uses a standard 44/45mm V-Band wastegate valve.

  • Application: Jetta / Golf MK4 (for other adaptations. consult dimensions and check compatibility with your Project). For Jetta and Golf MK5 click here or search for TMW23.

  • Turbine position: Top mount

  • Turbine housing flange: Standard T3 (hot housing for right side - passenger)

  • Wastegate flange: V-Band 44/45mm

  • Runner internal diameter: 41.5mm

  • Material: Cast iron

  • Turbo flange threads: M10x1.5
    Wastegate flange (if applicable) threads: M8x1.25

VW 2.5L 5 CYLINDER 20V 07K CAST ALUMINUM INTAKE MANIFOLD - BLACK

The new intake manifold for the VW 2.5L 5 cylinder engine is the newest release from SPA Turbo! t's 100% cast aluminum, with no welds, allowing you to increase the boost without fear of sending the stock intake manifold flying

  • Application: VW 5 cyl 2.5L 20V FSI (compatible with hydraulic and electric steering)
  • Number of injectors: 5
  • Fuel rail: Stock
  • Fuel rail inlet/outlet: Stock
  • Throttle body bolt hole pattern: Stock
  • Max working capacity: 10bar (145psi)
  • Internal volume: 6,2L
  • Material: Cast aluminum
  • Compatible with hydraulic and electric steering.
  • Includes:
    Fitting for stock breather hose (-10AN).
    2X 1/8" NPT block off (if vacuum ports are not used).
    Oil dipstick holder.
  • Compatible with original MAP sensor - ref. 0261230095 (not included).
  • Not compatible with the original plastic engine cover.
