SINGLE PART - LAST PART OF THE BATCH

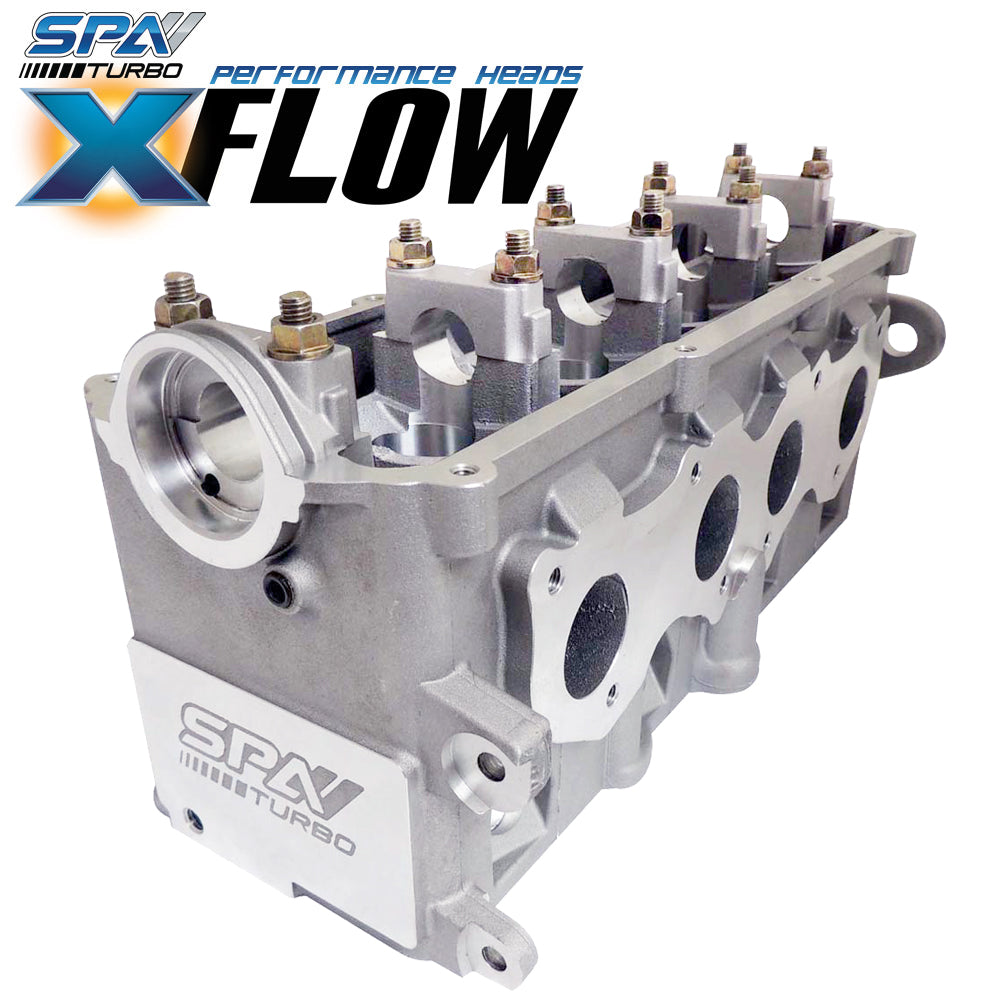

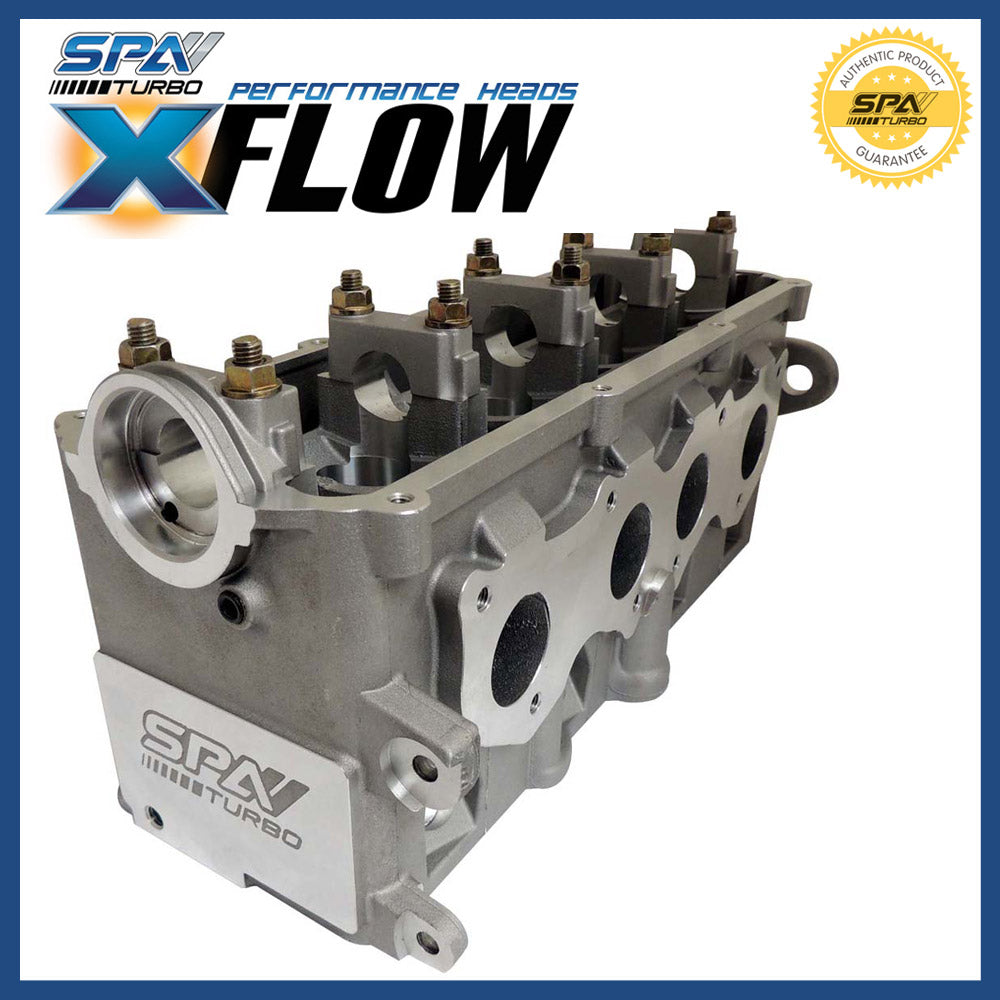

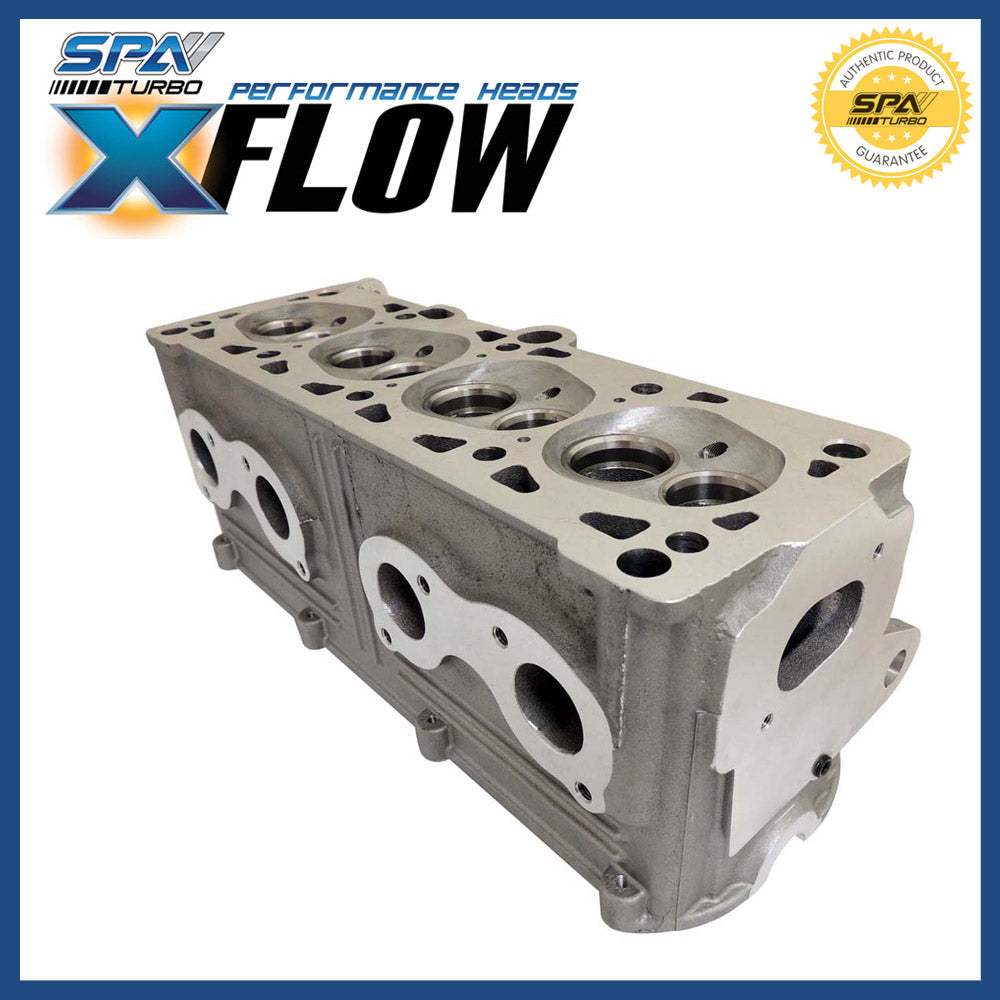

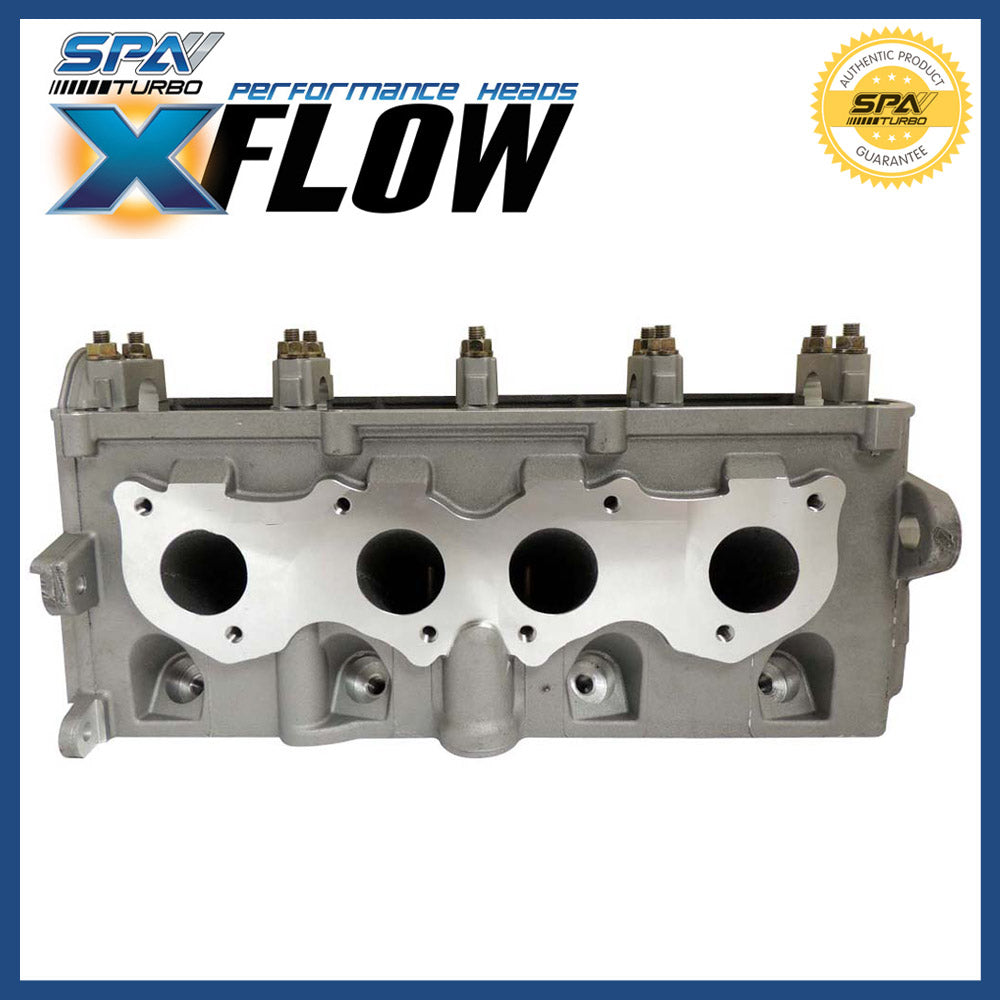

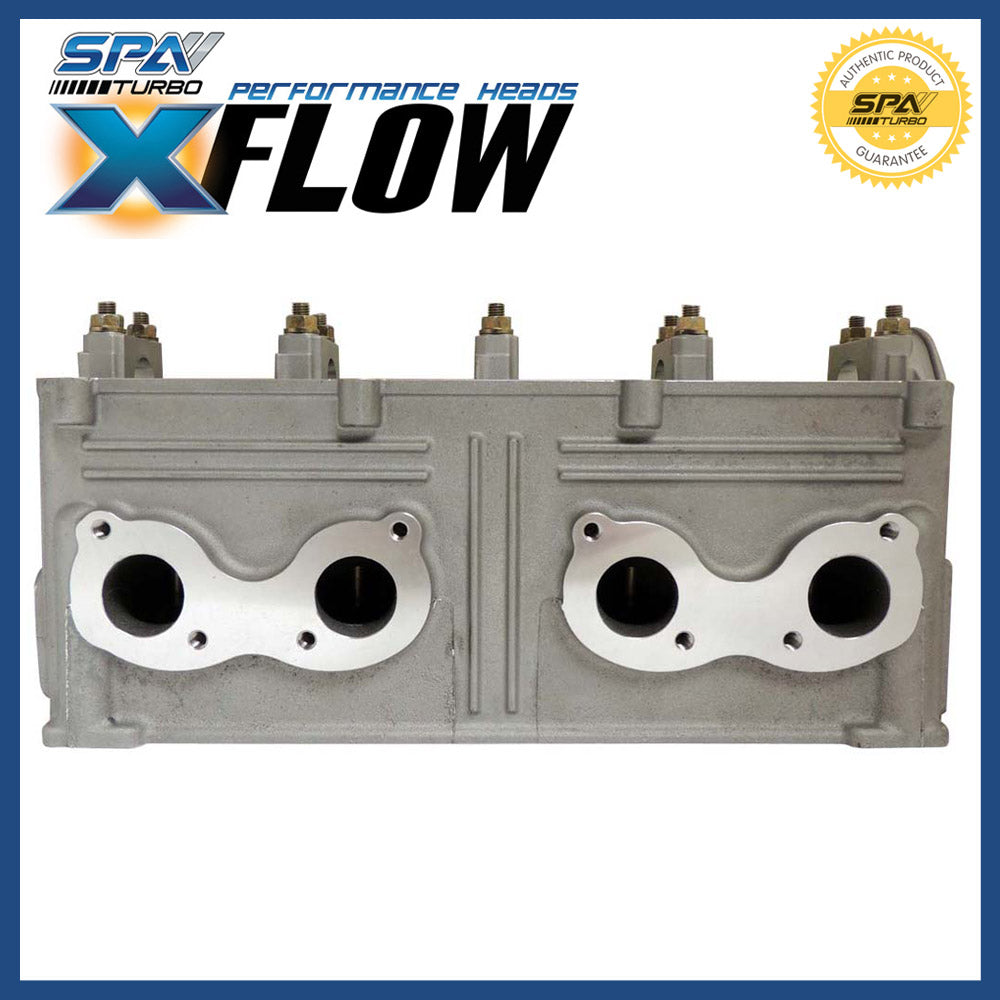

• The ALL NEW SPA Turbo X-Flow Cylinder head.
• ATTENTION!
  This is a RACE Head, not a out-of-the box product, it use requires port work, combustion chamber work, valve seat work, and customs products that are not included and has to be made by a professional engine builder. please clear all of your questions before purchase it.
• This bare cast cylinder head flows as much as a 16V Head, and there is room for improvement, designed with the best VW engine buiders in South america and Europe, the SPA X-Flow head is for the ABA block lovers, and for countries that swap engines are not allowed.
• the head accepts OEM camshafts, and will direct fit on any ABA block.

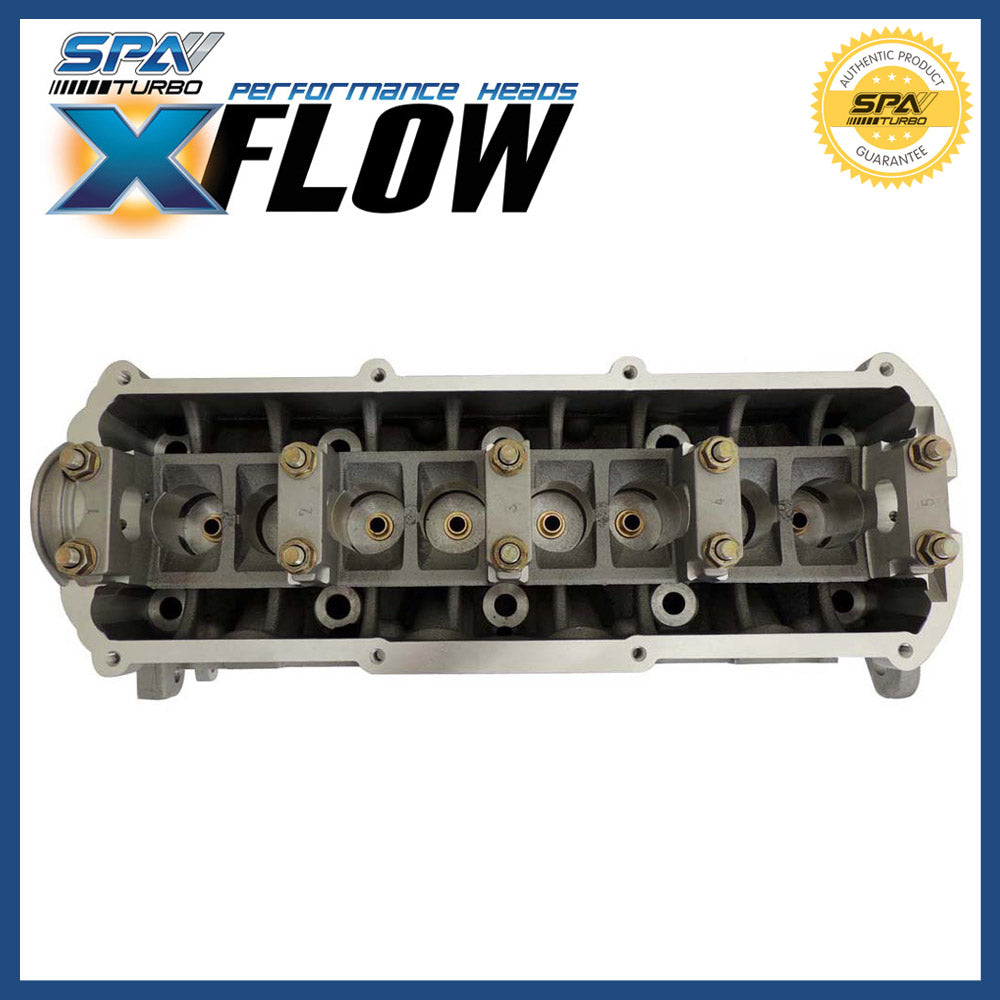

• This list includes only the cylinder head with seats, valve guides and camshaft caps.
• Intake valve seats: 41mm 8mm valve guides.
• Exhaust valve seats: 36mm 8mm valve guides.
• 35mm size lifters (not included).
• Spark plugs: 10mm / 3/4" reach / 5/8"HEX (01-05 SUZUKI GSXR 1000 similar).

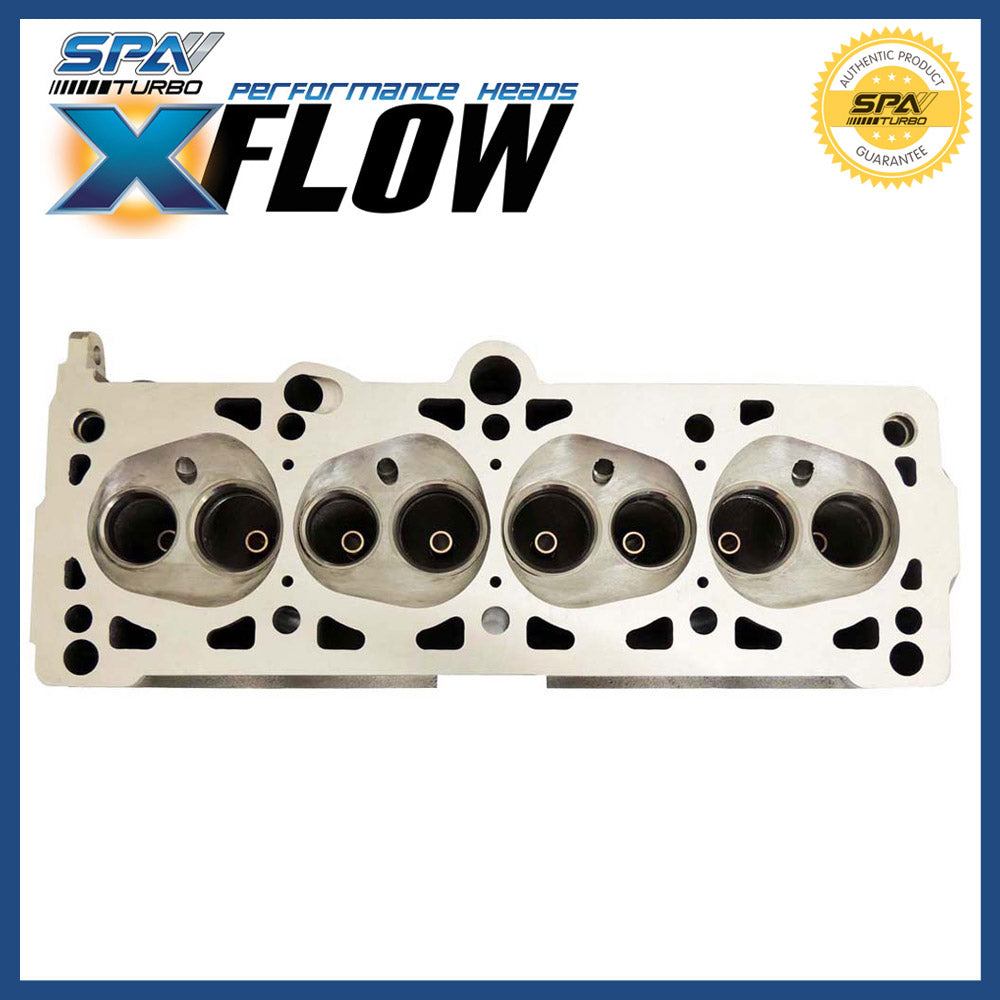

• 30cc combustion chamber volume.
• accepts 8v OEM camshafts.
• when you purchase we'll provide the .DWG files for the exhaust and intake manifold flanges, need to be custom made.

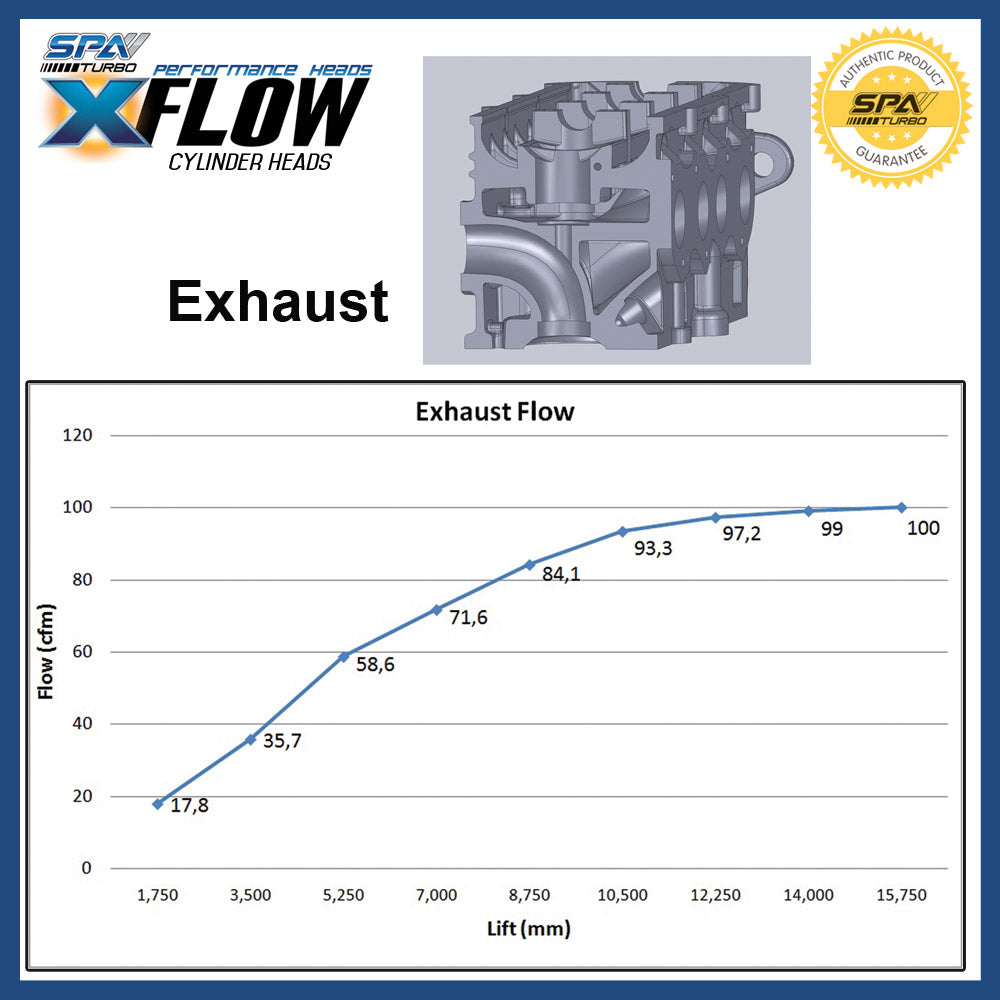

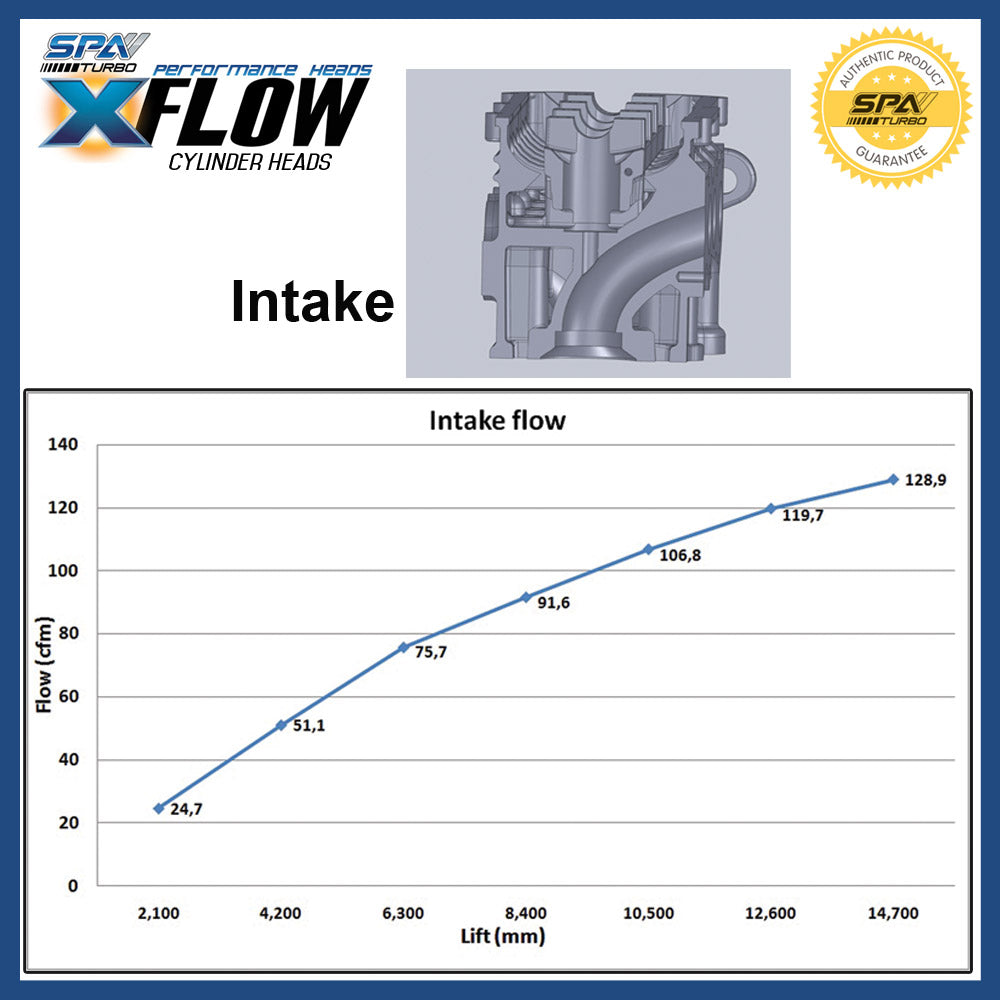

• Flow charts @ 10 in H2O, check the video for 28" flow charts.
• check the video below with all the head specs.
