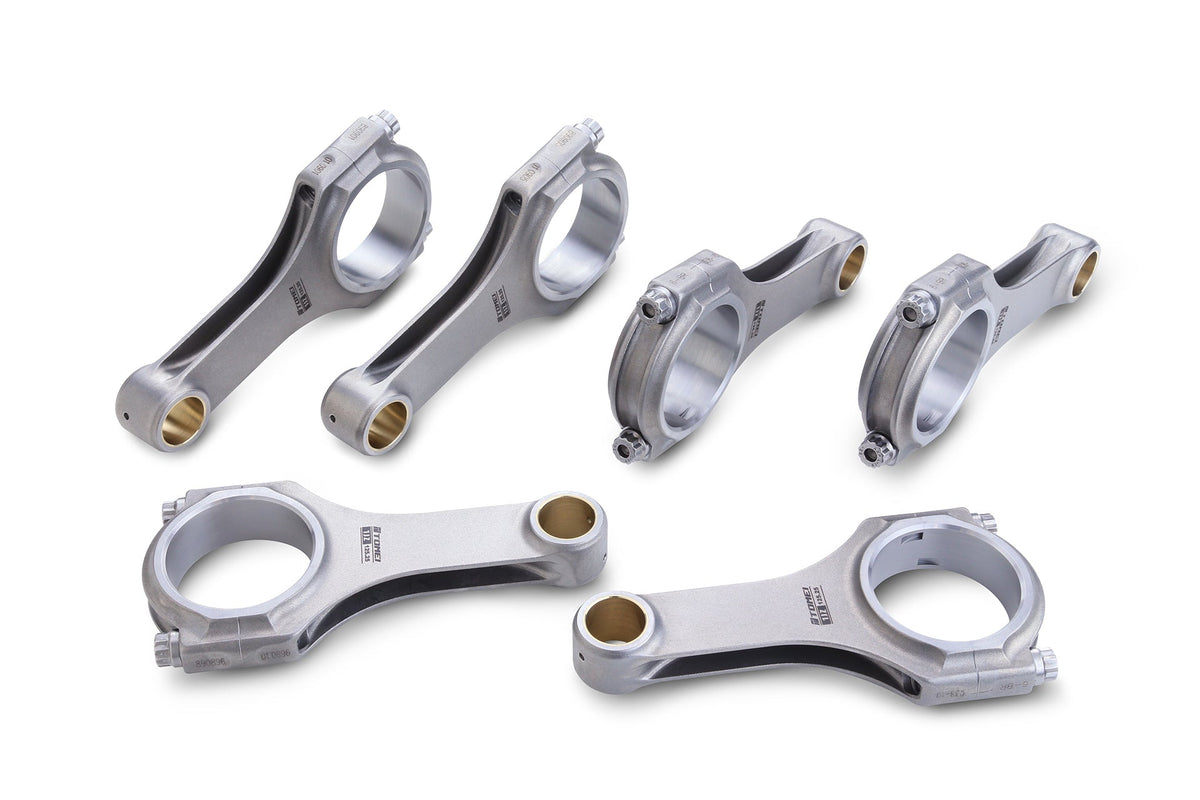

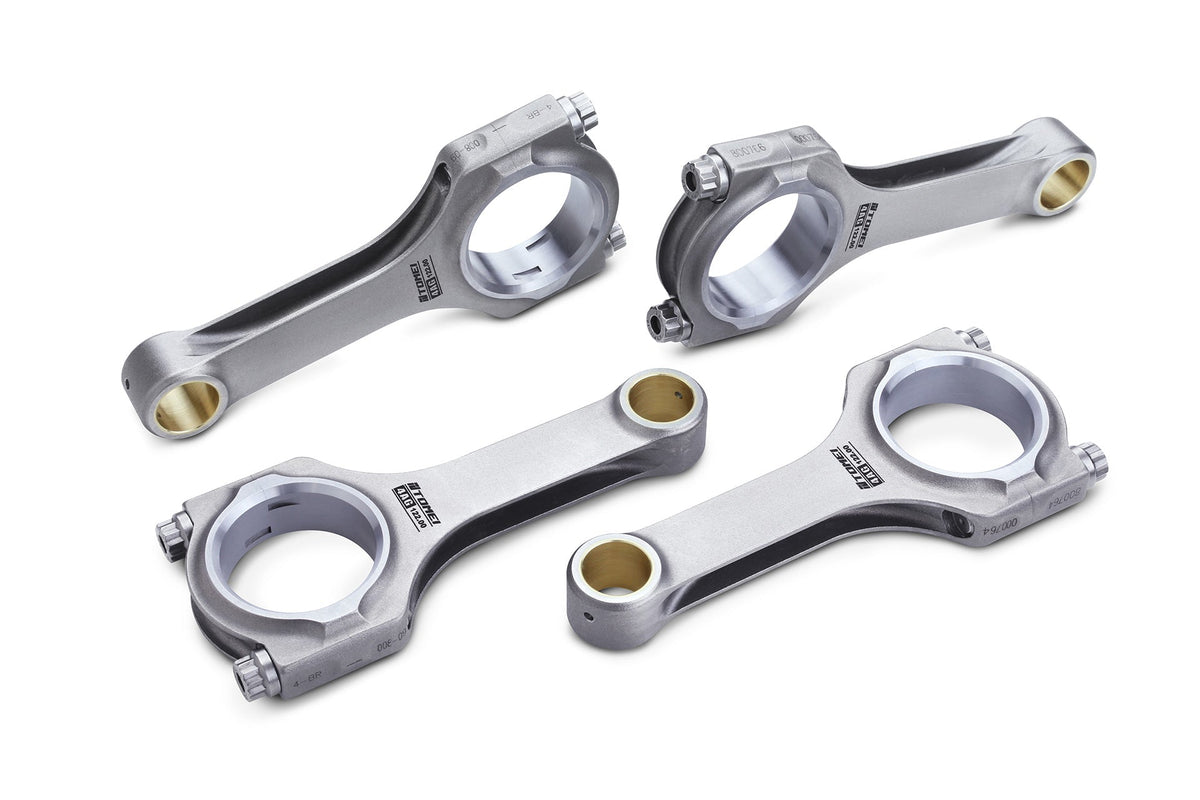

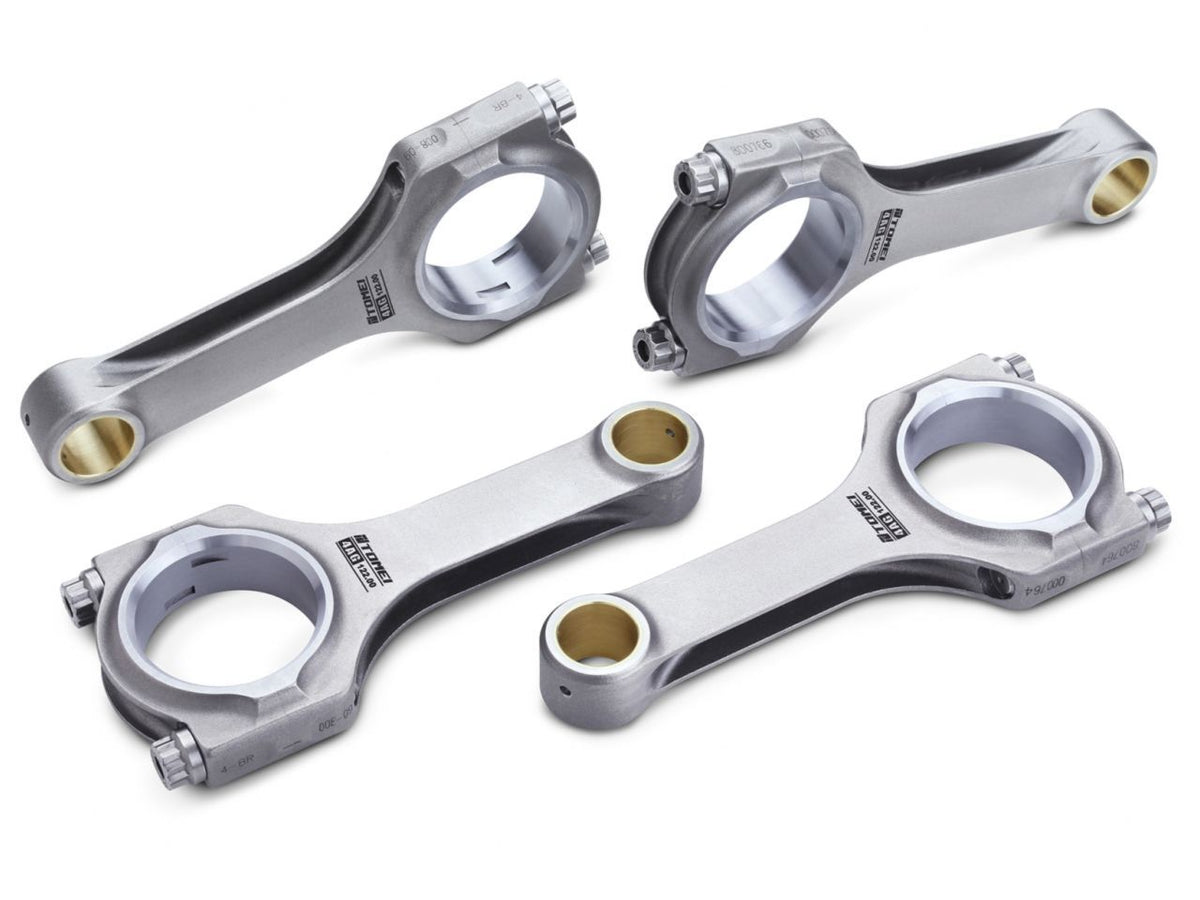

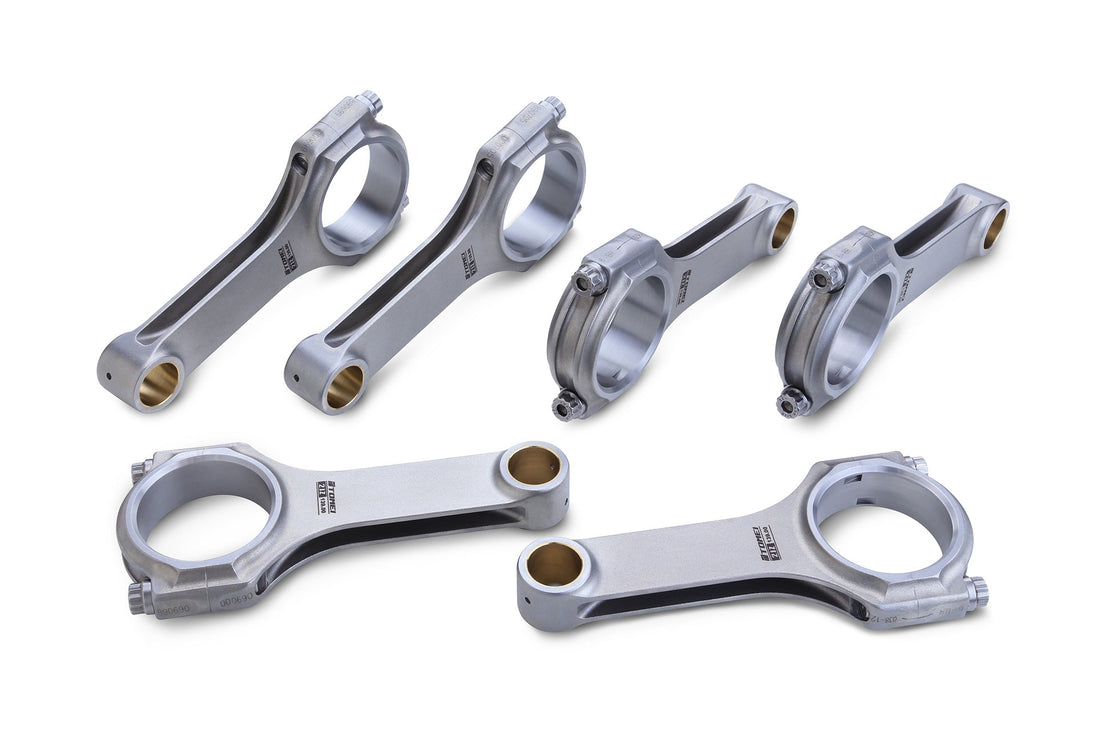

Forged H-Beam Connecting Rod Set
Category: Cylinder Block Connecting Rod
| Category | Engine | Parts Number |
| Forged H-Beam Connecting Rod Set 4A-G 122.00mm (STD/1.8) | 4AG-16V,4AG-20V | TA203A-TY01A |
| Forged H-Beam Connecting Rod Set 2JZ-GTE 142.00mm (STD/3.4) | 2JZ | TA203A-TY03A |
| Forged H-Beam Connecting Rod Set 2JZ-GTE 139.00mm (3.6) | 2JZ | TA203A-TY03B |
| Forged H-Beam Connecting Rod Set 1JZ-GTE 125.25mm (STD) | 1JZ | TA203A-TY04A |
| Part Number | TA203A-TY01A | TA203A-TY03A | TA203A-TY03B | TA203A-TY04A |
| C-to-C (mm) | 122.00 (OEM ±0.0) |
142.00 (OEM ±0.0) |
139.00 (OEM -3.0) | 125.25 (OEM ±0.0) |
| BE.BORE×WIDTH (mm) |
45.0×21.85 |
55.0 x 26.0 | 55.0 x 26.0 | 55.0 x 26.0 |
| PE.BORE×WIDTH (mm) (Bush inner cir) |
20.0×21.85 |
22.0 x 26.0 | 22.0 x 26.0 | 20.0 x 26.0 |
| MATERIAL | SNCM439 |
SNCM439 |
SNCM439 |
SNCM439 |
| BOLT | ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
| BEARING SIZE | INNER DIA. 42.0mm WIDTH 17.2mm |
INNER DIA. 52.0mm WIDTH 19mm |
INNER DIA. 52.0mm WIDTH 19mm |
INNER DIA. 52.0mm WIDTH 19mm |
| WEIGHT (g) | 469.0 |
647 | 658 | 630 |
Forged H-Beam Connecting Rod Set
Category: Cylinder Block Connecting Rod
| Category | Engine | Parts Number |
| Forged H-Beam Connecting Rod Set 4A-G 122.00mm (STD/1.8) | 4AG-16V,4AG-20V | TA203A-TY01A |
| Forged H-Beam Connecting Rod Set 2JZ-GTE 142.00mm (STD/3.4) | 2JZ | TA203A-TY03A |
| Forged H-Beam Connecting Rod Set 2JZ-GTE 139.00mm (3.6) | 2JZ | TA203A-TY03B |
| Forged H-Beam Connecting Rod Set 1JZ-GTE 125.25mm (STD) | 1JZ | TA203A-TY04A |
| Part Number | TA203A-TY01A | TA203A-TY03A | TA203A-TY03B | TA203A-TY04A |
| C-to-C (mm) | 122.00 (OEM ±0.0) |
142.00 (OEM ±0.0) |
139.00 (OEM -3.0) | 125.25 (OEM ±0.0) |
| BE.BORE×WIDTH (mm) |
45.0×21.85 |
55.0 x 26.0 | 55.0 x 26.0 | 55.0 x 26.0 |
| PE.BORE×WIDTH (mm) (Bush inner cir) |
20.0×21.85 |
22.0 x 26.0 | 22.0 x 26.0 | 20.0 x 26.0 |
| MATERIAL | SNCM439 |
SNCM439 |
SNCM439 |
SNCM439 |
| BOLT | ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
| BEARING SIZE | INNER DIA. 42.0mm WIDTH 17.2mm |
INNER DIA. 52.0mm WIDTH 19mm |
INNER DIA. 52.0mm WIDTH 19mm |
INNER DIA. 52.0mm WIDTH 19mm |
| WEIGHT (g) | 469.0 |
647 | 658 | 630 |
- Regular price
- $720.00
- Sale price
- $648.00
