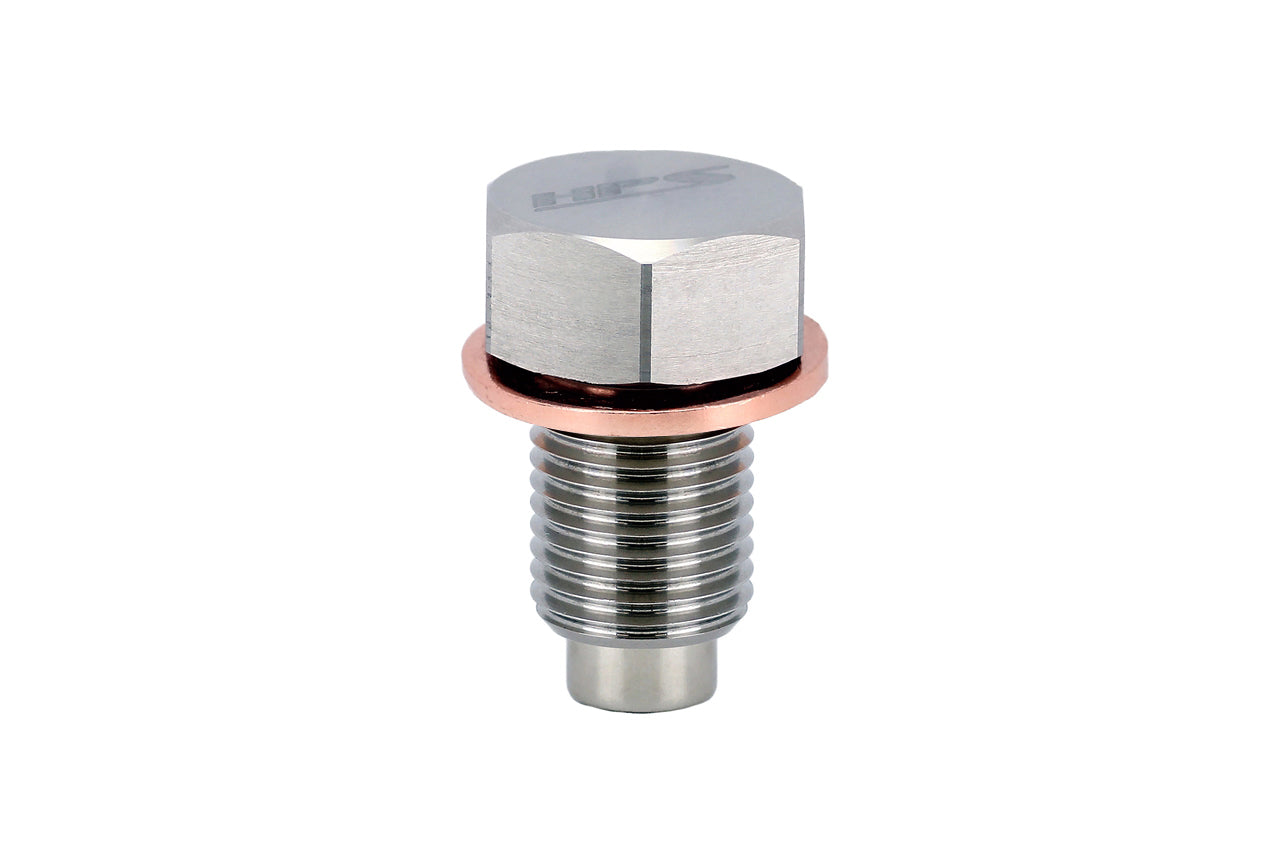

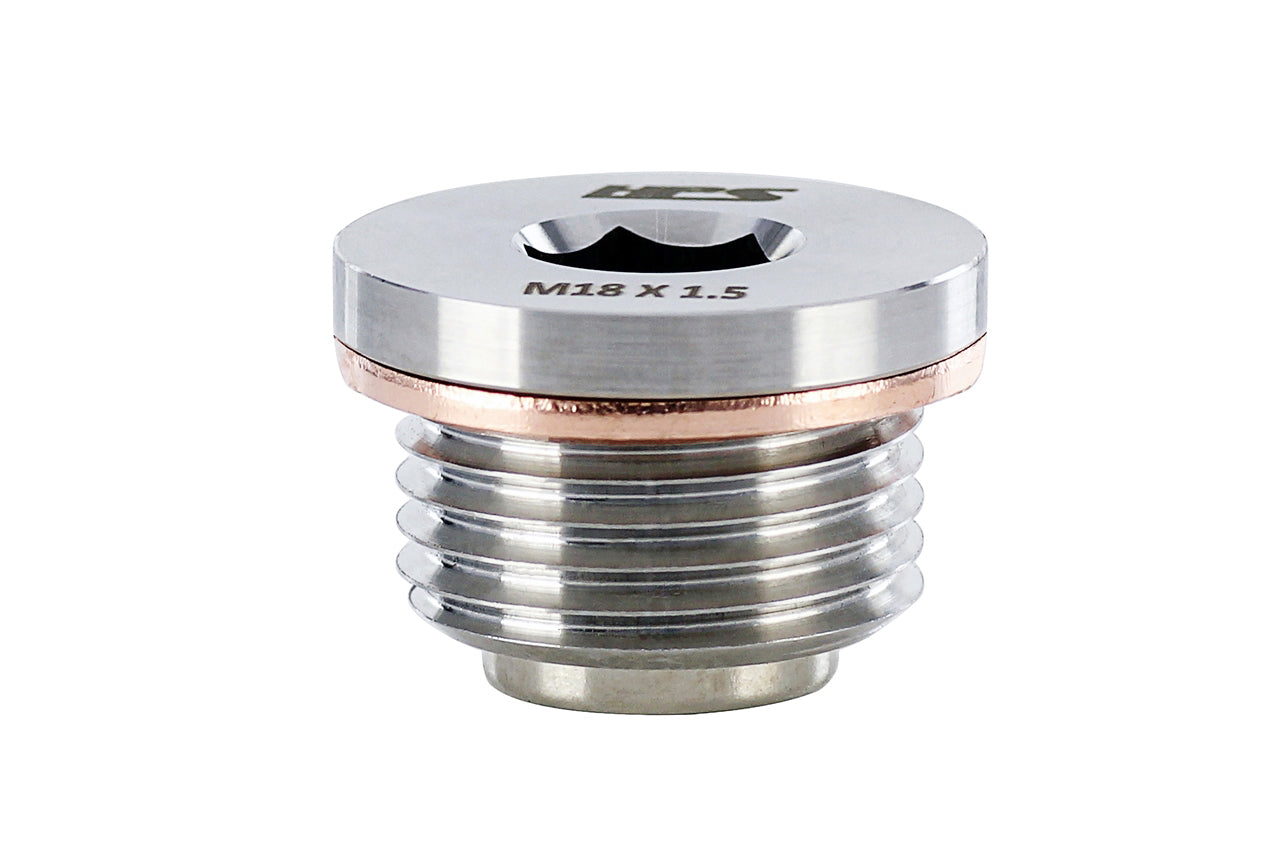

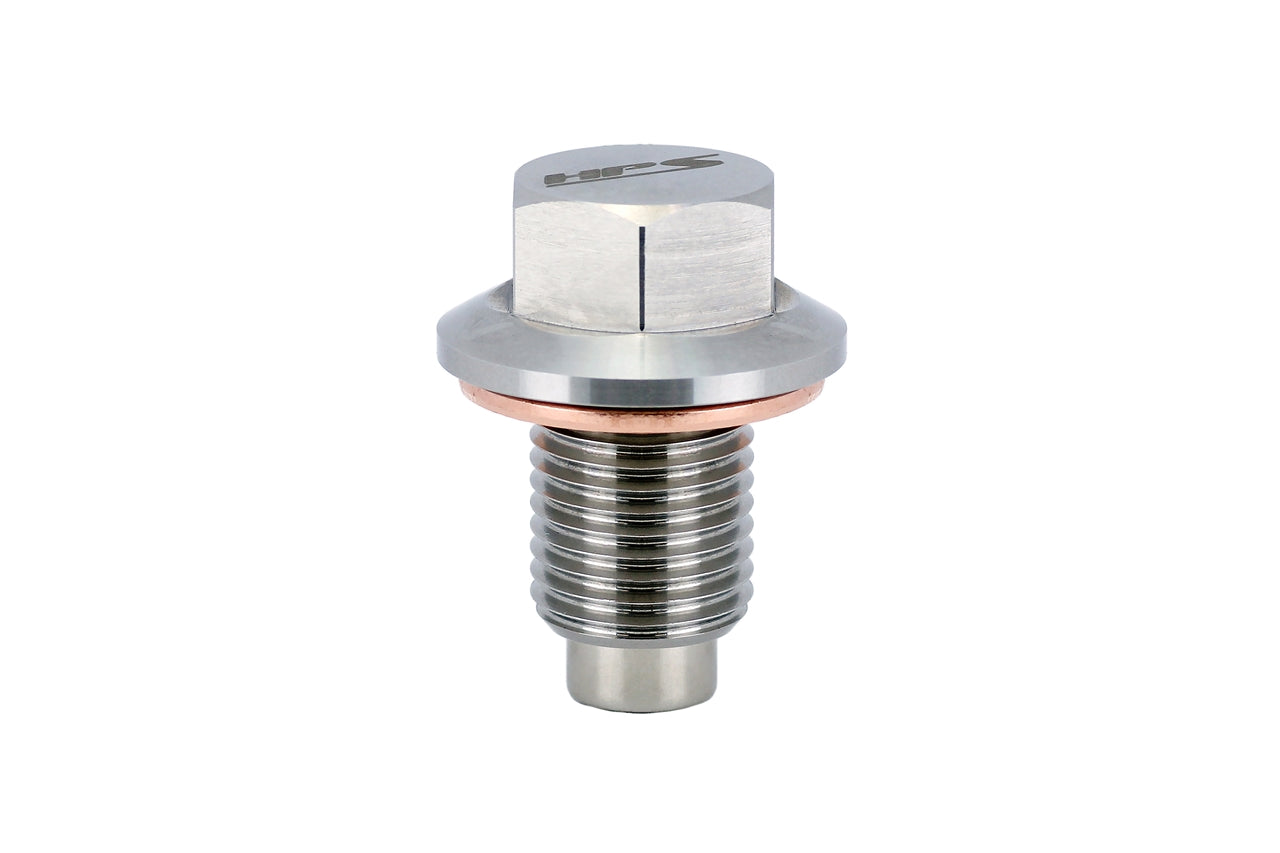

Installing an HPS Magnetic Oil Drain Plug is an effective solution to protect your engine from wear caused by small metal particles traveling through your oiling system. We use an 5000 gauss neodymium rare earth magnet, one of the strongest magnets in a compact size. The bolt itself is made from 304 stainless steel making it extremely durable and corrosion resistant.
HPS Magnetic Oil Drain Plugs are made in different sizes to cover many makes and models. Refer to the table below to find the size that fits your vehicle.
Key Features
- Keep unwanted metal debris from circulating in your oil system and protect your engine from irreversible wear.
- CNC Machined from stainless steel
- Includes copper crush washer
- Easy to install in your next oil change
- Direct replacement for your stock drain plug.
Specification
- Product Type: Automotive Accessories
- Material: Stainless Steel
- Weight: 8 oz
- Shipping Box Dimension: 4 inch x 4 inch x 4 inch
| Part Number | Thread Diameter | Thread Pitch | Thread Length |
|---|---|---|---|
| MDP-M12x125 | 12mm | 1.25mm | 15mm |
| MDP-M12x15 | 12mm | 1.5mm | 15mm |
| MDP-M12x175 | 12mm | 1.75mm | 25mm |
| MDP-M14x15 | 14mm | 1.5mm | 15mm |
| MDP-M16x15 | 16mm | 1.5mm | 15mm |
| MDP-M18x15 | 18mm | 1.5mm | 15mm |
| MDP-M20x15 | 20mm | 1.5mm | 15mm |
To find the right size of the bolt, please refer to the size chart listed under the title.
Installing an HPS Magnetic Oil Drain Plug is an effective solution to protect your engine from wear caused by small metal particles traveling through your oiling system. We use an 5000 gauss neodymium rare earth magnet, one of the strongest magnets in a compact size. The bolt itself is made from 304 stainless steel making it extremely durable and corrosion resistant.
HPS Magnetic Oil Drain Plugs are made in different sizes to cover many makes and models. Refer to the table below to find the size that fits your vehicle.
Key Features
- Keep unwanted metal debris from circulating in your oil system and protect your engine from irreversible wear.
- CNC Machined from stainless steel
- Includes copper crush washer
- Easy to install in your next oil change
- Direct replacement for your stock drain plug.
Specification
- Product Type: Automotive Accessories
- Material: Stainless Steel
- Weight: 8 oz
- Shipping Box Dimension: 4 inch x 4 inch x 4 inch
| Part Number | Thread Diameter | Thread Pitch | Thread Length |
|---|---|---|---|
| MDP-M12x125 | 12mm | 1.25mm | 15mm |
| MDP-M12x15 | 12mm | 1.5mm | 15mm |
| MDP-M12x175 | 12mm | 1.75mm | 25mm |
| MDP-M14x15 | 14mm | 1.5mm | 15mm |
| MDP-M16x15 | 16mm | 1.5mm | 15mm |
| MDP-M18x15 | 18mm | 1.5mm | 15mm |
| MDP-M20x15 | 20mm | 1.5mm | 15mm |
To find the right size of the bolt, please refer to the size chart listed under the title.
