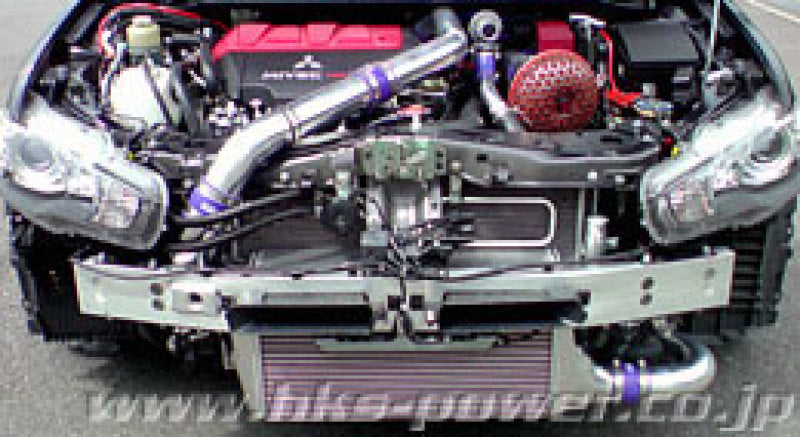

R type INTERCOOLER
- R type core, which is large capacity + low pressure loss type, was selected. Performance will be improved even with stock ECU.
- High performance "?70 Piping spec" and low cost ". (Stock Piping is ?60.)
- Core size (525 x 304 x 103), Stock (490 x 292 x 65)
- Stock air cleaner box, Racing Suction Reloaded, SSQV, Intercooler Piping Kit can be used together.
SPECIFICATION | |
|---|---|
| Code # | 13001-AM006 |
| Spec. | ?70 full piping |
| Core ASSY | Polished tank |
| Inlet pipe | ?70 × 3 (1 is buff) |
| Outlet pipe | ?70 × 2 (1 is buff) |
| Other bracket | |
| Vehicle | Model | Engine | Model Year | Type | Core Size?Location | Type | Remarks |
|---|---|---|---|---|---|---|---|
| LANCER EVOLUTION | CZ4A(X) | 4B11 | 07/10- | R type INTERCOOLER | 525×304×103?Front mount | R type AL | ?70 pipe. Stock part(5256A832) is required for RS and all grade after 09/10. |
- Regular price
- $3,003.84
R type INTERCOOLER
- R type core, which is large capacity + low pressure loss type, was selected. Performance will be improved even with stock ECU.
- High performance "?70 Piping spec" and low cost ". (Stock Piping is ?60.)
- Core size (525 x 304 x 103), Stock (490 x 292 x 65)
- Stock air cleaner box, Racing Suction Reloaded, SSQV, Intercooler Piping Kit can be used together.
SPECIFICATION | |
|---|---|
| Code # | 13001-AM006 |
| Spec. | ?70 full piping |
| Core ASSY | Polished tank |
| Inlet pipe | ?70 × 3 (1 is buff) |
| Outlet pipe | ?70 × 2 (1 is buff) |
| Other bracket | |
| Vehicle | Model | Engine | Model Year | Type | Core Size?Location | Type | Remarks |
|---|---|---|---|---|---|---|---|
| LANCER EVOLUTION | CZ4A(X) | 4B11 | 07/10- | R type INTERCOOLER | 525×304×103?Front mount | R type AL | ?70 pipe. Stock part(5256A832) is required for RS and all grade after 09/10. |
- Regular price
- $3,003.84
