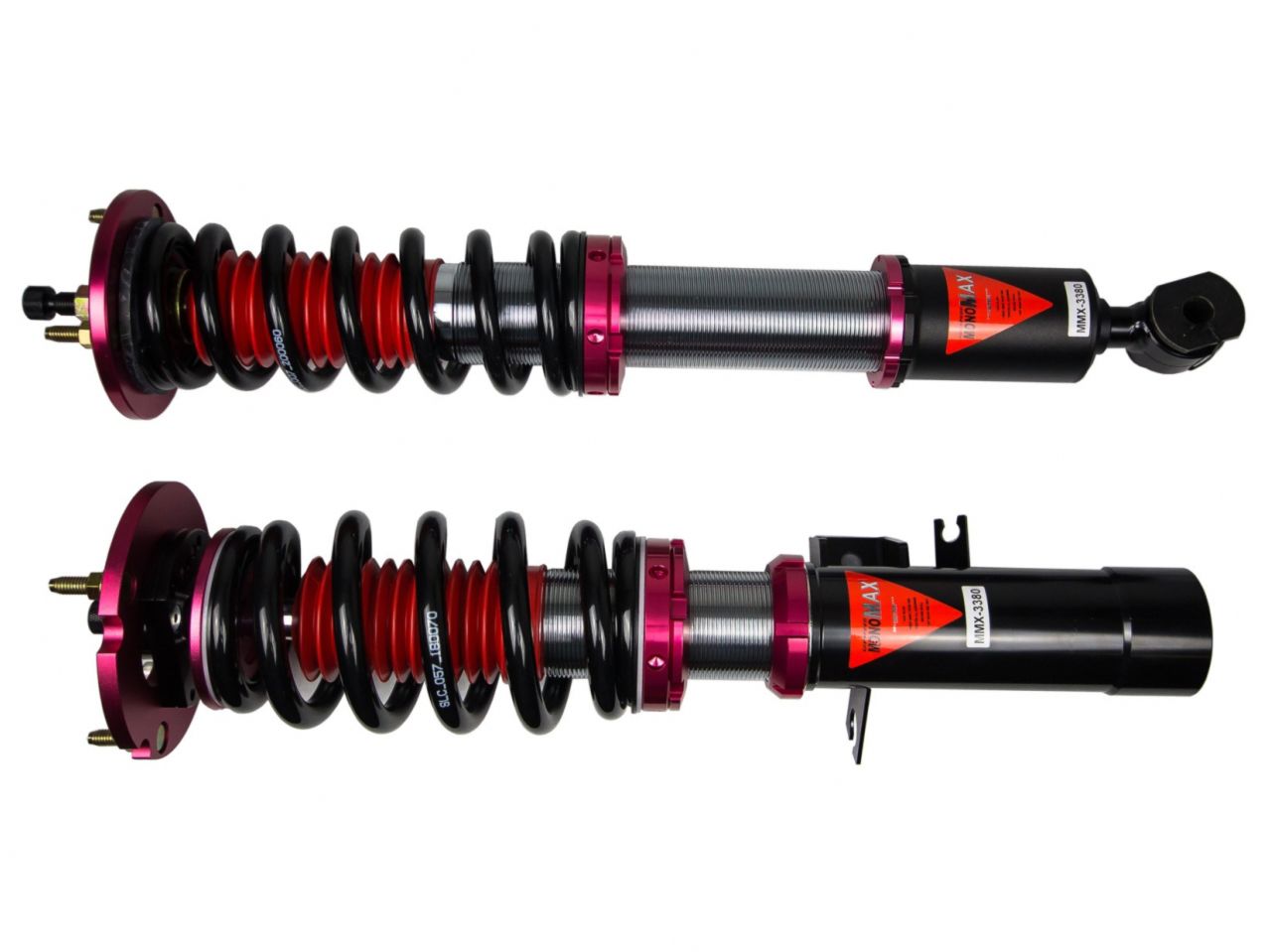

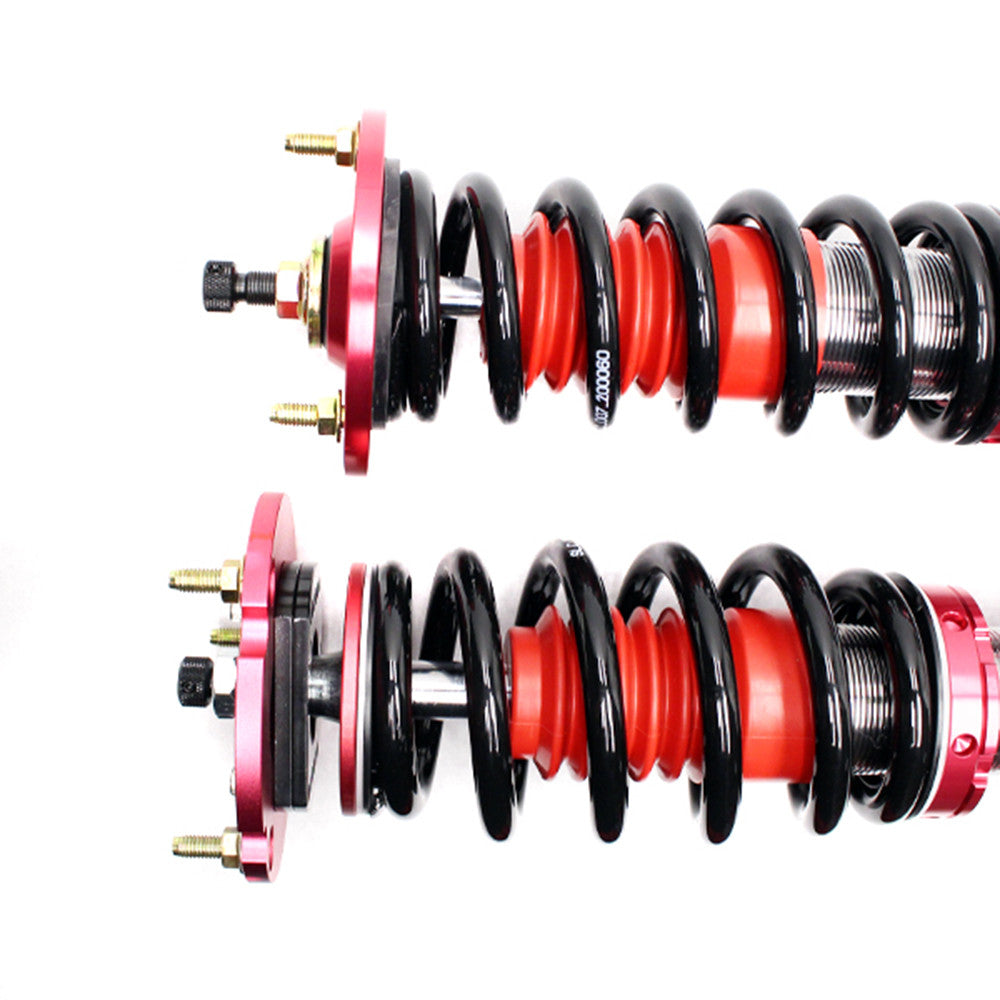

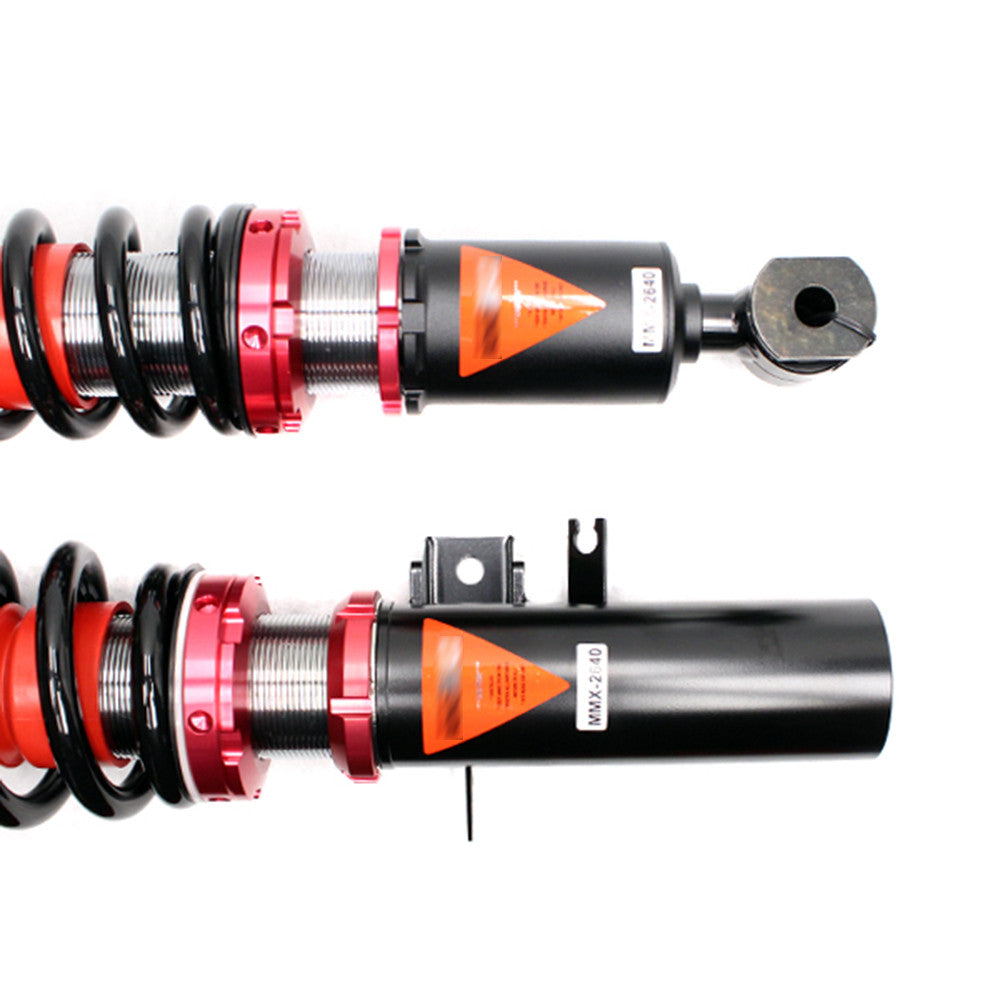

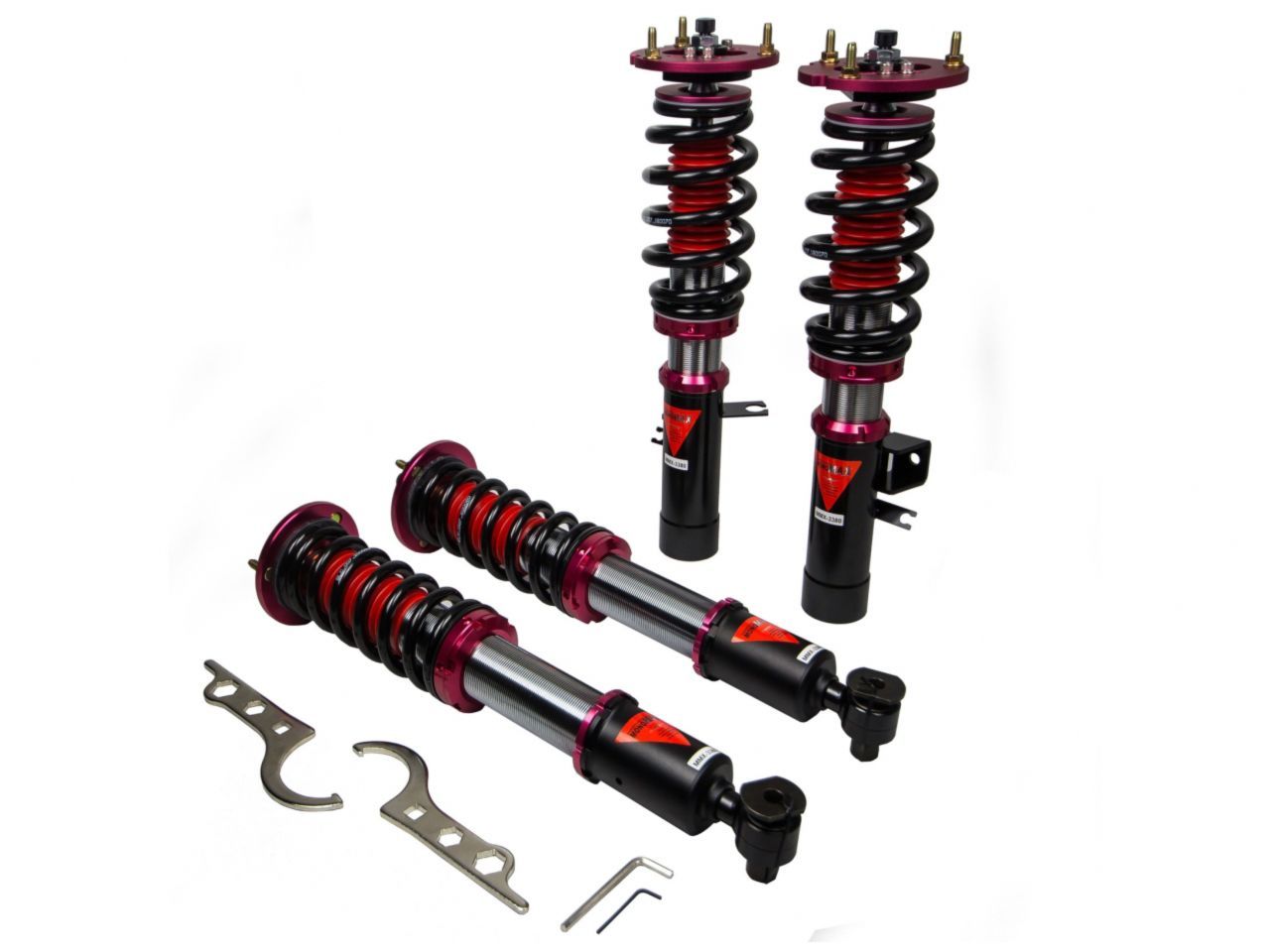

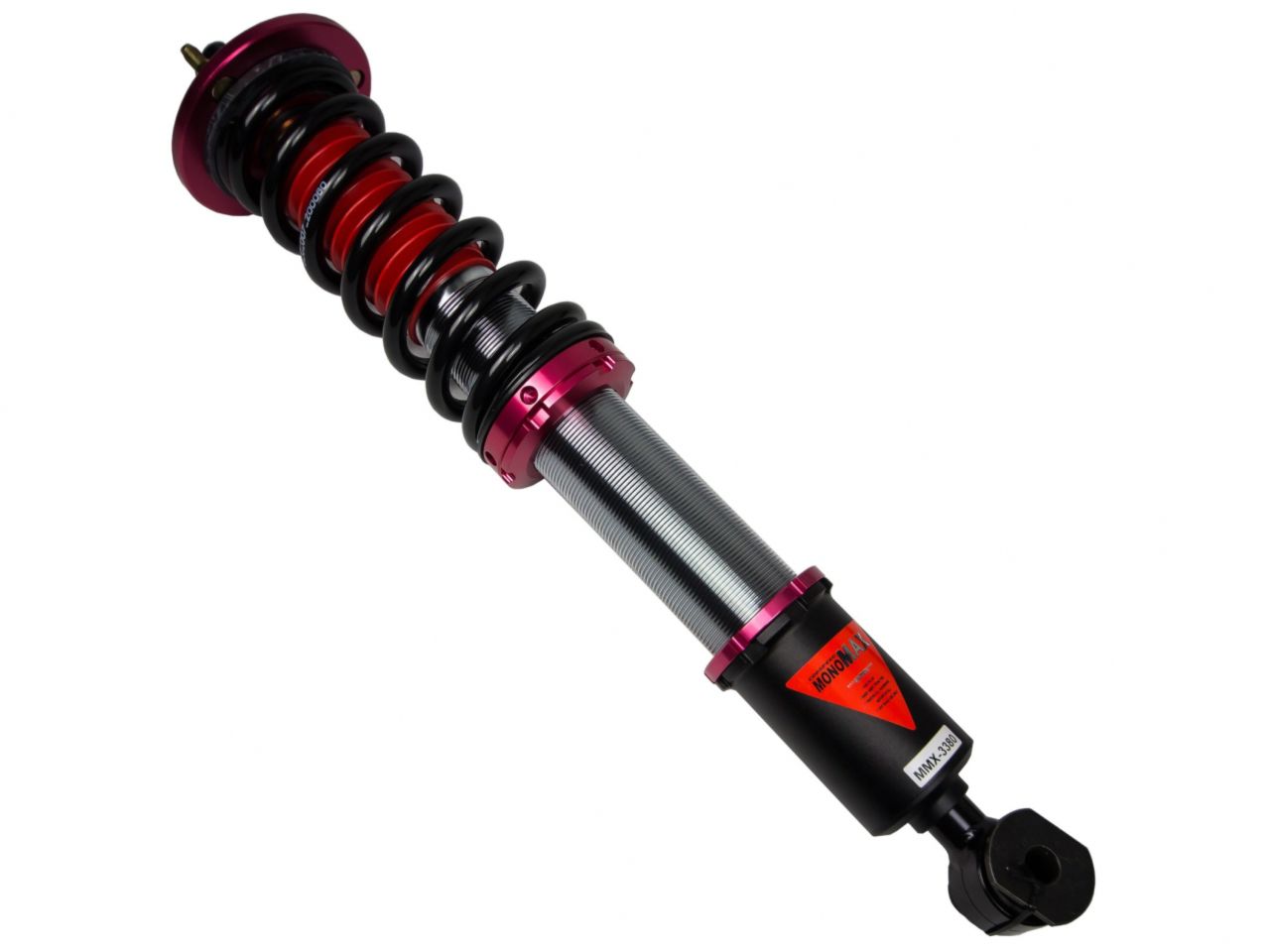

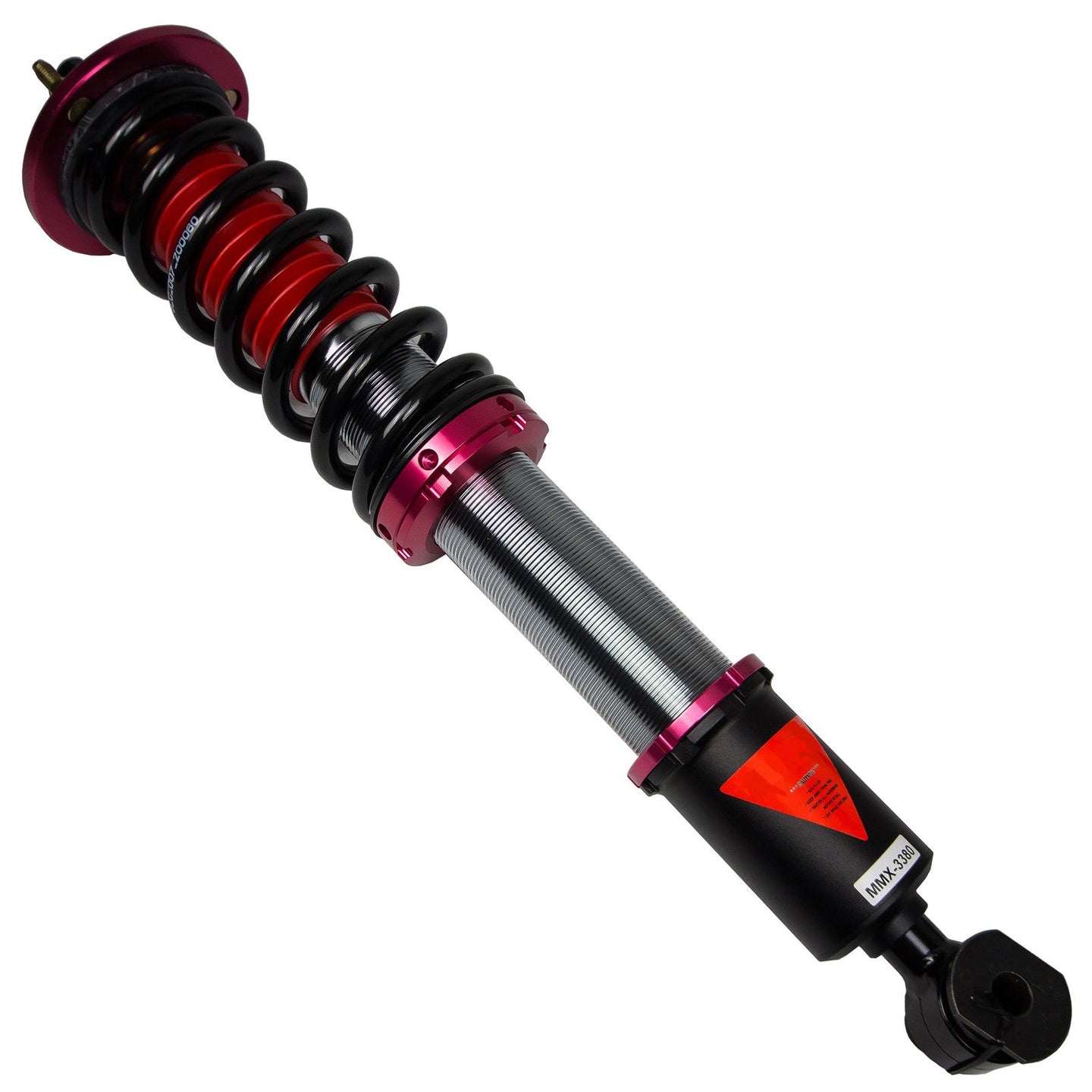

E34, 1989-1995, MAXX (61mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	7 kg/mm (392 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm

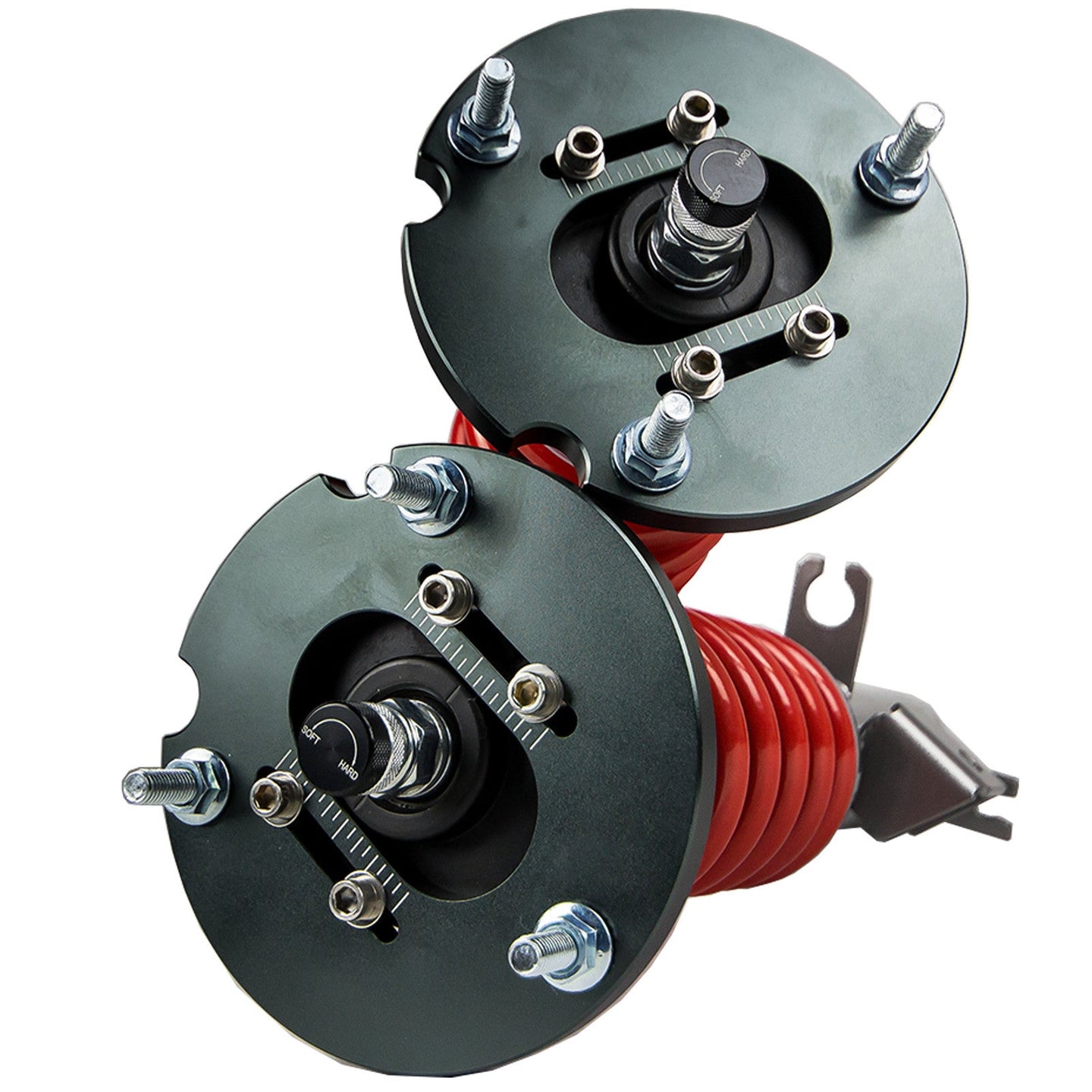

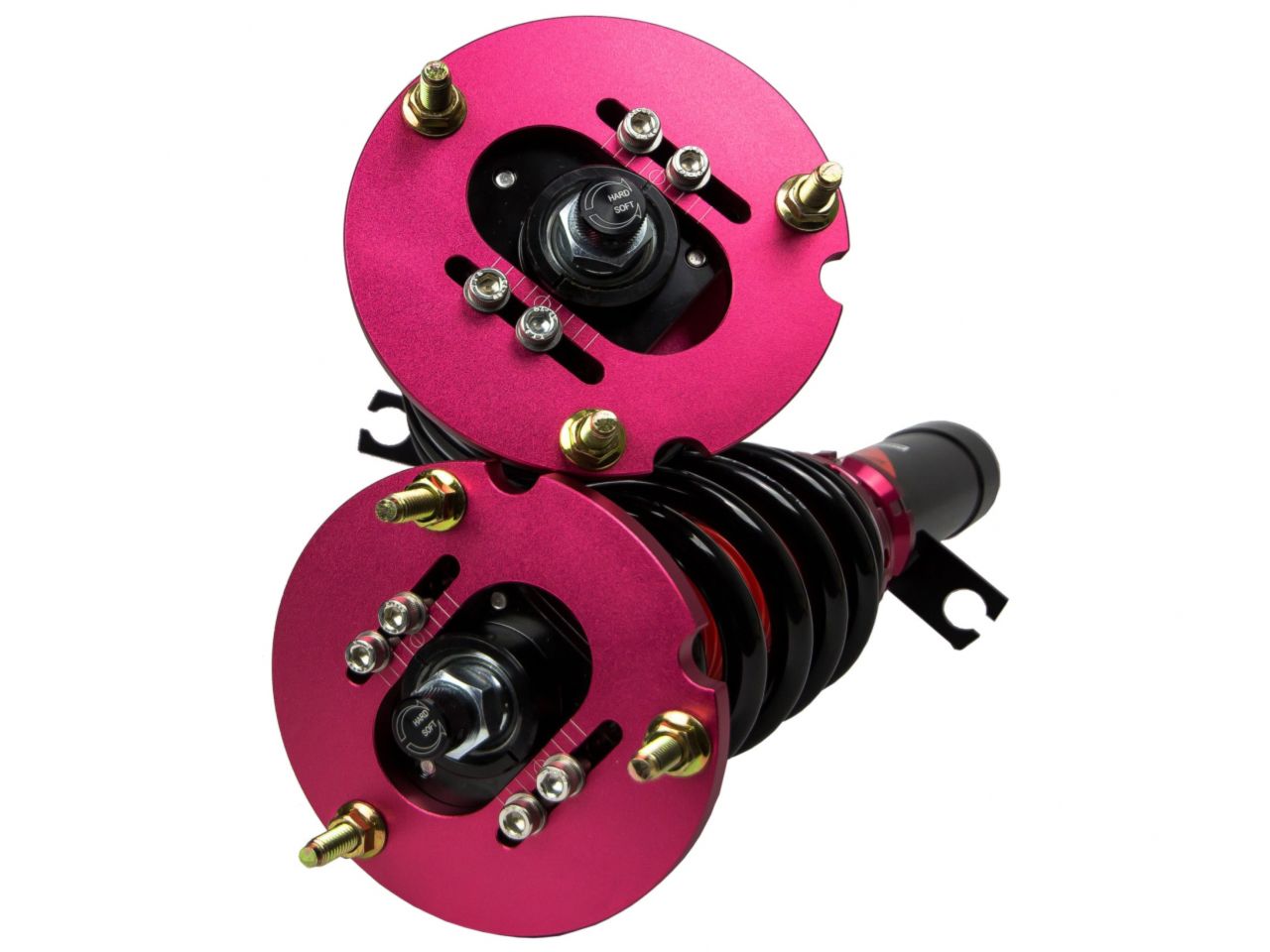

Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

E28, 1982-1988, MAXX (58mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	7 kg/mm (392 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

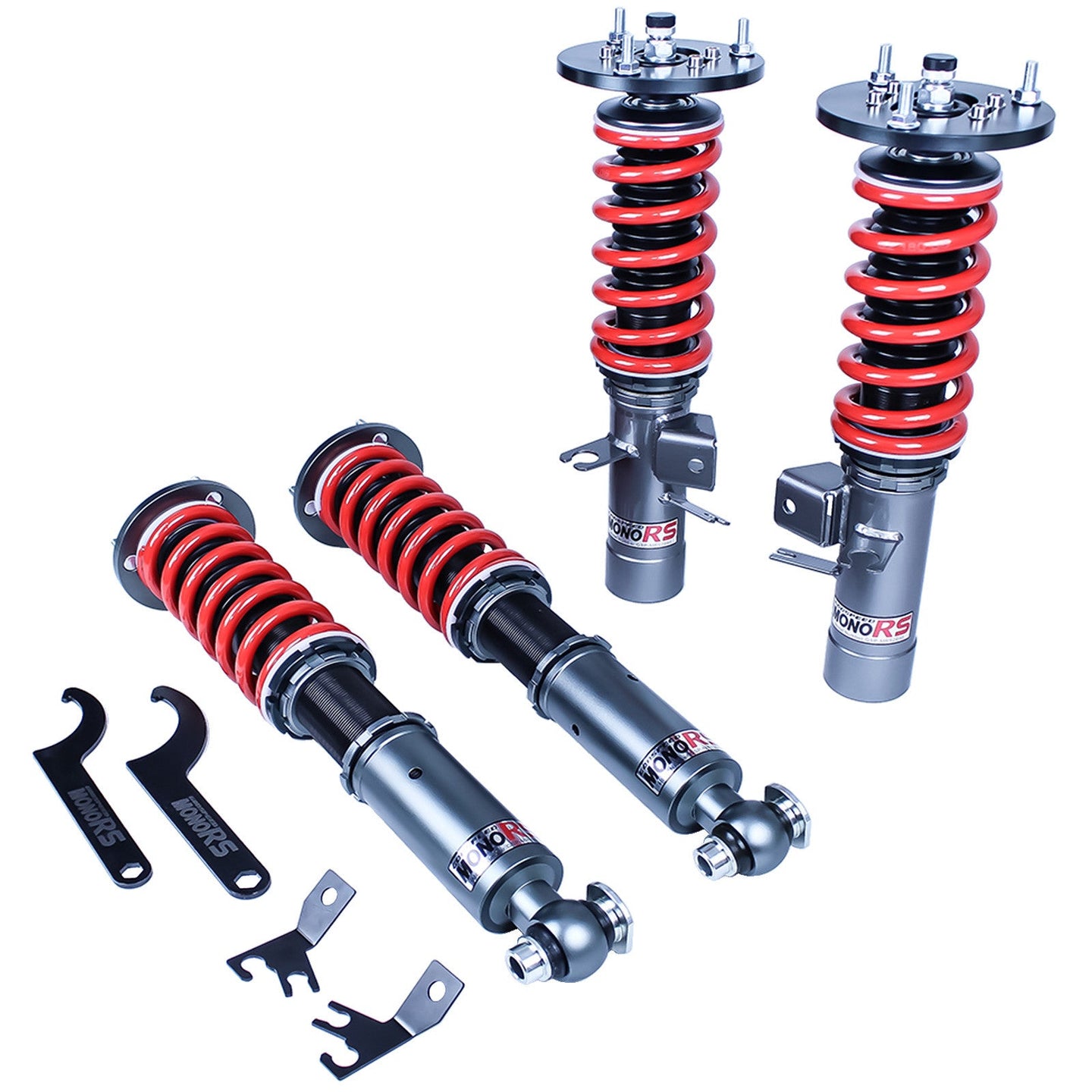

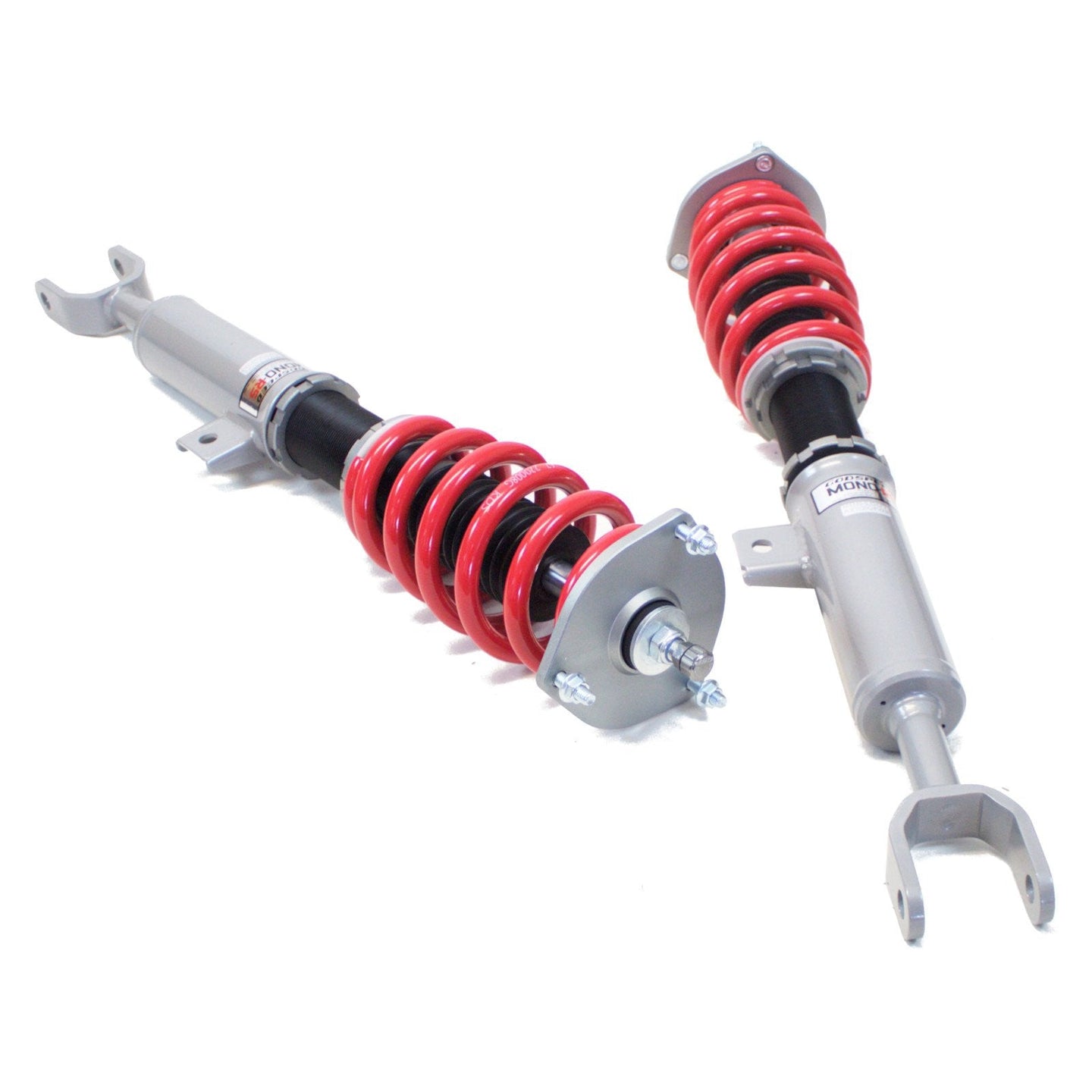

E28, 1982-1988, MonoRS (58mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm
Spring Rate(Rear)	6 kg/mm
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	No
User Guide	Coilover User Guide

E34, 1989-1995, MonoRS (61mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm
Spring Rate(Rear)	6 kg/mm
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	N/A
User Guide	Coilover User Guide

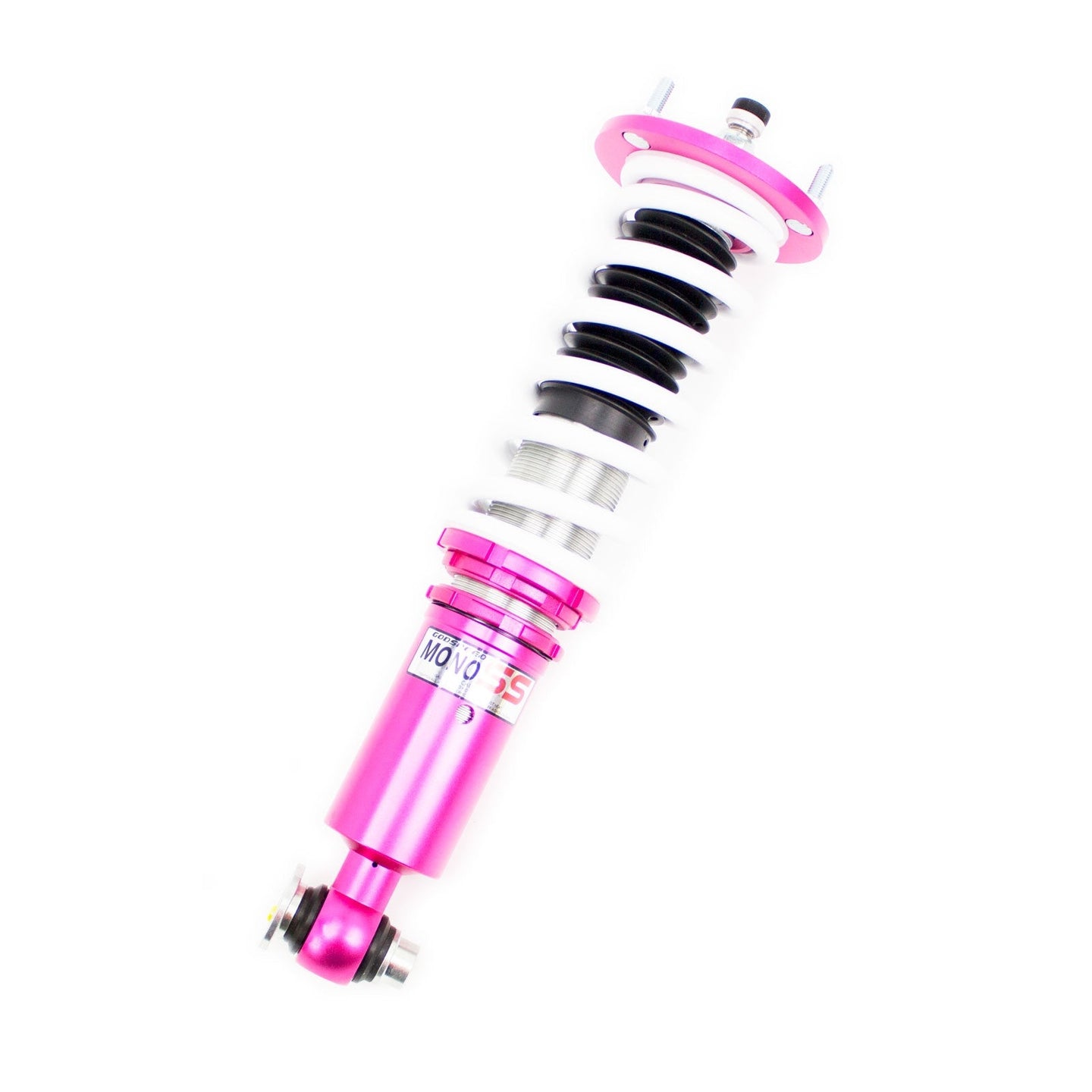

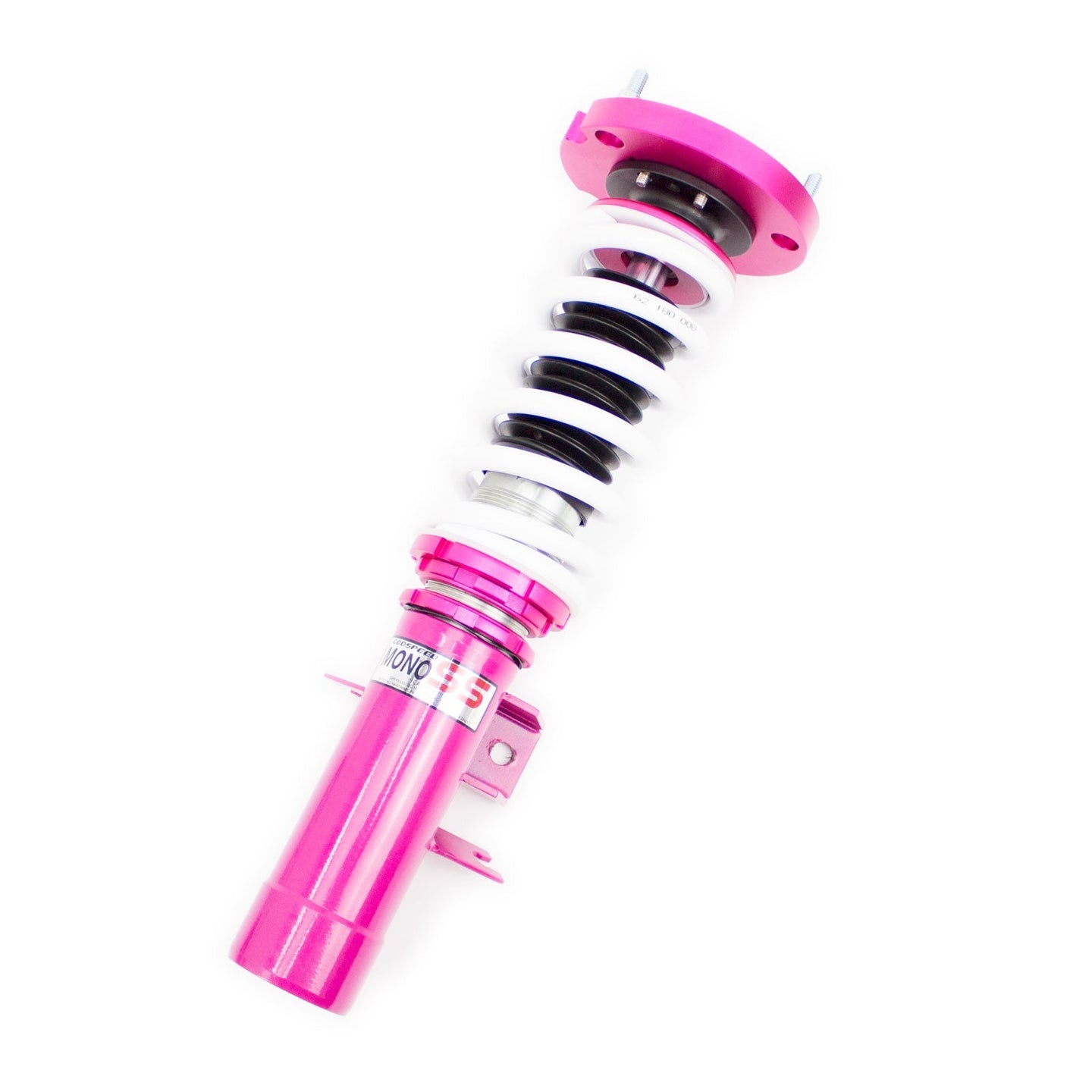

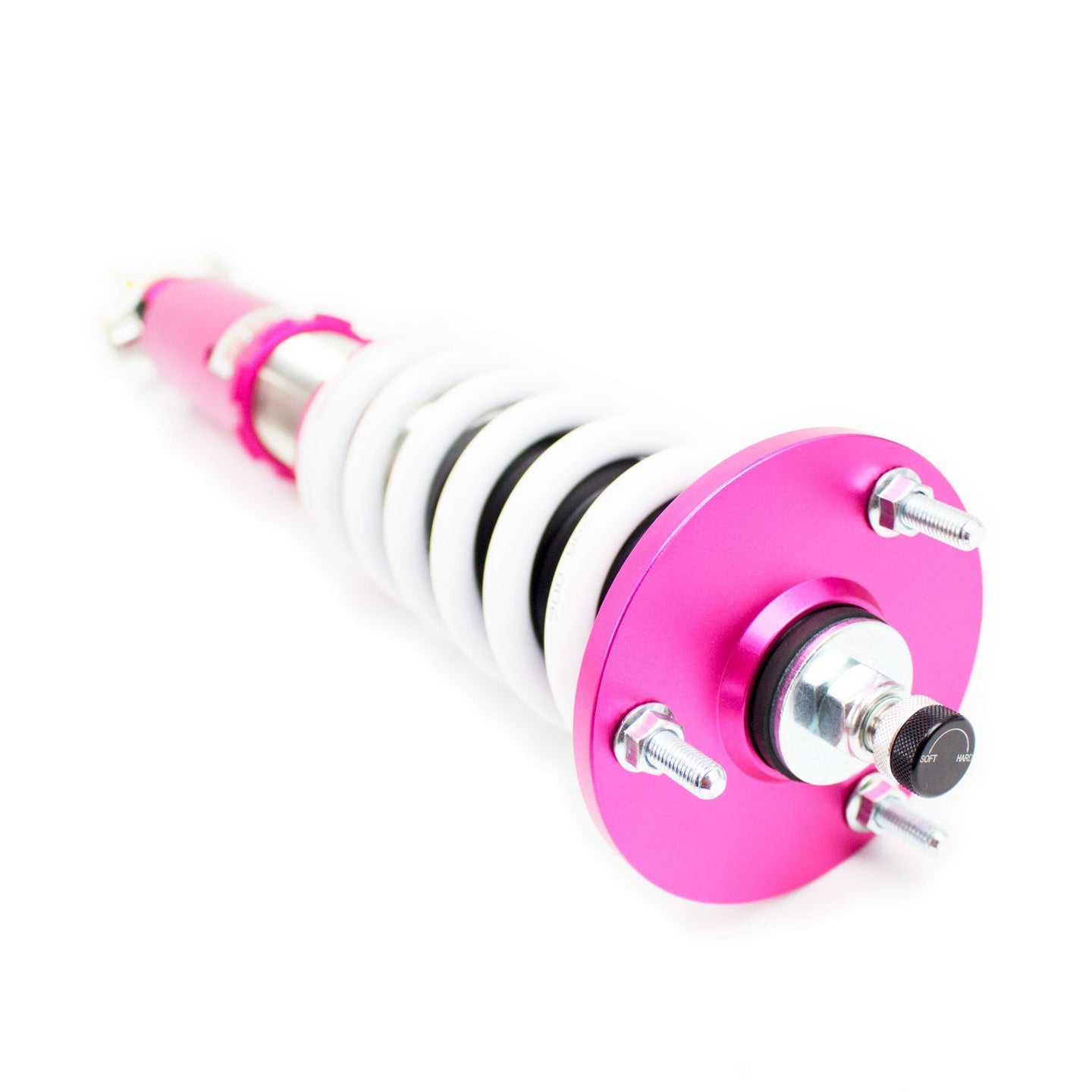

E28, 1982-1988, MonoSS (58mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 in.)
Spring Inner Diameter(Rear)	62 mm (2.44 in.)
Warranty Note	No
User Guide	Coilover User Guide

E34, 1989-1995, MonoSS (61mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. *Requires welding factory spindles onto the lower front brackets. Make sure your E34 has 61MM Front Axle Clamp
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

G30, 2017-2024, MonoRS

Special Notes	Prior to installation, verify all hardware and properly tighten and sp ring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	220 mm
Spring Length(Rear)	220 mm
Front Top Mount	Yes, Standard Type
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	No
User Guide	Coilover User Guide

FR SPORT

Godspeed BMW 5-Series RWD E28/E34/G30 Coilovers

SKU 0R2NH

Regular price: $990.00

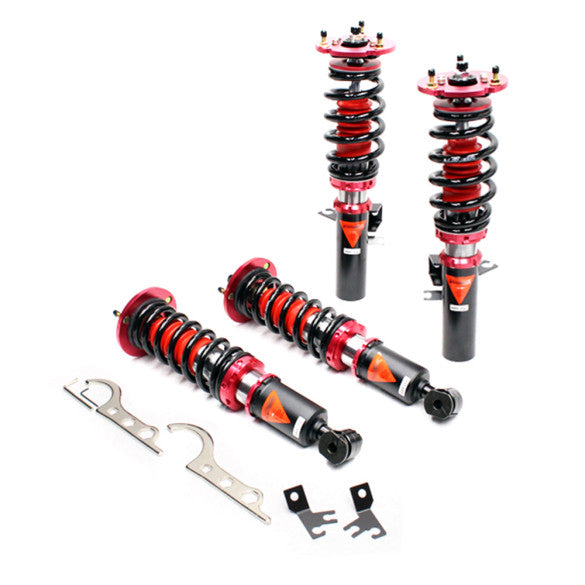

E34, 1989-1995, MAXX (61mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	7 kg/mm (392 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

E28, 1982-1988, MAXX (58mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	7 kg/mm (392 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

E28, 1982-1988, MonoRS (58mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm
Spring Rate(Rear)	6 kg/mm
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	No
User Guide	Coilover User Guide

E34, 1989-1995, MonoRS (61mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm
Spring Rate(Rear)	6 kg/mm
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	N/A
User Guide	Coilover User Guide

E28, 1982-1988, MonoSS (58mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 in.)
Spring Inner Diameter(Rear)	62 mm (2.44 in.)
Warranty Note	No
User Guide	Coilover User Guide

E34, 1989-1995, MonoSS (61mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. *Requires welding factory spindles onto the lower front brackets. Make sure your E34 has 61MM Front Axle Clamp
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

G30, 2017-2024, MonoRS

Special Notes	Prior to installation, verify all hardware and properly tighten and sp ring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	220 mm
Spring Length(Rear)	220 mm
Front Top Mount	Yes, Standard Type
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	No
User Guide	Coilover User Guide

Regular price: $990.00

Model, year, Style: E34, 1989-1995, MAXX (61mm) E34, 1989-1995, MonoRS (61mm) E34, 1989-1995, MonoSS (61mm) E28, 1982-1988, MAXX (58mm) E28, 1982-1988, MonoRS (58mm) E28, 1982-1988, MonoSS (58mm) G30, 2017-2024, MonoRS

Product variants

Quantity

Frequently Bought Together

Choose "Ford 240/300 L6 Pro Series Distributor - Modified for EFI Control"

Vendor: DFW Speed Syndicate

Ford 240/300 L6 Pro Series Distributor - Modified for EFI Control

Regular price From $325.00
Choose "Black Jack Pro Series Ignition Coils"

Vendor: Aces EFI B2B

Black Jack Pro Series Ignition Coils

Regular price $49.99
Choose "Offenhauser 6284 – Ford 240-300 High Performance Dual Port Intake Manifold"

Vendor: DFW Speed Syndicate

Offenhauser 6284 – Ford 240-300 High Performance Dual Port Intake Manifold

Regular price $669.00
Choose "Aftermarket EFI Tuning"

Vendor: DFW Speed Syndicate

Aftermarket EFI Tuning

Regular price From $400.00

Total price$2,433.99

Product Description

E34, 1989-1995, MAXX (61mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	7 kg/mm (392 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

E28, 1982-1988, MAXX (58mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	7 kg/mm (392 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

E28, 1982-1988, MonoRS (58mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm
Spring Rate(Rear)	6 kg/mm
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	No
User Guide	Coilover User Guide

E34, 1989-1995, MonoRS (61mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm
Spring Rate(Rear)	6 kg/mm
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	N/A
User Guide	Coilover User Guide

E28, 1982-1988, MonoSS (58mm)

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 in.)
Spring Inner Diameter(Rear)	62 mm (2.44 in.)
Warranty Note	No
User Guide	Coilover User Guide

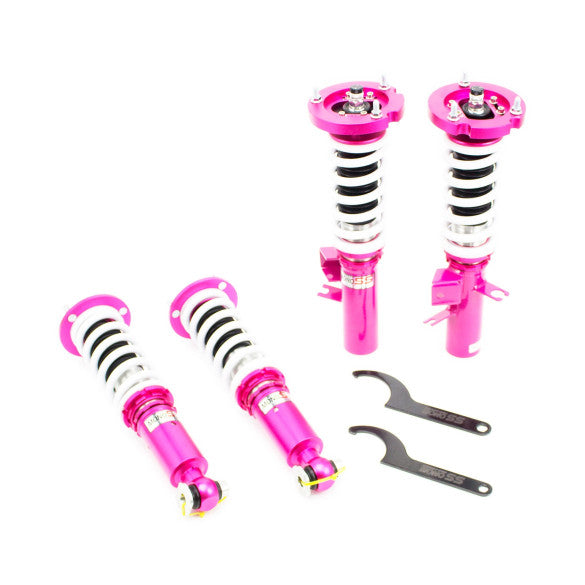

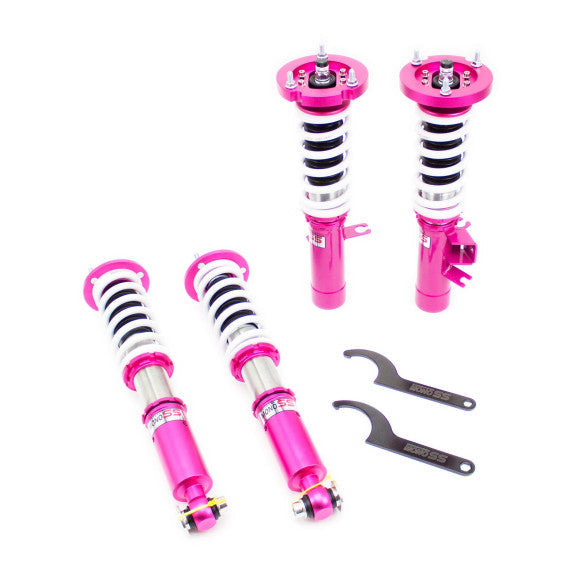

E34, 1989-1995, MonoSS (61mm)

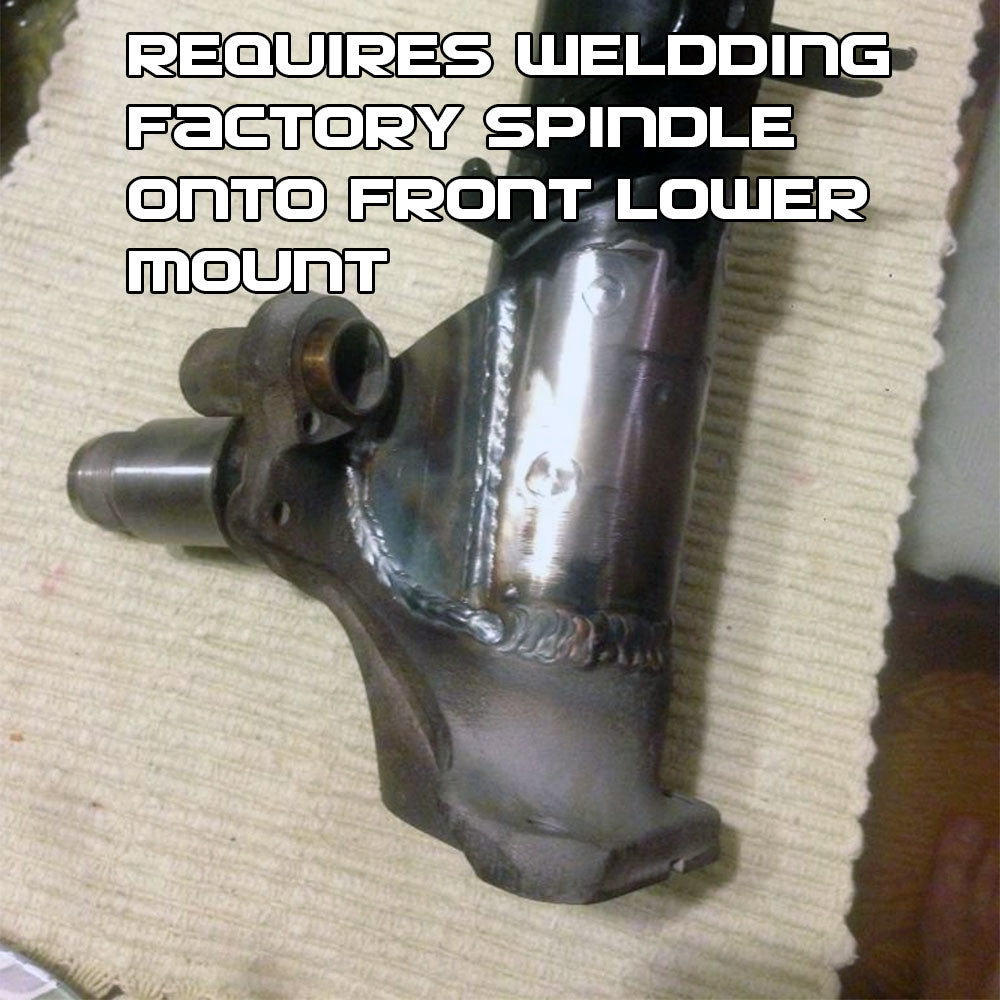

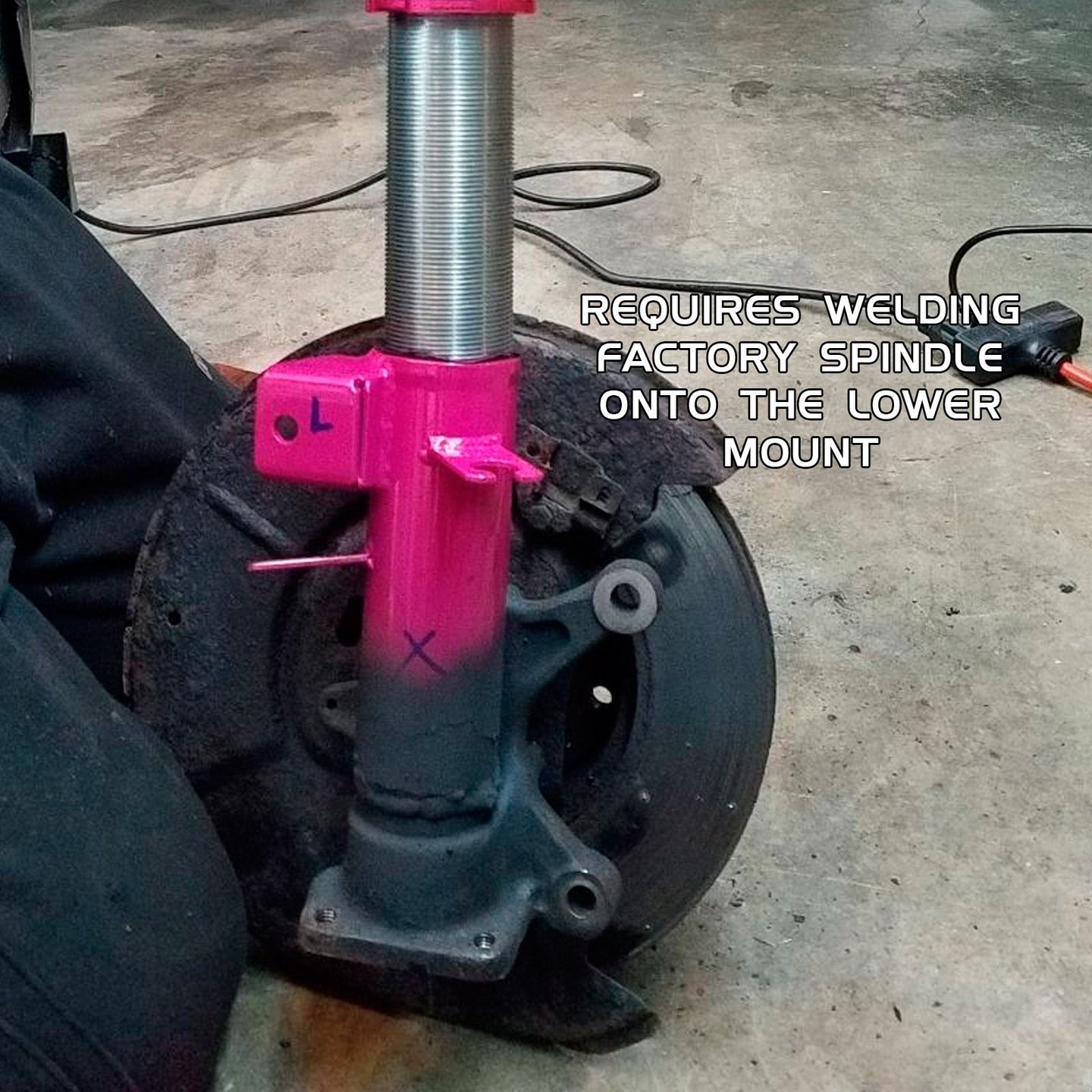

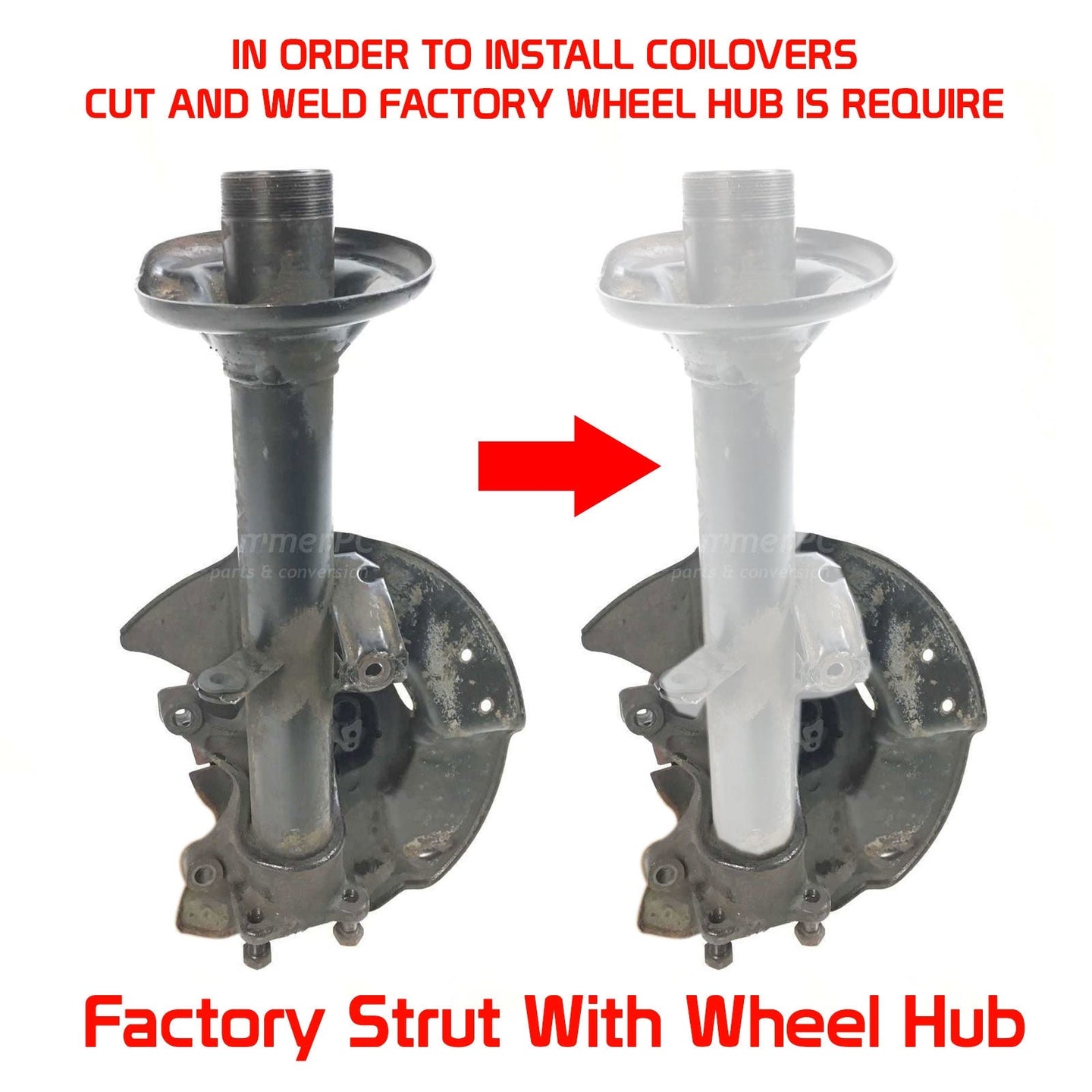

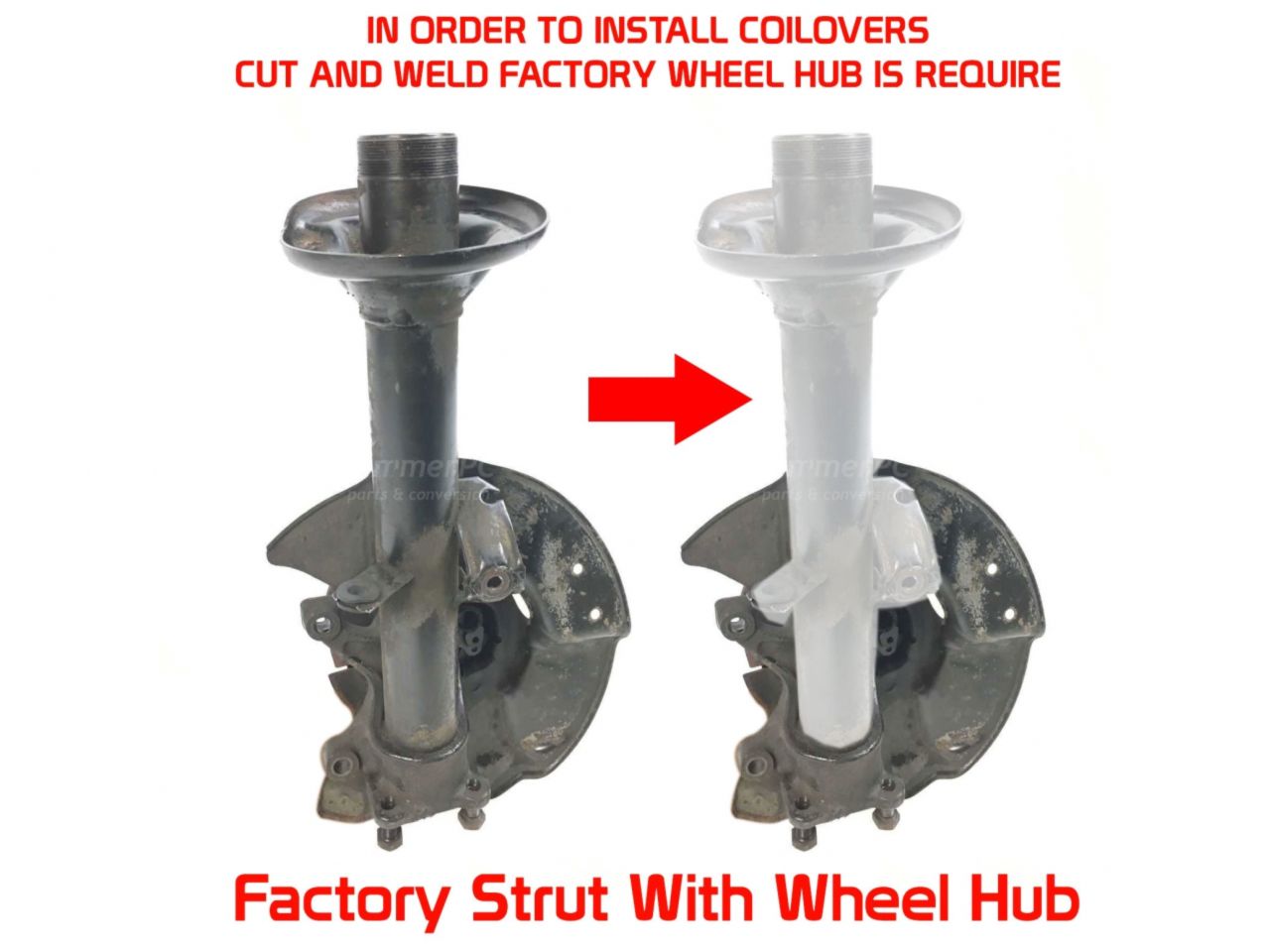

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. *Requires welding factory spindles onto the lower front brackets. Make sure your E34 has 61MM Front Axle Clamp
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	200 mm

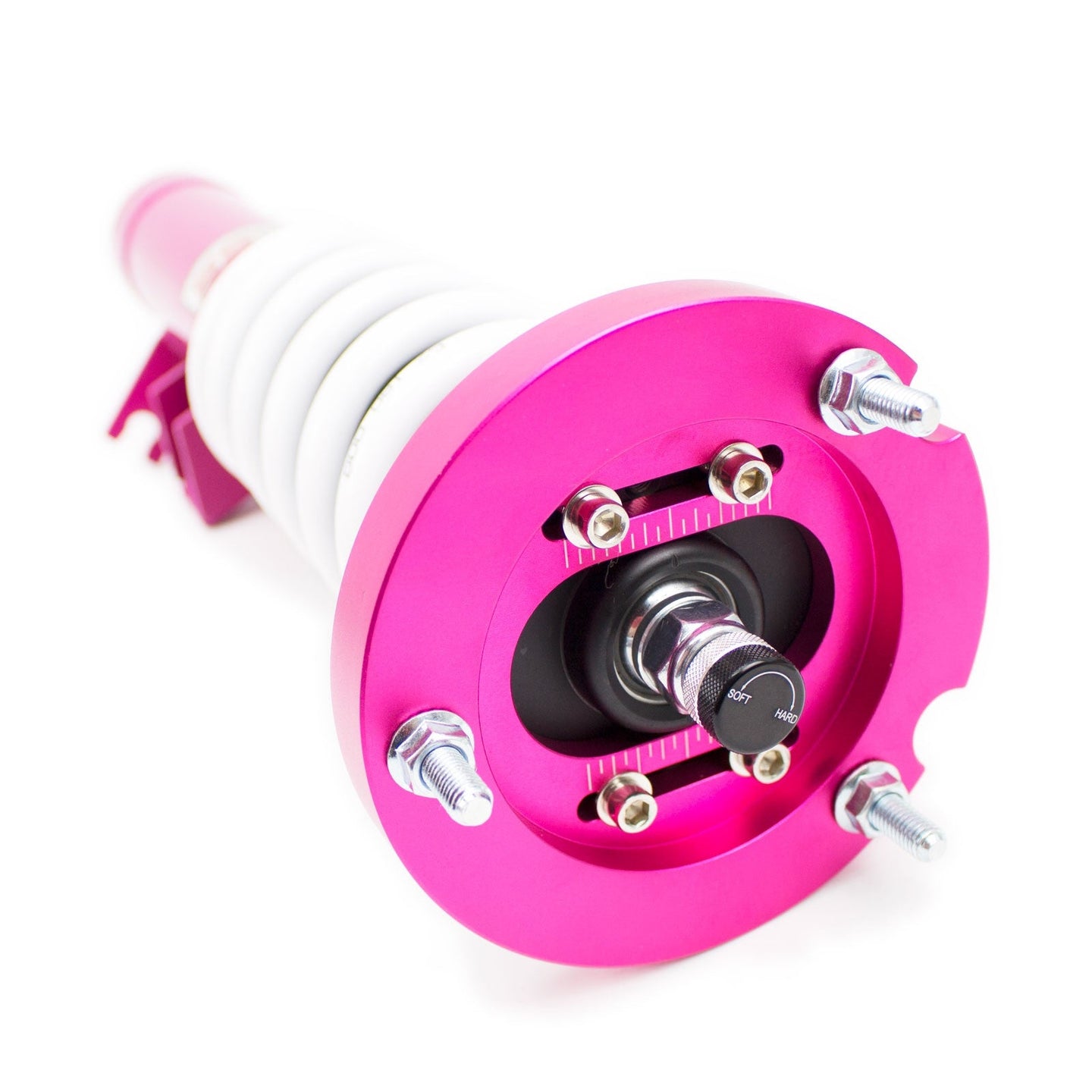

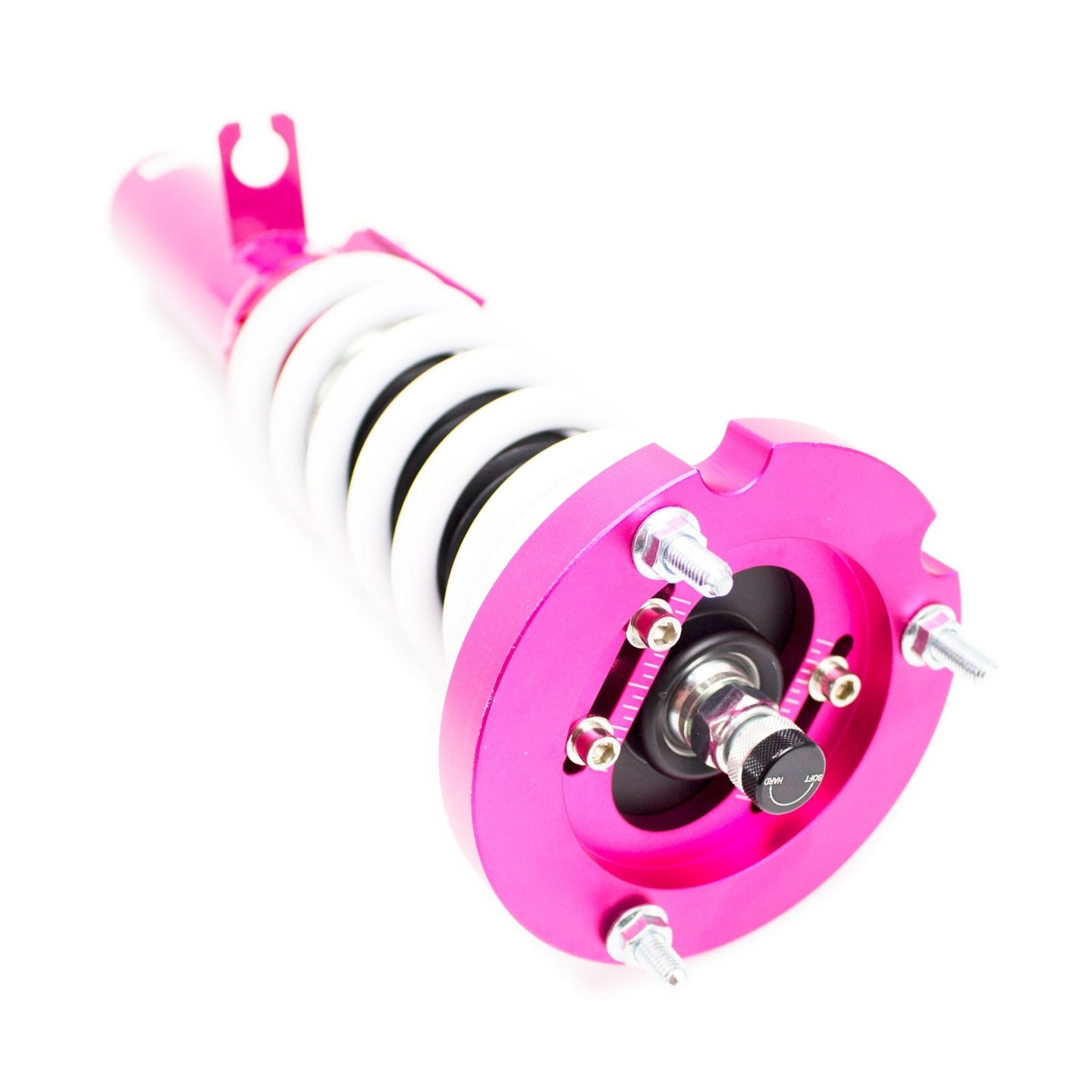

Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

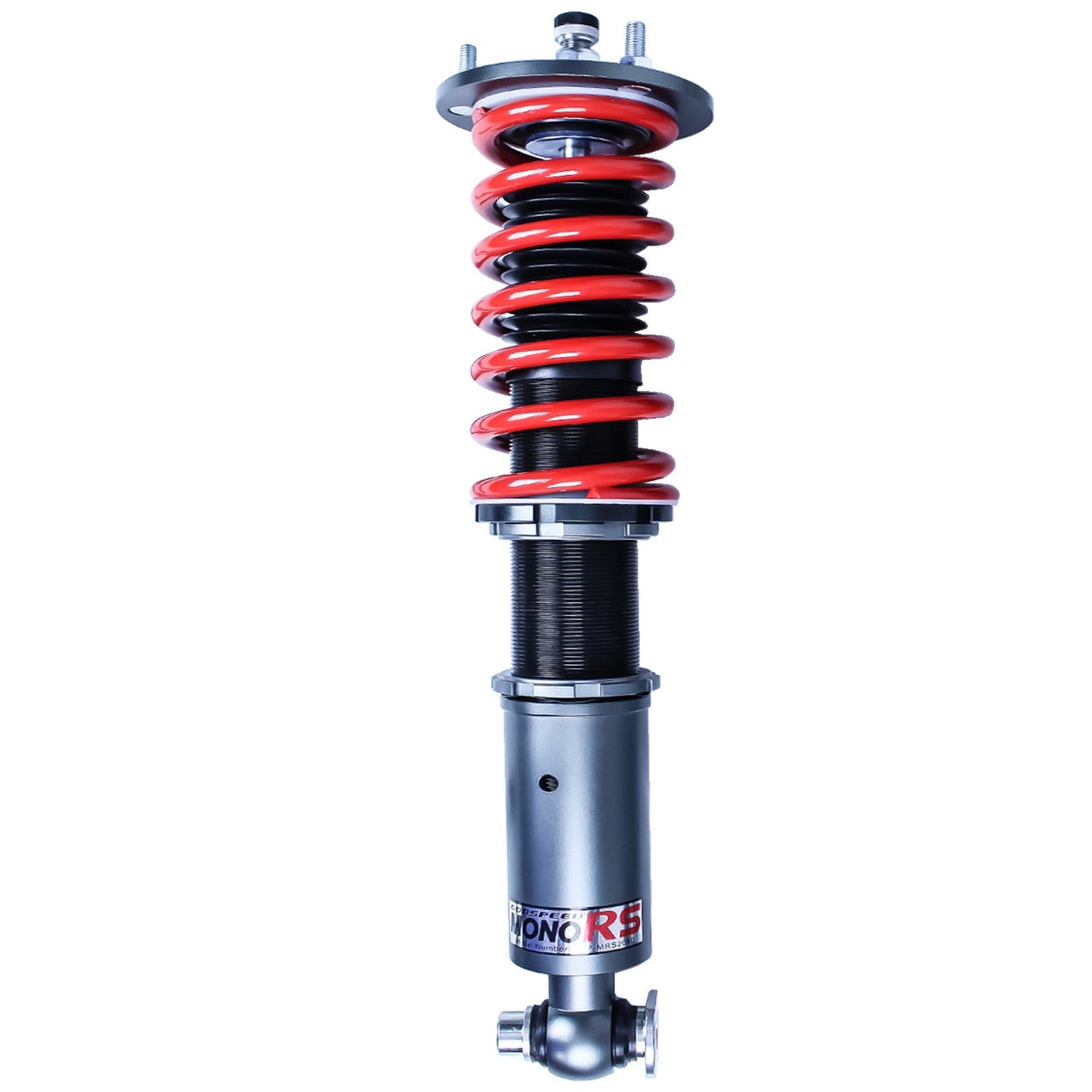

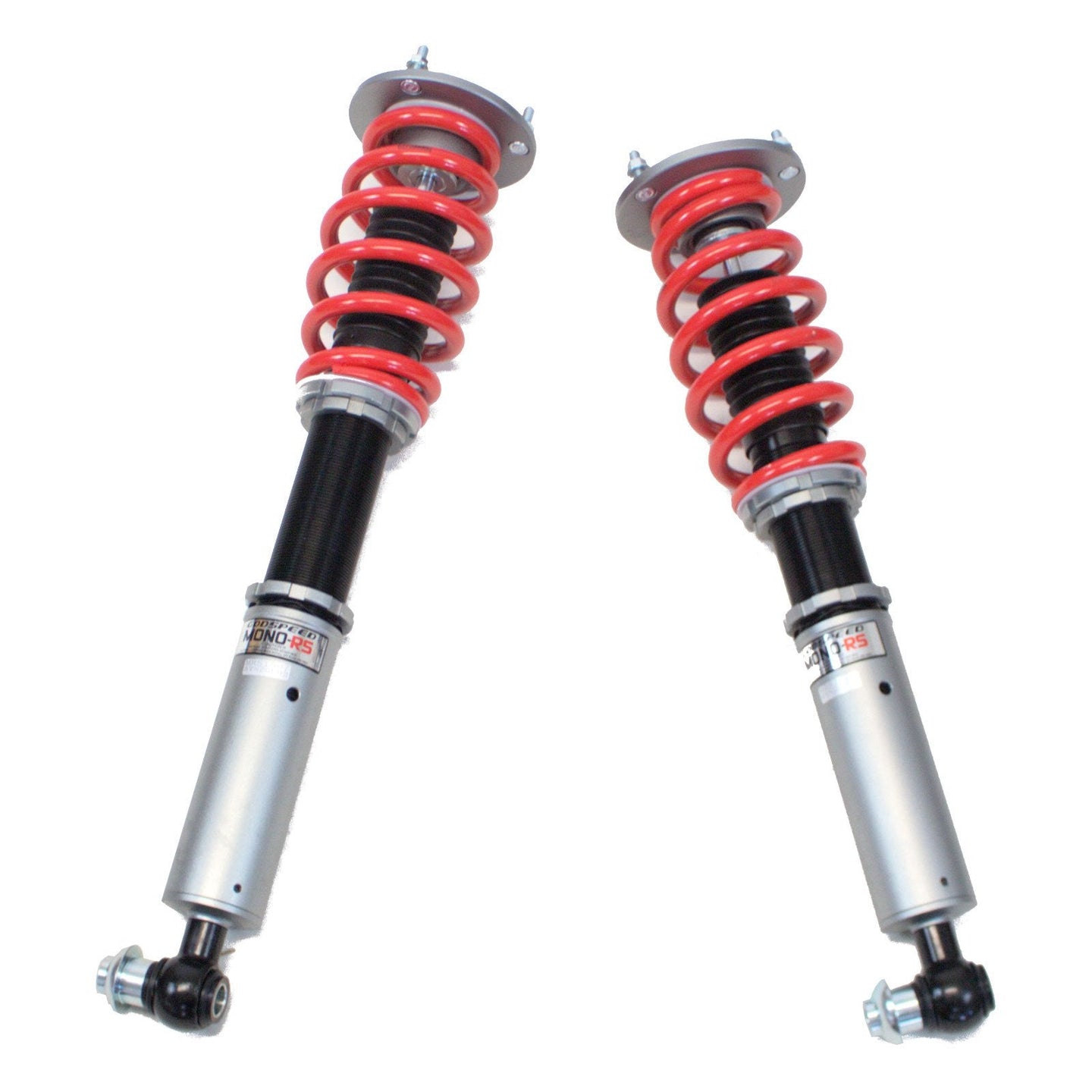

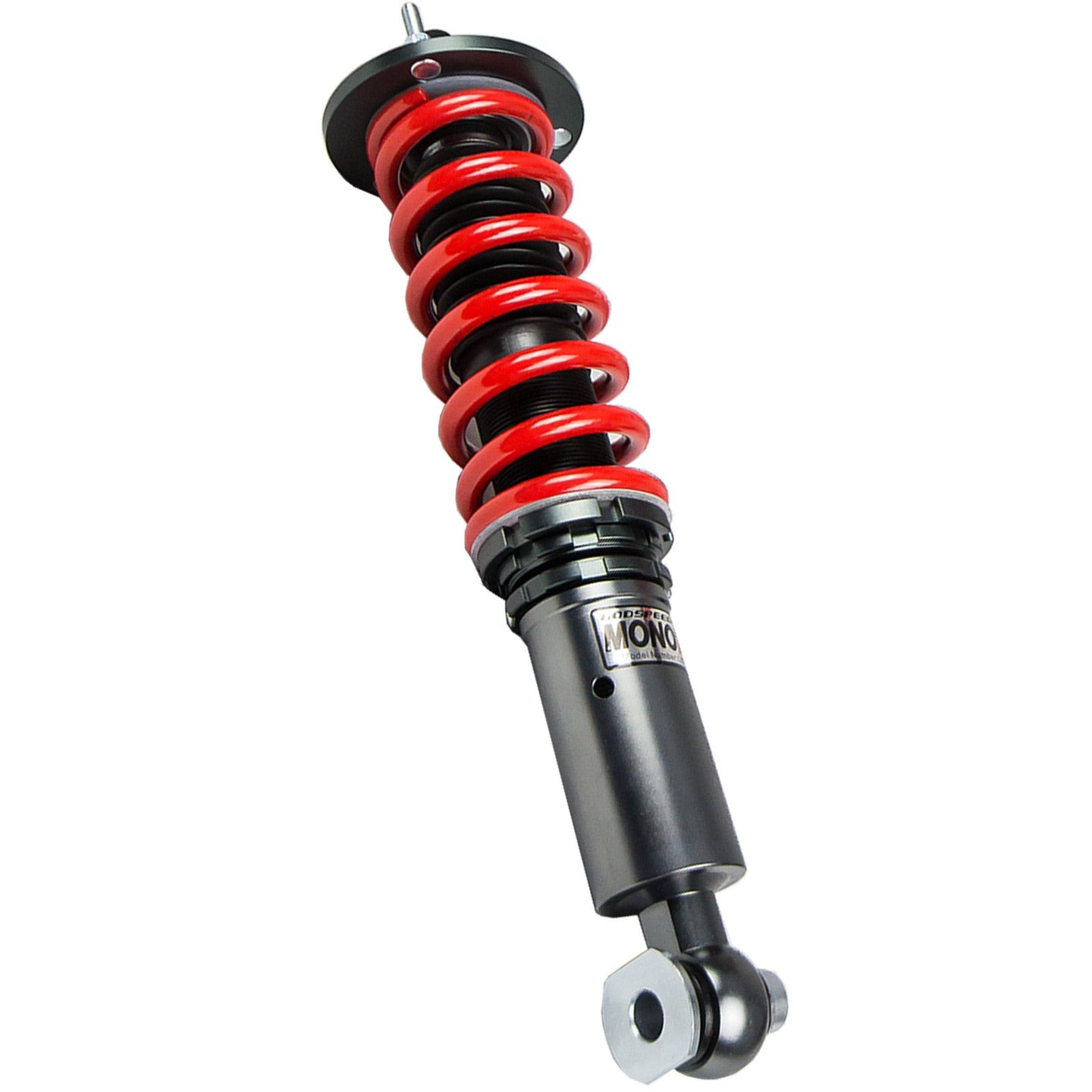

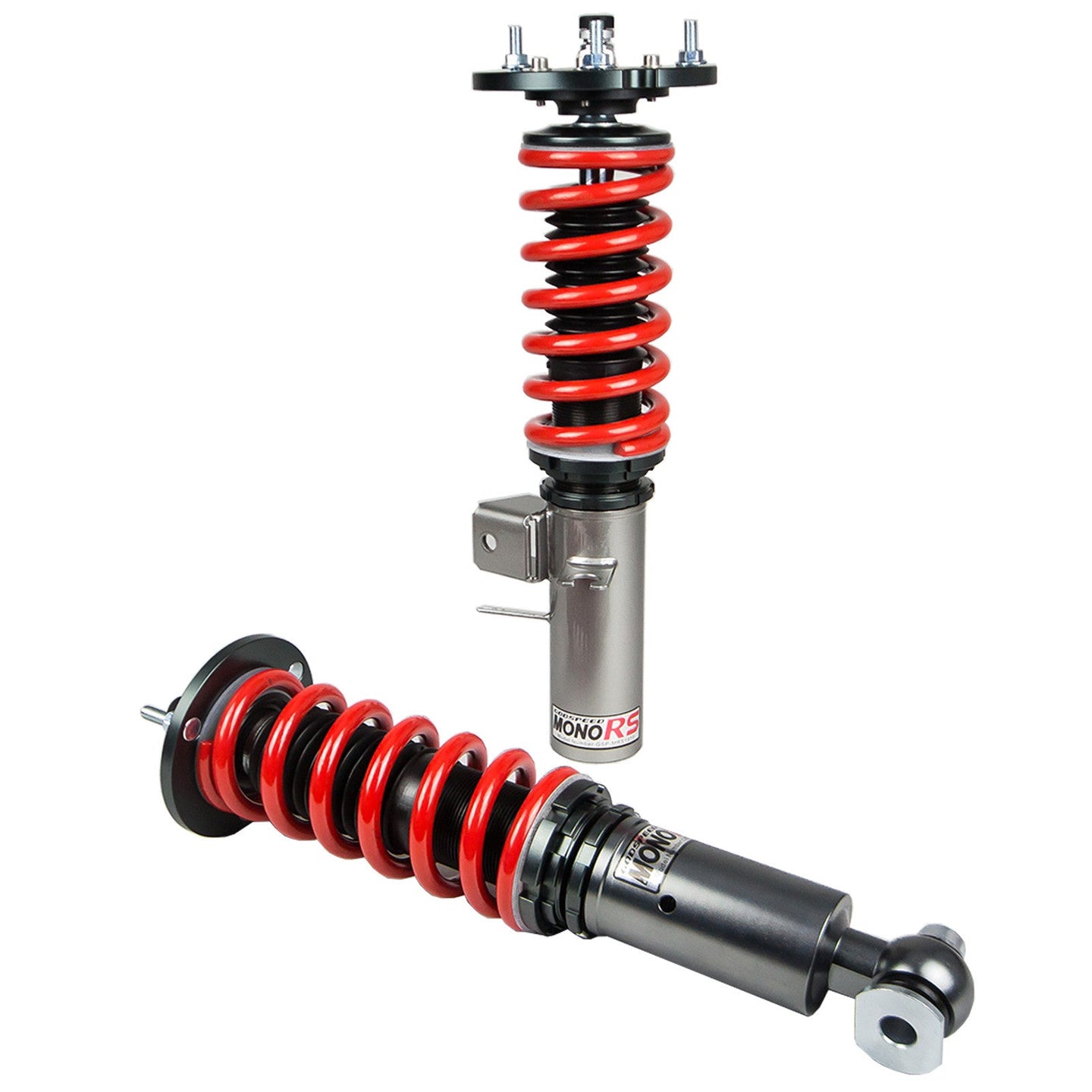

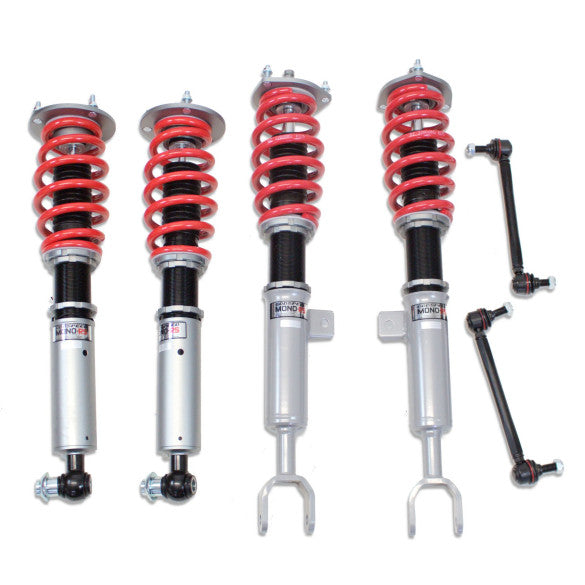

G30, 2017-2024, MonoRS

Special Notes	Prior to installation, verify all hardware and properly tighten and sp ring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	220 mm
Spring Length(Rear)	220 mm
Front Top Mount	Yes, Standard Type
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	No
User Guide	Coilover User Guide

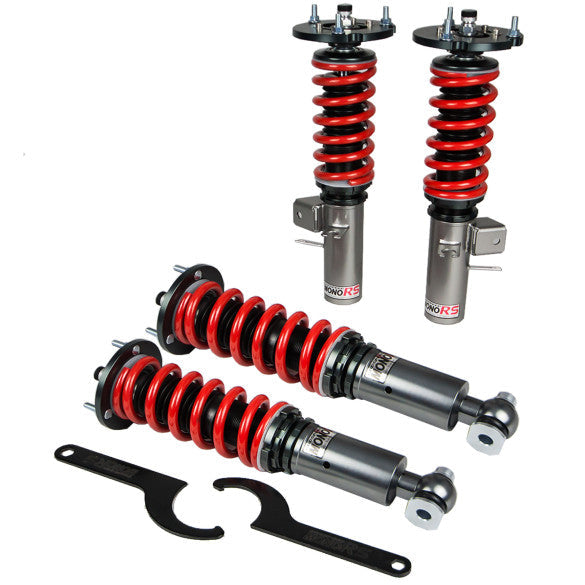

Godspeed BMW 5-Series RWD E28/E34/G30 Coilovers

Frequently Bought Together

Product Description

Customer Reviews

Similar Products

Customers also bought

Complementary products
