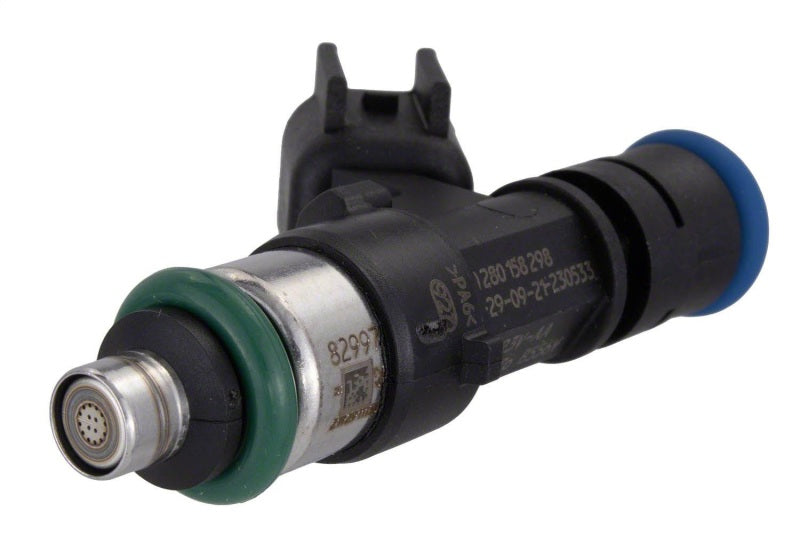

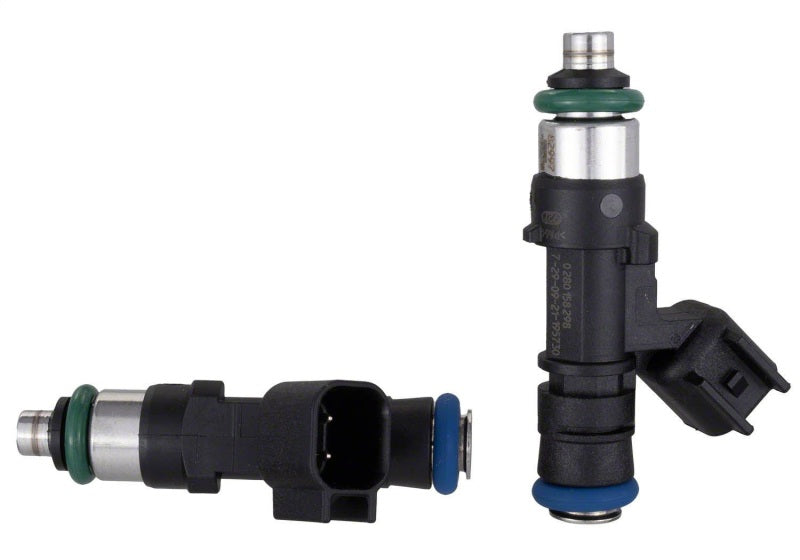

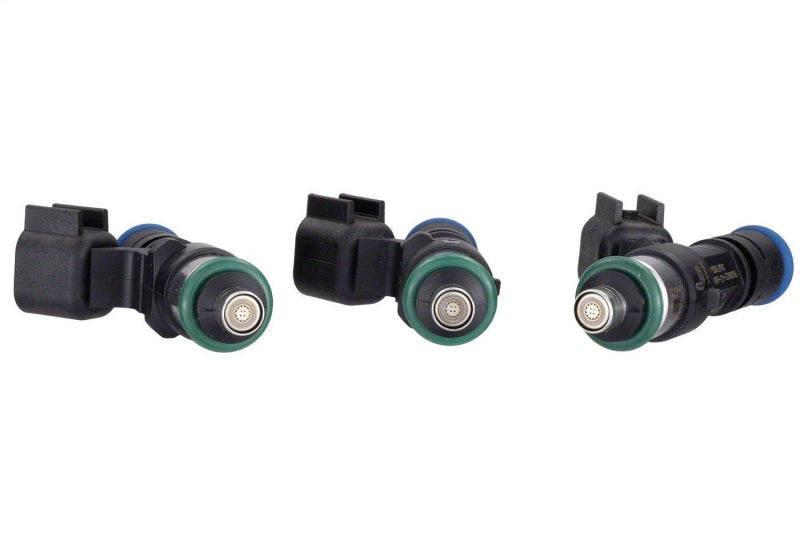

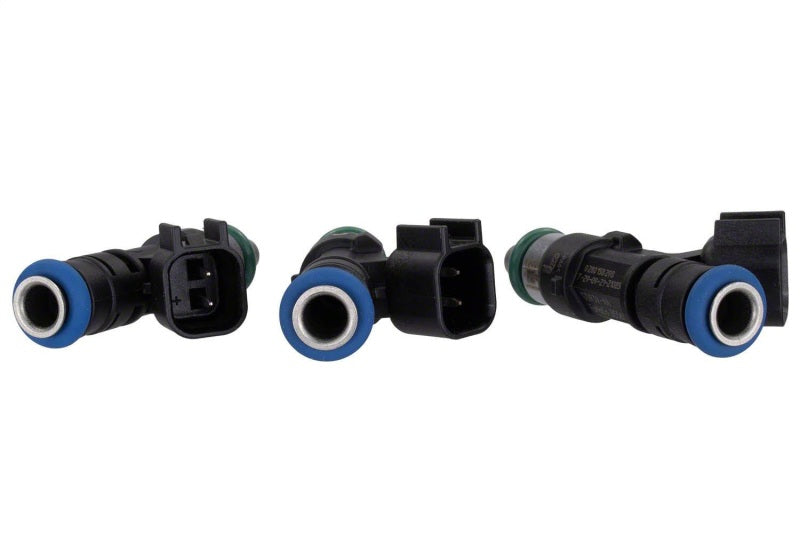

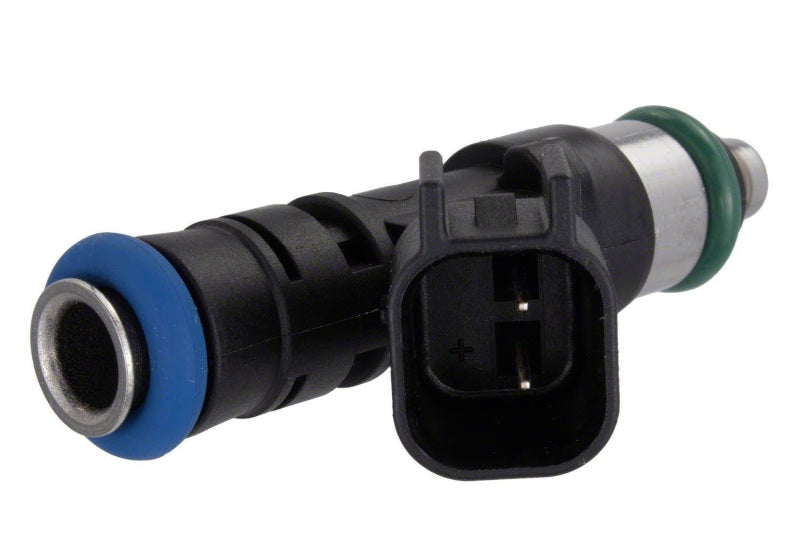

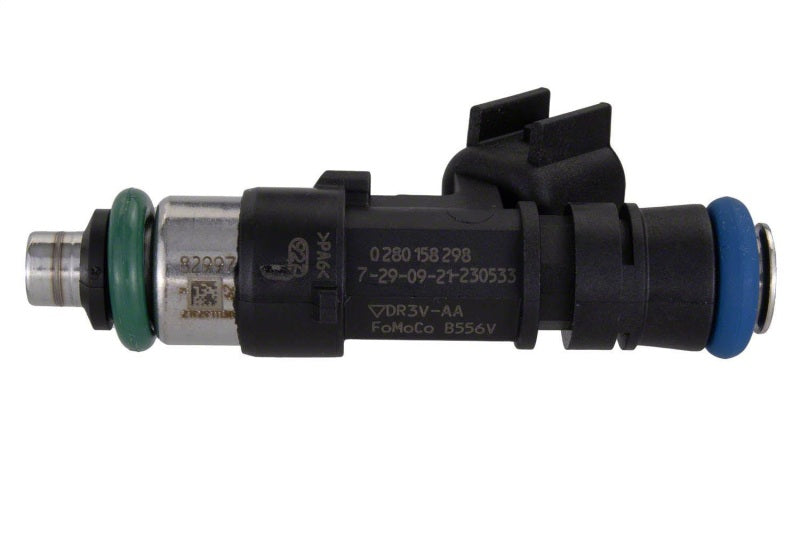

52 LB/HR FUEL INJECTOR SET

Overview

  •  52 lb/hr, 6-hole, high-impedance fuel injector with USCAR electrical connector
  • Original equipment on 2013-2014 GT500 Mustang

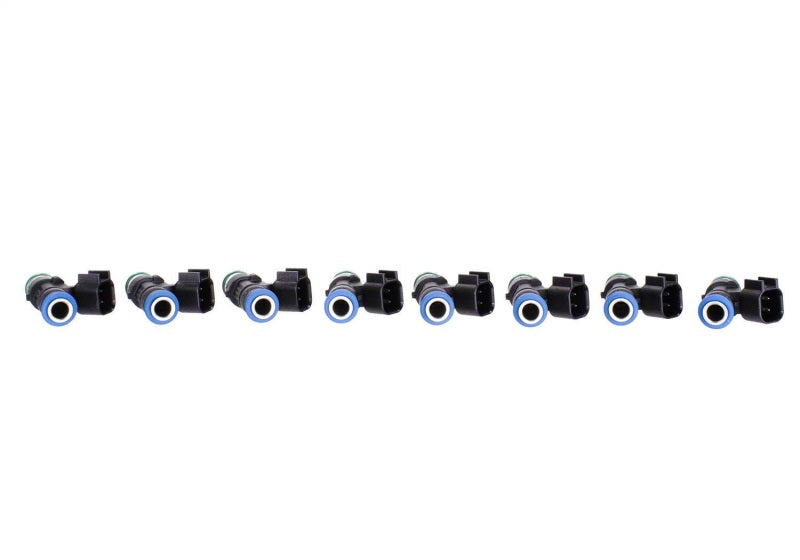

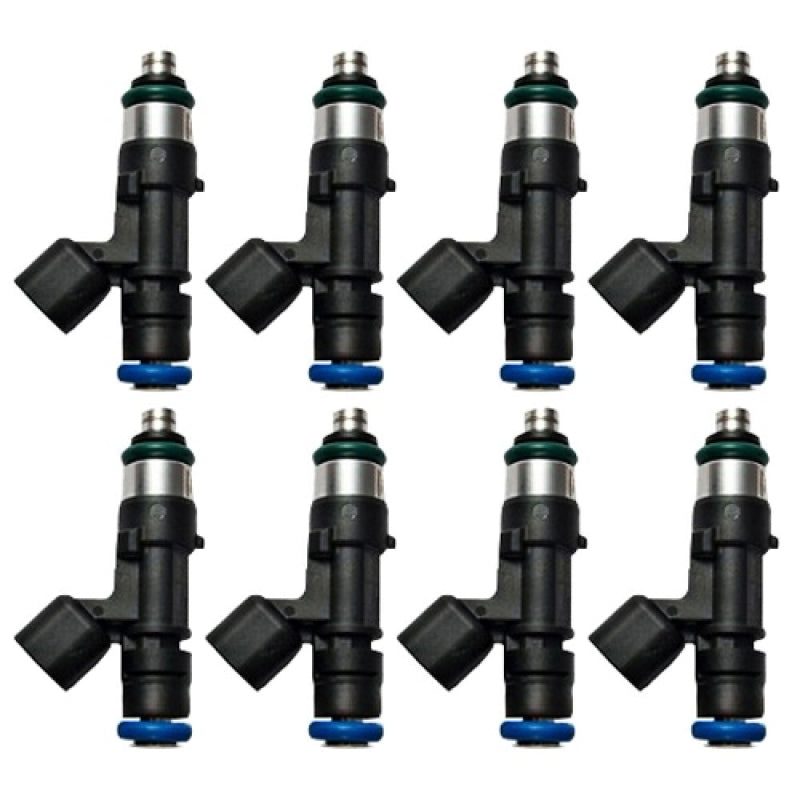

  • Eight injectors in a set

INJECTOR NOTES:

  • Wrong electrical connector for your application? Try our M-14464-A8 Fuel Injector Adapter Kit
  • Need help determining which injector you require for your application? Refer to EFI Tech Tips

About electrical connectors:

  • The USCAR connector is sometimes referred to as EV6, which is a Bosch term for the generation of injector.
  • Jetronic is the older style connector, sometimes referred to by the Bosch generation EV1.
  • Neither EV1 or EV6 is technically correct because those generations of Bosch injectors could come with either connector. However, most EV1's commonly seen use the Jetronic connector and most EV6's use the USCAR connector so it's easy to see the connection.

Fuel Injector Chart:

PART NUMBER (SETS OF 8) FLOW RATE IMPEDANCE LENGTH CONNECTOR ADAPTER COLOR
M-9593-LU24A 24 lbs/hr. 11-18 ohms L USCAR

M-14464-A8

Black
M-9593-MU32 32 lbs./hr. 11-12 ohms M USCAR M-14464-A8 Black w/red stripe
M-9593-LU34K 34 lbs./hr. 11-18 ohms L Jetronic/Minitimer INCLUDED Black
M-9593-LU34A 34 lbs./hr. 11-18 ohms L USCAR M-14464-A8 Black
M-9593-M39 39 lbs/hr. 11-18 ohms L USCAR M-14464-A8 Dark Blue
M-9593-G302 47 lbs/hr. 11-18 ohms M USCAR M-14464-A8 Black w/yellow stripe
M-9593-LU47 47 lbs/hr. 11-18 ohms L USCAR M-14464-A8 Black w/silver tip
M-9593-LU60 60 lbs/hr. 11-12 ohms L USCAR M-14464-A8 Black
M-9593-LU80 80 lbs/hr. 11-12 ohms L USCAR M-14464-A8 Black w/blue tip
M-9593-MU52 52 lbs/hr. 11-18 ohms M USCAR M-14464-A8 Black

Part Type: Electrical: Fuel Metering
Warranty Availability: Not Available
Packaged Dimensions: 6" x 3.75" x 4
Packaged Weight: 0.7 lb(s)
UPC Code: 756122000410
Catalog Page Number: 223
Country of Origin: United States
