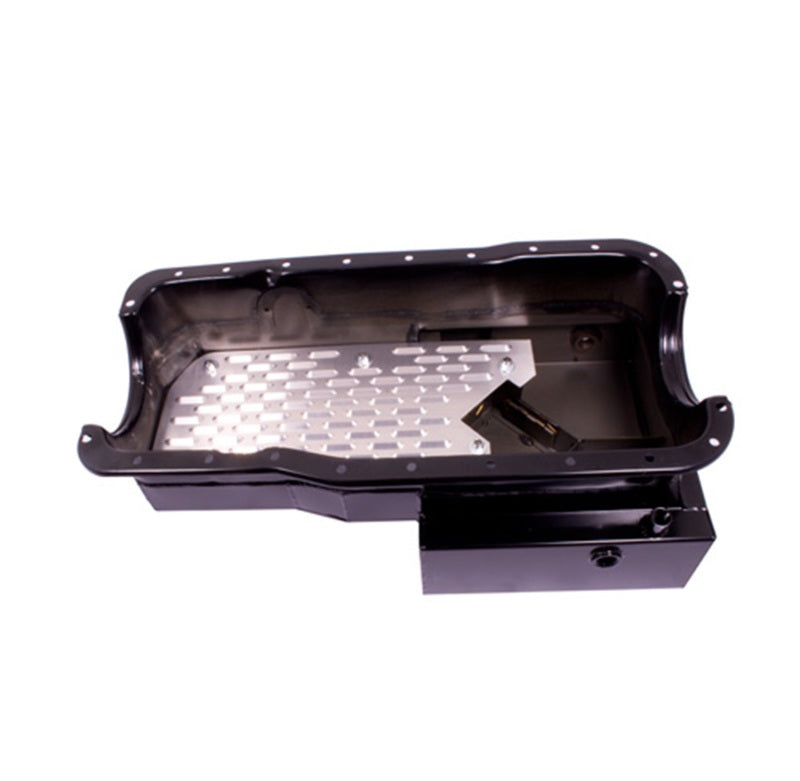

351 Front T-sump Racing Oil Pan

Designed by Ford Performance for use on its crate engines, the M-6675-FT351 oil pan is constructed to deliver power and durability.

Features include:

• Full length scraper to direct oil away from the crankshaft and return to the sump
• Full length bolt in aluminum louvered windage tray to control oil
• Baffling and trap doors in the sump to keep the pickup submerged during performance driving
• 9 quart capacity
• Sump depth is 8.1" – T-Sump width is 12.15" – T-Sump length from the front of the pan is 10.4"
• Includes 3/8" NPT bung to mount an oil temperature sending unit
• Includes 3/8" NPT access hole to adjust oil pump spring pressure
• Fits standard 351 Windsor block oil pan bolt pattern
• Designed to clear 4-bolt main cap Ford Performance BOSS 351 blocks
• Semi-gloss black powder coat finish
• Laser cut and TIG welded in precision fixtures for consistent OEM level fit
• Used on FRPP M-6007-Z427FFT Crate Engine
• Use pickup M-6622-FT351
• See oil pan dimension chart attached below.
