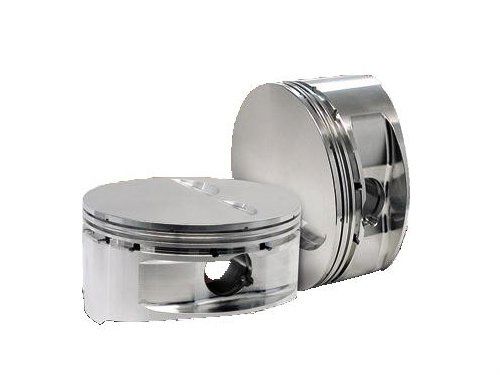

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Supplied with .927 x 2.500 Pin (118g). For 1200 series optional 98g pin available Supplied With Double Spiral Locks .010 Deck Clearance with 3.480 Stroke
2nd Ring: 1.5
Bore: 4.020
Comp Height: 1.250
Dome VR CC: F.T. -5cc
Gas Ports: No
Oil Ring: 3.0
Rod: 6.000
Stroke: 3.500
Top Ring: 1.5
Weight: 372
w/ 2.020/1.600 Valve Milled Head

FR SPORT

CP-Carrillo Automotive Piston, Set Of 8, Cyl: 8, Material ID: 622 01M1B

SKU 01M1B

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Supplied with .927 x 2.500 Pin (118g). For 1200 series optional 98g pin available Supplied With Double Spiral Locks .010 Deck Clearance with 3.480 Stroke
2nd Ring: 1.5
Bore: 4.020
Comp Height: 1.250
Dome VR CC: F.T. -5cc
Gas Ports: No
Oil Ring: 3.0
Rod: 6.000
Stroke: 3.500
Top Ring: 1.5
Weight: 372
w/ 2.020/1.600 Valve Milled Head

Quantity

Total price$740.76

Product Description

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Supplied with .927 x 2.500 Pin (118g). For 1200 series optional 98g pin available Supplied With Double Spiral Locks .010 Deck Clearance with 3.480 Stroke
2nd Ring: 1.5
Bore: 4.020
Comp Height: 1.250
Dome VR CC: F.T. -5cc
Gas Ports: No
Oil Ring: 3.0
Rod: 6.000
Stroke: 3.500
Top Ring: 1.5
Weight: 372
w/ 2.020/1.600 Valve Milled Head
