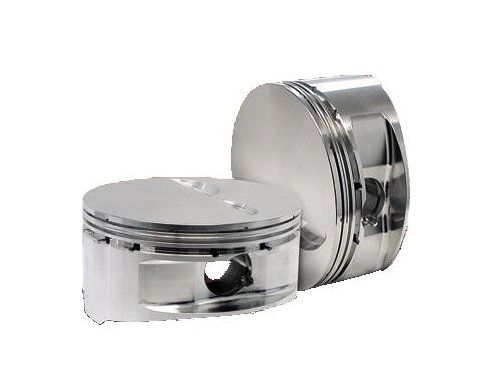

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Fits Flat Top SB2.2 Head Rail Supports included Supplied with .927 x 2.750 Pins (130g) Supplied With Wire Lock
2nd Ring: 0.043
Bore: 4.130
Comp Height: 1.000
Dome VR CC: F.T. -6.2cc
Gas Ports: Yes
Oil Ring: 3.0
Rod: 6.000
Stroke: 4.000
Top Ring: 0.043
Weight: 413
w/ SB2.2 Flat Top Head

FR SPORT

CP-Carrillo Automotive Piston, Set Of 8, Cyl: 8, Material ID: 3333 00YBF

SKU 00YBF

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Fits Flat Top SB2.2 Head Rail Supports included Supplied with .927 x 2.750 Pins (130g) Supplied With Wire Lock
2nd Ring: 0.043
Bore: 4.130
Comp Height: 1.000
Dome VR CC: F.T. -6.2cc
Gas Ports: Yes
Oil Ring: 3.0
Rod: 6.000
Stroke: 4.000
Top Ring: 0.043
Weight: 413
w/ SB2.2 Flat Top Head

Quantity

Total price$740.76

Product Description

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Fits Flat Top SB2.2 Head Rail Supports included Supplied with .927 x 2.750 Pins (130g) Supplied With Wire Lock
2nd Ring: 0.043
Bore: 4.130
Comp Height: 1.000
Dome VR CC: F.T. -6.2cc
Gas Ports: Yes
Oil Ring: 3.0
Rod: 6.000
Stroke: 4.000
Top Ring: 0.043
Weight: 413
w/ SB2.2 Flat Top Head
