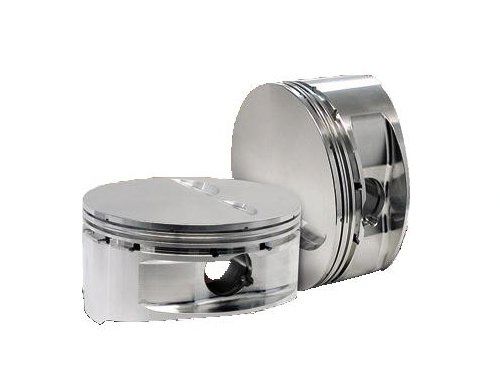

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Domed Supplied With Double Spiral Locks Rail Supports included Supplied with .150 Wall .990 x 2.930 Pin (151g) or optional 175g
2nd Ring: 1/16
Bore: 4.500
Comp Height: 1.645
Dome VR CC: 47.5
Gas Ports: No
Oil Ring: 3/16
Rod: 6.135
Stroke: 4.000
Top Ring: 1/16
Weight: 676

FR SPORT

CP-Carrillo Automotive Piston, Set Of 8, Cyl: 8, Material ID: 1016 01PN9

SKU 01PN9

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Domed Supplied With Double Spiral Locks Rail Supports included Supplied with .150 Wall .990 x 2.930 Pin (151g) or optional 175g
2nd Ring: 1/16
Bore: 4.500
Comp Height: 1.645
Dome VR CC: 47.5
Gas Ports: No
Oil Ring: 3/16
Rod: 6.135
Stroke: 4.000
Top Ring: 1/16
Weight: 676

Quantity

Total price$740.76

Product Description

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Domed Supplied With Double Spiral Locks Rail Supports included Supplied with .150 Wall .990 x 2.930 Pin (151g) or optional 175g
2nd Ring: 1/16
Bore: 4.500
Comp Height: 1.645
Dome VR CC: 47.5
Gas Ports: No
Oil Ring: 3/16
Rod: 6.135
Stroke: 4.000
Top Ring: 1/16
Weight: 676
