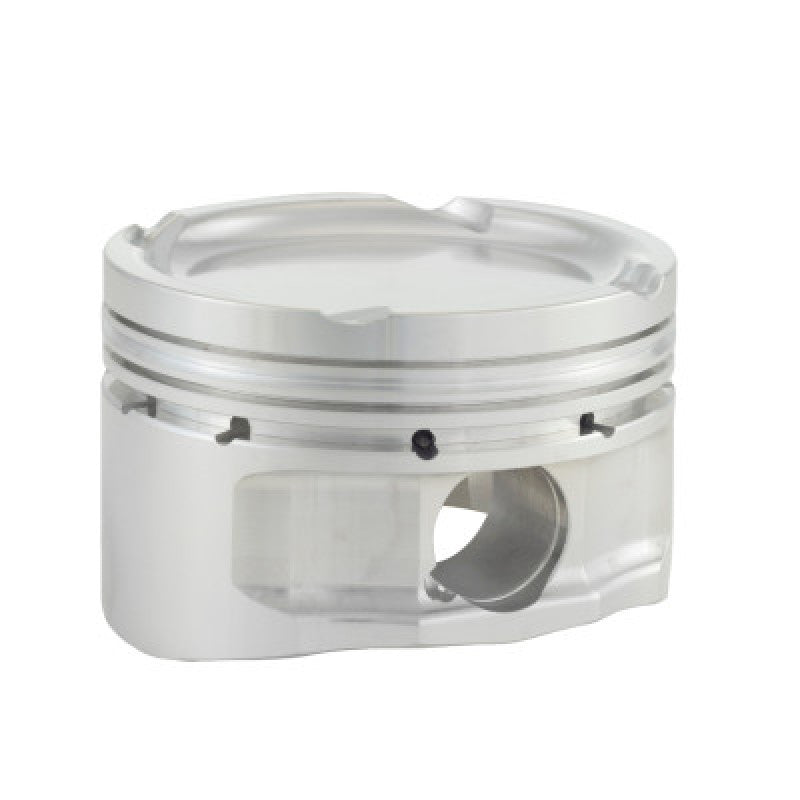

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Supplied With Double Spiral Locks Supplied with .940 x 2.750 pins (153g)
2nd Ring: 1/16
Bore: 3.820
Comp Height: 1.835
Dome VR CC: -27.2cc
Gas Ports: No
Oil Ring: 3/16
Rod: 5.960
Stroke: 3.400
Top Ring: 1/16
Weight: 494

FR SPORT

CP-Carrillo Automotive Piston, Set Of 6, Cyl: 6, Material ID: 3372 053W2

SKU 053W2

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Supplied With Double Spiral Locks Supplied with .940 x 2.750 pins (153g)
2nd Ring: 1/16
Bore: 3.820
Comp Height: 1.835
Dome VR CC: -27.2cc
Gas Ports: No
Oil Ring: 3/16
Rod: 5.960
Stroke: 3.400
Top Ring: 1/16
Weight: 494

Quantity

Total price$740.76

Product Description

Small Block Chevy LS1 Piston Kit

SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit Supplied With Double Spiral Locks Supplied with .940 x 2.750 pins (153g)
2nd Ring: 1/16
Bore: 3.820
Comp Height: 1.835
Dome VR CC: -27.2cc
Gas Ports: No
Oil Ring: 3/16
Rod: 5.960
Stroke: 3.400
Top Ring: 1/16
Weight: 494
