Ford 3V Beehive Valve Springs: Top 1.013" O.D., .650" I.D.; Bottom 1.101" O.D., .738" I.D. H/L

With a .650" maximum lift, these BeehiveT Valve Springs were designed for Ford 4.6L and 5.4L Modular 2 & 3 Valve engines and Duramax applications. COMP Cams® BeehiveT Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique BeehiveT shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique BeehiveT design, the valve train can handle more RPM and more aggressive cam profiles.

Part # O.D. I.D. Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims
26125-24 1.013
1.101		 .650
.738		 120 @ 1.640 275 @ 1.040 .970 258 702 700 N/A N/A

FR SPORT

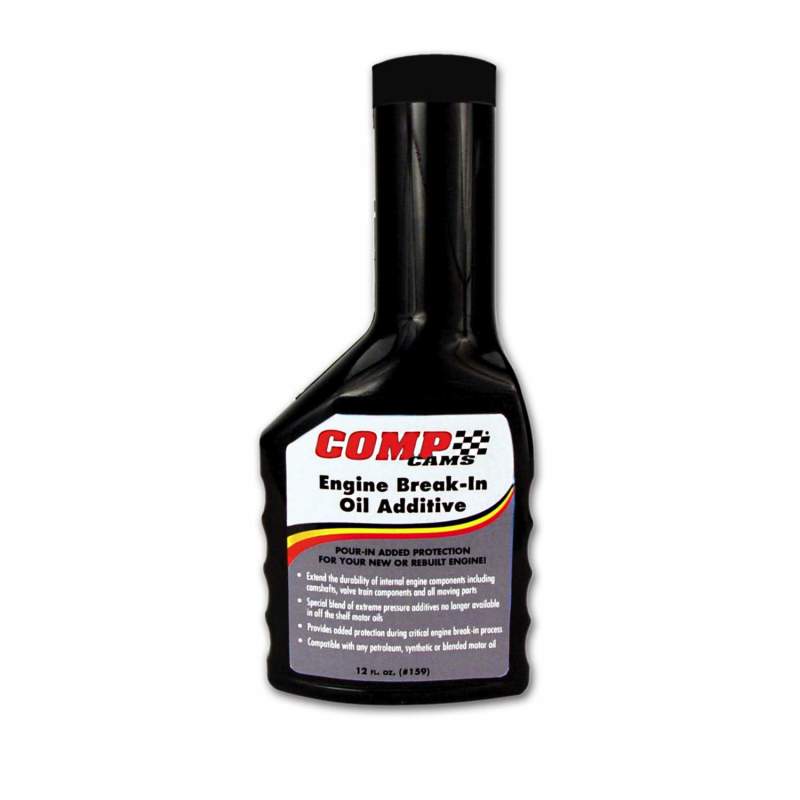

Comp Cams Engine Break-In Oil Additive (1) Bottle Lube CamShaft 12OZ

SKU 000JU
$23.94

Ford 3V Beehive Valve Springs: Top 1.013" O.D., .650" I.D.; Bottom 1.101" O.D., .738" I.D. H/L

With a .650" maximum lift, these BeehiveT Valve Springs were designed for Ford 4.6L and 5.4L Modular 2 & 3 Valve engines and Duramax applications. COMP Cams® BeehiveT Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique BeehiveT shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique BeehiveT design, the valve train can handle more RPM and more aggressive cam profiles.

Part # O.D. I.D. Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims
26125-24 1.013
1.101		 .650
.738		 120 @ 1.640 275 @ 1.040 .970 258 702 700 N/A N/A
$23.94

Frequently Bought Together

Total price$740.76

Product Description

Ford 3V Beehive Valve Springs: Top 1.013" O.D., .650" I.D.; Bottom 1.101" O.D., .738" I.D. H/L

With a .650" maximum lift, these BeehiveT Valve Springs were designed for Ford 4.6L and 5.4L Modular 2 & 3 Valve engines and Duramax applications. COMP Cams® BeehiveT Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique BeehiveT shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique BeehiveT design, the valve train can handle more RPM and more aggressive cam profiles.

Part # O.D. I.D. Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims
26125-24 1.013
1.101		 .650
.738		 120 @ 1.640 275 @ 1.040 .970 258 702 700 N/A N/A
