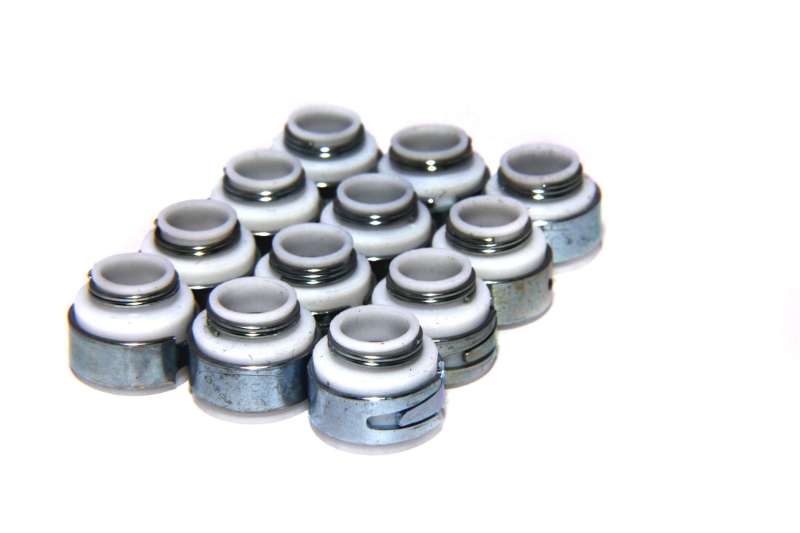

COMP Cams® offers a complete line of valve stem seals, from the stock GM "O-Ring" to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE seal is used. We also have a smaller diameter Viton seal available for triple spring applications. Both the O-Ring and the umbrella seals require no machining, but with the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special .530" diameter cutter. Whenever you are planning an engine overhaul or a cam change, don't forget the valve seals--COMP Cams® hasn't
COMP Cams® offers a complete line of valve stem seals, from the stock GM "O-Ring" to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE seal is used. We also have a smaller diameter Viton seal available for triple spring applications. Both the O-Ring and the umbrella seals require no machining, but with the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special .530" diameter cutter. Whenever you are planning an engine overhaul or a cam change, don't forget the valve seals--COMP Cams® hasn't
- Regular price
- $35.95
Frequently Bought Together
-
Vendor: DFW Speed Syndicate
Ford 240/300 L6 Pro Series Distributor - Modified for EFI Control
Regular price From $325.00 -
Vendor: Aces EFI B2B
Black Jack Pro Series Ignition Coils
Regular price $49.99 -
Vendor: DFW Speed Syndicate
Offenhauser 6284 – Ford 240-300 High Performance Dual Port Intake Manifold
Regular price $669.00 -
Vendor: DFW Speed Syndicate
Aftermarket EFI Tuning
Regular price From $400.00
Product Description
COMP Cams® offers a complete line of valve stem seals, from the stock GM "O-Ring" to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE seal is used. We also have a smaller diameter Viton seal available for triple spring applications. Both the O-Ring and the umbrella seals require no machining, but with the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special .530" diameter cutter. Whenever you are planning an engine overhaul or a cam change, don't forget the valve seals--COMP Cams® hasn't
