COMP Cams Valve Spring Accessories

LOCATORS

• Protects the head and shim while properly locating and holding the springs in place
• New I.D. Locator is engineered with the locating shoulder on the inside
• A wide range of sizes are available to locate from either the inside or outside diameter
• Designed to handle the extreme spring pressures and high RPM in racing engines

COMP Cams offers Valve Spring Locators as an effective solution to the problem of standard shims not holding up to the extreme spring pressures and high RPM of today’s race engines. These Valve Spring Locators provide a thin, hardened steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup. Many sizes are available to locate from the inside or outside diameter.

Specification

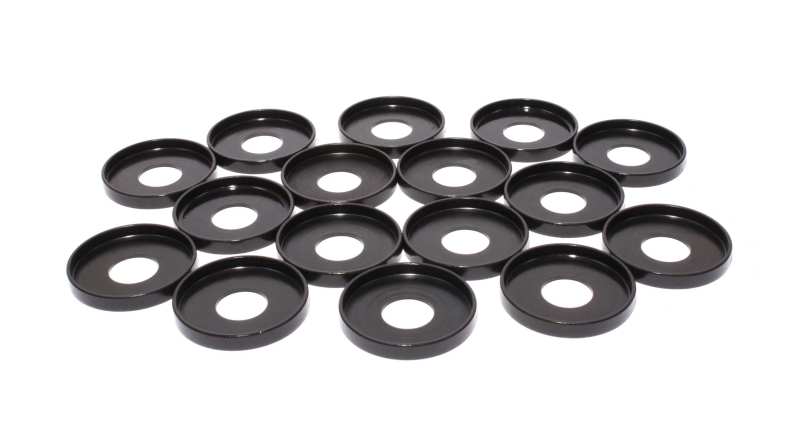

Spring Cup

Locator Thickness: .060"

Locator I.D.: .640"

Locator O.D.: 1.780"

Spring O.D.: 1.690"

Spring I.D.: N/A
