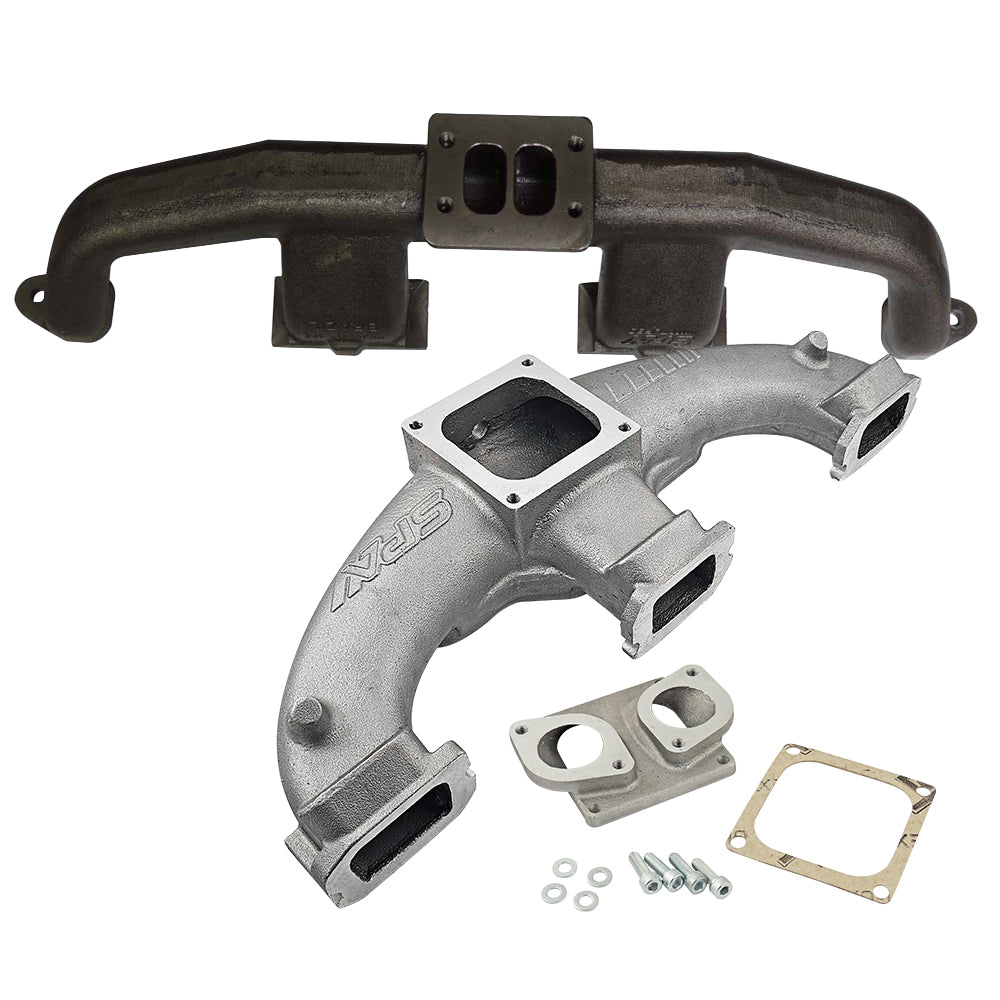

CHEVY II 250 / 292 INLINE 6 T4 TURBO MANIFOLD

• IMPROVED Flow and reduced Weight compared to TMC02 style, also a new high-flow WG port is available, equal flow from all cylinders for a better boost control on high flow engines.

• WANT MORE?? ok we have a special price for it too!
• WANT 400 reliable EASY horsepower and gobs of torque?
• The TMC05T4 manifold is an ASTM A536-584 nodular iron cast manifold, available in T4 divided turbocharger Flange; the manifold requires a custom WG mount (not included)
• The application is Chevy 194 / 230 / 250 / 292 CU IN ENGINES.
• Weight: 20lbs (9kg).
• Turbo flange threads: M10x1.5
  Wastegate flange (if applicable) threads: M8x1.25

CHEVY II 194 / 230 / 250 / 292 L6 INLINE SIX INTAKE MANIFOLD for Single Weber IDF

The intake manifold for the Chevy 250/292 engine from SPA Performance was developed by our engineering department with the aim of providing the highest airflow and versatility on the market. It is compatible with both Holley four-barrel and Weber carburetors (needs adapter flange*). This intake manifold was designed to work perfectly with SPA Performance turbo manifolds, PN TMC02 and TMC05. For other applications, Check your exhaust manifold and clamps, trimming on the marked area may be necessary. The manifold also features water jacket, and it undergoes a sealant treatment to avoid any leakage possibility, all parts are tested.

Application: 194 (3.2Ci) / 230 (3.8Ci) / 250CI (4.1L) / 292Ci (4.8Ci) inline six engines
Material: cast aluminum
Includes:
Cast aluminum flange for standard Weber IDF.
1x 1/4" NPT port (vacuum)
2x 1/4 NPT ports (water jacket)
4x M8 bolts
4x washers
1x gasket
