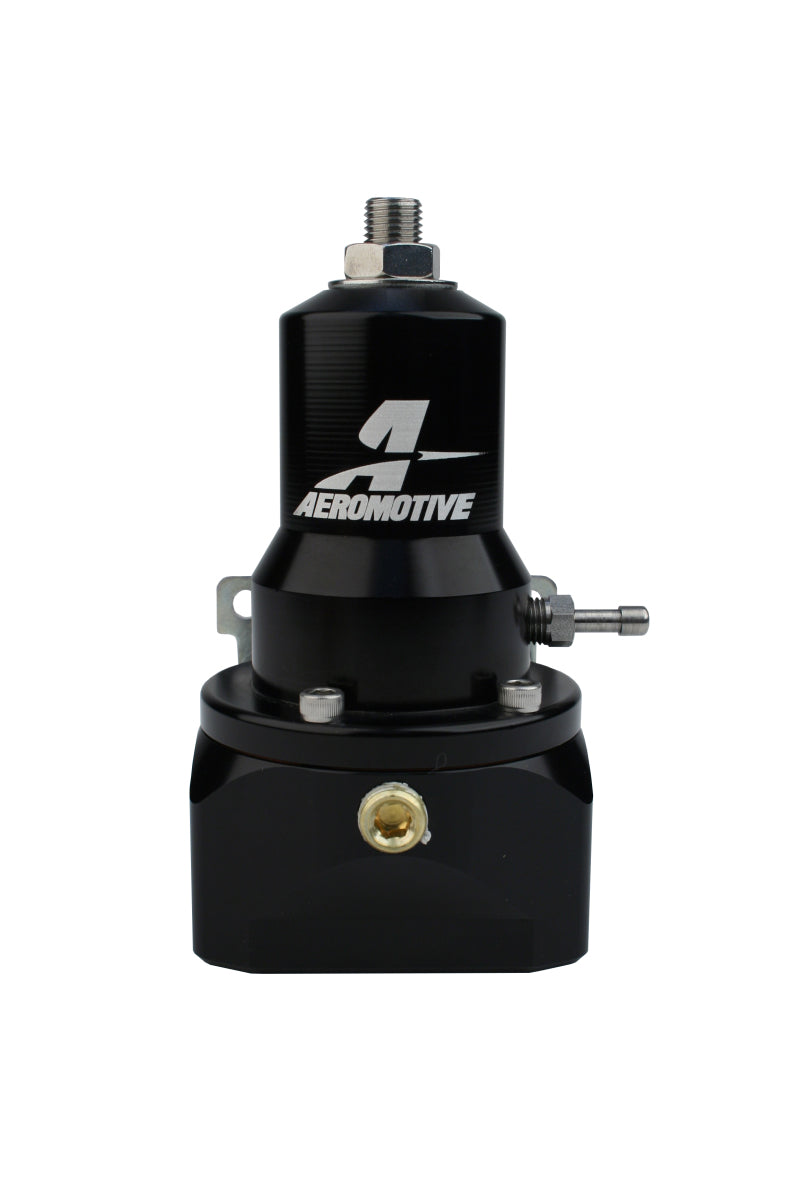

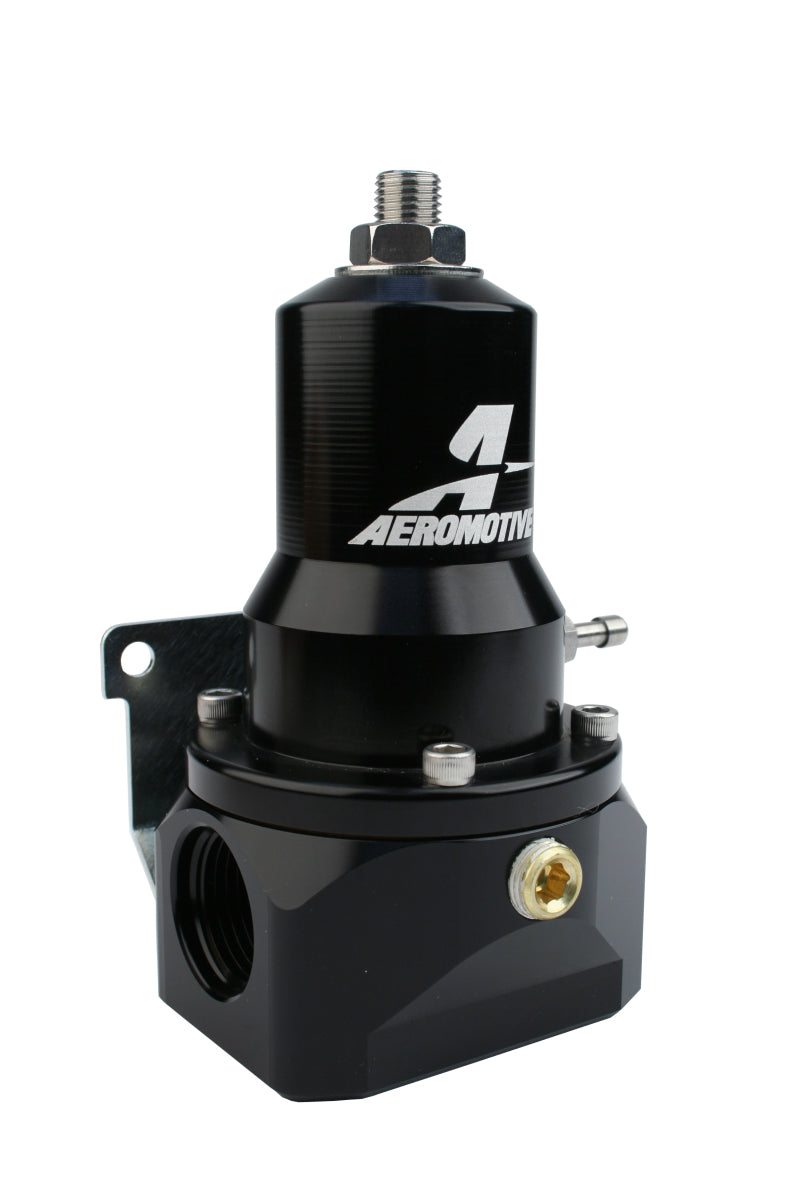

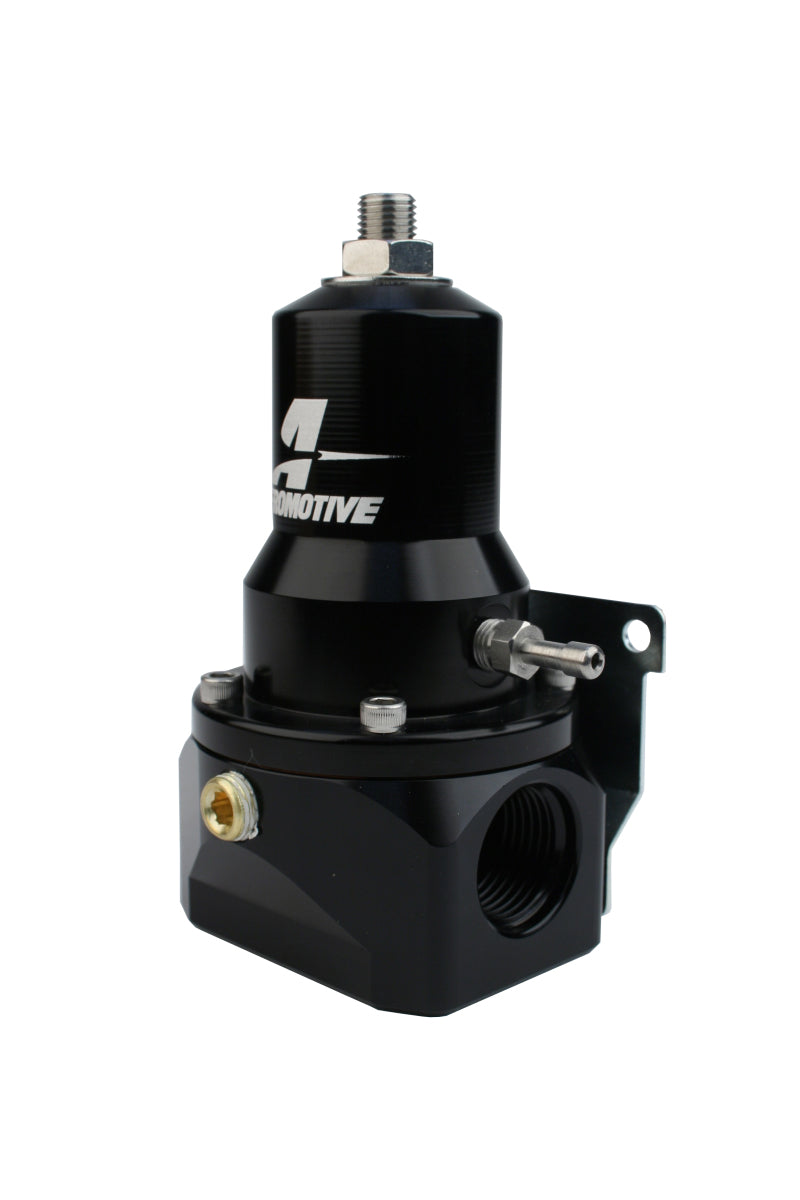

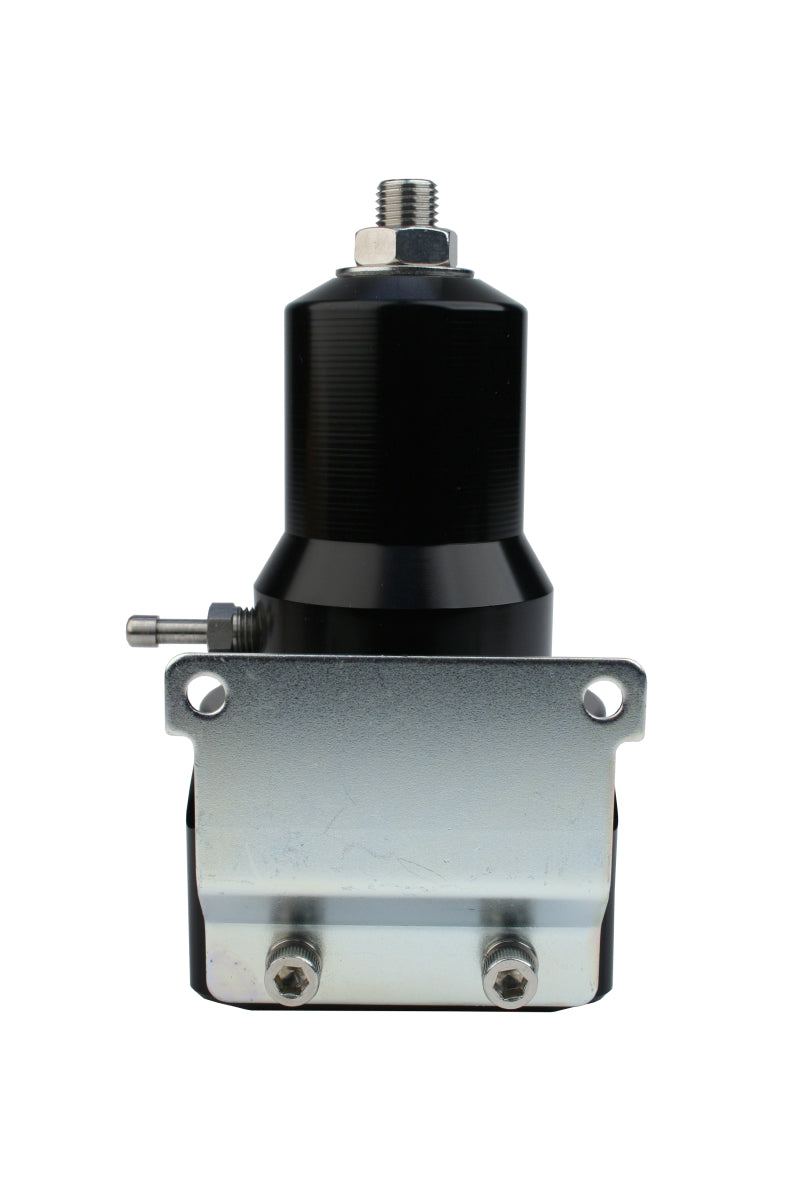

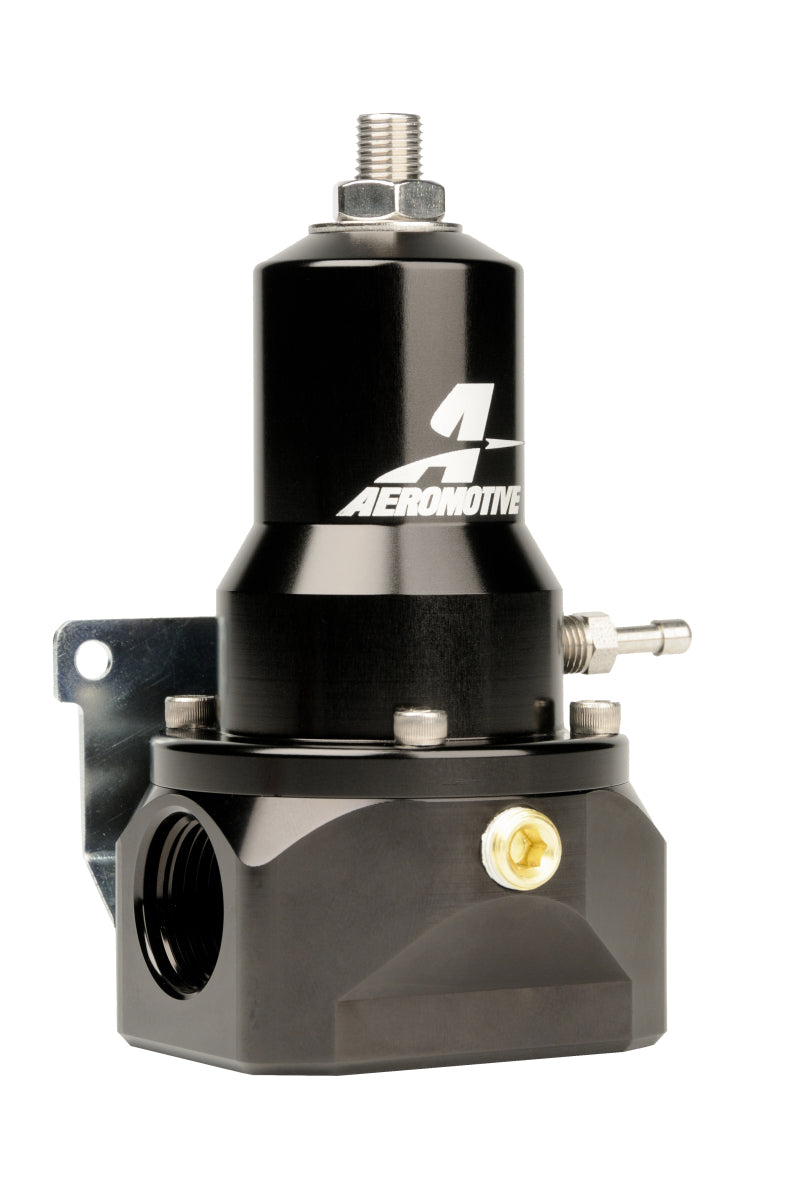

Pro Series Extreme Flow EFI Regulator, 30-120 psi,.313 Valve, 2x AN-10

Extreme Flow 2-Port EFI Regulator

30-75 PSI and 75-125 PSI Base Pressure Range

  • Extreme Flow Design optimized for the Eliminator, Pro-Pump and Dual A1000 fuel systems.
  • Suitable for Mechanical pumps up to 5.0 GPM.

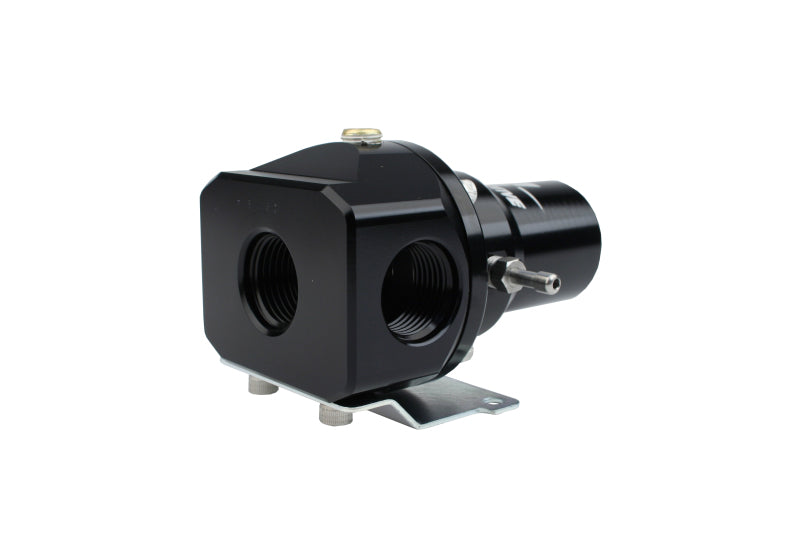

  • Compact, 2-Port Body with dual AN-10 inlet/outlet ports and one AN-10 return port
  • High Flow 0.313? Valve/Seat, optimized for larger electric fuel pumps in the 2.5-5.0 GPM flow range.
  • Dual Springs expand pressure range while maintaining a low profile and reduced weight.
    • Standard spring (installed) supports 30-75 PSI base fuel pressure.

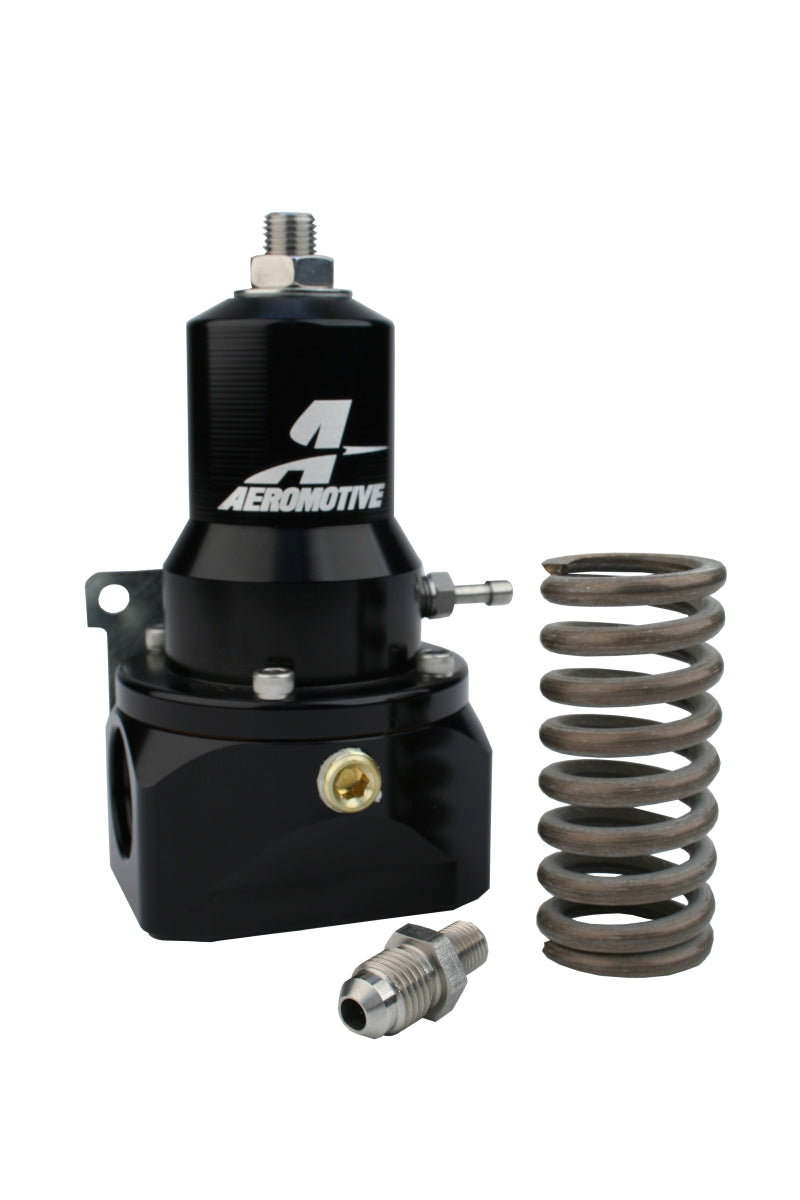

    • High Pressure spring (included) supports 75-120 PSI base fuel pressure.
  • Systems where an electric pump is desired and where base pressure exceeds 70-PSI should run two pumps of similar flow rate, in series.
  • Vacuum and boost reference on a 1:1 ratio.
  • Compatible with gasoline, ethanol and methanol.

Additional information

  • Weight: 1.3 lbs
  • Dimensions: 5.5 x 5.5 x 2.75 in

FR SPORT

Aeromotive Pro Series Extreme Flow EFI Regulator, 30-120 psi,.313 Valve, 2x AN-10

SKU 0HNB9
$356.29
$323.90

Pro Series Extreme Flow EFI Regulator, 30-120 psi,.313 Valve, 2x AN-10

Extreme Flow 2-Port EFI Regulator

30-75 PSI and 75-125 PSI Base Pressure Range

  • Extreme Flow Design optimized for the Eliminator, Pro-Pump and Dual A1000 fuel systems.
  • Suitable for Mechanical pumps up to 5.0 GPM.
  • Compact, 2-Port Body with dual AN-10 inlet/outlet ports and one AN-10 return port
  • High Flow 0.313? Valve/Seat, optimized for larger electric fuel pumps in the 2.5-5.0 GPM flow range.
  • Dual Springs expand pressure range while maintaining a low profile and reduced weight.
    • Standard spring (installed) supports 30-75 PSI base fuel pressure.
    • High Pressure spring (included) supports 75-120 PSI base fuel pressure.
  • Systems where an electric pump is desired and where base pressure exceeds 70-PSI should run two pumps of similar flow rate, in series.
  • Vacuum and boost reference on a 1:1 ratio.
  • Compatible with gasoline, ethanol and methanol.

Additional information

  • Weight: 1.3 lbs
  • Dimensions: 5.5 x 5.5 x 2.75 in
$356.29
$323.90

Frequently Bought Together

Total price$1,767.89

Product Description

Pro Series Extreme Flow EFI Regulator, 30-120 psi,.313 Valve, 2x AN-10

Extreme Flow 2-Port EFI Regulator

30-75 PSI and 75-125 PSI Base Pressure Range

  • Extreme Flow Design optimized for the Eliminator, Pro-Pump and Dual A1000 fuel systems.
  • Suitable for Mechanical pumps up to 5.0 GPM.
  • Compact, 2-Port Body with dual AN-10 inlet/outlet ports and one AN-10 return port
  • High Flow 0.313? Valve/Seat, optimized for larger electric fuel pumps in the 2.5-5.0 GPM flow range.
  • Dual Springs expand pressure range while maintaining a low profile and reduced weight.
    • Standard spring (installed) supports 30-75 PSI base fuel pressure.
    • High Pressure spring (included) supports 75-120 PSI base fuel pressure.
  • Systems where an electric pump is desired and where base pressure exceeds 70-PSI should run two pumps of similar flow rate, in series.
  • Vacuum and boost reference on a 1:1 ratio.
  • Compatible with gasoline, ethanol and methanol.

Additional information

  • Weight: 1.3 lbs
  • Dimensions: 5.5 x 5.5 x 2.75 in
