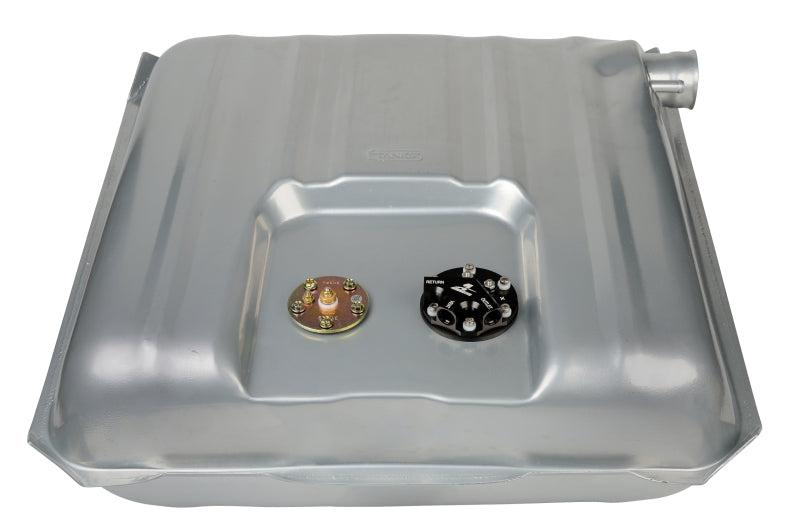

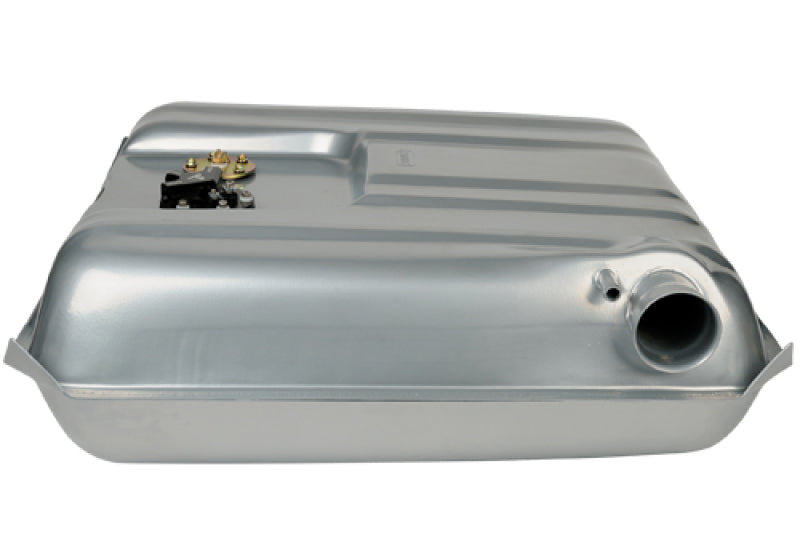

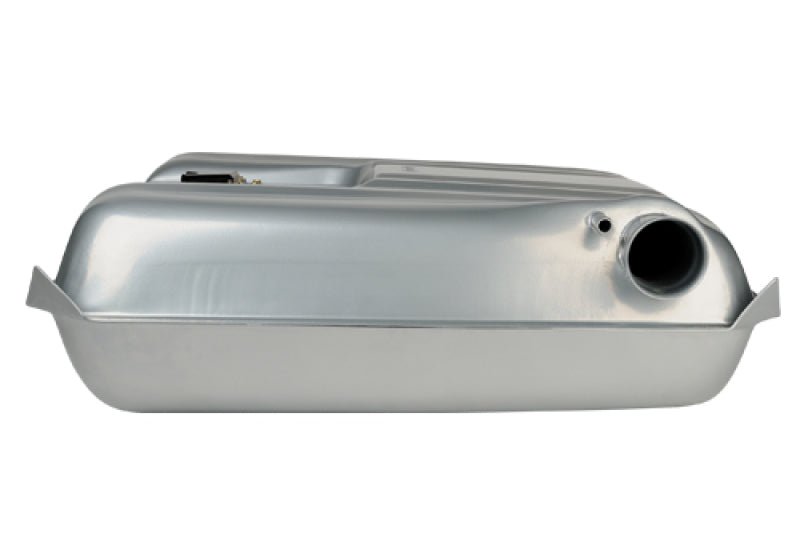

Aeromotive 55-57 Chevy Stealth Fuel Tank

These Aeromotive Tri-5 Stealth fuel tanks feature an Aeromotive 340 Stealth electric fuel pump mounted to a billet aluminum, black anodized hanger assembly. The 340 Stealth electric fuel pumps boast an impressive 340 lph flow and use a turbine pump mechanism for increased durability and performance. The Aeromotive 1955-1957 Chevy Stealth fuel tanks also features an innovative baffling/tray system to control fuel slosh and keep the 340 Stealth fuel pump submerged ensuring consistent pump performance even at low fuel levels and extreme driving conditions. The tanks include a early GM 0-30 ohm sending unit that comes preinstalled, pre-pump filter sock, internal return line tubing, and three AN ORB ports?one for the feed line, one for the return line, and one for the vent. For extra protection, the tanks are silver powdercoated for maximum durability.



Tri-5 Stealth Fuel Tanks feature:
P/N 18699 Stamped Steel Fuel Tank fits 1955-1957 Chevys
Silver Powdercoat finish

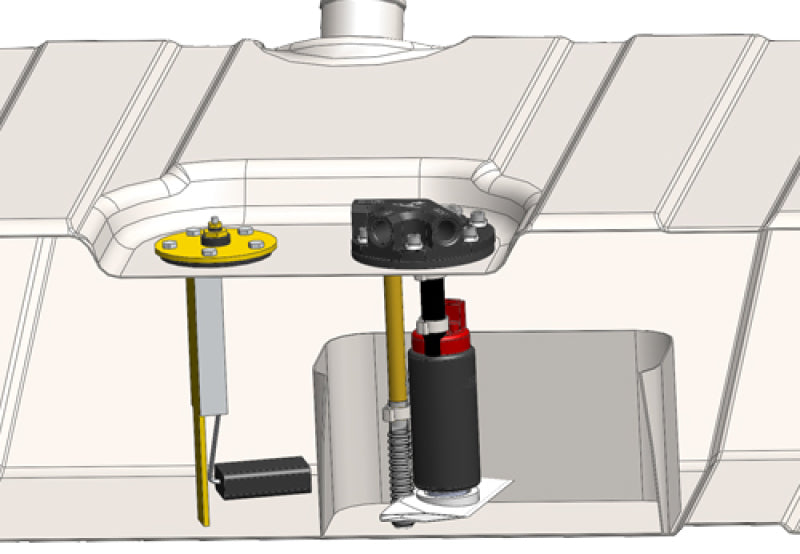

EFI-style internal baffling
0-30 Ohm Universal Fuel Level Sending Unit

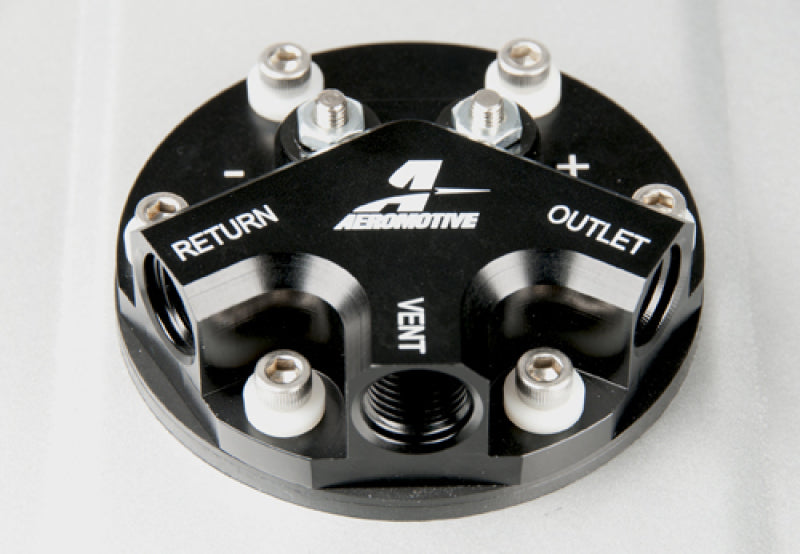

Black Anodized Pump Hanger Assembly
340 Stealth Fuel Pump (P/N 11140)
Pre-Pump Filter Sock Assembly
(3) ORB-06 Ports ? Outlet, Return and Vent



340 Stealth Tank SPECS:


Fuel Injected Engines:
Up to 850 HP naturally aspirated
Up to 700 HP forced air induction

Carbureted Engines:
Up to 1000 HP naturally aspirated
Up to 800 HP forced air induction


Vehicle Fitments:
