The Fabricator's Choice for High Horsepower Turbo Manifold Builds!

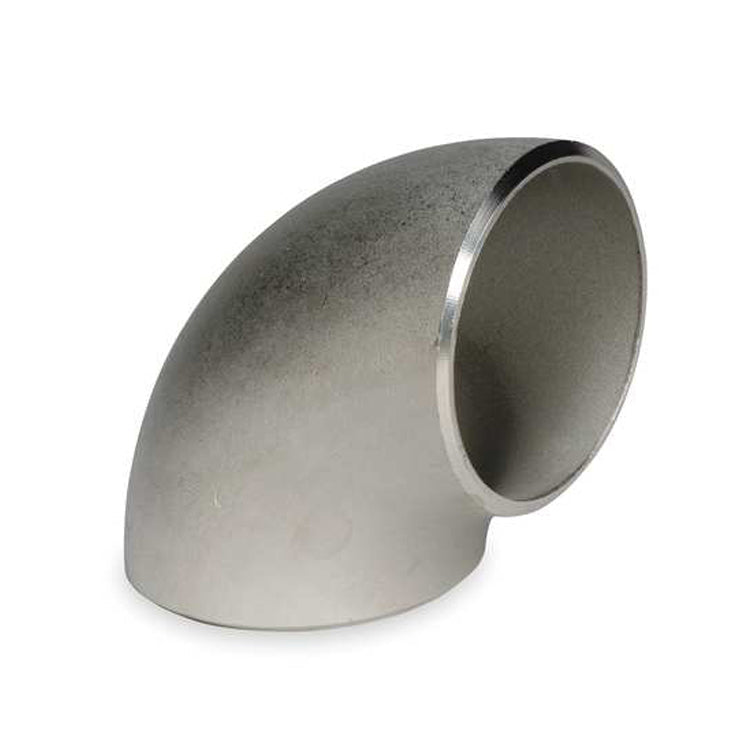

The Ace Race Parts brand of 1-1/2" Schedule 40 Short Radius 90-Degree Elbows have a thicker wall thickness and a smaller ID than comparable Schedule 10 Elbows and are the perfect solution for small and large turbo manifold applications. Our stainless weld els can withstand the punishment, vibration, and heat of a high horsepower street, drag, or track car.
FEATURES
- Tight Radius 90° Bend Angle
- Thicker Than Schedule 10
- 304 Stainless Steel
- Allows for a Smooth, Unobstructed Flow of Exhaust Gas
- Durable Enough for a Wide Variety of Turbo Manifold Applications
- Capable of Withstanding 1,600°F
- 37.5° Beveled Ends
- Manufactured to ASTM A403/ASME B16.9 specifications

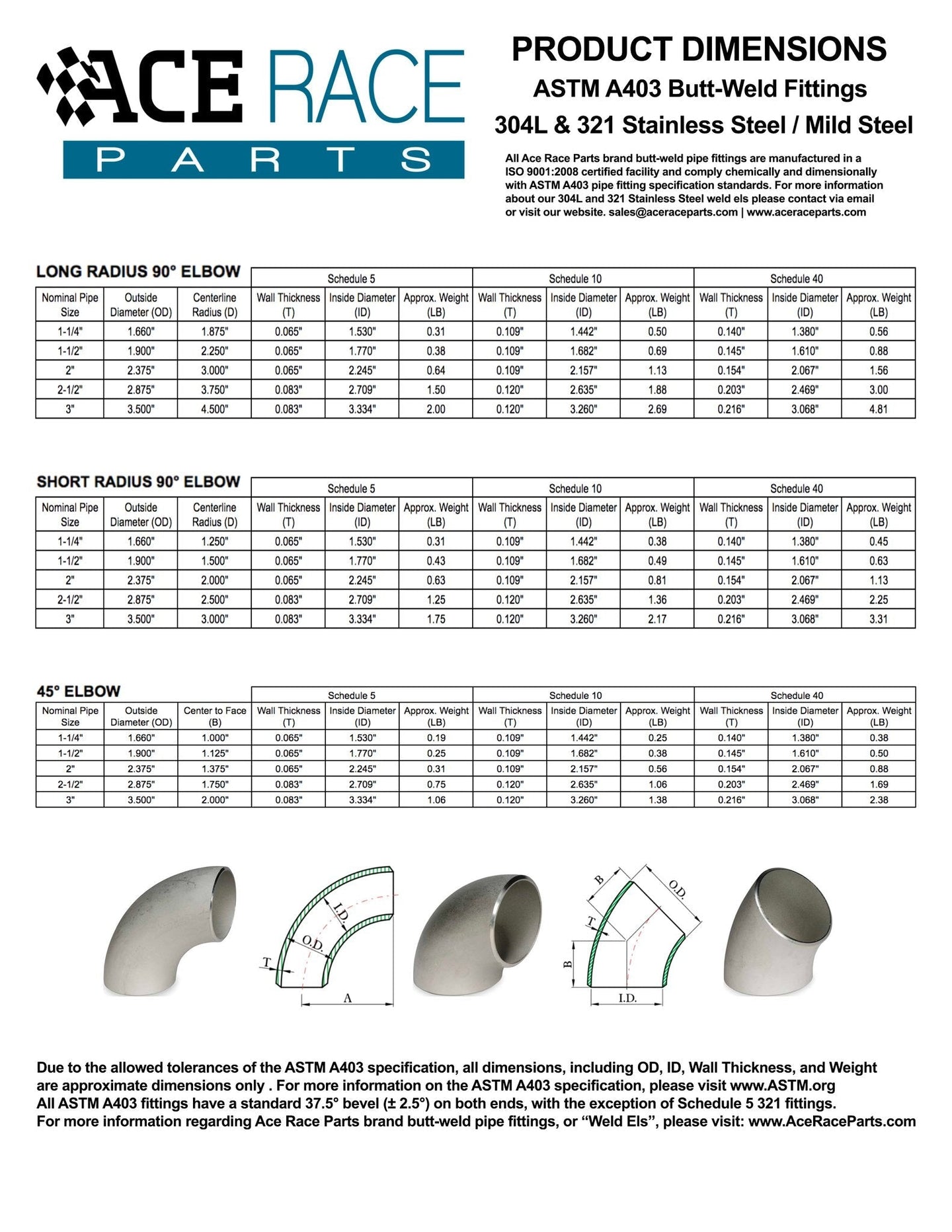

Ace Race Parts brand Weld Els are available in sizes ranging from 1-1/4" to 3" nominal pipe size, wall thickness options including Schedule 5, Schedule 10, and Schedule 40, and in 304 Stainless and 321 Stainless. Our Weld Els weld perfectly with our Stainless Steel Pipe and Stainless Steel Merge Collectors to create a variety of turbo manifold styles.
- Regular price
- $12.50
The Fabricator's Choice for High Horsepower Turbo Manifold Builds!
The Ace Race Parts brand of 1-1/2" Schedule 40 Short Radius 90-Degree Elbows have a thicker wall thickness and a smaller ID than comparable Schedule 10 Elbows and are the perfect solution for small and large turbo manifold applications. Our stainless weld els can withstand the punishment, vibration, and heat of a high horsepower street, drag, or track car.
FEATURES
- Tight Radius 90° Bend Angle
- Thicker Than Schedule 10
- 304 Stainless Steel
- Allows for a Smooth, Unobstructed Flow of Exhaust Gas
- Durable Enough for a Wide Variety of Turbo Manifold Applications
- Capable of Withstanding 1,600°F
- 37.5° Beveled Ends
- Manufactured to ASTM A403/ASME B16.9 specifications
Ace Race Parts brand Weld Els are available in sizes ranging from 1-1/4" to 3" nominal pipe size, wall thickness options including Schedule 5, Schedule 10, and Schedule 40, and in 304 Stainless and 321 Stainless. Our Weld Els weld perfectly with our Stainless Steel Pipe and Stainless Steel Merge Collectors to create a variety of turbo manifold styles.
- Regular price
- $12.50
Frequently Bought Together
-
Vendor: Ace Race Parts
2.250" 16ga Tight Radius 90° Mandrel Bend w/ 2" Tangents - (2.250" CLR) - Brushed Finish - 304 Stainless
Regular price $19.50 -
Vendor: Ace Race Parts
2.250" 16ga Tight Radius 90° Mandrel Bend - (2.250" CLR) - Brushed Finish - 304 Stainless
Regular price $16.50 -
Vendor: Ace Race Parts
Transition Turbo Flange - Undivided T6 to Single 3.000" OD Tube - 304 Stainless
Regular price $175.00 -
Vendor: Ace Race Parts
5.000" OD x 0.059" (1.5mm) Long Radius (1.5D) Pie Cut CP1 Titanium (90° Bend - 6 Pieces Total)
Regular price $125.00
Product Description
The Fabricator's Choice for High Horsepower Turbo Manifold Builds!
The Ace Race Parts brand of 1-1/2" Schedule 40 Short Radius 90-Degree Elbows have a thicker wall thickness and a smaller ID than comparable Schedule 10 Elbows and are the perfect solution for small and large turbo manifold applications. Our stainless weld els can withstand the punishment, vibration, and heat of a high horsepower street, drag, or track car.
FEATURES
- Tight Radius 90° Bend Angle
- Thicker Than Schedule 10
- 304 Stainless Steel
- Allows for a Smooth, Unobstructed Flow of Exhaust Gas
- Durable Enough for a Wide Variety of Turbo Manifold Applications
- Capable of Withstanding 1,600°F
- 37.5° Beveled Ends
- Manufactured to ASTM A403/ASME B16.9 specifications
Ace Race Parts brand Weld Els are available in sizes ranging from 1-1/4" to 3" nominal pipe size, wall thickness options including Schedule 5, Schedule 10, and Schedule 40, and in 304 Stainless and 321 Stainless. Our Weld Els weld perfectly with our Stainless Steel Pipe and Stainless Steel Merge Collectors to create a variety of turbo manifold styles.
