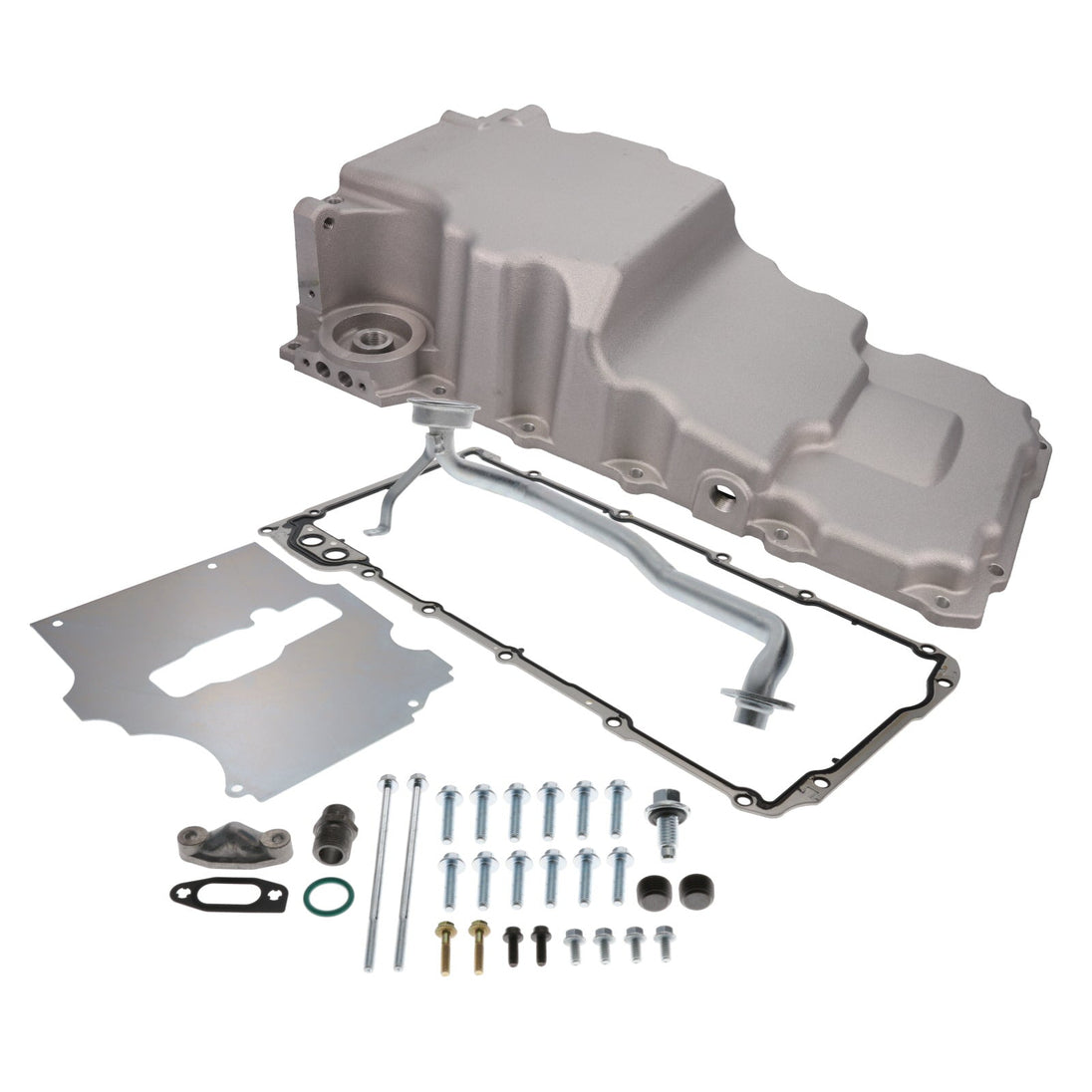

LS engines are among the most popular for swaps for their low expense and great power potential. Unfortunately, stock LS oil pans can't always fit where you want them to. That's where TSP's low-profile, retro fit oil pan comes in. Composed of lightweight cast aluminum, it is designed to allow for increased clearance to the ground and chassis. It will fit many GM rear-wheel drive applications originally equipped with a small or big block Chevy engine and factory rear sump pan. Meticulously designed, it will mount perfectly to any wet-sump LS engine and take the stock oil filter. With a different take on our 81073, added cut-outs make the 81075 a great fit with the OEM Ford Fox Body K-member and rack and pinion. This pan also features a boss on each side for an oil return for turbochargers.

Oil Pan Material: Aluminum
Oil Pan Finish: Satin
Sump Style: Wet
Sump Location: Rear

Vehicle Specific

Chevrolet Small Block V8 Gen. III/IV (LS-Based)

Attributes:

Brand Name: Top Street Performance
GTIN: 00843806114171
Baffled: Yes
Gasket Included: Yes
Maximum Stroke: 3.62
Oil Filter Location: Stock
Oil Pan Finish: Satin
Oil Pan Material: Aluminum
Oil Pick-up Included: Yes
Sump Depth: 5.46
Sump Location: Rear
Sump Oil Capacity: 5.7 Quarts
Sump Style: Wet
Total Oil Capacity: 6.2 Quarts with Stock Oil Filter
Windage Tray Included: No

Extended Information:

Country of Origin: China
Life Cycle Status: Available To Order

Packing Information:

Quantity of Each: 1
Package UOM: EA
Dimension: 13 x 25 x 7 inches
Weight: 16 POUNDS

Top Street Performance

TSP Oil Pan; Cast Aluminum Low-profile Retro-fit 5.7-Quart; LS; Satin

SKU GHWT-81075

Regular price: $444.44

LS engines are among the most popular for swaps for their low expense and great power potential. Unfortunately, stock LS oil pans can't always fit where you want them to. That's where TSP's low-profile, retro fit oil pan comes in. Composed of lightweight cast aluminum, it is designed to allow for increased clearance to the ground and chassis. It will fit many GM rear-wheel drive applications originally equipped with a small or big block Chevy engine and factory rear sump pan. Meticulously designed, it will mount perfectly to any wet-sump LS engine and take the stock oil filter. With a different take on our 81073, added cut-outs make the 81075 a great fit with the OEM Ford Fox Body K-member and rack and pinion. This pan also features a boss on each side for an oil return for turbochargers.

Oil Pan Material: Aluminum
Oil Pan Finish: Satin
Sump Style: Wet
Sump Location: Rear

Vehicle Specific

Chevrolet Small Block V8 Gen. III/IV (LS-Based)

Attributes:

Brand Name: Top Street Performance
GTIN: 00843806114171
Baffled: Yes
Gasket Included: Yes
Maximum Stroke: 3.62
Oil Filter Location: Stock
Oil Pan Finish: Satin
Oil Pan Material: Aluminum
Oil Pick-up Included: Yes
Sump Depth: 5.46
Sump Location: Rear
Sump Oil Capacity: 5.7 Quarts
Sump Style: Wet
Total Oil Capacity: 6.2 Quarts with Stock Oil Filter
Windage Tray Included: No

Extended Information:

Country of Origin: China
Life Cycle Status: Available To Order

Packing Information:

Quantity of Each: 1
Package UOM: EA
Dimension: 13 x 25 x 7 inches
Weight: 16 POUNDS

Regular price: $444.44
