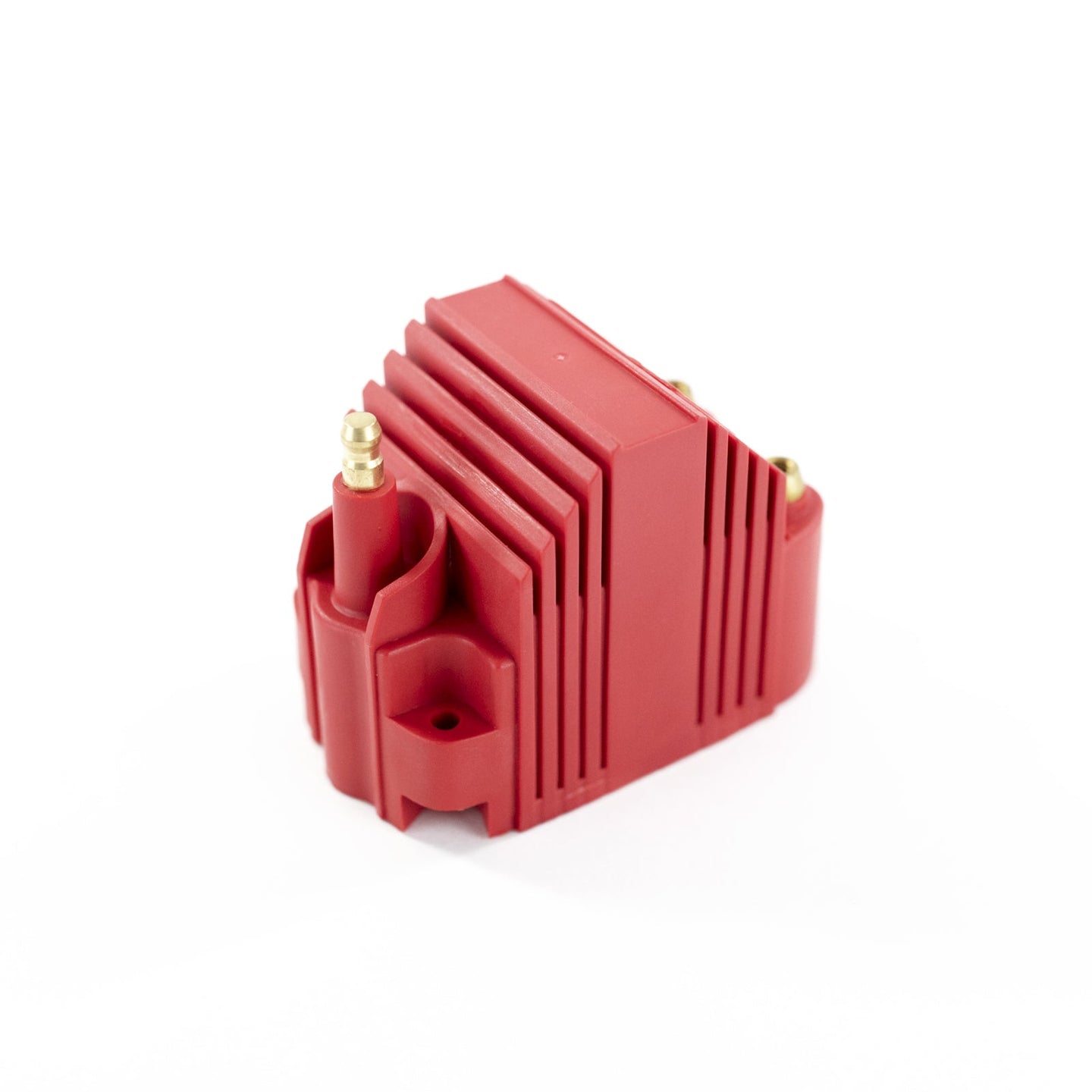

TSP Compact Red Square E-Core Ignition Coil; 40;000 Volts Top Street Performance

TSP's new compact e-core ignition coil puts out 40,000 volts, giving you a much hotter and larger spark to burn fuel more efficiently and provide smooth acceleration thoroughout the entire RPM band. It's small design allows for easy mounting, and the brass terminal ensures maximum conductivity.

Coil Style: Compact E-core
Coil Color: Red
Primary Resistance: 0.355 ohms
Secondary Resistance: 4,400 ohms

Vehicle Specific

Universal

Attributes:

Brand Name: Top Street Performance
GTIN: 00810643017781
Coil Color: Red
Coil Shape: Square
Coil Style: Compact E-core
Inductance: 6.9 mH
Max Voltage: 40,000 V
Peak Current: 300 mA
Primary Resistance: 0.355 ohms
Secondary Resistance: 4,400 ohms
Spark Duration: 200 uS
Turn Ratio: 70

Extended Information:

Country of Origin: CN
Life Cycle Status: Available To Order

Packing Information:

Quantity of Each: 1
Package UOM: EA
Dimension: 6 x 7 x 5 inches
Weight: 3 POUNDS

Top Street Performance

TSP Compact Red Square E-Core Ignition Coil; 40;000 Volts

SKU GHWT-JM6924R

Regular price: $41.16

TSP's new compact e-core ignition coil puts out 40,000 volts, giving you a much hotter and larger spark to burn fuel more efficiently and provide smooth acceleration thoroughout the entire RPM band. It's small design allows for easy mounting, and the brass terminal ensures maximum conductivity.

Coil Style: Compact E-core
Coil Color: Red
Primary Resistance: 0.355 ohms
Secondary Resistance: 4,400 ohms

Vehicle Specific

Universal

Attributes:

Brand Name: Top Street Performance
GTIN: 00810643017781
Coil Color: Red
Coil Shape: Square
Coil Style: Compact E-core
Inductance: 6.9 mH
Max Voltage: 40,000 V
Peak Current: 300 mA
Primary Resistance: 0.355 ohms
Secondary Resistance: 4,400 ohms
Spark Duration: 200 uS
Turn Ratio: 70

Extended Information:

Country of Origin: CN
Life Cycle Status: Available To Order

Packing Information:

Quantity of Each: 1
Package UOM: EA
Dimension: 6 x 7 x 5 inches
Weight: 3 POUNDS

Regular price: $41.16

Quantity
