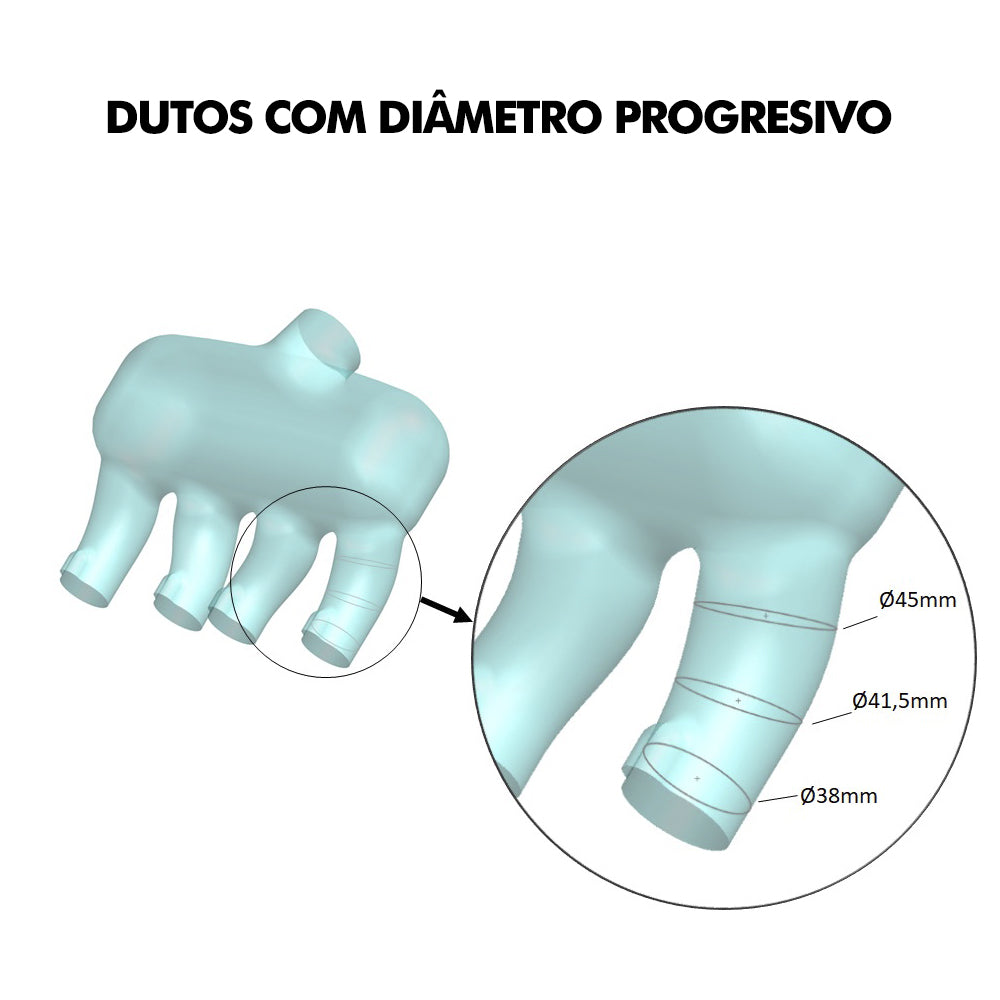

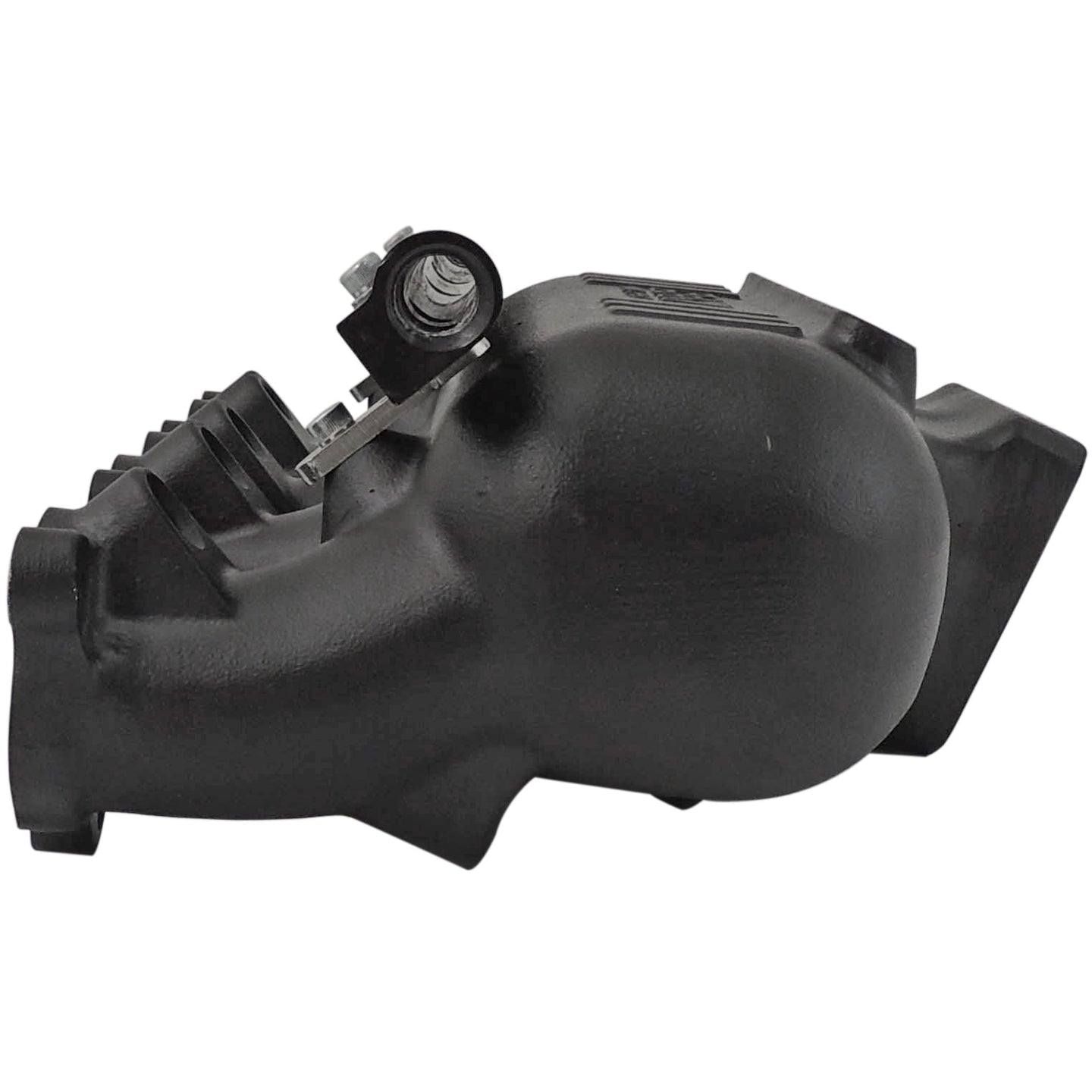

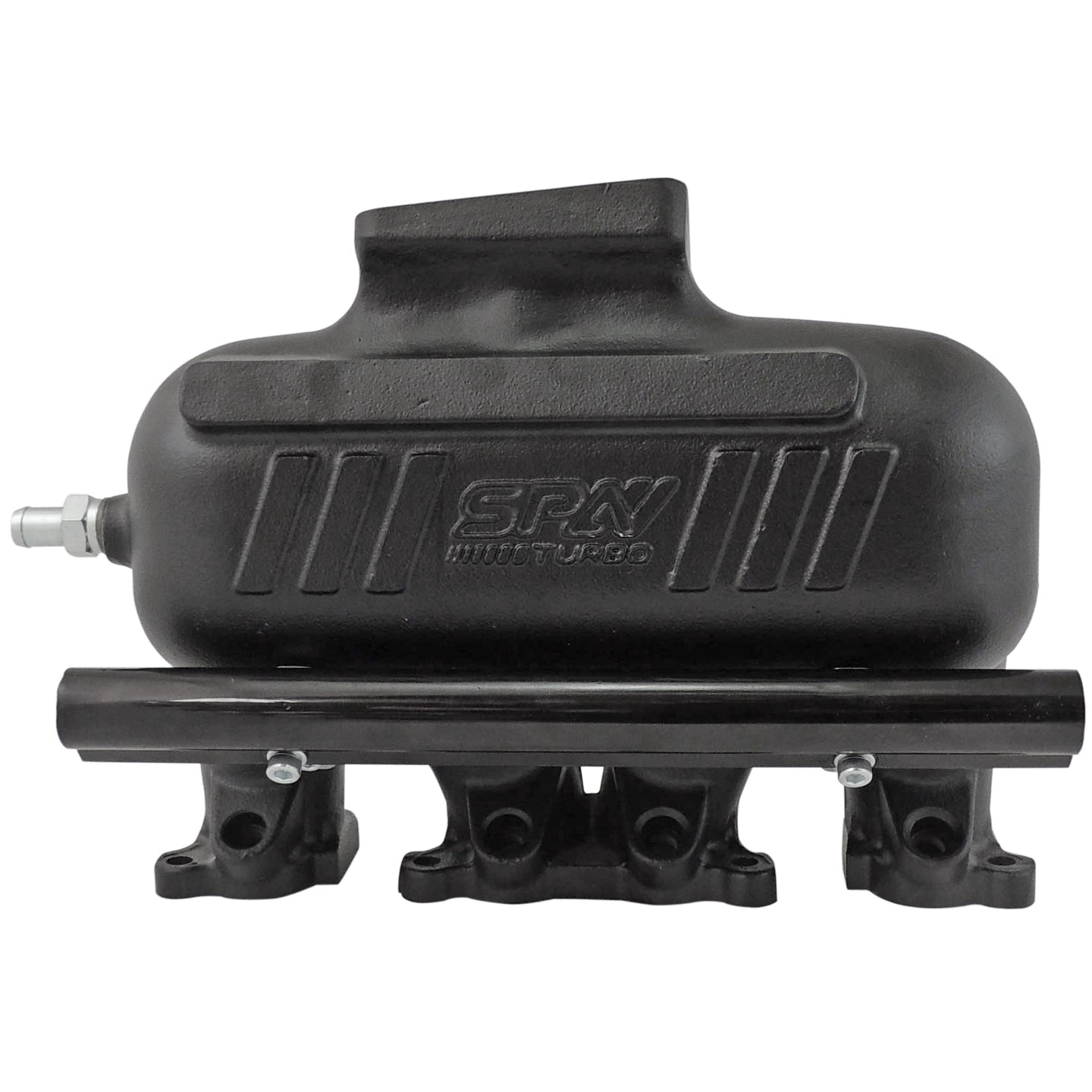

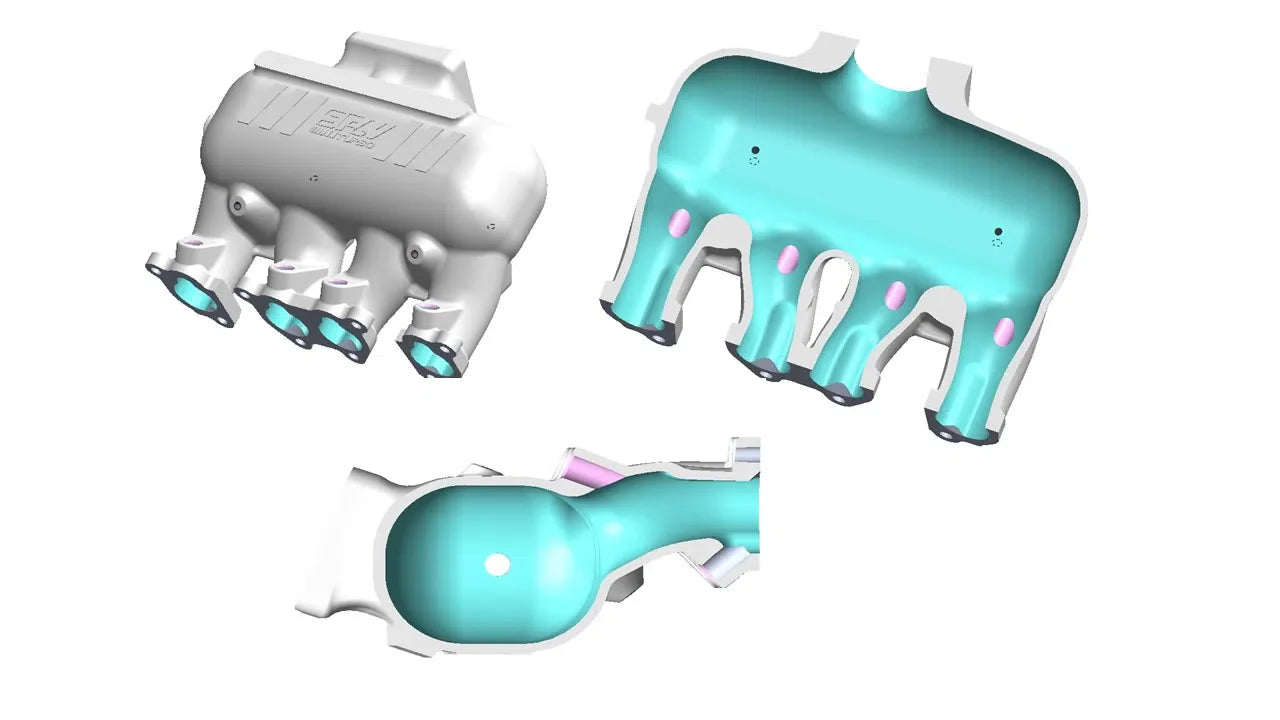

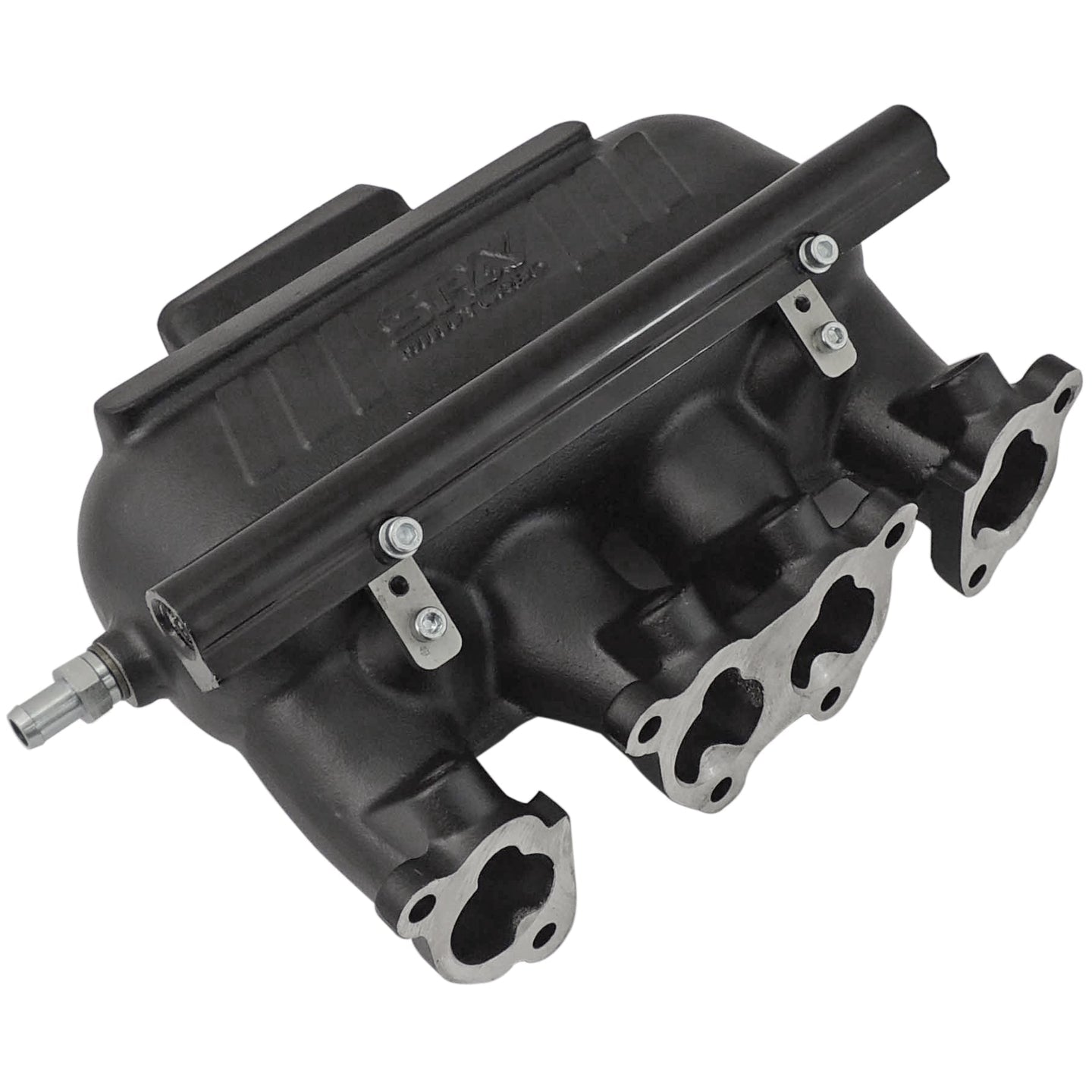

The SPA Turbo intake manifold was designed to increase the flow and volume compared to the original model, and is the perfect solution for those who want performance and durability, guaranteed by the cast aluminum construction (without welds). Available in options for 4 and 8 injectors with fuel rail in anodized billet aluminum and with side throttle body, ideal for use with front mount intercooler.

• Number of injectors: 4

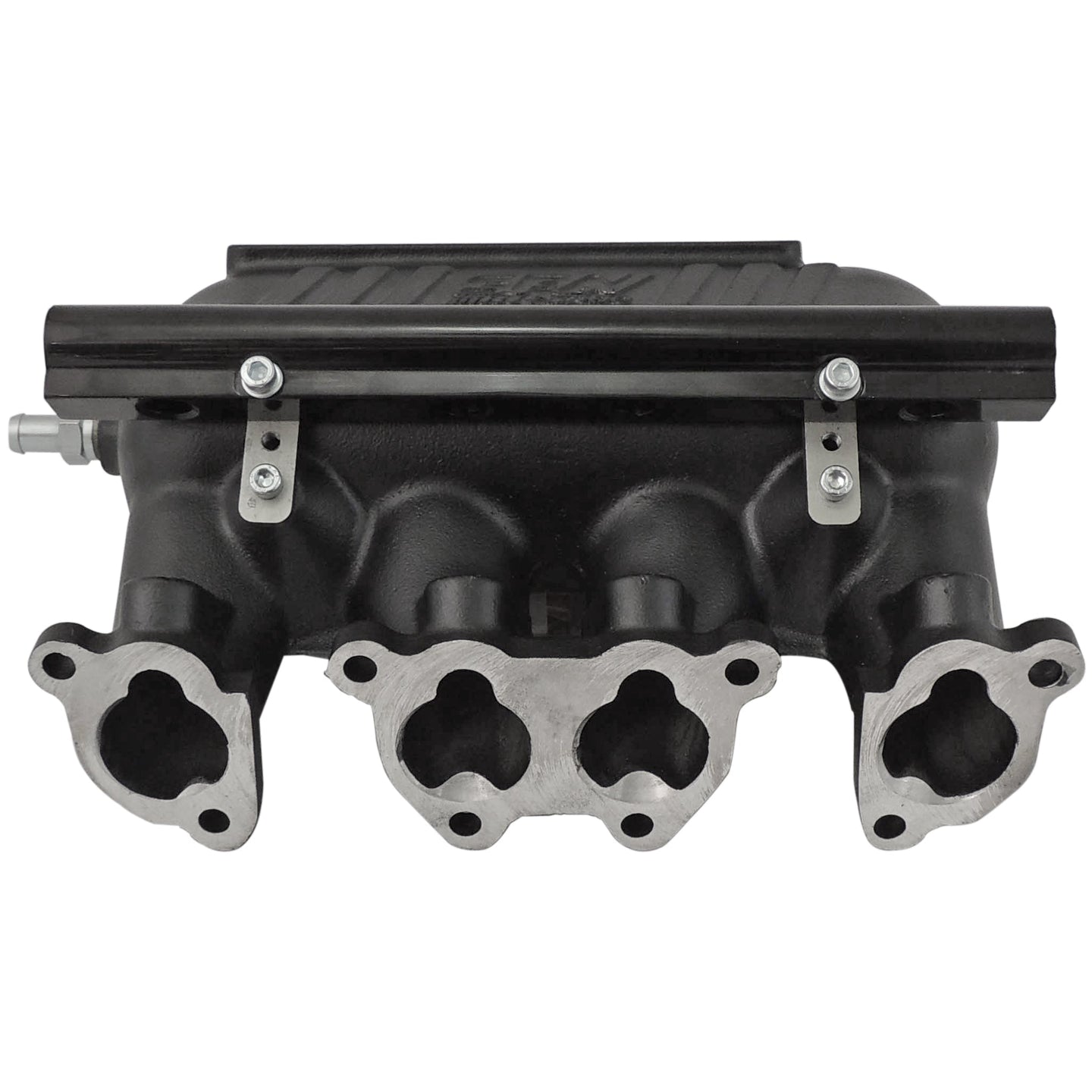

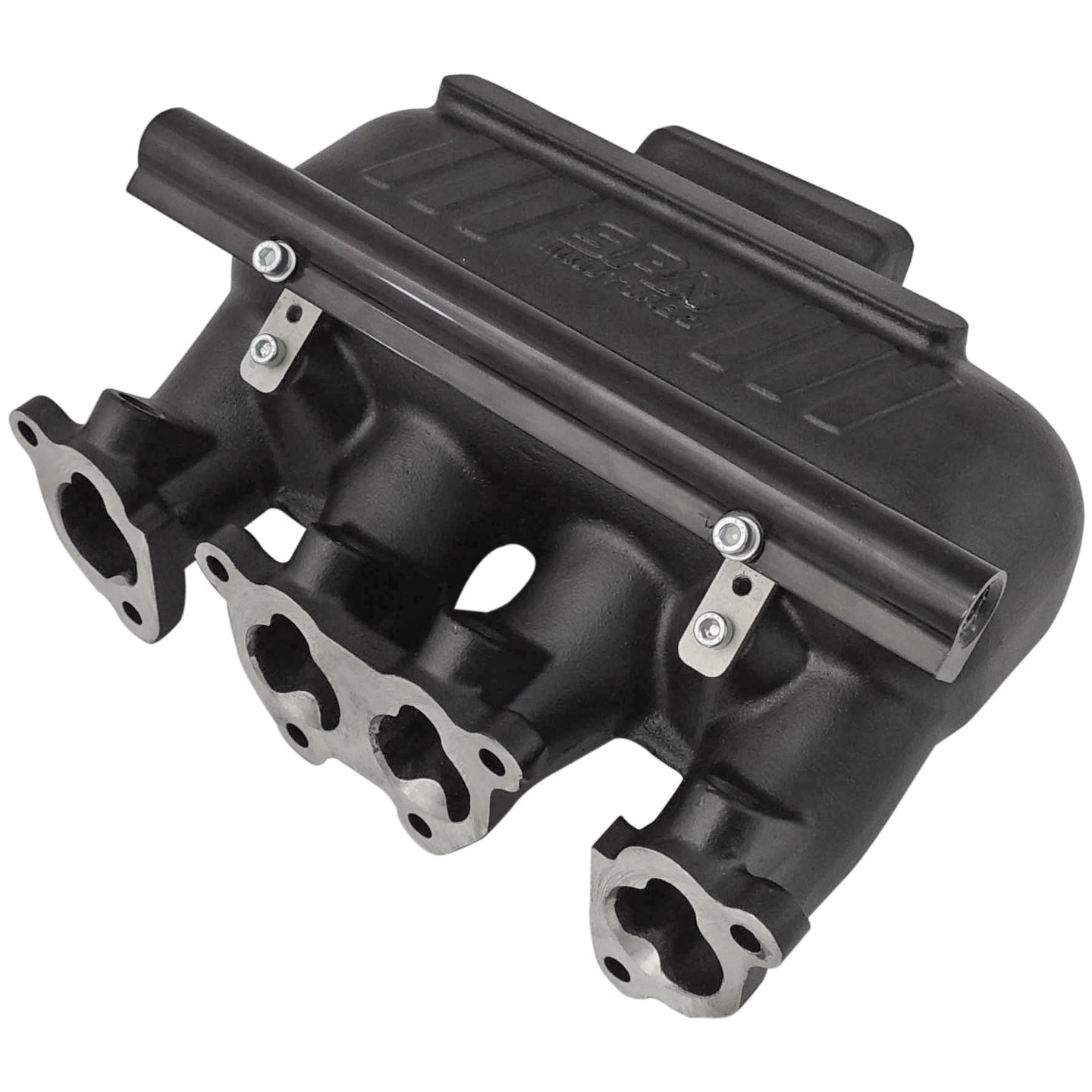

• Fuel rail: Anodized billet aluminum (black)
• Fuel rail connections: 3/8'' NPT
• Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long

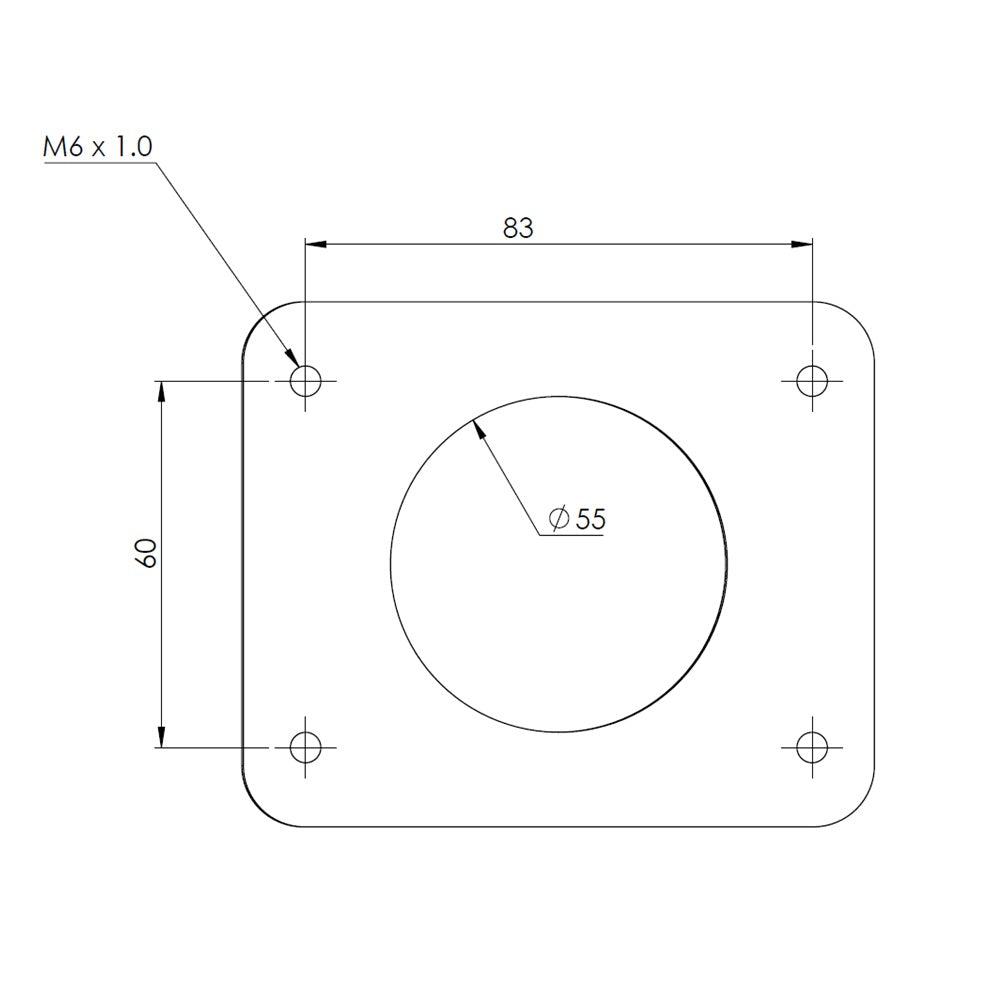

• Throttle body: 60x83mm bolt holes, check image (up to 70mm).

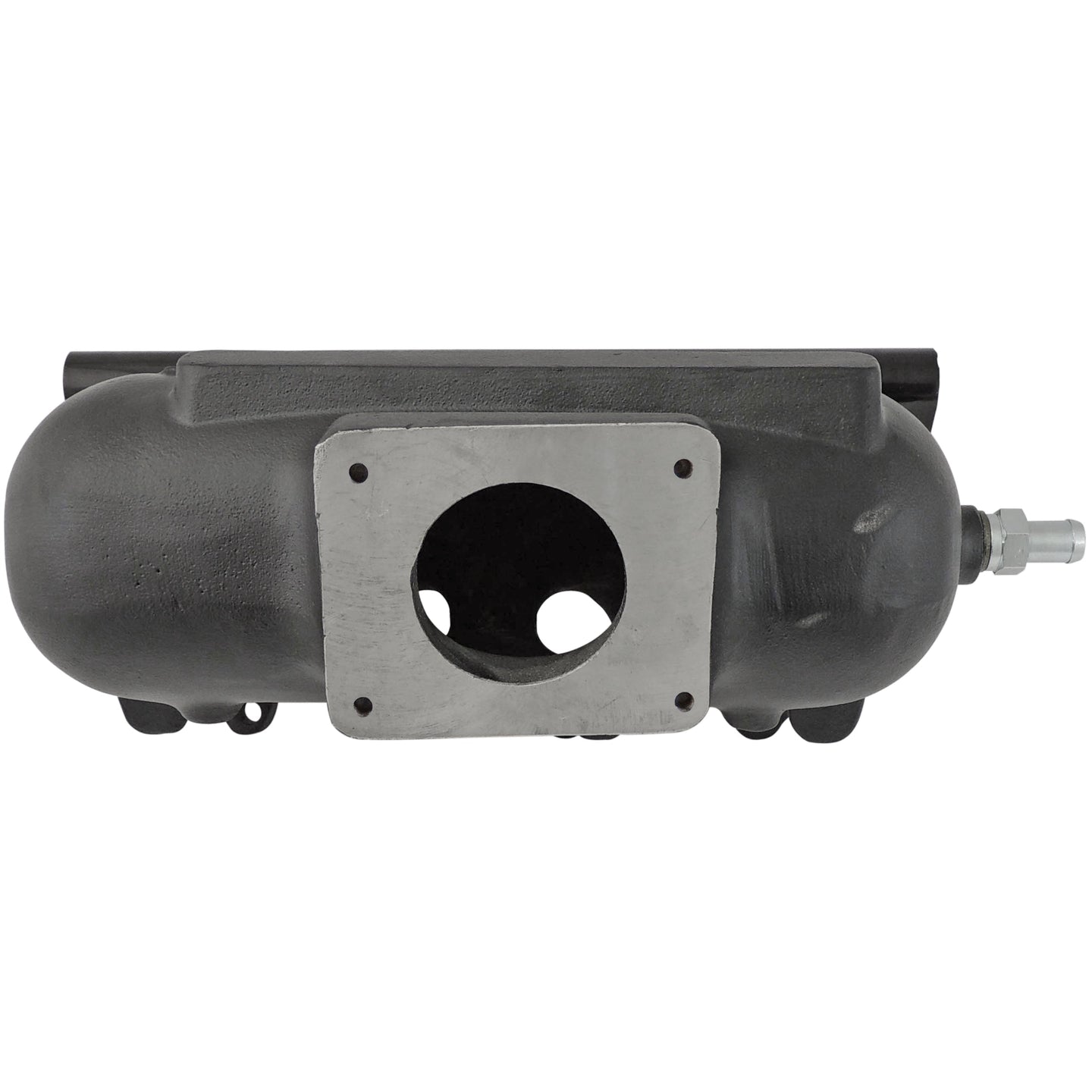

• TBI position: side (ideal for use with front mount intercooler)
• Max working capacity: 10bar (145psi)
• Material: Cast aluminum
• Application: VW 8V engine equipped with cross-flow cylinder head (longitudinal mounting). Does not fit Golf and other models with transverse engines.

ATTENTION: as this is an adaptation, it may be necessary to make changes to the position of the alternator and/or brake master cylinder.
