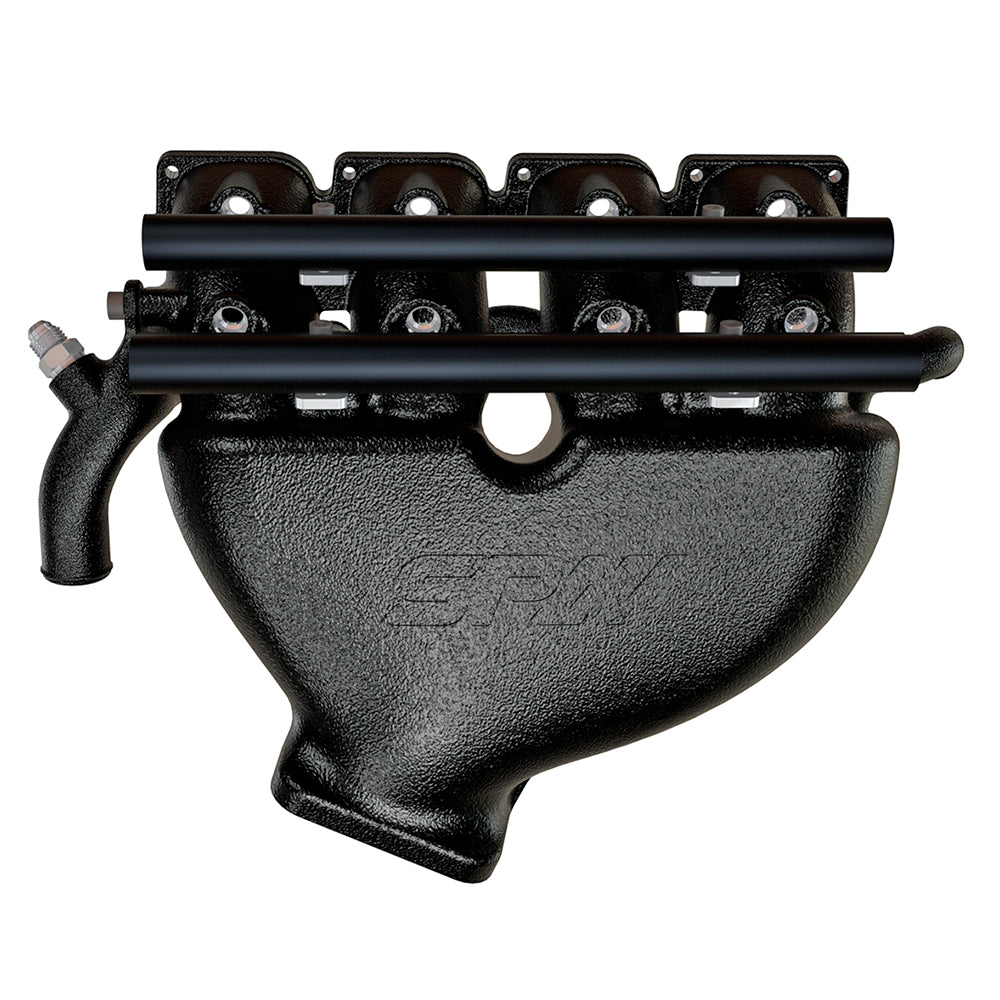

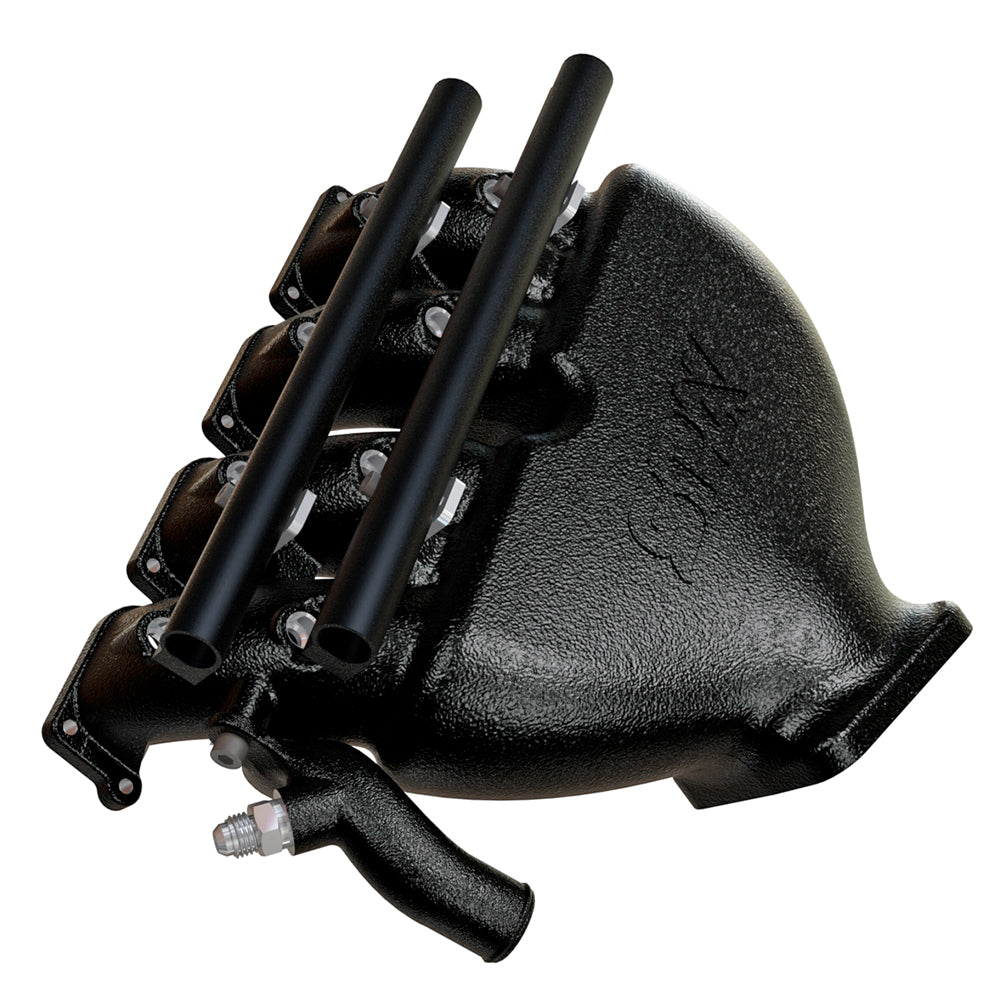

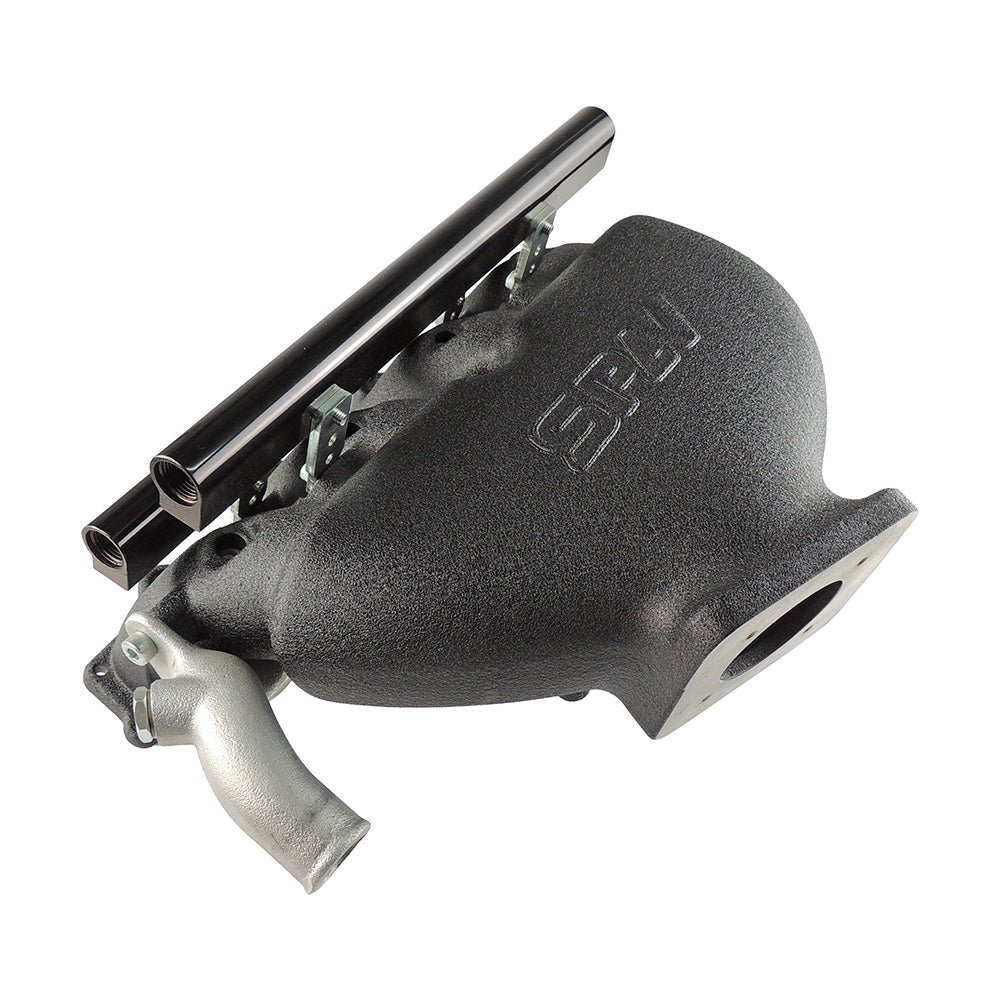

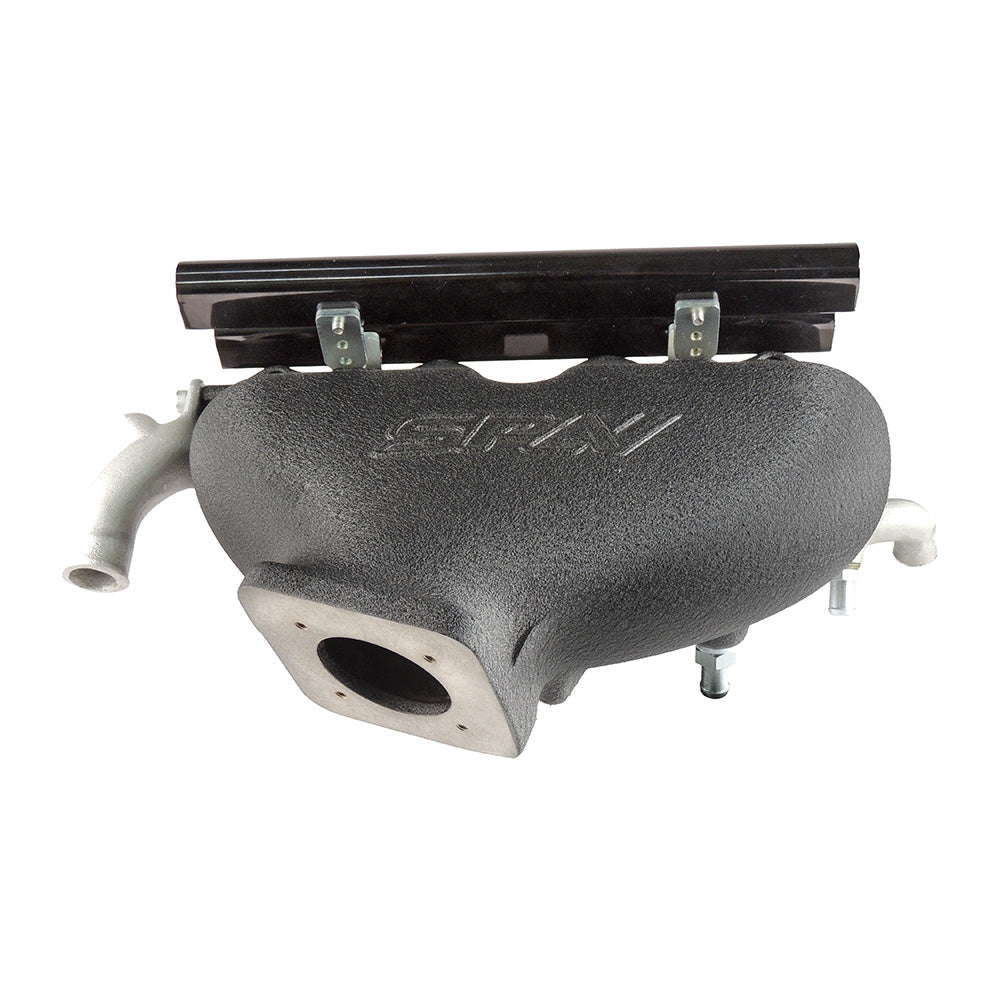

SPA Turbo¢â‚¬s intake manifold was designed for upgrades builds, having a bigger plenum volume and allowing higher airflow, it is the perfect solution for those who wants high performance and durability, guaranteed by the cast aluminum construction. Available in 4 or 8 injectors with anodized aluminum fuel rails. In addition, you can choose between an OEM throttle body bolt holes pattern or without holes, for those who wants to use a different throttle body (up to 80mm).

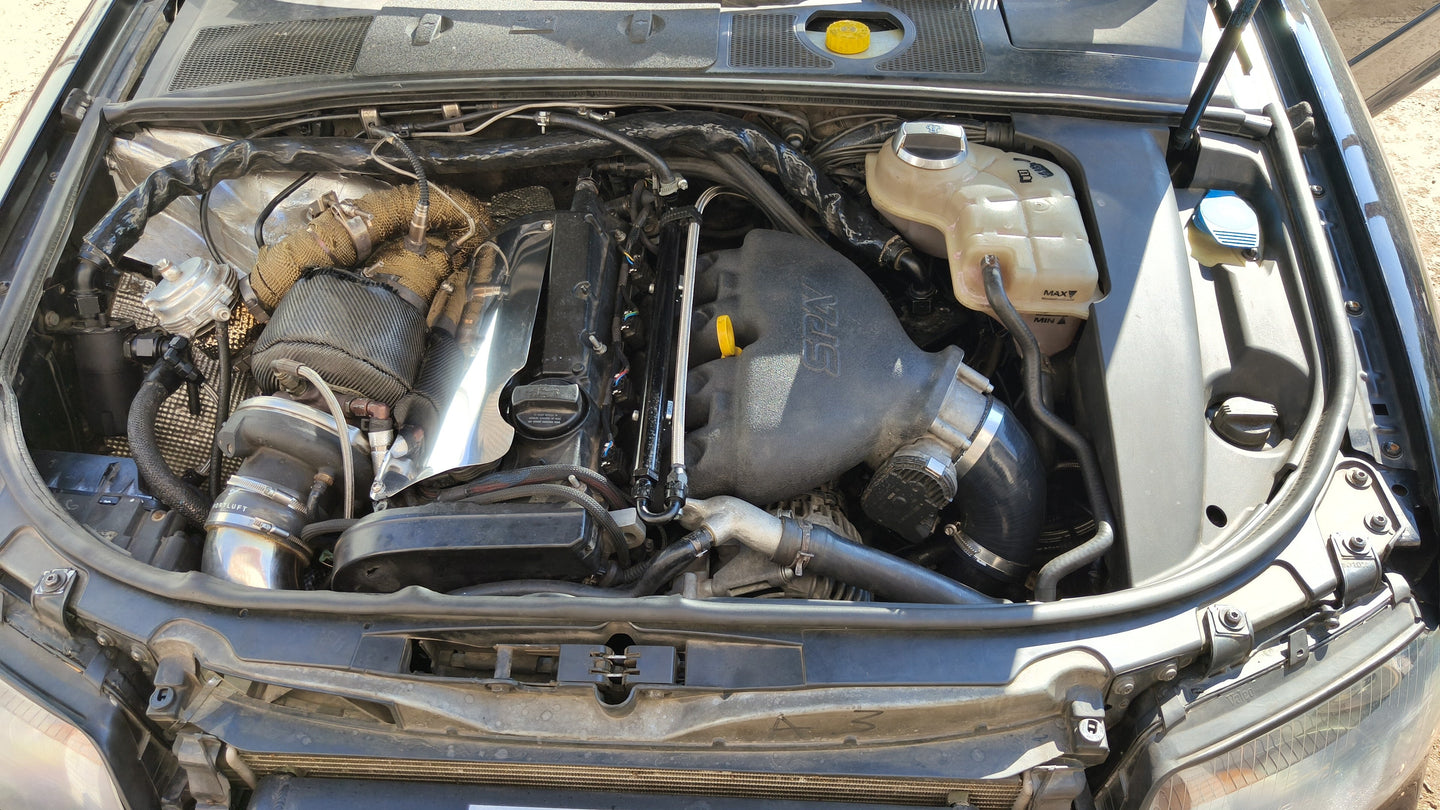

Application: VW Passat 1.8 20V Turbo / Audi A4 / A6 1.8 20V Turbo (Large Port head)

Number of injectors: 8

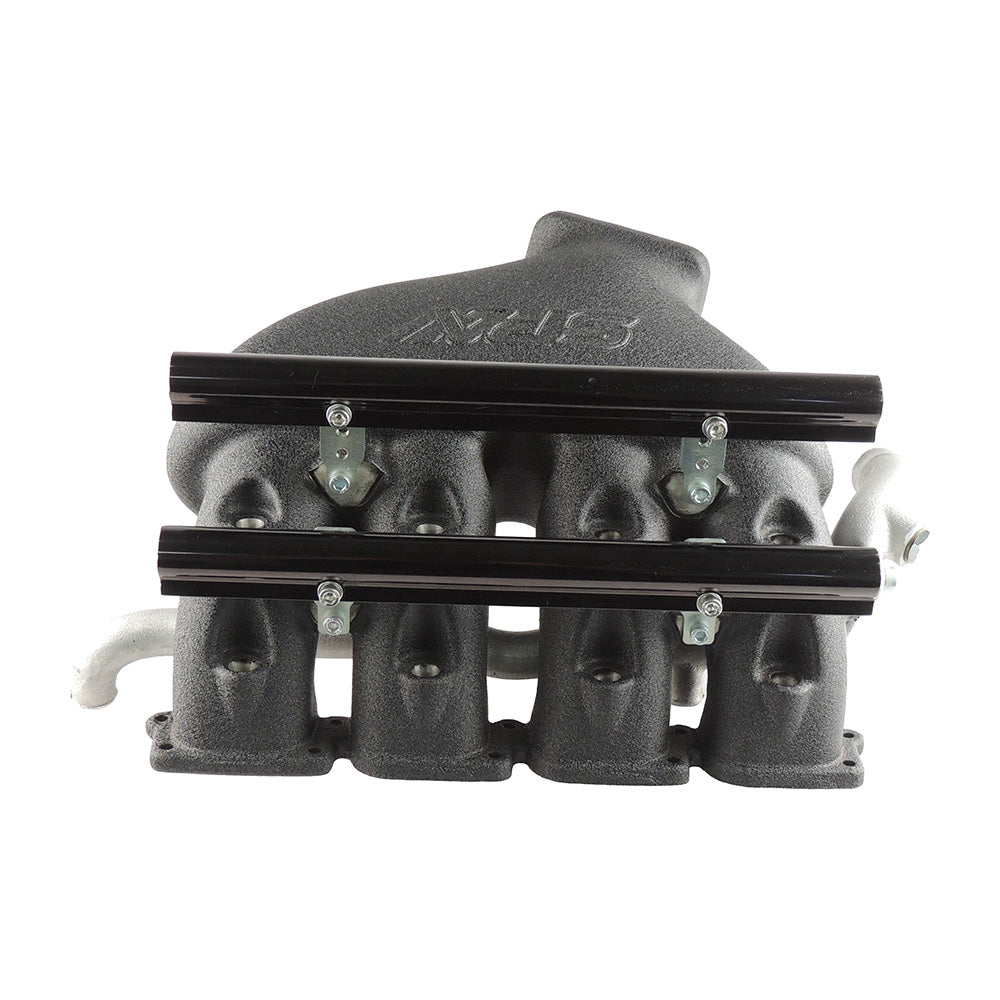

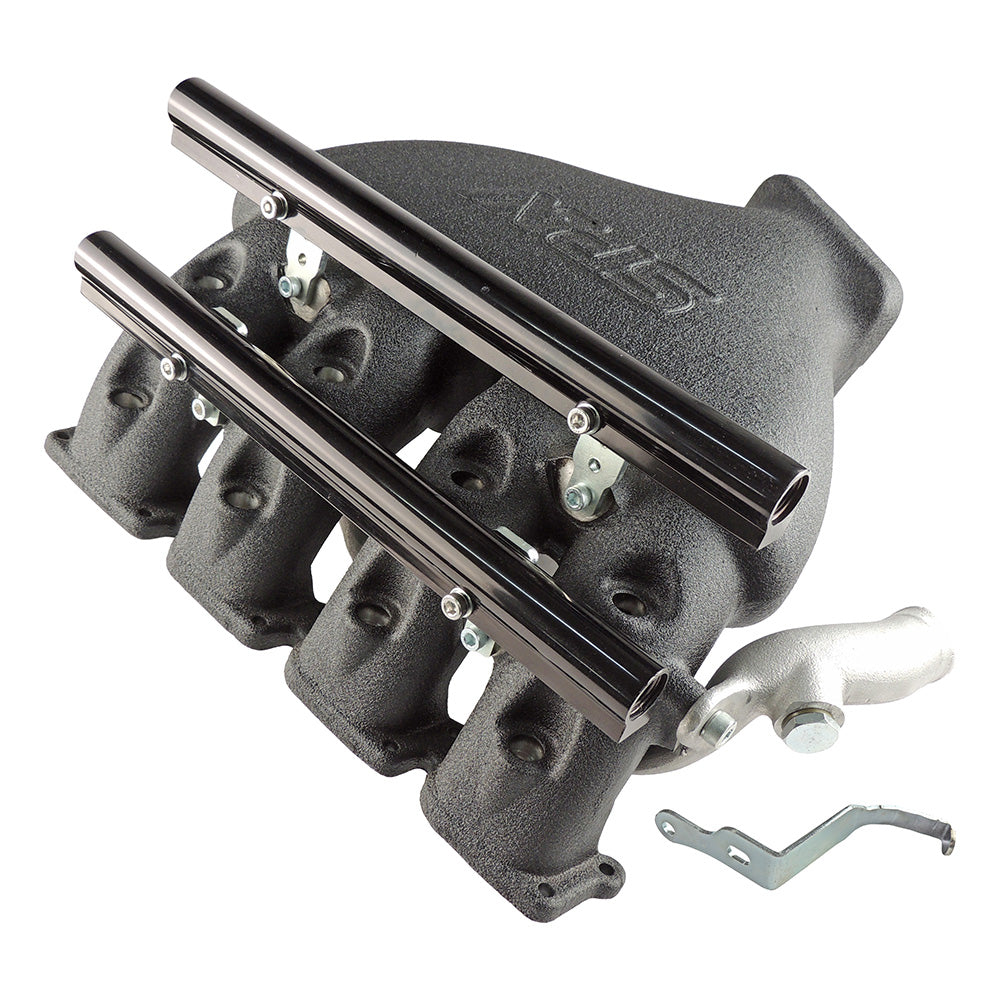

Fuel rail: anodized aluminum, -8AN inlet/outlet

Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long

Throttle body position (TBI): side (not OEM)

Throttle body bolt holes pattern: OEM

Max pressure capacity: 10bar (145psi)

Internal volume: 3,2L

Material: cast aluminum

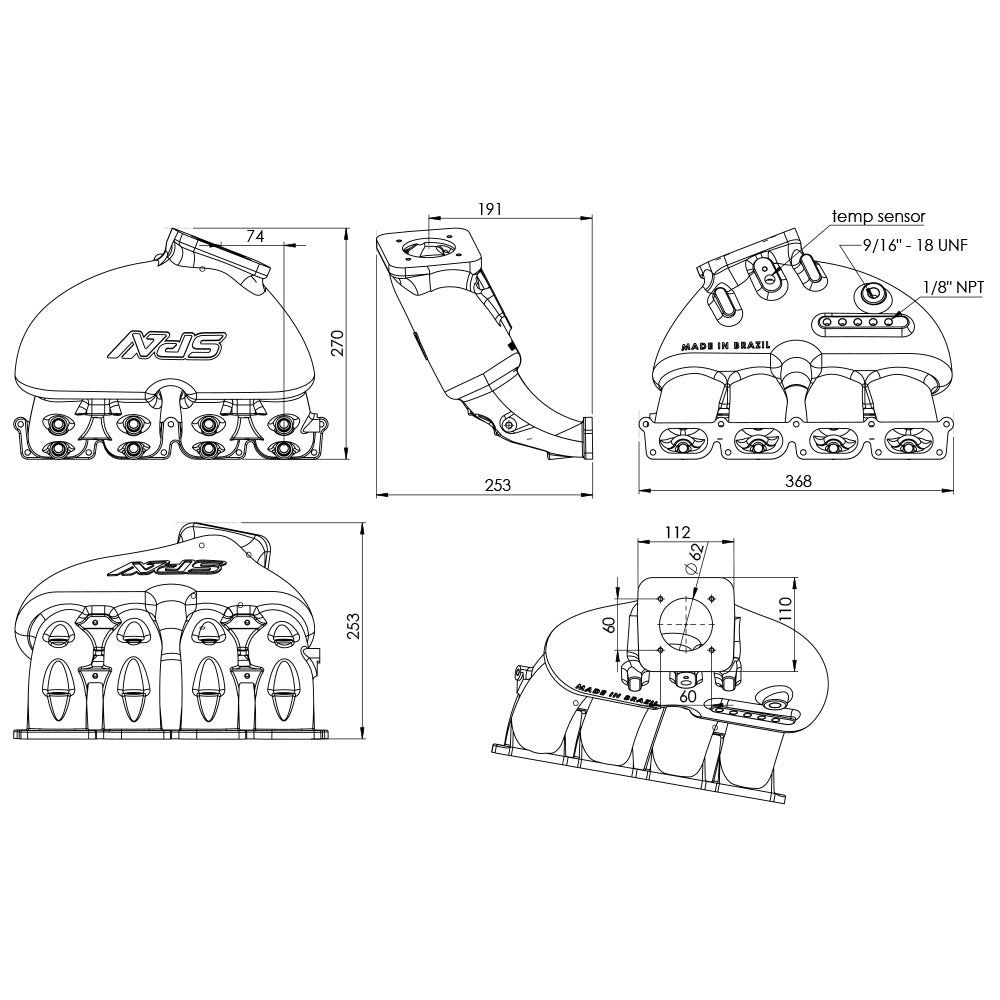

Ports: stock temperature sensor, 1/8¢â‚¬ NPT (5x), -6AN (1x)

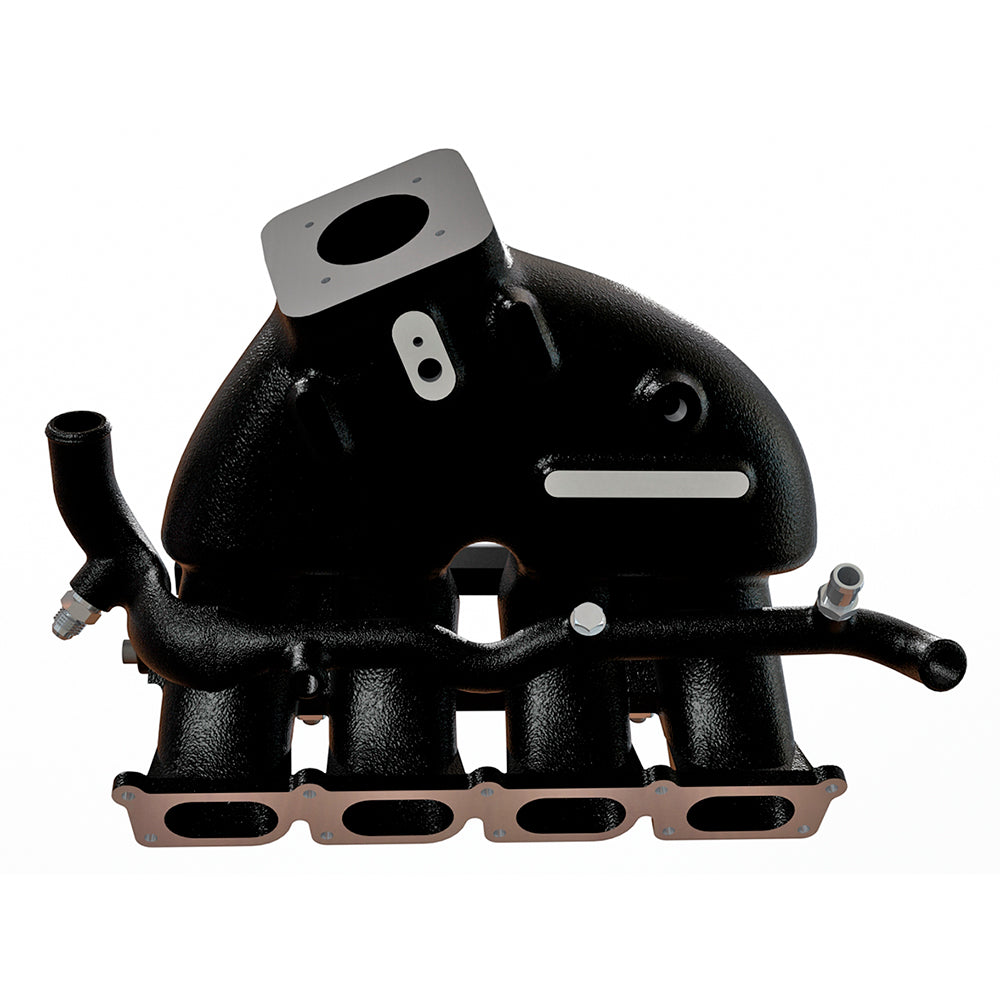

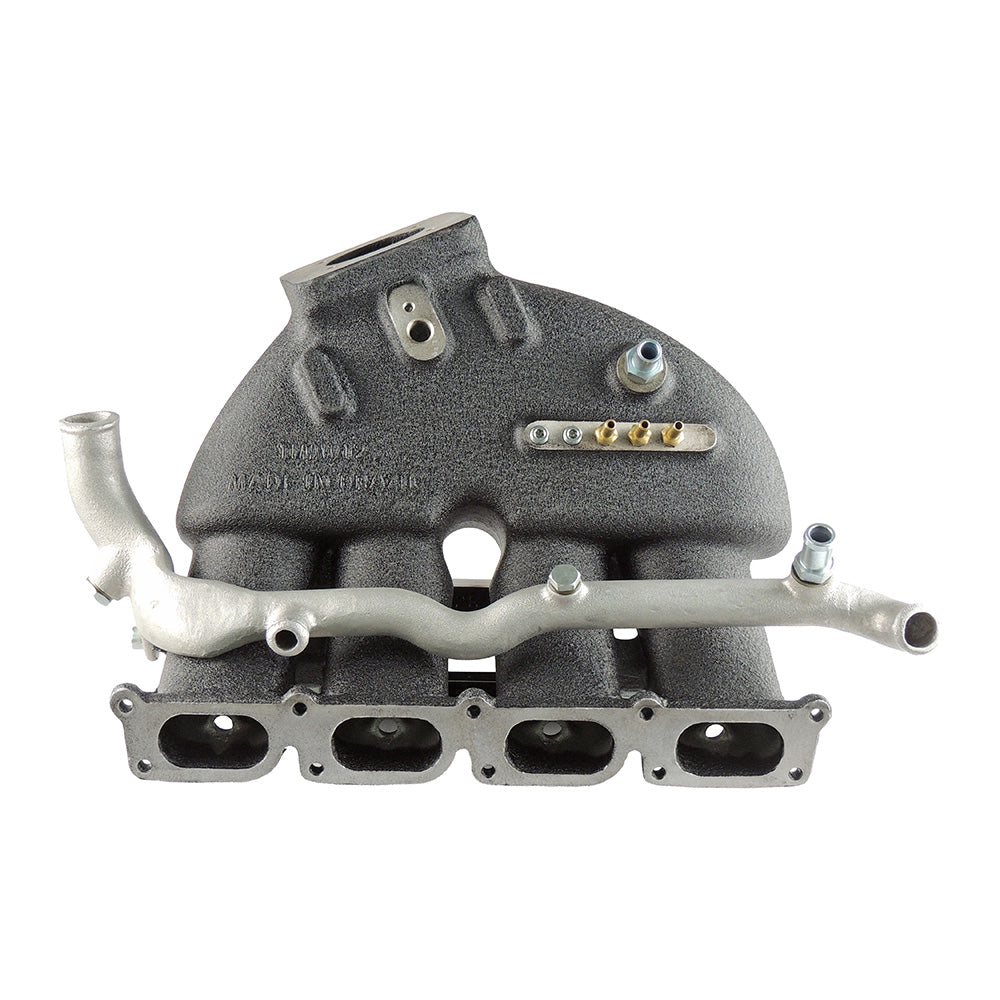

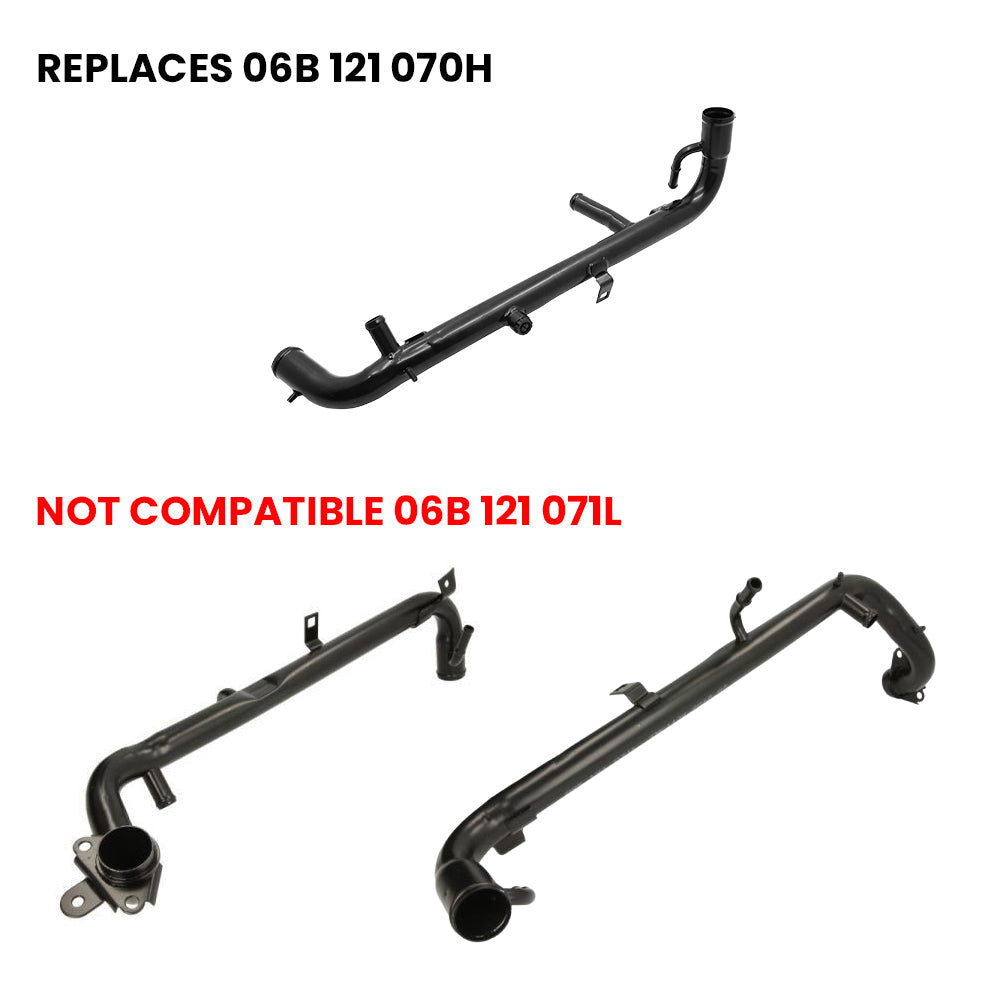

Supplied coolant pipe was designed to replace the stock 06B 121 070H, which must be used with hose 06B 121 132 and coolant flange 06B 121 101.

‚ *Note: water pipe features a -6AN port for turbo water cooling, fitting not included.
