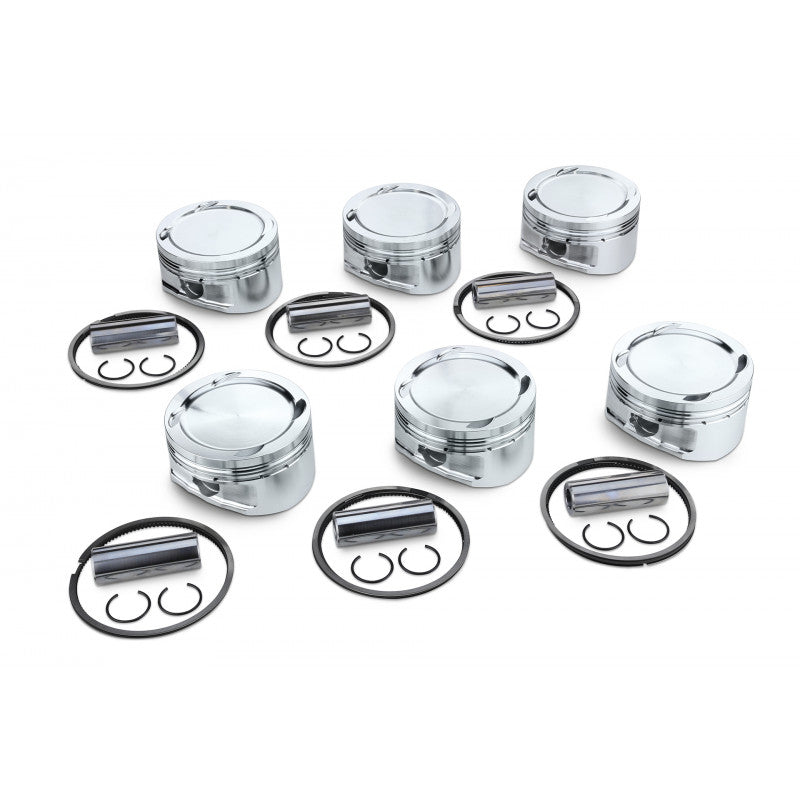

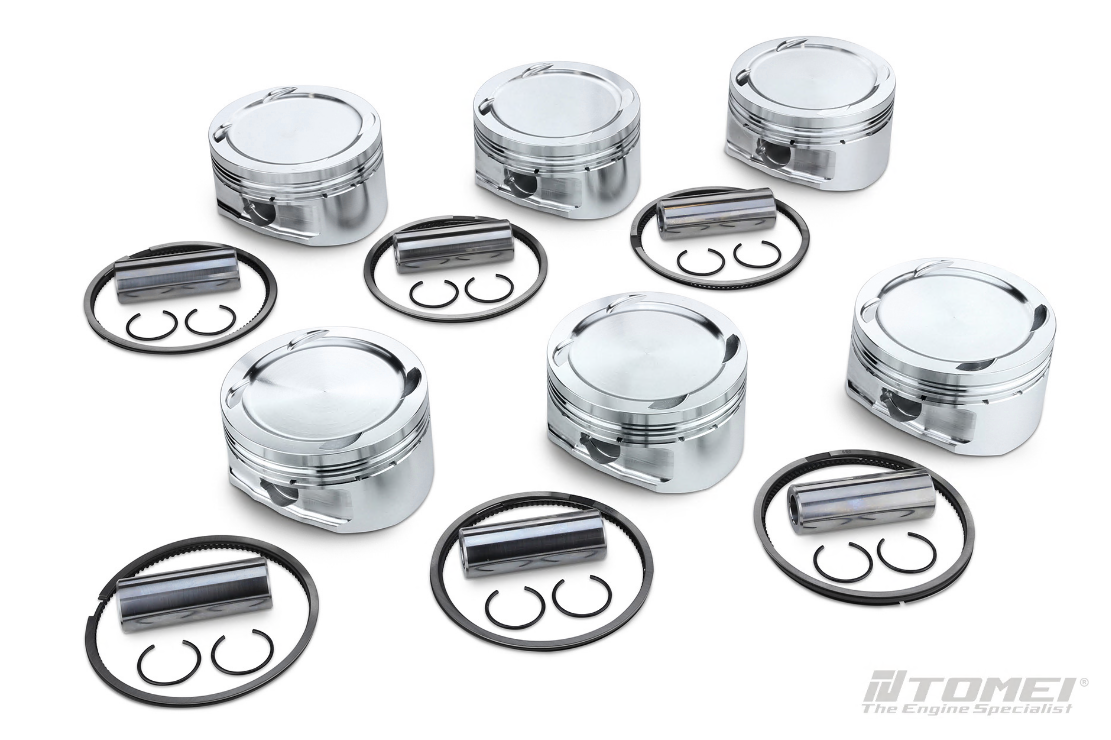

Forged Piston Kit
| Category | Engine | Parts Number |
| 95.50mm CH31.20 (4.1) | VR38 | TA202A-NS01A |
| VR38DETT 95.50mm CH31.20 (4.1) CP | VR38 | TA202A-NS01AP |
Description
| TA202A-NS01A | TA202A-NS01AP | |
| BORE (mm) | 95.50 (OEM ±0.0) | 95.50 (OEM ±0.0) |
| PIN DIA. (mm) | 23 | 23 |
| PIN LENGTH (mm) | 62 | 64 |
| CLIP INNNER DIA. | 23 | 23 |
| VALVE RECESS | WITH | WITH |
| COMP.HEIGHT (mm) | 31.20 (OEM -3.1) | 31.20 (OEM -3.1) |
| PISTON DOME VOL. (cc) | -10 | -9.1 |
| PISTON WEIGHT (g) | 413 | 392.5 |
| PIN WEIGHT (g) | 133 | 137.5 |
| TOTAL WEIGHT (g) | 546 | 530 |
| TOP RING (mm) | 1.20 x 3.45 | |
| SECOND RING (mm) | 1.20 x 4.10 | |
| OIL RING (mm) | 2.50 x 2.20 | |
| MATERIAL | A4032 | A2618 |
Forged Piston Kit
| Category | Engine | Parts Number |
| 95.50mm CH31.20 (4.1) | VR38 | TA202A-NS01A |
| VR38DETT 95.50mm CH31.20 (4.1) CP | VR38 | TA202A-NS01AP |
Description
| TA202A-NS01A | TA202A-NS01AP | |
| BORE (mm) | 95.50 (OEM ±0.0) | 95.50 (OEM ±0.0) |
| PIN DIA. (mm) | 23 | 23 |
| PIN LENGTH (mm) | 62 | 64 |
| CLIP INNNER DIA. | 23 | 23 |
| VALVE RECESS | WITH | WITH |
| COMP.HEIGHT (mm) | 31.20 (OEM -3.1) | 31.20 (OEM -3.1) |
| PISTON DOME VOL. (cc) | -10 | -9.1 |
| PISTON WEIGHT (g) | 413 | 392.5 |
| PIN WEIGHT (g) | 133 | 137.5 |
| TOTAL WEIGHT (g) | 546 | 530 |
| TOP RING (mm) | 1.20 x 3.45 | |
| SECOND RING (mm) | 1.20 x 4.10 | |
| OIL RING (mm) | 2.50 x 2.20 | |
| MATERIAL | A4032 | A2618 |
- Regular price
- $1,800.00
- Sale price
- $1,620.00
