FEATURES
- 100% 321 Stainless Steel Construction
- 2-Ply Bellow Design
- Slip-Fit Connection Type (must be welded)
- Directional Smooth Bore Inner Liner
- Extremely Durable in High Pressure Applications

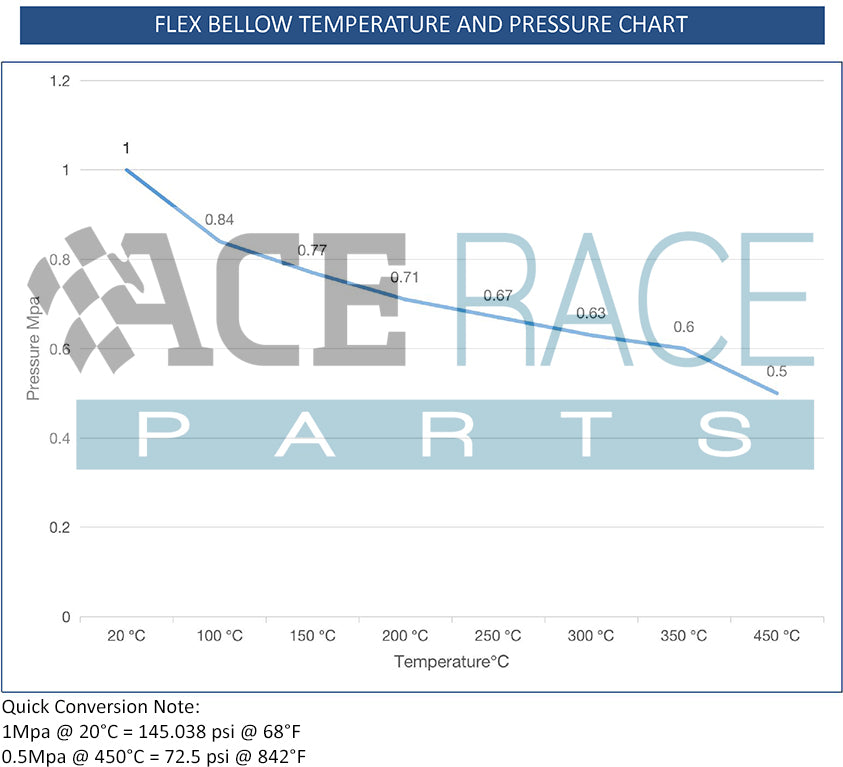

- Pressure Tested (data listed below): 145 psi @ 68°F and 72.5 psi @ 842°F
- Helium Leak Tested Prior to Shipment
Our 304 Stainless Steel Flex Bellows minimize the potential for cracking in turbo manifolds, dump tubes, downpipes and other automotive and industrial applications. Utilizing a slip-fit design that allows the matching tube size material to slip into the bellow, our exhaust flex bellows feature a smooth bore directional inner liner that needs to be placed in the flow of the exhaust gas.

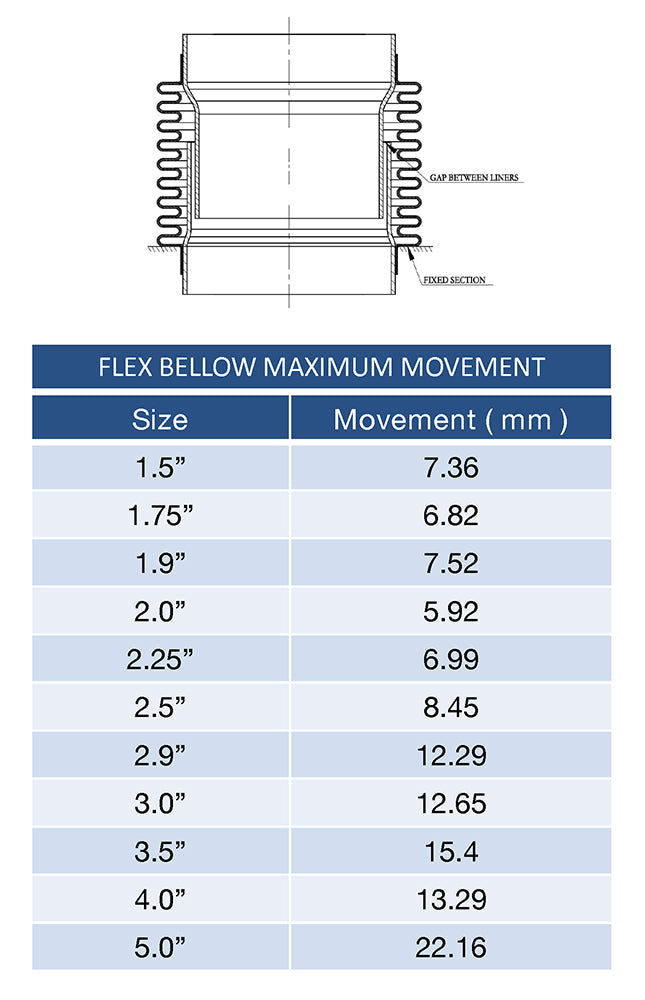

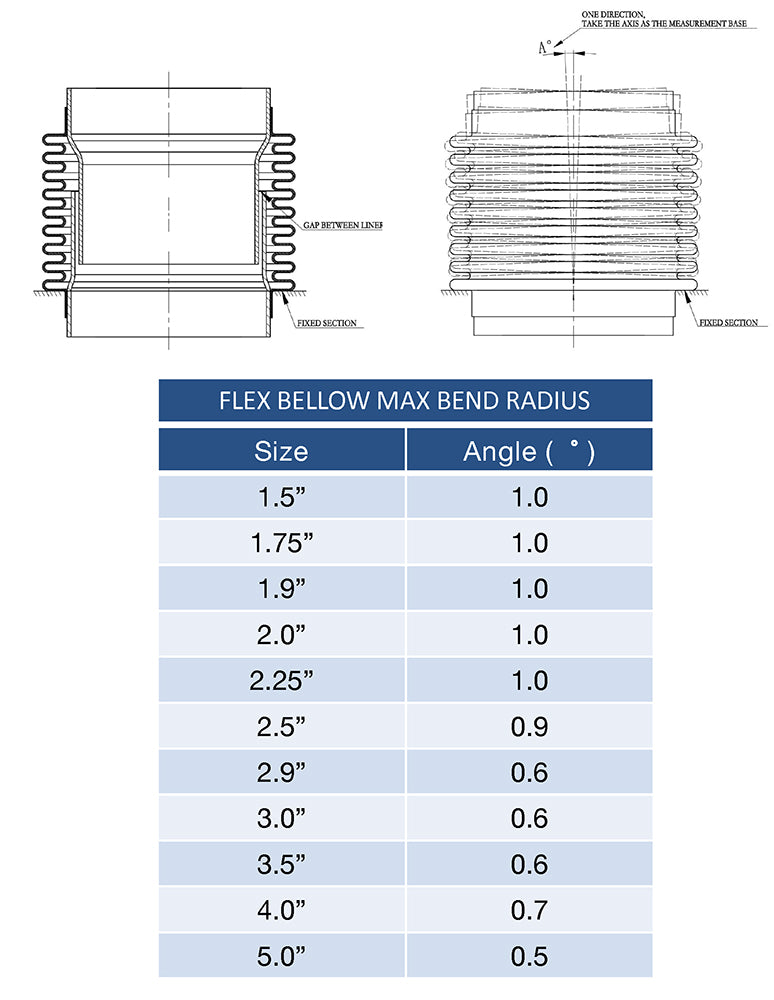

Please note, while this style 321 Stainless Flex Bellow is a great choice for applications that experience elongation and compression it is not intended to be used in applications where a large amount of axial flex is required. This specific 1.750" ID Flex Bellow offers a maximum bend angle of 1°.
Ace Race Parts

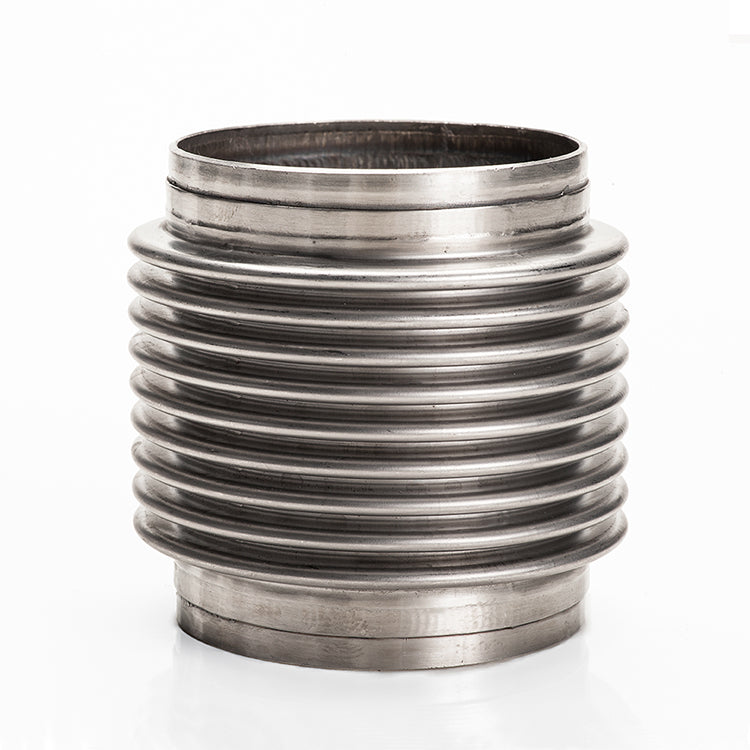

1.750" Flex Bellow (with Inner Liner) x 2.500" Overall Length - 321 Stainless
- Regular price
- $53.75
FEATURES
- 100% 321 Stainless Steel Construction
- 2-Ply Bellow Design
- Slip-Fit Connection Type (must be welded)
- Directional Smooth Bore Inner Liner
- Extremely Durable in High Pressure Applications
- Pressure Tested (data listed below): 145 psi @ 68°F and 72.5 psi @ 842°F
- Helium Leak Tested Prior to Shipment
Our 304 Stainless Steel Flex Bellows minimize the potential for cracking in turbo manifolds, dump tubes, downpipes and other automotive and industrial applications. Utilizing a slip-fit design that allows the matching tube size material to slip into the bellow, our exhaust flex bellows feature a smooth bore directional inner liner that needs to be placed in the flow of the exhaust gas.
Please note, while this style 321 Stainless Flex Bellow is a great choice for applications that experience elongation and compression it is not intended to be used in applications where a large amount of axial flex is required. This specific 1.750" ID Flex Bellow offers a maximum bend angle of 1°.
- Regular price
- $53.75
Frequently Bought Together
-
Vendor: Ace Race Parts
2.250" 16ga Tight Radius 90° Mandrel Bend w/ 2" Tangents - (2.250" CLR) - Brushed Finish - 304 Stainless
Regular price $19.50 -
Vendor: Ace Race Parts
2.250" 16ga Tight Radius 90° Mandrel Bend - (2.250" CLR) - Brushed Finish - 304 Stainless
Regular price $16.50 -
Vendor: Ace Race Parts
Transition Turbo Flange - Undivided T6 to Single 3.000" OD Tube - 304 Stainless
Regular price $175.00 -
Vendor: Ace Race Parts
5.000" OD x 0.059" (1.5mm) Long Radius (1.5D) Pie Cut CP1 Titanium (90° Bend - 6 Pieces Total)
Regular price $125.00
Product Description
FEATURES
- 100% 321 Stainless Steel Construction
- 2-Ply Bellow Design
- Slip-Fit Connection Type (must be welded)
- Directional Smooth Bore Inner Liner
- Extremely Durable in High Pressure Applications
- Pressure Tested (data listed below): 145 psi @ 68°F and 72.5 psi @ 842°F
- Helium Leak Tested Prior to Shipment
Our 304 Stainless Steel Flex Bellows minimize the potential for cracking in turbo manifolds, dump tubes, downpipes and other automotive and industrial applications. Utilizing a slip-fit design that allows the matching tube size material to slip into the bellow, our exhaust flex bellows feature a smooth bore directional inner liner that needs to be placed in the flow of the exhaust gas.
Please note, while this style 321 Stainless Flex Bellow is a great choice for applications that experience elongation and compression it is not intended to be used in applications where a large amount of axial flex is required. This specific 1.750" ID Flex Bellow offers a maximum bend angle of 1°.
