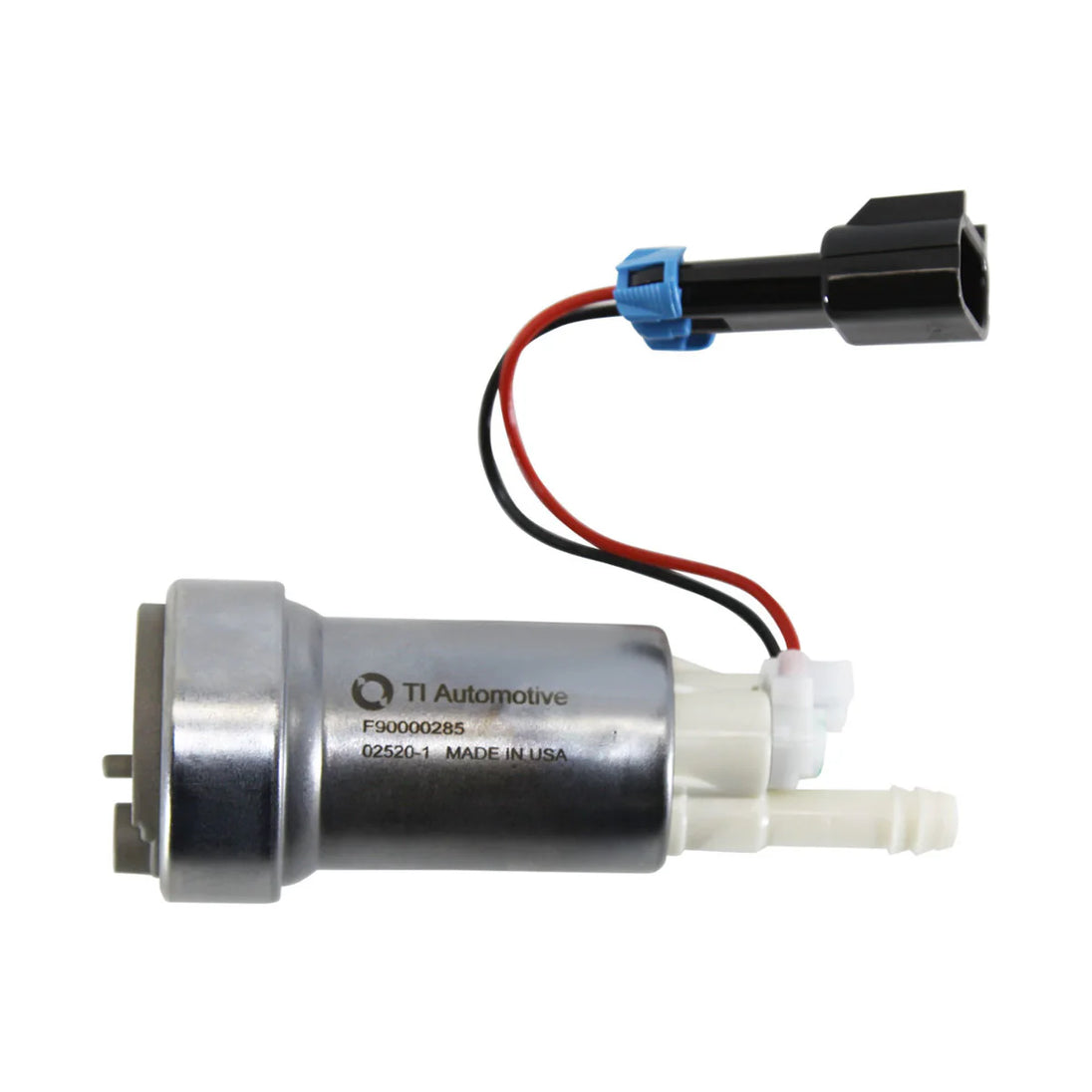

TI Automotive F90000285 Fuel Pump

The F90000285 (aka the "Walbro 470 or 525" or "Hellcat Pump") is one of our highest performing fuel pump that we offer for in-tank applications. This pump is identical in form factor to the F90000267 and F90000274, but has a slightly higher output. Like the F90000274, this fuel pump has a high pressure relief valve for high boost applications. Due to the additional heat this pump generates, we generally recommend this fuel pump be used as a secondary pump in conjunction with a F90000274 primary; however, it may be used as a primary pump for demanding applications.

  • Compatible with gasoline, race gas, and ethanol blends up to E99, as well as race gas/ethanol blends
  • Able to operate up to 112 psi total fuel pressure
  • Internal check valve for use in staged (or non-staged) fuel systems
  • Dual channel turbine pump for very quiet operation
  • Comes with fuel safe sealed Delphi electrical connector
  • Requires Walbro prefilter on inlet (recommend Walbro 125-190)
  • Fuse each pump at 30A
  • Not recommended for methanol fuels
  • Made in USA by TI Automotive
SPECIFICATIONS
  • See performance chart in product images
  • Outlet diameter: 10mm (3/8")
  • Diameter (upper body) 39mm
  • Diameter (lower body) 50mm
  • Length (inlet-outlet tips) 130.6mm
  • Fuse at 30A

DFW Speed Syndicate

TI Automotive F90000285 Fuel Pump

SKU F90000285
$150.00
TI Automotive F90000285 Fuel Pump

The F90000285 (aka the "Walbro 470 or 525" or "Hellcat Pump") is one of our highest performing fuel pump that we offer for in-tank applications. This pump is identical in form factor to the F90000267 and F90000274, but has a slightly higher output. Like the F90000274, this fuel pump has a high pressure relief valve for high boost applications. Due to the additional heat this pump generates, we generally recommend this fuel pump be used as a secondary pump in conjunction with a F90000274 primary; however, it may be used as a primary pump for demanding applications.

  • Compatible with gasoline, race gas, and ethanol blends up to E99, as well as race gas/ethanol blends
  • Able to operate up to 112 psi total fuel pressure
  • Internal check valve for use in staged (or non-staged) fuel systems
  • Dual channel turbine pump for very quiet operation
  • Comes with fuel safe sealed Delphi electrical connector
  • Requires Walbro prefilter on inlet (recommend Walbro 125-190)
  • Fuse each pump at 30A
  • Not recommended for methanol fuels
  • Made in USA by TI Automotive
SPECIFICATIONS
  • See performance chart in product images
  • Outlet diameter: 10mm (3/8")
  • Diameter (upper body) 39mm
  • Diameter (lower body) 50mm
  • Length (inlet-outlet tips) 130.6mm
  • Fuse at 30A
$150.00
