TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

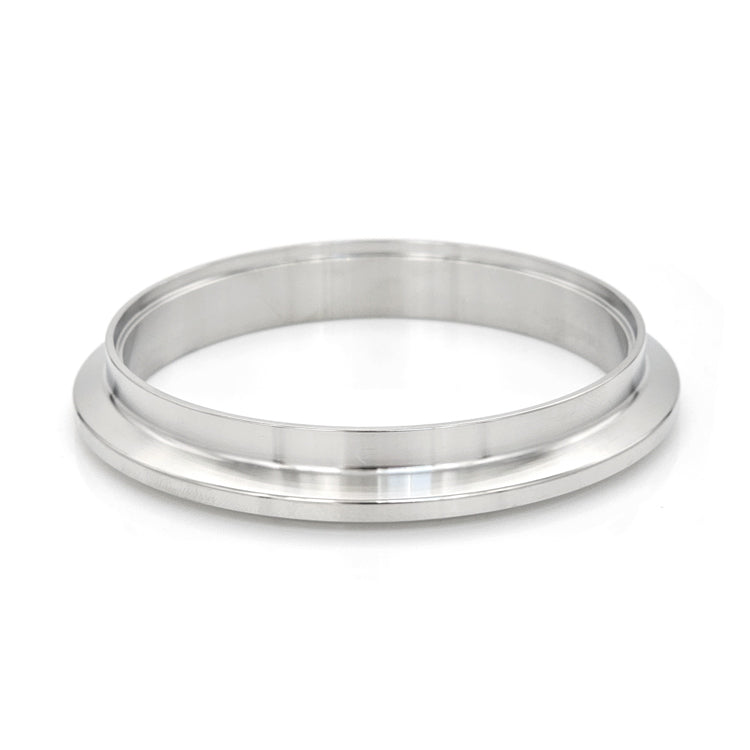

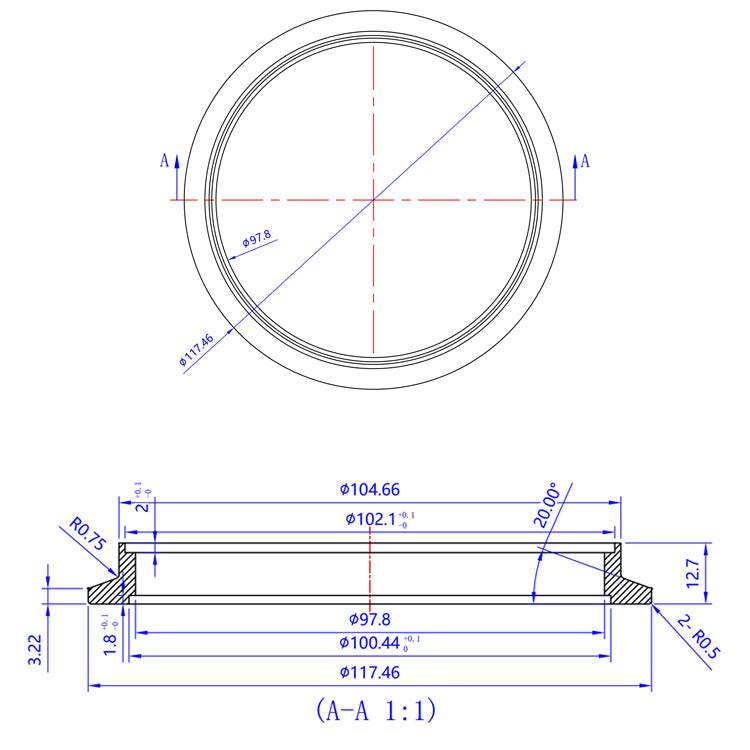

The Ace Race Parts brand of Turbo V-Band Outlet Flanges is precision CNC machined from solid 304 Stainless bar stock and offers durability in the most extreme conditions. Our version of this particular Turbo Outlet Flange is compatible with a variety of BorgWarner S400 and Garrett Super Core turbochargers (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.
FEATURES
- Precision CNC Machined
- 304 Stainless Steel
- For use with BorgWarner & Garrett Turbine Housings
COMPATIBILITY
TURBO OUTLET:
- BorgWarner S400 SX-E, SX, SX3, & SX4 Series Turbos
-
Garrett Super Core Models:
• G40-900, G40-1150, G42-1200, & G42-1450 with the following Turbine Housing Part Numbers: 757707-0014, 757707-0015, 757707-0016
• G45-1125, G45-1350, & G45-1500
• GTX4202R, GTX4294R with the following Turbine Housing Part Numbers: 757707-0001, 757707-0002, 757707-0003, 757707-0016
• GTX4508R
Ace Race Parts
Turbo Outlet Flange - BorgWarner S400 SX & Garrett Super Core G40, G42, G45 Models - 304 Stainless
- Regular price
- $28.99
TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!
The Ace Race Parts brand of Turbo V-Band Outlet Flanges is precision CNC machined from solid 304 Stainless bar stock and offers durability in the most extreme conditions. Our version of this particular Turbo Outlet Flange is compatible with a variety of BorgWarner S400 and Garrett Super Core turbochargers (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.
FEATURES
- Precision CNC Machined
- 304 Stainless Steel
- For use with BorgWarner & Garrett Turbine Housings
COMPATIBILITY
TURBO OUTLET:
- BorgWarner S400 SX-E, SX, SX3, & SX4 Series Turbos
-
Garrett Super Core Models:
• G40-900, G40-1150, G42-1200, & G42-1450 with the following Turbine Housing Part Numbers: 757707-0014, 757707-0015, 757707-0016
• G45-1125, G45-1350, & G45-1500
• GTX4202R, GTX4294R with the following Turbine Housing Part Numbers: 757707-0001, 757707-0002, 757707-0003, 757707-0016
• GTX4508R
- Regular price
- $28.99
