TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

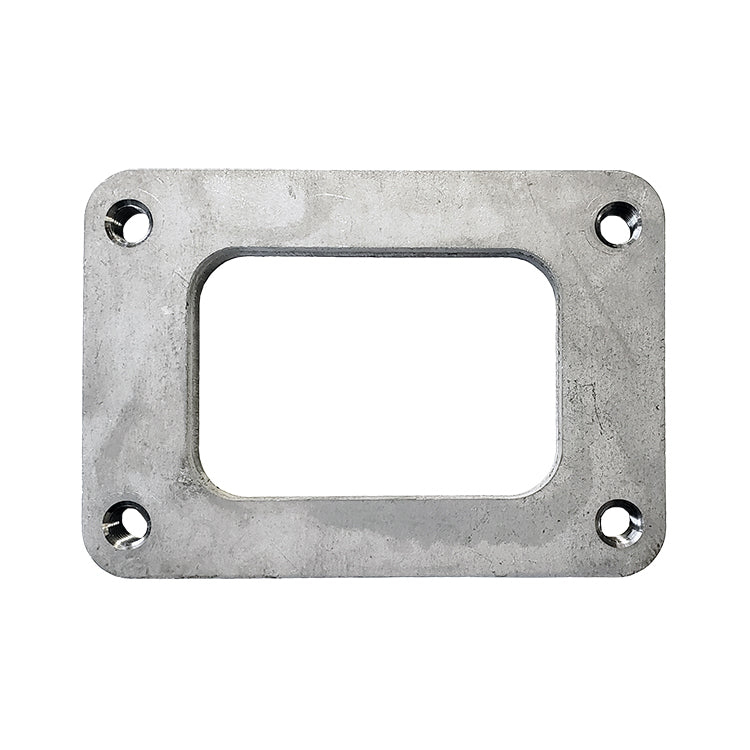

The Ace Race Parts brand of Turbo Inlet Flanges are precision machined from 1/2-inch thick 304 Stainless and will not warp or deform. Our Undivided T6 Turbo Inlet Flange features M10 x 1.5 threaded bolt holes and can handle the extremely high exhaust temperatures of a turbo manifold.
FEATURES
- 0.500" Thick, 304 Stainless Steel
- Will Not Warp or Deform!
- M10 x 1.5 Threaded Bolt Holes
This T6 Undivided Turbo Inlet Flange has a 4.500" x 2.750" bolt pattern and is compatible with the following applications:
- Generic T6 Turbine Inlets
- all Garrett GT47 / GTX47
- all GT50 / GTX50
- all GTX55
- all GT60
-
Note: May NOT be compatible with some Borg Warner T6 Turbos, some VS Racing T6 Turbos, or some Forced Induction T6 Turbos. Turbos that utilize the Borg Warner 4.44" x 2.75" bolt pattern are NOT compatible with this flange.
Please be sure to verify the bolt pattern of your existing application before purchasing this Undivided T6 Turbine Inlet Flange.
- Regular price
- $31.00
TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!
The Ace Race Parts brand of Turbo Inlet Flanges are precision machined from 1/2-inch thick 304 Stainless and will not warp or deform. Our Undivided T6 Turbo Inlet Flange features M10 x 1.5 threaded bolt holes and can handle the extremely high exhaust temperatures of a turbo manifold.
FEATURES
- 0.500" Thick, 304 Stainless Steel
- Will Not Warp or Deform!
- M10 x 1.5 Threaded Bolt Holes
This T6 Undivided Turbo Inlet Flange has a 4.500" x 2.750" bolt pattern and is compatible with the following applications:
- Generic T6 Turbine Inlets
- all Garrett GT47 / GTX47
- all GT50 / GTX50
- all GTX55
- all GT60
-
Note: May NOT be compatible with some Borg Warner T6 Turbos, some VS Racing T6 Turbos, or some Forced Induction T6 Turbos. Turbos that utilize the Borg Warner 4.44" x 2.75" bolt pattern are NOT compatible with this flange.
Please be sure to verify the bolt pattern of your existing application before purchasing this Undivided T6 Turbine Inlet Flange.
- Regular price
- $31.00
Frequently Bought Together
-
Vendor: Ace Race Parts
2.250" 16ga Tight Radius 90° Mandrel Bend w/ 2" Tangents - (2.250" CLR) - Brushed Finish - 304 Stainless
Regular price $19.50 -
Vendor: Ace Race Parts
2.250" 16ga Tight Radius 90° Mandrel Bend - (2.250" CLR) - Brushed Finish - 304 Stainless
Regular price $16.50 -
Vendor: Ace Race Parts
Transition Turbo Flange - Undivided T6 to Single 3.000" OD Tube - 304 Stainless
Regular price $175.00 -
Vendor: Ace Race Parts
5.000" OD x 0.059" (1.5mm) Long Radius (1.5D) Pie Cut CP1 Titanium (90° Bend - 6 Pieces Total)
Regular price $125.00
Product Description
TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!
The Ace Race Parts brand of Turbo Inlet Flanges are precision machined from 1/2-inch thick 304 Stainless and will not warp or deform. Our Undivided T6 Turbo Inlet Flange features M10 x 1.5 threaded bolt holes and can handle the extremely high exhaust temperatures of a turbo manifold.
FEATURES
- 0.500" Thick, 304 Stainless Steel
- Will Not Warp or Deform!
- M10 x 1.5 Threaded Bolt Holes
This T6 Undivided Turbo Inlet Flange has a 4.500" x 2.750" bolt pattern and is compatible with the following applications:
- Generic T6 Turbine Inlets
- all Garrett GT47 / GTX47
- all GT50 / GTX50
- all GTX55
- all GT60
-
Note: May NOT be compatible with some Borg Warner T6 Turbos, some VS Racing T6 Turbos, or some Forced Induction T6 Turbos. Turbos that utilize the Borg Warner 4.44" x 2.75" bolt pattern are NOT compatible with this flange.
Please be sure to verify the bolt pattern of your existing application before purchasing this Undivided T6 Turbine Inlet Flange.
