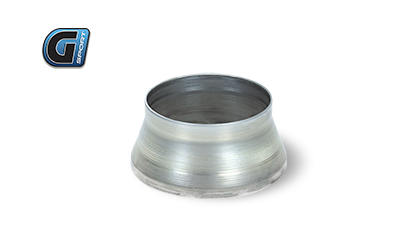

SMOOTH TRANSITIONS FOR G-SPORT UHO CORES — 3.000" TUBING TO 4.500" BODY

GESi's universal Transition Cones create a smooth, flow-friendly transition between a G-Sport catalytic core and the rest of your exhaust system. This cone adapts any 4.500" OD body G-Sport core — the 850hp UHO tier — to 3.000" exhaust tubing, matching the taper G-Sport uses on its factory-assembled converters.

Sold individually — a core needs one cone on each end, so order two per core (or one, where the core mates directly to a merge or flange on the other side).

FEATURES

• Factory-matched taper — the same transition geometry G-Sport uses on its weld-ready converters
• Stainless steel construction to match the core and survive exhaust heat
• No sensor fitting — clean cone; add one of our O2 sensor bungs wherever your sensor needs to sit
• Weld-in installation for a permanent, leak-free joint

SPECIFICATIONS

• Inlet/Outlet: 3.000"
• Fits Converter Body: 4.500" OD
• Cone Base Diameter: 4.360"
• Overall Length: 1.750"
• Style: No sensor fitting
• Material: Stainless steel
• Sold As: Individually (use two per core)
• Weight: 0.36 lbs
• Connection: Welding Required

COMPATIBLE G-SPORT CORES

Works with every G-Sport 4.500" OD body catalytic core: Gen1 UHO Core (85002), Gen2 UHO Core (85200), and their 6-packs (685002, 685200). It also works as a repair or re-fabrication cone for 4.500"-body G-Sport assemblies.

For the full selection guide, see Understanding the G-Sport Catalytic Converter Lineup; installation best practices are in our G-Sport Installation Guidelines.

Not sure which cone matches your core and tubing? Email us at support@aceraceparts.com and we will point you to the right part.
