- 2-Row 68mm High-Performance Core w/ CSF's Exclusive B-Tube Technology vs (OEM 1-row 42mm core) - The Industry's Highest Capacity Offering!
- Ultra-Efficient, 6.5mm Tall Multi-Louvered Fins for Maximum Surface Area Contact
- 100% All-Aluminum TIG-Welded Construction
- Individually Leak and Pressure Tested
- CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
- 1 Hour "Mirror Finish" Hand Polish
- Includes Detachable Rock Guard
- Multi-Fit - Fits Both Left & Right Side (Sold Individually)
- True "Drop-in Fit" Requires No Modifications to Install
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353081983
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 171mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 68mm
- Core Width: 229mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Polished
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Quick Connect
- Inlet Diameter: 16mm
- Inlet Location: Top
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Quick Connect
- Outlet Diameter: 16mm
- Outlet Location: Bottom
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: Indonesia
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13 x 7 x 12 inches
- Weight: 5 POUNDS
CSF Cooling - Racing & High Performance Division

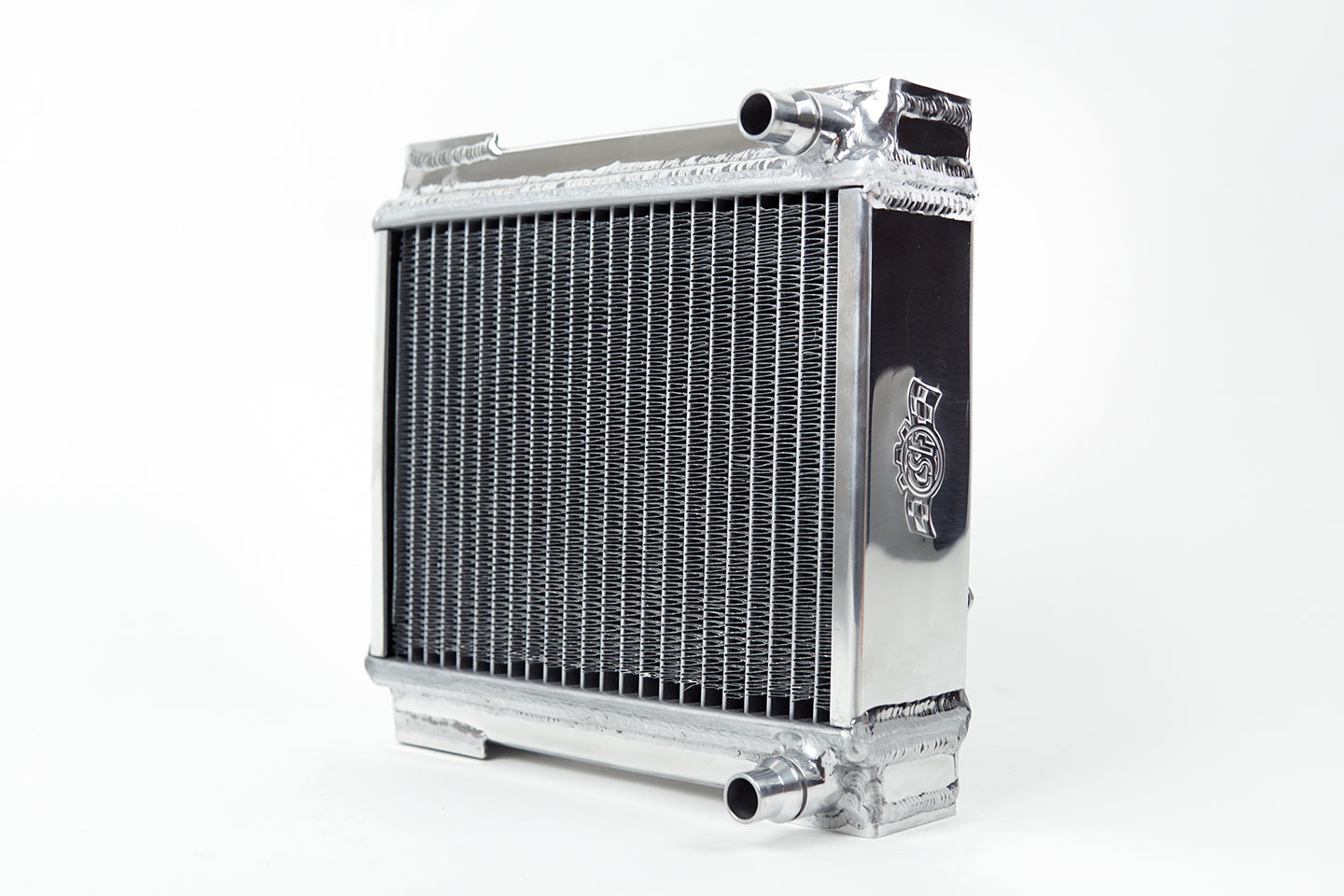

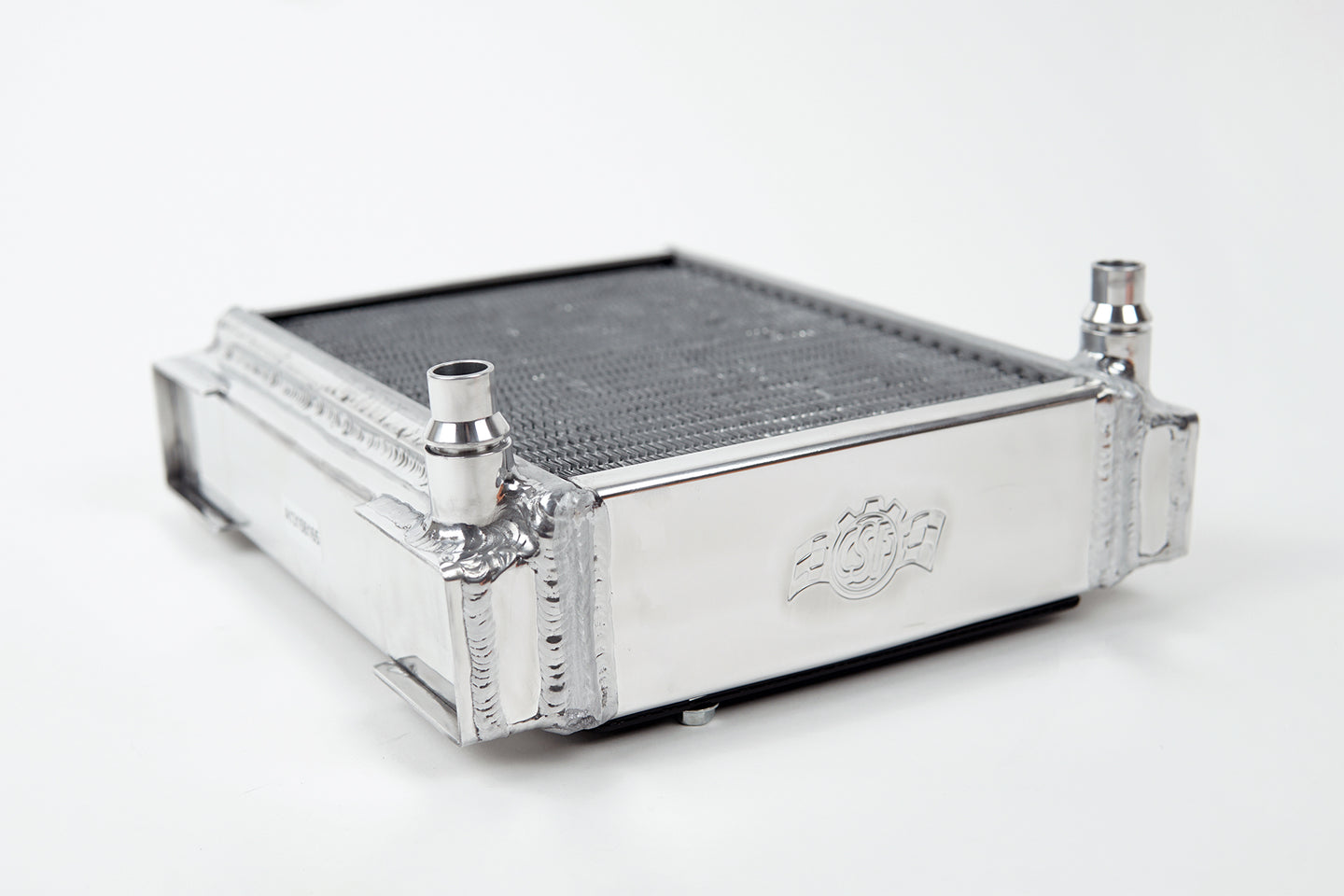

Mercedes AMG M157 / M278 / M133 High-Performance Auxiliary Radiator
SKU
GQPL-8198
- Regular price
- $499.00
- 2-Row 68mm High-Performance Core w/ CSF's Exclusive B-Tube Technology vs (OEM 1-row 42mm core) - The Industry's Highest Capacity Offering!
- Ultra-Efficient, 6.5mm Tall Multi-Louvered Fins for Maximum Surface Area Contact
- 100% All-Aluminum TIG-Welded Construction
- Individually Leak and Pressure Tested
- CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
- 1 Hour "Mirror Finish" Hand Polish
- Includes Detachable Rock Guard
- Multi-Fit - Fits Both Left & Right Side (Sold Individually)
- True "Drop-in Fit" Requires No Modifications to Install
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353081983
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 171mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 68mm
- Core Width: 229mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Polished
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Quick Connect
- Inlet Diameter: 16mm
- Inlet Location: Top
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Quick Connect
- Outlet Diameter: 16mm
- Outlet Location: Bottom
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: Indonesia
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13 x 7 x 12 inches
- Weight: 5 POUNDS
- Regular price
- $499.00
Frequently Bought Together
-
Vendor: DFW Speed Syndicate
Ford 240/300 Guide Plates - 3/8
Regular price $50.00 -
Vendor: DFW Speed Syndicate
Ford 240/300 L6 Pro Series Distributor - Modified for EFI Control
Regular price From $300.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 240 Rods
Regular price $635.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 300 Rods
Regular price $635.00
Total price$2,119.00
$2,119.00
Product Description
The High-Performance All-Aluminum Auxiliary Radiators work in conjunction with the rest of the cooling system to reduce temperatures throughout. This is critical as the Auxiliary Radiators not only help keep engine water temperatures lower, but also are utilized as the heat exchange medium in the air-to-water charge-air coolers for the turbocharger system to reduce intake air temperatures (IATs). Overall, the Auxiliary Radiators larger capacity prolongs the heat soak threshold and assists in keeping temperatures in optimal ranges. The included, detachable rock guard offers protection against the build-up of debris, as well as possible core punctures - unlike the OEM auxiliary radiators, which have little protection against the elements. CSF recommends purchasing two Auxiliary Radiators to replace both left and right OEM units (for vehicles with two from the factory). For maximum cooling performance, we advise installing in conjunction with the Front Mount Heat Exchanger (CSF #8197).
- 2-Row 68mm High-Performance Core w/ CSF's Exclusive B-Tube Technology vs (OEM 1-row 42mm core) - The Industry's Highest Capacity Offering!
- Ultra-Efficient, 6.5mm Tall Multi-Louvered Fins for Maximum Surface Area Contact
- 100% All-Aluminum TIG-Welded Construction
- Individually Leak and Pressure Tested
- CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
- 1 Hour "Mirror Finish" Hand Polish

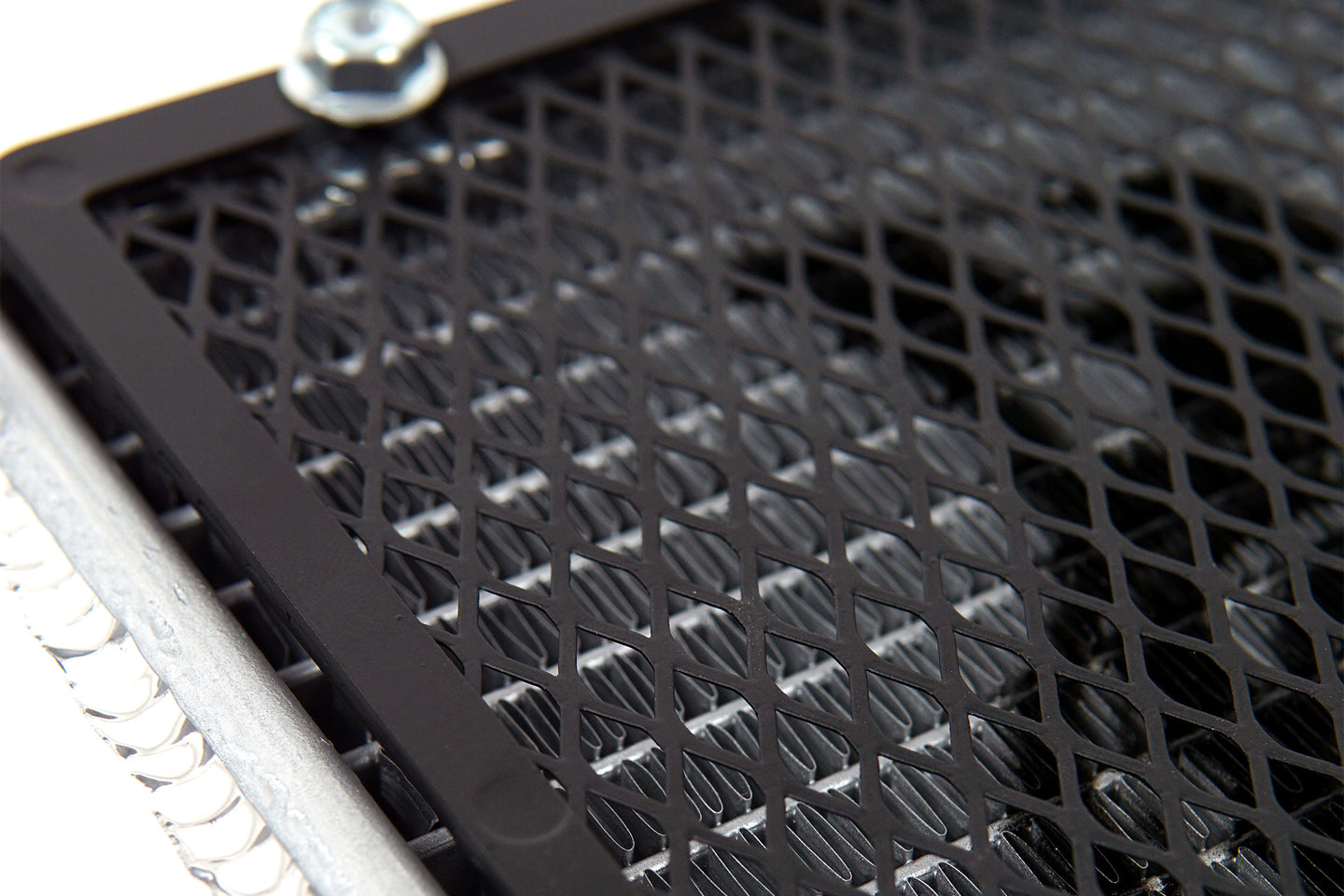

- Includes Detachable Rock Guard
- Multi-Fit - Fits Both Left & Right Side (Sold Individually)
- True "Drop-in Fit" Requires No Modifications to Install
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353081983
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 171mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 68mm
- Core Width: 229mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Polished
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Quick Connect
- Inlet Diameter: 16mm
- Inlet Location: Top
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Quick Connect
- Outlet Diameter: 16mm
- Outlet Location: Bottom
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: Indonesia
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13 x 7 x 12 inches
- Weight: 5 POUNDS
