- 2-Row, 52mm Ultra-High-Performance Core
- 100% All Aluminum TIG-Welded Construction
- Smooth Satin Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 8mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Shorter core height provides clearance for supercharger installations
- No need to modify the radiator core support or trim the radiator
- Fits all OEM and Aftermarket Intake Systems

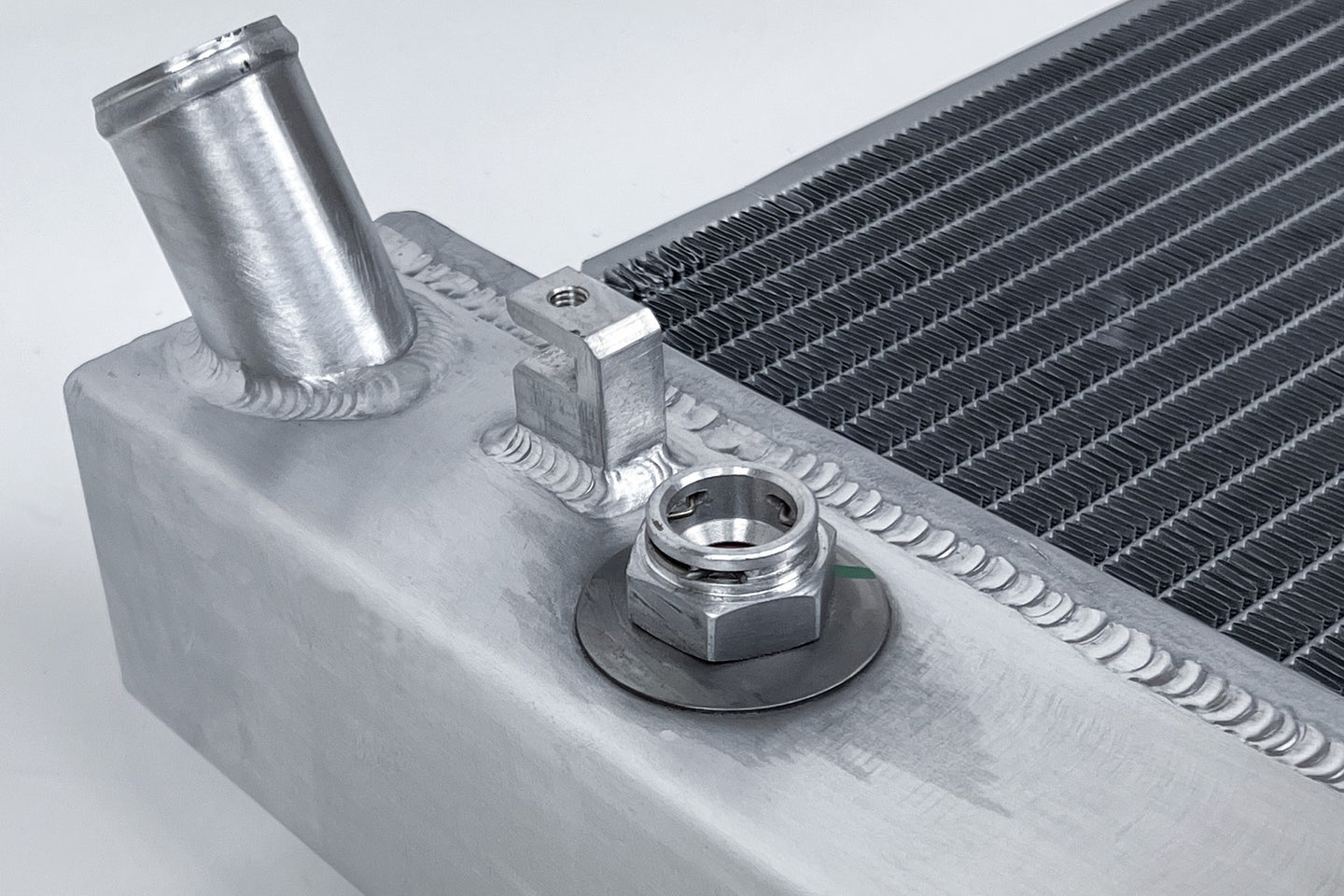

- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- Mounting Pins have Cotter Pin Holes for securing A&A Corvette's Top Shroud
- Built In Engine Oil cooler & Automatic Transmission Cooler with Factory-style Quick Connect Fittings
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353072233
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 408mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 52mm
- Core Width: 594mm
- Down Flow Or Cross Flow Type: Cross Flow
- Finish/Color: Satin
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 32mm
- Inlet Location: Top Left
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: Yes
- Internal Transmission Oil Cooler: Yes
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 32mm
- Outlet Location: Bottom Right
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 32 x 23 x 9 inches
- Weight: 21 POUNDS
CSF Cooling - Racing & High Performance Division

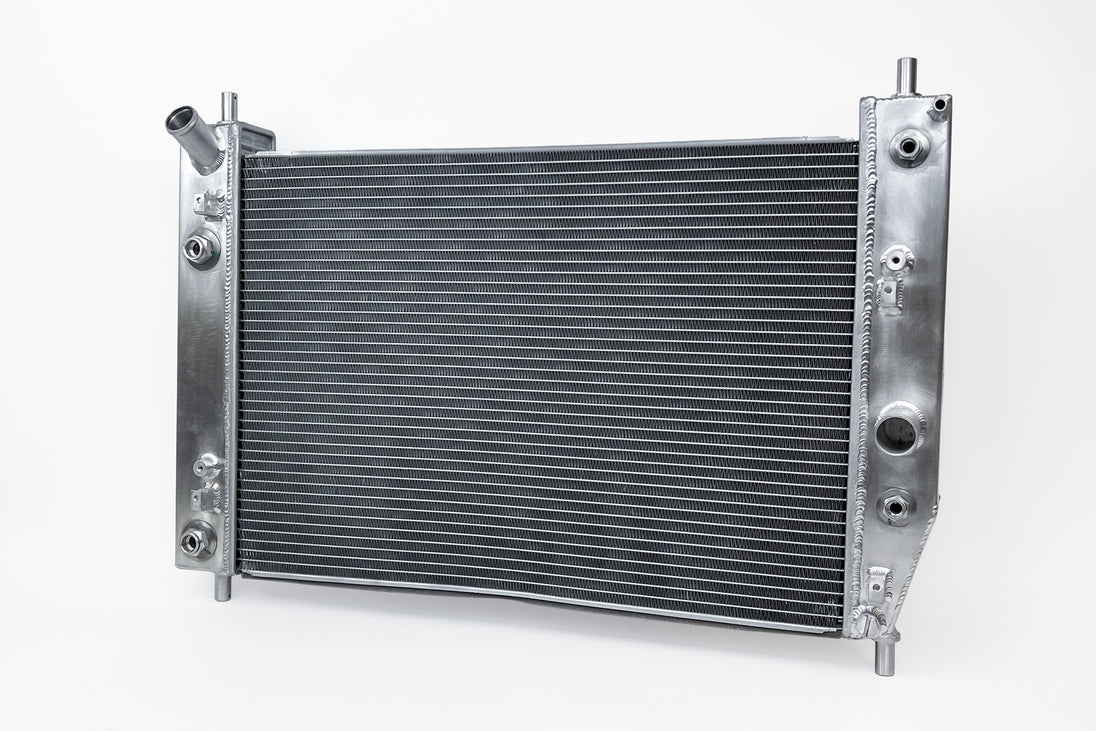

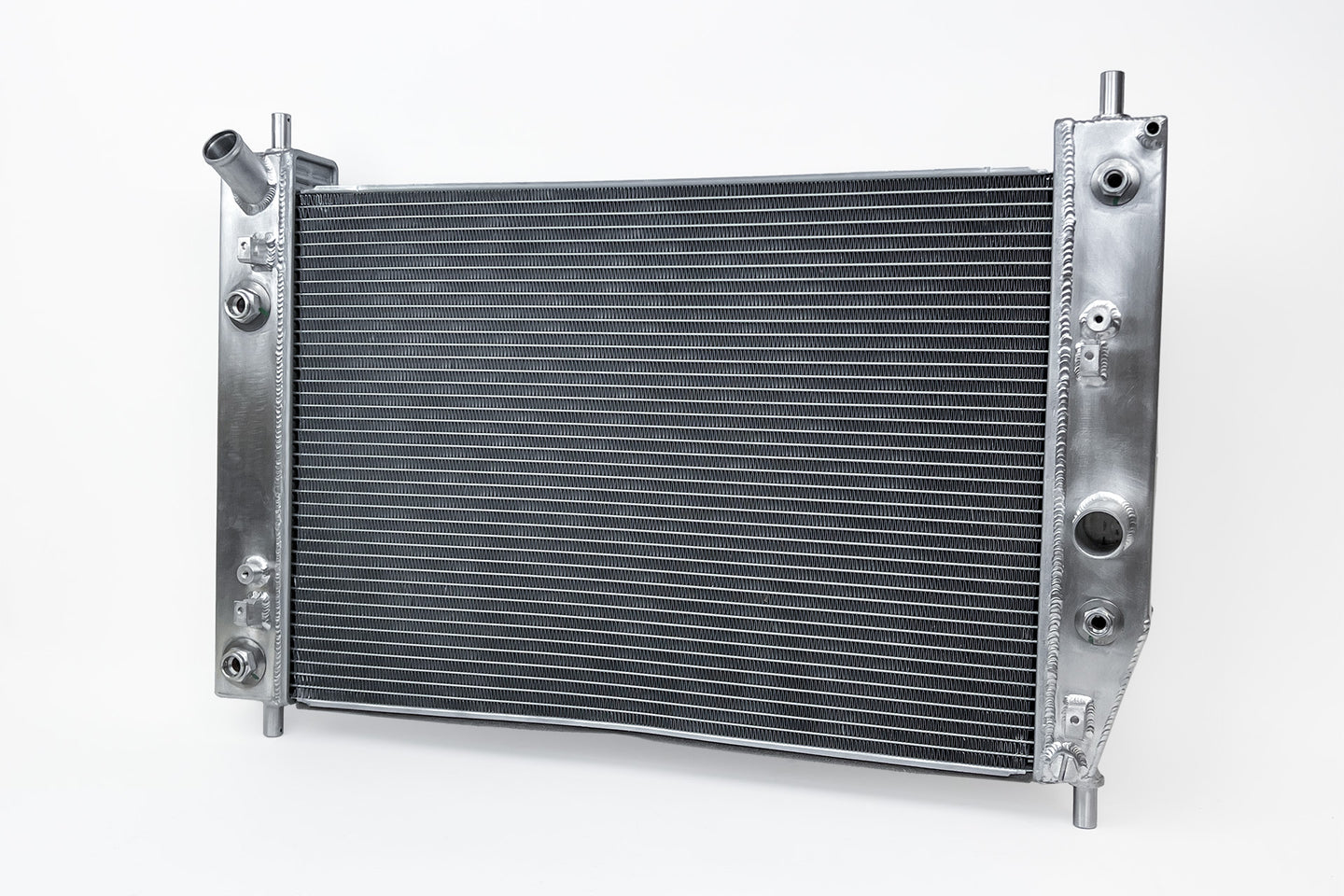

C6 Corvette High-Performance All-Aluminum Radiator
SKU
GQPL-7223
- Regular price
- $599.00
- 2-Row, 52mm Ultra-High-Performance Core
- 100% All Aluminum TIG-Welded Construction
- Smooth Satin Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 8mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Shorter core height provides clearance for supercharger installations
- No need to modify the radiator core support or trim the radiator
- Fits all OEM and Aftermarket Intake Systems
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- Mounting Pins have Cotter Pin Holes for securing A&A Corvette's Top Shroud
- Built In Engine Oil cooler & Automatic Transmission Cooler with Factory-style Quick Connect Fittings
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353072233
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 408mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 52mm
- Core Width: 594mm
- Down Flow Or Cross Flow Type: Cross Flow
- Finish/Color: Satin
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 32mm
- Inlet Location: Top Left
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: Yes
- Internal Transmission Oil Cooler: Yes
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 32mm
- Outlet Location: Bottom Right
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 32 x 23 x 9 inches
- Weight: 21 POUNDS
- Regular price
- $599.00
Frequently Bought Together
-
Vendor: DFW Speed Syndicate
Ford 240/300 Guide Plates - 3/8
Regular price $50.00 -
Vendor: DFW Speed Syndicate
Ford 240/300 L6 Pro Series Distributor - Modified for EFI Control
Regular price From $300.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 240 Rods
Regular price $635.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 300 Rods
Regular price $635.00
Total price$2,219.00
$2,219.00
Product Description
The core height has been lowered slightly to accommodate for various supercharger installations. Many supercharger installations require trimming of the radiator core or lowering the radiator. The slightly reduced height makes such modifications unnecessary with the CSF Radiator. Cutting the header plate on the OEM Radiator can weaken the overall structure of the radiator and you risk damaging the core. CSF Worked closely with A&A Corvette to develop this radiator to avoid the header plate trimming required to run the induction piping. Cutting or Bending the radiator header plate is a common modification on most supercharger installations. The radiator will also work with all aftermarket ram air intake systems available on the market.
- 2-Row, 52mm Ultra-High-Performance Core
- 100% All Aluminum TIG-Welded Construction
- Smooth Satin Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 8mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Shorter core height provides clearance for supercharger installations
- No need to modify the radiator core support or trim the radiator
- Fits all OEM and Aftermarket Intake Systems
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- Mounting Pins have Cotter Pin Holes for securing A&A Corvette's Top Shroud
- Built In Engine Oil cooler & Automatic Transmission Cooler with Factory-style Quick Connect Fittings
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353072233
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 408mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 52mm
- Core Width: 594mm
- Down Flow Or Cross Flow Type: Cross Flow
- Finish/Color: Satin
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 32mm
- Inlet Location: Top Left
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: Yes
- Internal Transmission Oil Cooler: Yes
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 32mm
- Outlet Location: Bottom Right
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 32 x 23 x 9 inches
- Weight: 21 POUNDS
