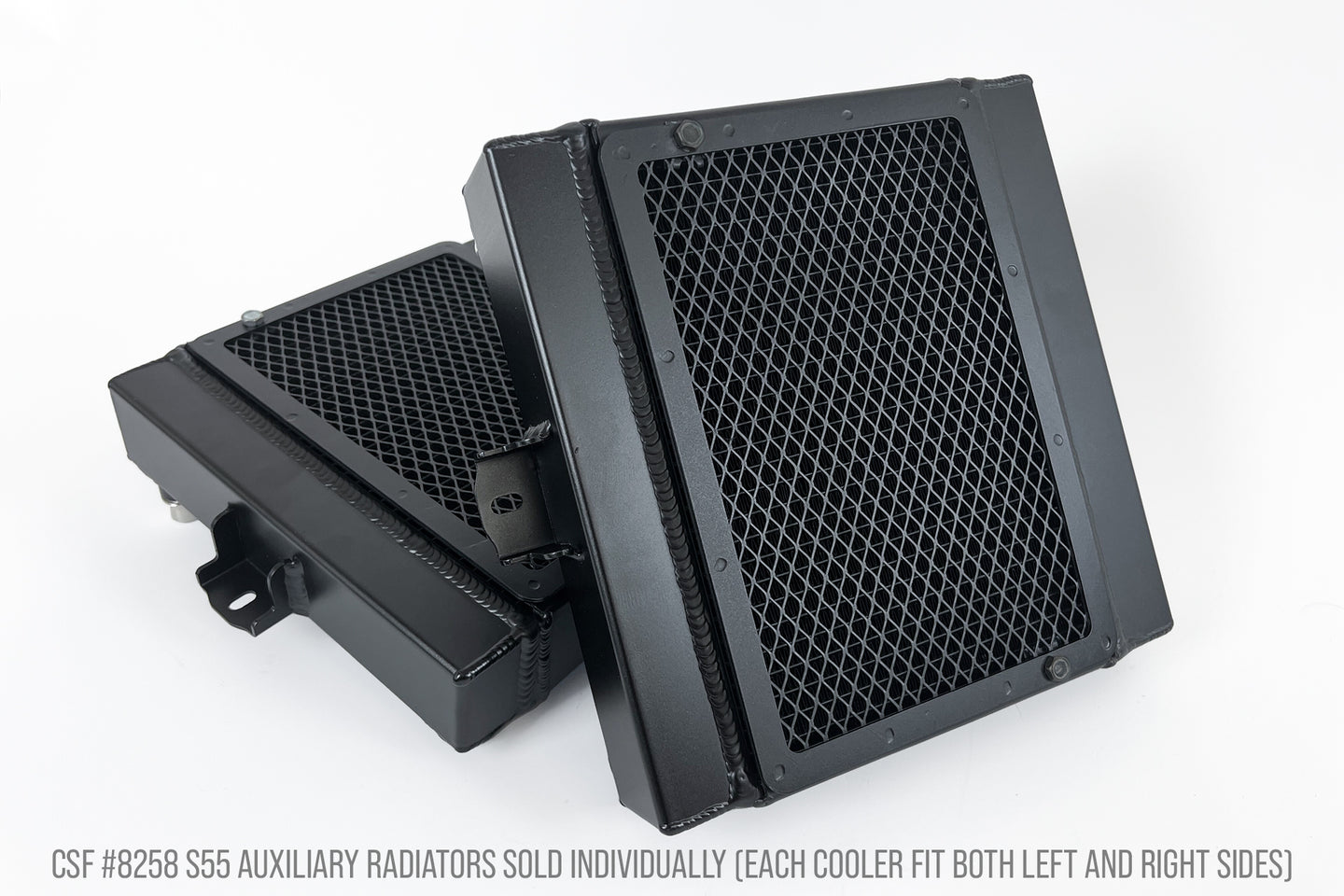

- Sold Individually - all applications require 2 auxiliary radiators
- Individually Leak and Pressure Tested
- High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
- Satin Black Finish for OEM+ Look
- 2 Year Limited Warranty
- Multi-Fit - Fits Both Left & Right Side
- 2-Row 42mm High-Performance Core Featuring CSF's B-Tube Technology
- Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Tank Volume increased by 10% and Core Size Increased by 6.4%
- 100% All-Aluminum TIG-Welded Construction
- OEM Style "Quick Connect" Inlet/Outlet
- True "Drop-in Fit" Requires No Modifications to Install
- Includes Detachable Rock Guard
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353082584
- ADD-ON: 8081
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 177mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 42mm
- Core Width: 236mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Black
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Quick Connect
- Inlet Diameter: 16.3mm
- Inlet Location: Top
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Quick Connect
- Outlet Diameter: 16.3mm
- Outlet Location: Bottom
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13 x 14 x 6 inches
- Weight: 6 POUNDS
CSF Cooling - Racing & High Performance Division
BMW F8X M3/M4/M2 Comp High-Performance Auxiliary Radiator
SKU
GQPL-8258
- Regular price
- $449.00
- Sold Individually - all applications require 2 auxiliary radiators
- Individually Leak and Pressure Tested
- High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
- Satin Black Finish for OEM+ Look
- 2 Year Limited Warranty
- Multi-Fit - Fits Both Left & Right Side
- 2-Row 42mm High-Performance Core Featuring CSF's B-Tube Technology
- Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Tank Volume increased by 10% and Core Size Increased by 6.4%
- 100% All-Aluminum TIG-Welded Construction
- OEM Style "Quick Connect" Inlet/Outlet
- True "Drop-in Fit" Requires No Modifications to Install
- Includes Detachable Rock Guard
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353082584
- ADD-ON: 8081
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 177mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 42mm
- Core Width: 236mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Black
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Quick Connect
- Inlet Diameter: 16.3mm
- Inlet Location: Top
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Quick Connect
- Outlet Diameter: 16.3mm
- Outlet Location: Bottom
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13 x 14 x 6 inches
- Weight: 6 POUNDS
- Regular price
- $449.00
Frequently Bought Together
-
Vendor: DFW Speed Syndicate
Ford 240/300 Guide Plates - 3/8
Regular price $50.00 -
Vendor: DFW Speed Syndicate
Ford 240/300 L6 Pro Series Distributor - Modified for EFI Control
Regular price From $300.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 240 Rods
Regular price $635.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 300 Rods
Regular price $635.00
Total price$2,069.00
$2,069.00
Product Description

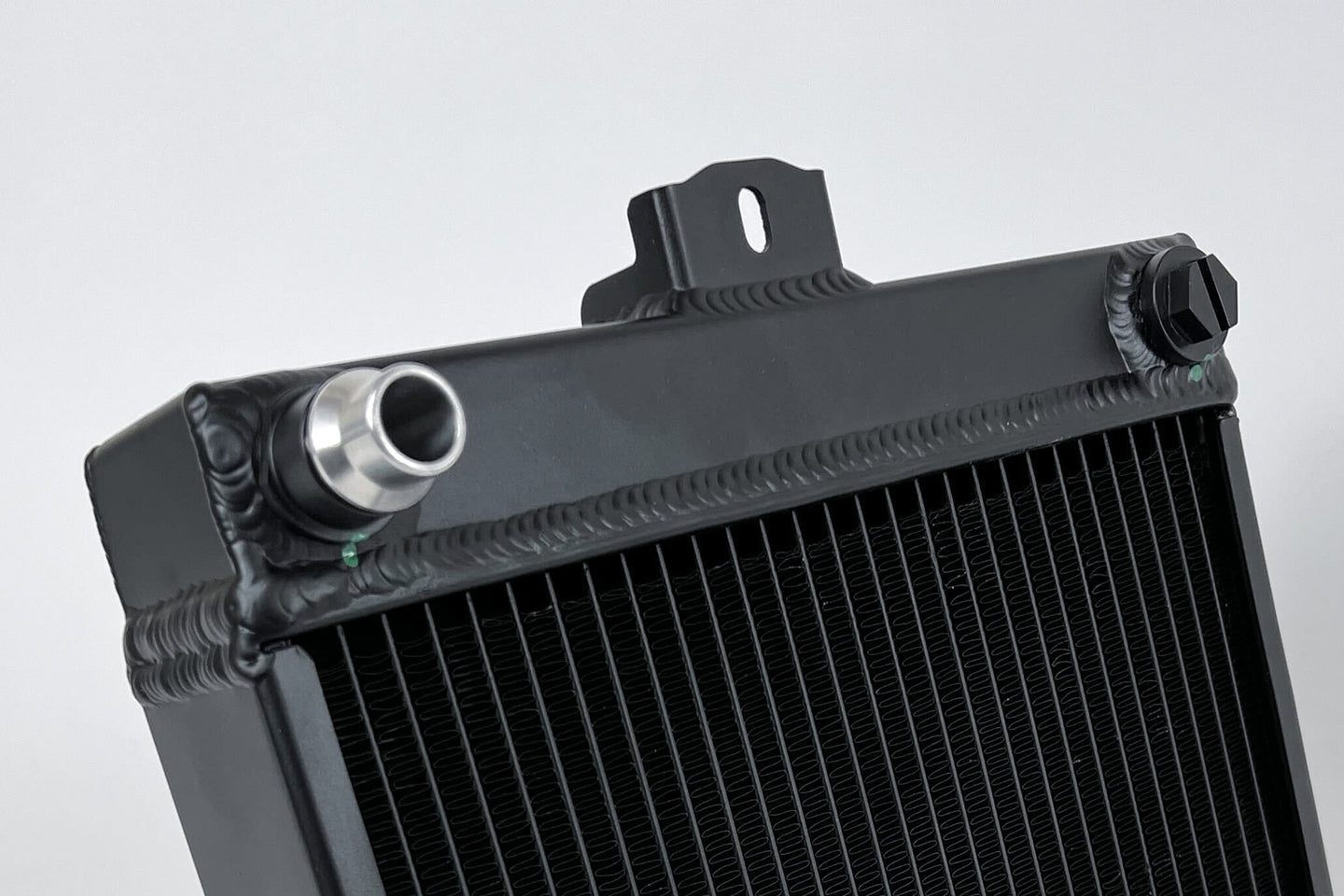

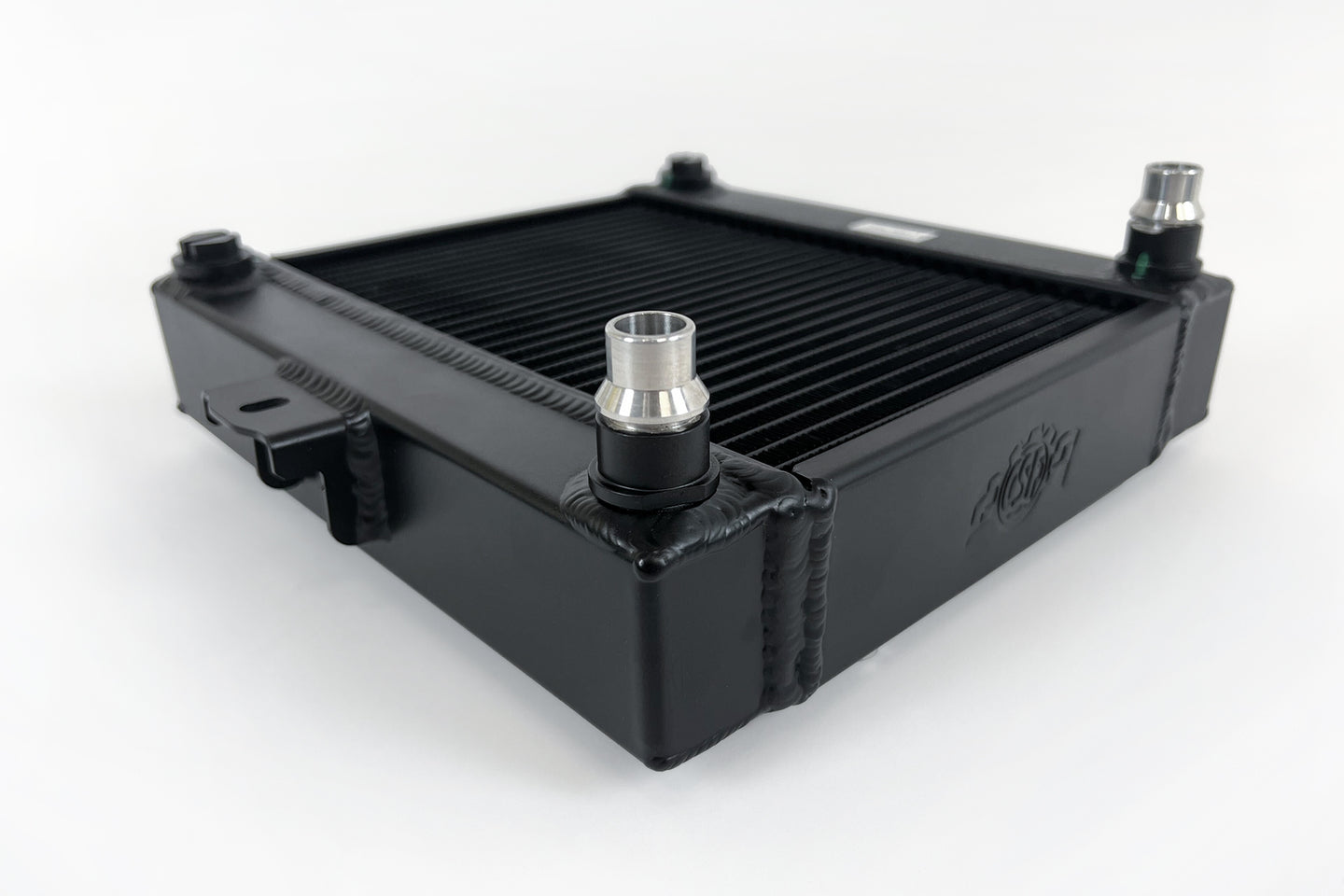

Compared to the OEM F8X coolers, the CSF units are a significant upgrade. CSF eliminated the OE plastic mounting pod by incorporating it into the modular design that fits both sides. This design improvement increases the size of both the core and tanks. The extra space taken from the mounting pod allowed for a 7% increase in Core Size and an 10% increase in Tank Volume. With a larger 2-row 42mm core, cooling efficiency and capacity are drastically increased. The high efficiency core using CSF's Exclusive B-Tube Technology maximizes airflow and heat dissipation. 100% All-Aluminum construction ensures the best performance and durability. The mounting pins and brackets are much stronger and more durable than the OE plastic pod mounting system. In addition, the black finish provides extra protection and offers a stealthy look behind the grilles of your F8X. In addition, the CSF auxiliary radiators also feature integrated bolt on rock guards to keep the coolers safe. You've no doubt heard horror stories about OEM coolers getting punctured and spilling fluids all over the road or track. Now you can feel more confident that your cooling system is safer from road debris.
- Sold Individually - all applications require 2 auxiliary radiators
- Individually Leak and Pressure Tested
- High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
- Satin Black Finish for OEM+ Look
- 2 Year Limited Warranty
- Multi-Fit - Fits Both Left & Right Side
- 2-Row 42mm High-Performance Core Featuring CSF's B-Tube Technology
- Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Tank Volume increased by 10% and Core Size Increased by 6.4%
- 100% All-Aluminum TIG-Welded Construction
- OEM Style "Quick Connect" Inlet/Outlet
- True "Drop-in Fit" Requires No Modifications to Install
- Includes Detachable Rock Guard
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353082584
- ADD-ON: 8081
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 177mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 42mm
- Core Width: 236mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Black
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Quick Connect
- Inlet Diameter: 16.3mm
- Inlet Location: Top
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Quick Connect
- Outlet Diameter: 16.3mm
- Outlet Location: Bottom
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13 x 14 x 6 inches
- Weight: 6 POUNDS
