- 1-Row - 31mm Ultra-High-Performance Core
- Requires use of lower radiator coolant hose BMW: 11 53 1 250 702
- Compatible with vehicles equipped with and without Air Conditioning
- M14X1.5P Temperature Switch Sensor Port & Plug
- 2-Year Limited Warranty
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Satin Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested

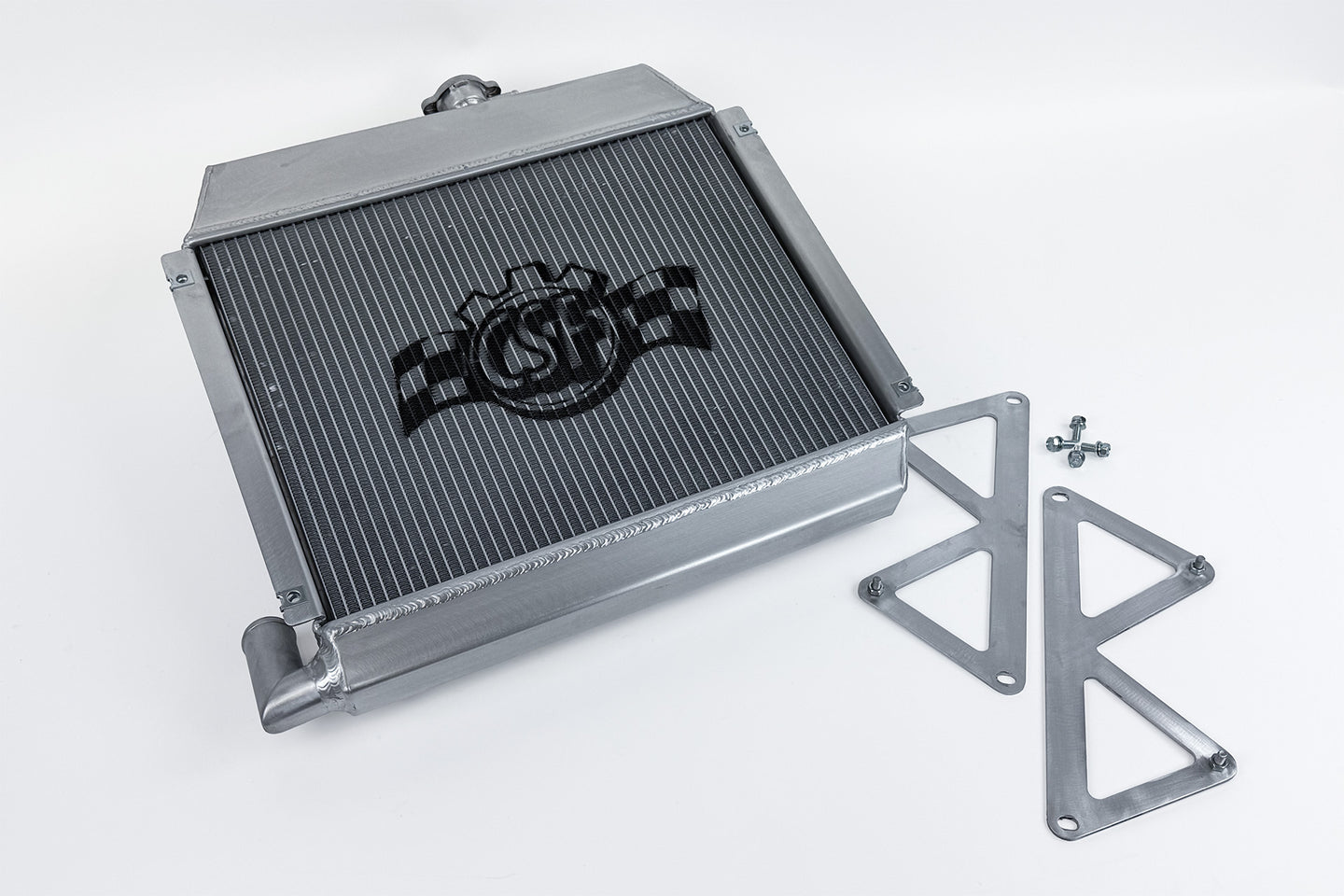

- Includes optional / removable mounting brackets to run aftermarket 11" SPAL fan #30100365
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353072257
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 320mm
- Core Material: Aluminum
- Core Row Quantity: 1
- Core Thickness: 31mm
- Core Width: 406mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Satin
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 32mm
- Inlet Location: Top Left
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 32mm
- Outlet Location: Bottom Right
- Radiator Cap Included: Yes
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 21 x 21 x 6 inches
- Weight: 11 POUNDS
CSF Cooling - Racing & High Performance Division
BMW 2002 / 1602 High-Performance All-Aluminum Radiator - Silver
SKU
GQPL-7225
- Regular price
- $449.00
- 1-Row - 31mm Ultra-High-Performance Core
- Requires use of lower radiator coolant hose BMW: 11 53 1 250 702
- Compatible with vehicles equipped with and without Air Conditioning
- M14X1.5P Temperature Switch Sensor Port & Plug
- 2-Year Limited Warranty
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Satin Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- Includes optional / removable mounting brackets to run aftermarket 11" SPAL fan #30100365
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353072257
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 320mm
- Core Material: Aluminum
- Core Row Quantity: 1
- Core Thickness: 31mm
- Core Width: 406mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Satin
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 32mm
- Inlet Location: Top Left
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 32mm
- Outlet Location: Bottom Right
- Radiator Cap Included: Yes
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 21 x 21 x 6 inches
- Weight: 11 POUNDS
- Regular price
- $449.00
Frequently Bought Together
-
Vendor: DFW Speed Syndicate
Ford 240/300 Guide Plates - 3/8
Regular price $50.00 -
Vendor: DFW Speed Syndicate
Ford 240/300 L6 Pro Series Distributor - Modified for EFI Control
Regular price From $300.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 240 Rods
Regular price $635.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 300 Rods
Regular price $635.00
Total price$2,069.00
$2,069.00
Product Description
CSF did a lot of research and development when designing this radiator. While working with Paul Lefevre (Son of Cobra), he told us he wasn't happy with the look, size, design, or performance of anything available on the market. To ensure none of these shortcomings were present in the new radiator, CSF studied several of the other aftermarket offerings. This included other all-aluminum models, plastic aluminum OEM replacements, and the original OE copper-brass radiator. This attention to detail is what helps make the new CSF Radiator unquestionably the best OEM+ & Performance option for the BMW 2002.
- 1-Row - 31mm Ultra-High-Performance Core
- Requires use of lower radiator coolant hose BMW: 11 53 1 250 702
- Compatible with vehicles equipped with and without Air Conditioning
- M14X1.5P Temperature Switch Sensor Port & Plug
- 2-Year Limited Warranty
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Satin Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- Includes optional / removable mounting brackets to run aftermarket 11" SPAL fan #30100365
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353072257
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 320mm
- Core Material: Aluminum
- Core Row Quantity: 1
- Core Thickness: 31mm
- Core Width: 406mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Satin
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 32mm
- Inlet Location: Top Left
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 32mm
- Outlet Location: Bottom Right
- Radiator Cap Included: Yes
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 21 x 21 x 6 inches
- Weight: 11 POUNDS
