- Single Row 31mm Ultra-High-Performance Dual Pass Core
- 2-Year Limited Warranty
- Right Hand Side Radiator (CSF #7206 - Left Hand Side Radiator Sold Seperately)
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Satin Black Finish for OEM+ Look
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- OE Location Fan Shroud Mounting Points
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353072059
- ADD-ON: 7206
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 440mm
- Core Material: Aluminum
- Core Row Quantity: 1
- Core Thickness: 31mm
- Core Width: 340mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Black
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 58mm
- Inlet Location: Top Right
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 58mm
- Outlet Location: Top Left
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 18 x 5 inches
- Weight: 11 POUNDS
CSF Cooling - Racing & High Performance Division

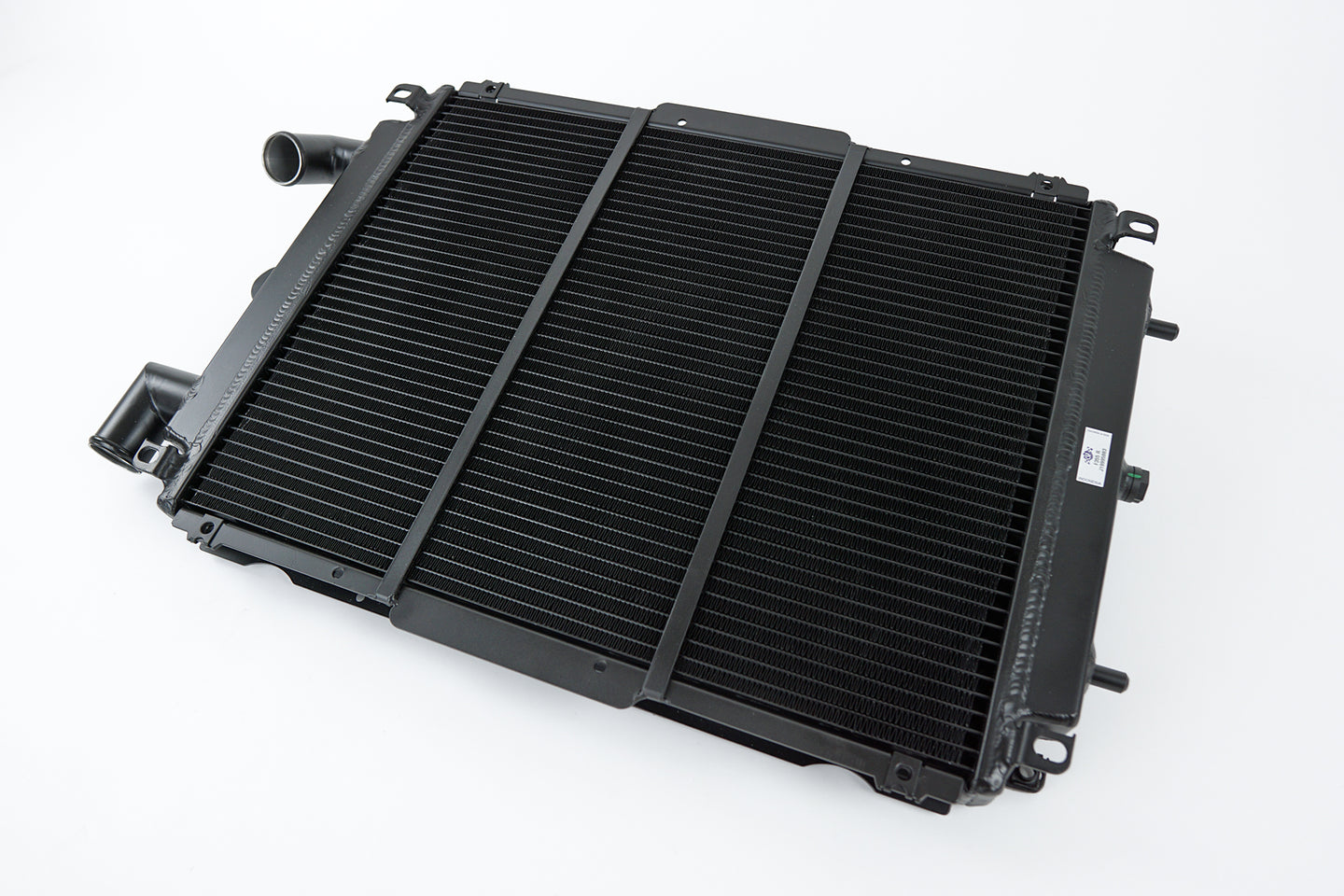

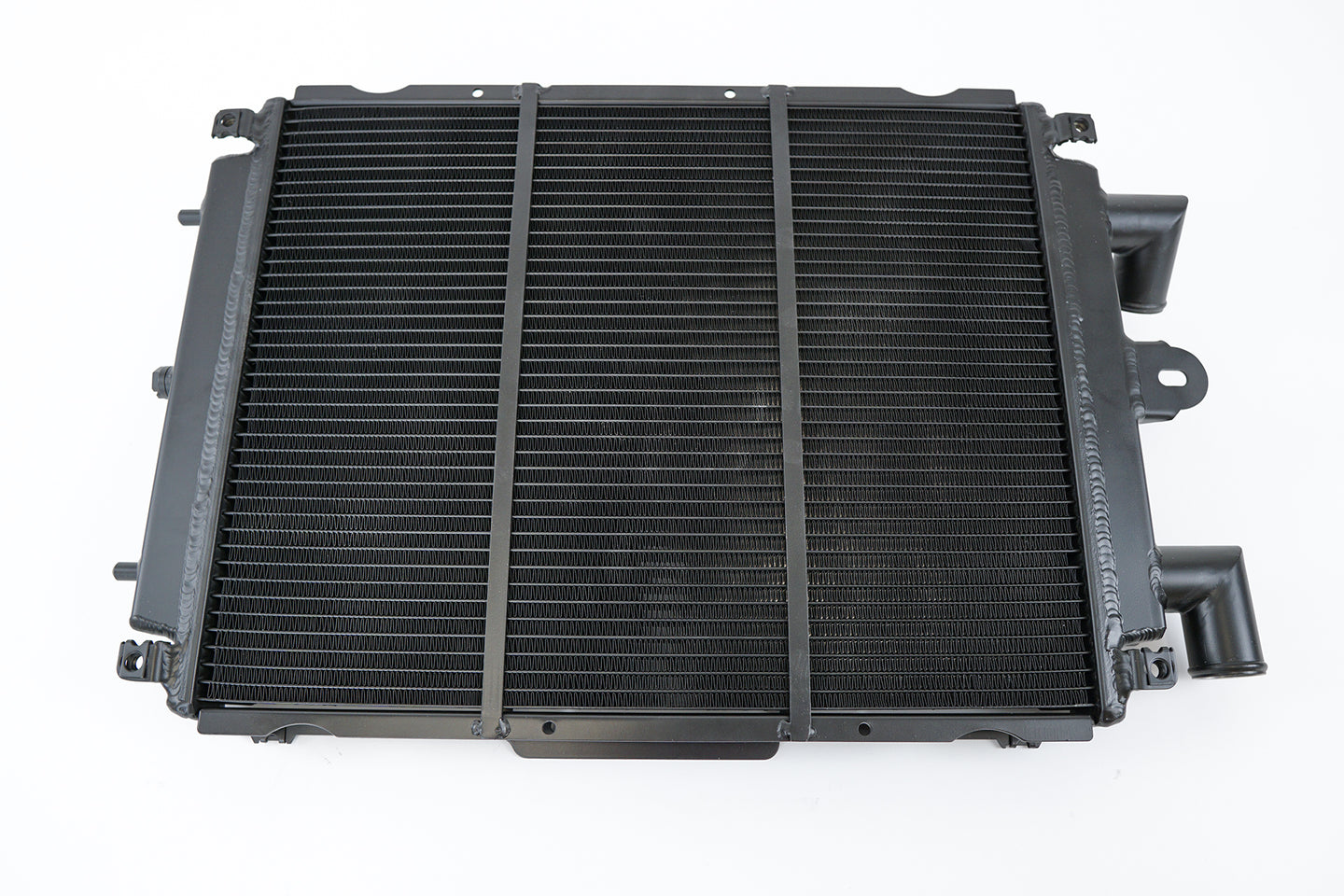

94-99 Ferrari F355 (Right) High-Performance All-Aluminum Radiator
SKU
GQPL-7205
- Regular price
- $749.00
- Single Row 31mm Ultra-High-Performance Dual Pass Core
- 2-Year Limited Warranty
- Right Hand Side Radiator (CSF #7206 - Left Hand Side Radiator Sold Seperately)
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Satin Black Finish for OEM+ Look
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- OE Location Fan Shroud Mounting Points
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353072059
- ADD-ON: 7206
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 440mm
- Core Material: Aluminum
- Core Row Quantity: 1
- Core Thickness: 31mm
- Core Width: 340mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Black
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 58mm
- Inlet Location: Top Right
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 58mm
- Outlet Location: Top Left
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 18 x 5 inches
- Weight: 11 POUNDS
- Regular price
- $749.00
Frequently Bought Together
-
Vendor: DFW Speed Syndicate
Ford 240/300 Guide Plates - 3/8
Regular price $50.00 -
Vendor: DFW Speed Syndicate
Ford 240/300 L6 Pro Series Distributor - Modified for EFI Control
Regular price From $300.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 240 Rods
Regular price $635.00 -
Vendor: DFW Speed Syndicate
Molnar H Beam Ford 300 Rods
Regular price $635.00
Total price$2,369.00
$2,369.00
Product Description
The CSF radiator features a 1-Row 31mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. The 6.5mm super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. In addition, CSF was able to fit 2 additional cooling tubes and rows of fins. The combination of TIG-Welded 100% All Aluminum construction and dual core straps increase the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. Additionally, the satin black finish gives the radiator a clean OEM look and both radiators are a true Plug-and-Play "Drop-in Fit" application.
- Single Row 31mm Ultra-High-Performance Dual Pass Core
- 2-Year Limited Warranty
- Right Hand Side Radiator (CSF #7206 - Left Hand Side Radiator Sold Seperately)
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Satin Black Finish for OEM+ Look
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- OE Location Fan Shroud Mounting Points
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353072059
- ADD-ON: 7206
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 440mm
- Core Material: Aluminum
- Core Row Quantity: 1
- Core Thickness: 31mm
- Core Width: 340mm
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Black
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 58mm
- Inlet Location: Top Right
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 58mm
- Outlet Location: Top Left
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 18 x 5 inches
- Weight: 11 POUNDS
