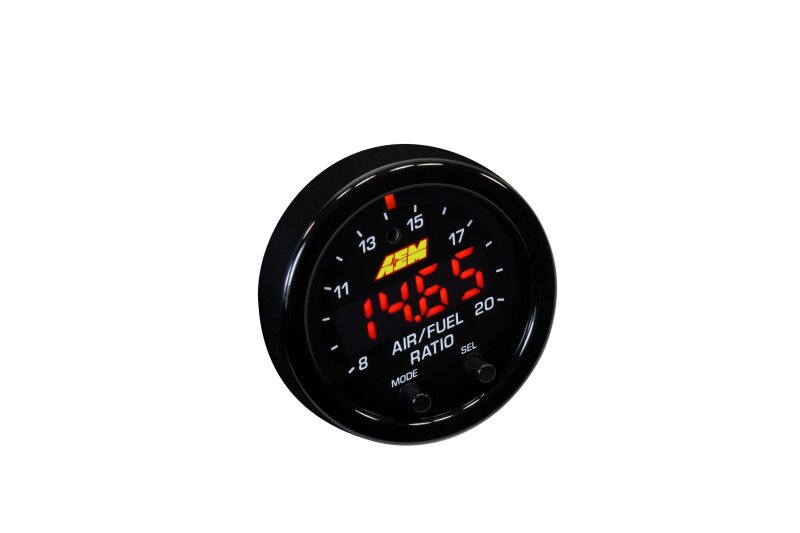

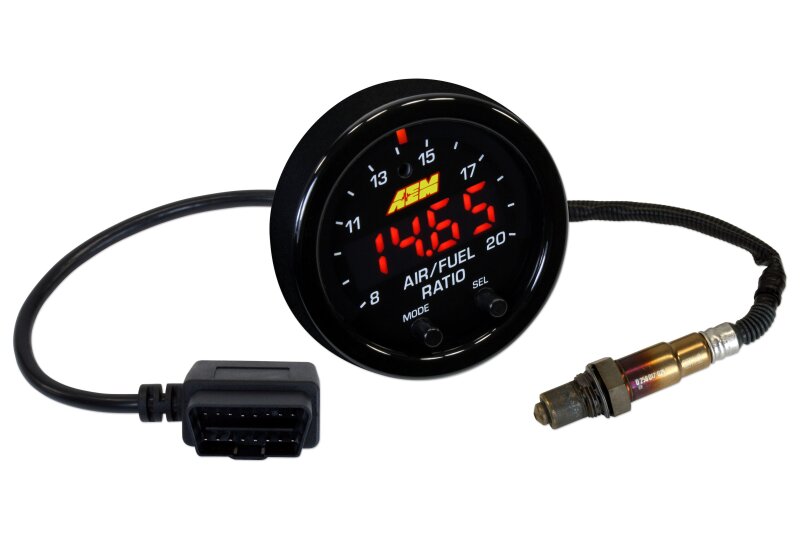

AEM ELECTRONICS 30-0334 - X-SERIES WIDEBAND UEGO AFR SENSOR CONTROLLER GAUGE WITH OBDII CONNECTIVITY
(Replaces part #30-0333)
AEM's X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334) provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune. The 30-0334 X-Series OBDII Wideband Gauge is validated to work with EFILive, HPTuners and DashDaq software.

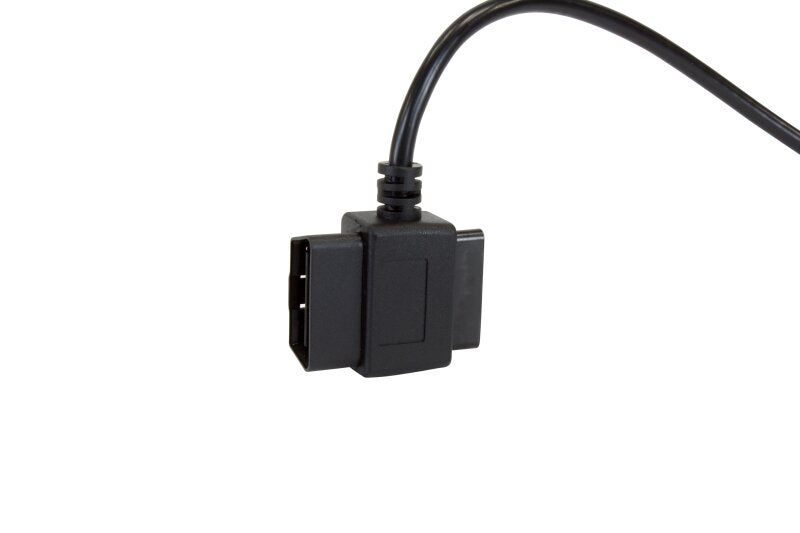

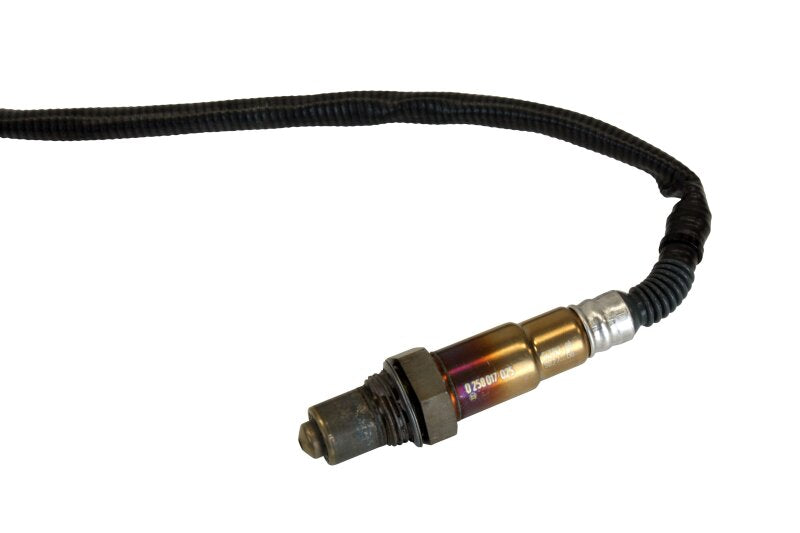

The X-Series Wideband AFR OBDII Gauge includes an OBDII pass-through connector and Bosch 4.9LSU sensor that can be free-air calibrated or used with the factory resistor calibration. Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.
X-SERIES WIDEBAND UEGO CONTROLLER FEATURES:
- Patented X-Digital Technology makes it the Fastest Responding Wideband AFR Controller (Patent # 9,575,030)
- OBDII pass-through provides AFR readings through the factory ECU CAN-bus - Ideal for users with piggyback programmers or open source tuning software

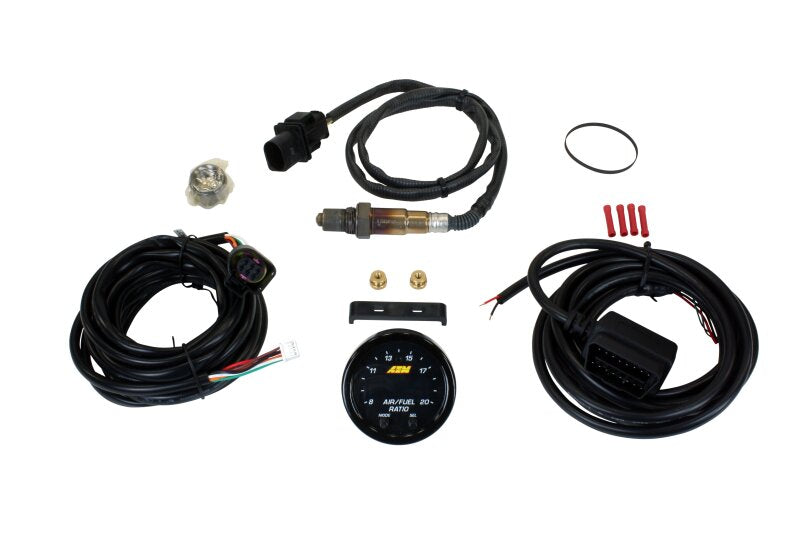

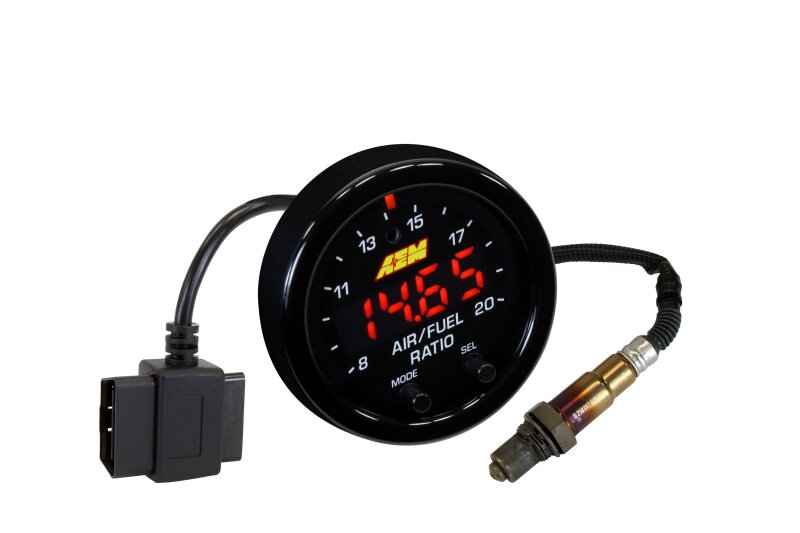

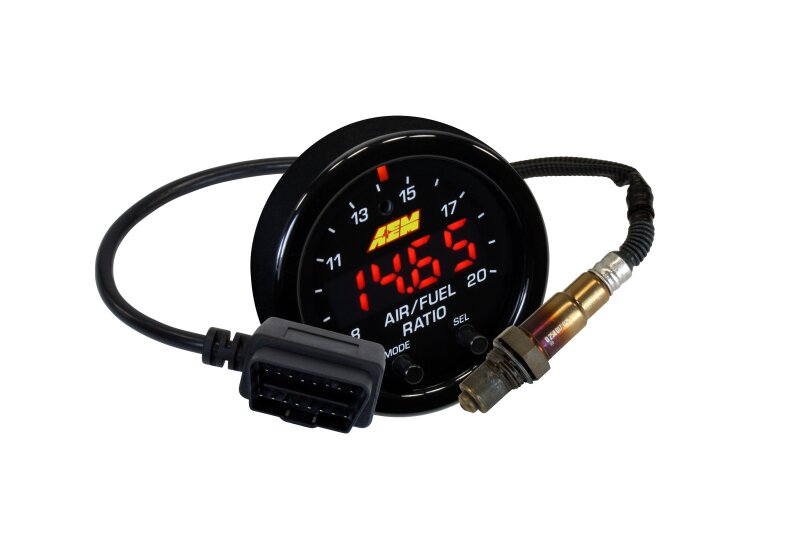

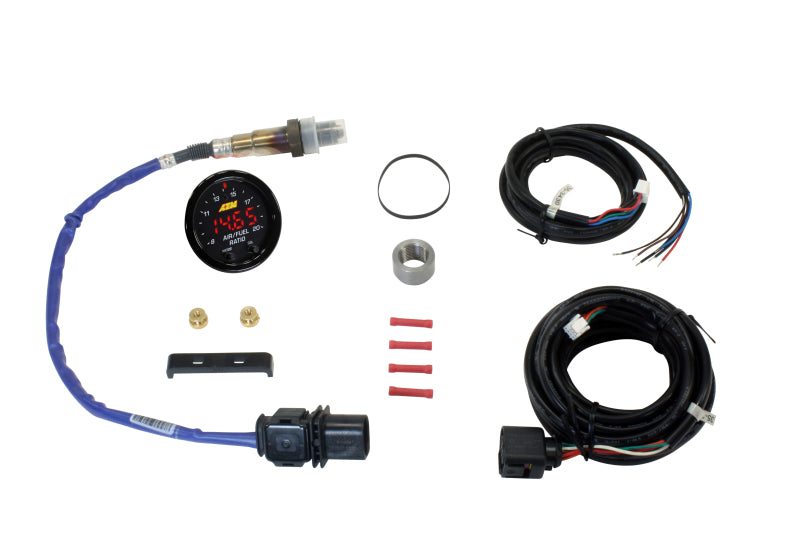

- Includes Bosch 4.9LSU wideband UEGO sensor and OBDII pass-through connector
- Use the factory 02 calibration or free-air calibrate using buttons on faceplate
- Compatible with vehicle/system voltages up to 16V
- Optional outputs for 0-5V & RS232 for data logging and feedback control (requires wiring)
- Can display AFR values in hundredths of %

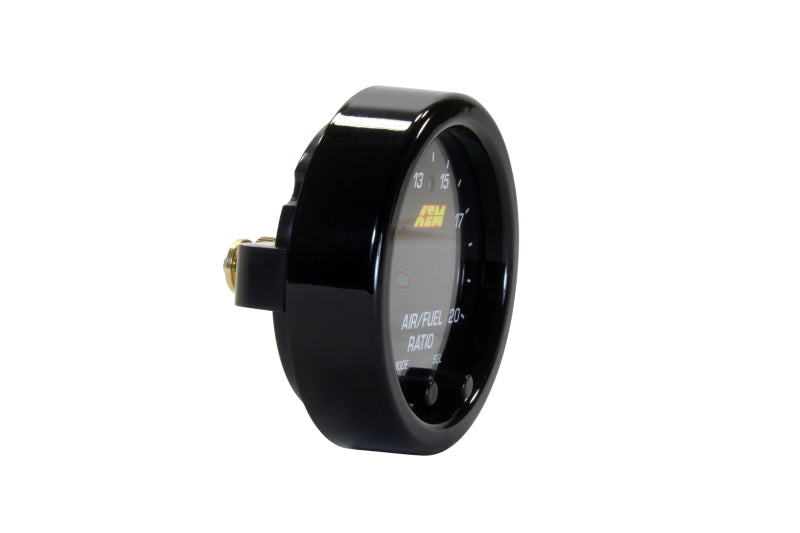

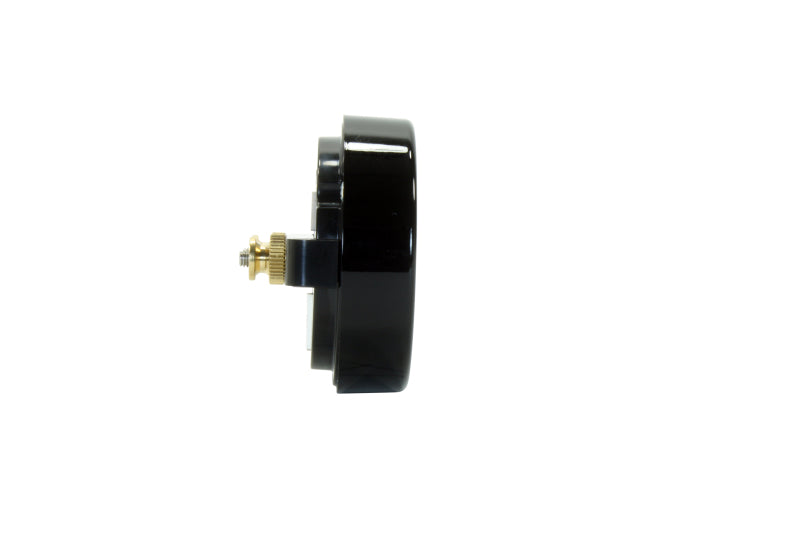

- 52mm gauge diameter and slim 0.825" gauge depth
- Gauge cup depth only .200" deep!
- Auto dimming feature
- User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, 3- or 4-digit display and OBDII output settings (if necessary)
- Black bezel and black dual faced faceplate included (silver bezel/white gauge option sold separately, PN 30-0300-ACC)

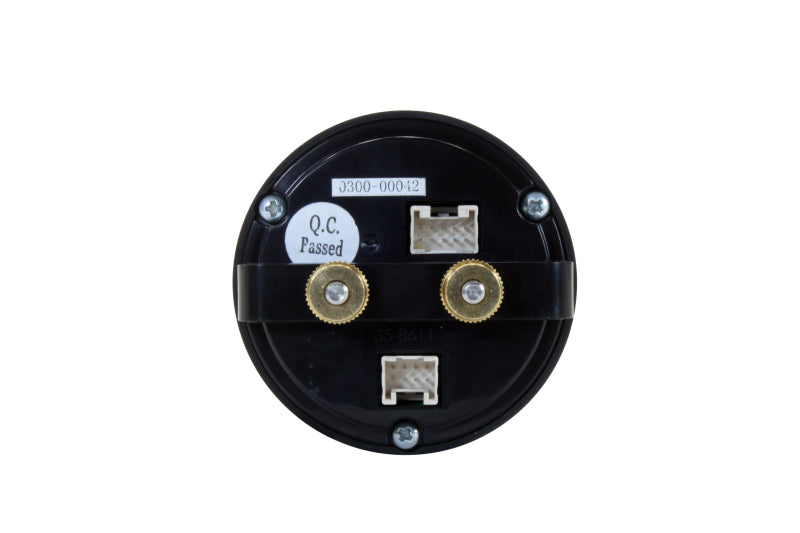

- Locking connectors
AFR VALUE RANGE BY FUEL TYPES:
- Display Gasoline values from 8.0:1 to 20.0:1 AFR
- Display Lambda values from .55 to 2.00
- OBDII Output Gasoline values from 8.0:1 to 20.0:1 AFR
- OBDII Output Lambda values from .55 to 2.00
- 0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR (Requires Wiring)
- 0-5V Output Lambda values from .58 to 1.23 (Requires Wiring)
- 0-5V Output E85 values from 5.7:1 to 12.0:1 AFR (Requires Wiring)
- 0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR (Requires Wiring)
- 0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR (Requires Wiring)
- Regular price
- $314.95
- Sale price
- $279.95
